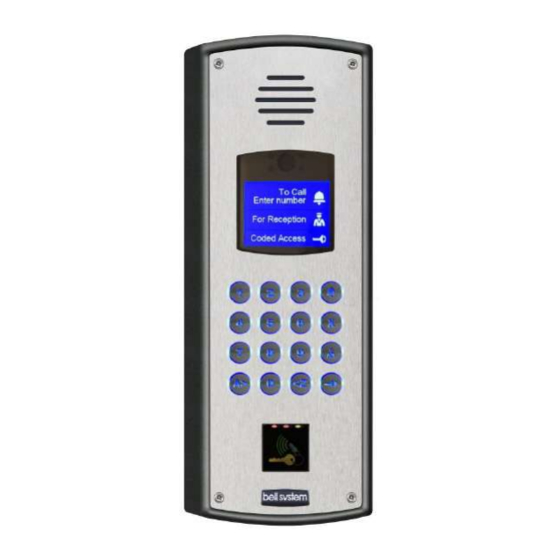

Bell System (Telephones) Ltd.
bellagio
Digital
Video Door Entry System
Installation & Operation Manual
This manual applies to the following: -
– Version 2 Build 3 and up
BFD-DIG Digital Door controller
– Version 3 Build 4 and up
BS Colour Videophone
BF Colour Apartment Station
BSA Audio Phone
– Version 2 Build 7
BSC4 Video Controller
PD–280 Issue 1
May 2016
Advertisement
Table of Contents
Related Manuals for Bell System bellagio
Summary of Contents for Bell System bellagio
- Page 1 Bell System (Telephones) Ltd. bellagio Digital Video Door Entry System Installation & Operation Manual This manual applies to the following: - – Version 2 Build 3 and up BFD-DIG Digital Door controller – Version 3 Build 4 and up BS Colour Videophone...
- Page 2 BG bellagio Digital Entry System bellfree Apartment BS videophone BSA audiophone BS Deskphone Station BSC4 controller BFD-DIG controller Bellagio Entrance Panel PD–280 Issue 1 Installation and Operating Manual Page 2 of 40...
-
Page 3: Table Of Contents
BFD-DIG Door Controller Settings ................. 22 BFD-DIG Door Controller Jumper Settings ..............26 Door Speech Volume Adjustment .................. 27 Bellagio Panel Option Settings ..................28 BSC4 Video Controller Settings ..................29 BF Apartment Station Switch Settings ................31 BS Videophone Switch Settings ..................32 Troubleshooting ...................... - Page 4 BG bellagio Digital Entry System PD–280 Issue 1 Installation and Operating Manual Page 4 of 40...
-
Page 5: Diagram A - Basic System Wiring Overview
BG bellagio Digital Entry System Diagram A – Basic System Wiring Overview PD–280 Issue 1 Installation and Operating Manual Page 5 of 40... -
Page 6: Diagram B - Bfd_Dig Pcb Detail
BG bellagio Digital Entry System Diagram B – BFD_DIG PCB Detail Input Output Camera 1 Camera 2 Video Audio Data Video Audio Data Commn – – – – – – – Cam2 Audio Video High High Cam1 Cam2 Speech 4 3 2 1 0... -
Page 7: Diagram C - Basic System Wiring Detail
BG bellagio Digital Entry System Diagram C – Basic System Wiring Detail PD–280 Issue 1 Installation and Operating Manual Page 7 of 40... -
Page 8: Diagram D - Bsc4 Pcb Detail
BG bellagio Digital Entry System Diagram D – BSC4 PCB Detail Phone 1 Phone 2 Phone 3 Phone 4 Test Test Test Test Phone 1 Phone 2 Phone 3 Phone 4 Power 1 Power 2 Power 3 Power 4 Test... -
Page 9: Diagram E - Bsc4 Wiring Detail
BG bellagio Digital Entry System Diagram E – BSC4 Wiring Detail PD–280 Issue 1 Installation and Operating Manual Page 9 of 40... -
Page 10: Diagram F - Large System Overview
BG bellagio Digital Entry System Diagram F – Large system Overview Illustration of Power Supply Distribution Further Further Entrances Controllers 2 x 1mm² Detailed Wiring and Passthru Power Supply BSC4... Input Controller Calculations Monitors Cat5 are in Manual Cat5 2 x 1mm²... -
Page 11: Diagram G - Extension Videophone Wiring
BG bellagio Digital Entry System Diagram G – Extension Videophone Wiring When additional power cores are required replace the Blu and W/Blu wires with the additional wires Note. For each cable run :- Only one unit must be Master (Recommend the first unit) ... -
Page 12: Diagram H - Videophone Local Power Wiring
BG bellagio Digital Entry System Diagram H – Videophone Local Power Wiring Where more than one extension video unit is required to provide "auto display" then additional power supplies will be required Note. For each cable run :- Only one unit must be Master (Recommend the first unit) ... -
Page 13: Power Supply Requirements
Note 2. The PS4 power supply has been specifically designed to operate with the high- surge requirements of the system. Bell System is unable to guarantee functionality or provide support for systems which use third party power supplies. -
Page 14: Cable Specification
(or greater) power cable as tabulated below. Cat5 cable has a known performance for the transmission of video signals, whilst telephone or alarm cables are not suitable. Bell System will be unable to offer any warranty or support for systems installed using incorrect cables. -
Page 15: Cable Distances
BG bellagio Digital Entry System Cable Distances Video Controller to Videophone System Distance Cable Comments Single videophone per < 150m 1 x Cat5 output or first videophone < 300m 1 x Cat5 2 x 1mm Single videophone + 3 < 50m... -
Page 16: Installation & Commissioning
BG bellagio Digital Entry System Installation & Commissioning Checklist The following checklist is a summary of what is required. Refer to the relevant pages for further details. ● Review the section headed ‘Safety Information’ on page 39. ● Ensure that ‘Power Supply Requirements’ on page 13 have been understood. - Page 17 BG bellagio Digital Entry System Electric Door Release Both fail-secure and fail-safe lock releases (including magnetic locks) use the same terminals. To set the lock type, refer to the ‘Door Controller Settings’. When installing lock releases please allow a little movement on the door, as operation will be impaired if fitted too tight.
- Page 18 Installing the Back Box Close up of Washers The Bellagio panel is constructed to be water tolerant and it is important to install the panel carefully to avoid compromising the seals. Neoprene backed washers are provided to seal the main mounting holes.
-
Page 19: Surface Mounting
BG bellagio Digital Entry System Apartment Station The apartment station is designed to be surface or flush wall mounted onto plasterboard or other masonry at an optimum screen height of 1.6m. DDA considerations may reduce this height to 1.4m. Dimensions are shown in the diagrams below. - Page 20 BG bellagio Digital Entry System BS Videophone The videophone is designed to be wall mounted onto plasterboard or other masonry at an optimum height of 1.6m. It should be fixed with three No 8 pan head screws (not supplied). Use the dimensions shown on the adjacent diagram.
-
Page 21: Commissioning
BG bellagio Digital Entry System Commissioning The major components of the bellagio Digital system are fitted with high quality pluggable screw terminal blocks. This enables all the connections to the system to be fully completed, whilst easily isolating individual pieces of equipment during testing and commissioning. -
Page 22: Bfd-Dig Door Controller Settings
BG bellagio Digital Entry System BFD-DIG Door Controller Settings The BFD-DIG is programmed from the panel for all settings. Security It is strongly recommended that the Panel Security Code be changed from its factory setting to prevent unauthorised access. Record the new number carefully as it cannot be easily changed if lost. - Page 23 BG bellagio Digital Entry System Summary Parameter Name Default Access Description Coded access code – must be 4 digits Access Code 1234 Trade access code – must be 4 digits Trades Code 6789 Lock Time Lock Time: 1-99 seconds...
- Page 24 BG bellagio Digital Entry System TRADE FUNCTION – Door Button Trades Mode Choose the Mode value 0-9 Setting Time Clock Off None None None None Code Code Code Trade Trade Door Time Clock On None Door Code Trade Trade Door Code Trade Door Door ‘None’...
- Page 25 BG bellagio Digital Entry System RING TIME – Ringing Time/Call Time and Ring Effect Enter from 0 to 15 as per the table Setting Ring Time Ring Cadence or Sound Effect 1 in 3 – 1 ring every 3 seconds 1 in 3 –...
-
Page 26: Bfd-Dig Door Controller Jumper Settings
“13” so that the BSC4’s can be set to respond to … 11, 12, 13, 14, 15 … RECEPTION – Is Reception Button Allowed This is used in conjunction with the Bellagio Panel Dip Switch setting to enable the display of the reception function. BFD-DIG Door Controller Jumper Settings... -
Page 27: Door Speech Volume Adjustment
To perform volume adjustment, first borrow the jumper from Prog-6 and place it on the two pin header ZLK. The Yellow Speech LED should light. WARNING. A power fail during a Save may require the unit to be returned to Bell System for reprogramming. Do not perform volume adjustment without the jumper in place. -
Page 28: Bellagio Panel Option Settings
BG bellagio Digital Entry System Bellagio Panel Option Settings Panel Options Switch The panel options switch is used to set custom options for the panel display. The Switch settings are in the table, however some settings may need to made in conjunction with the Door Controller Settings. -
Page 29: Bsc4 Video Controller Settings
The “Video Gain” jumper on video controllers should always be set to “0” unless directed by Bell System Technical. This jumper is only required on some systems with very long camera to videophone cable runs well in excess of 150m. Inappropriate use of this jumper with short runs will cause picture problems. - Page 30 37. The use of this jumper precludes the use of extended addressing by PROG pins 2-3, if both are required contact Bell System Technical. The jumper is stored on pins 4-5. Extended Addressing Jumper PROG pins 2-3 This jumper adds +3200 to the Phone 1 address set using SW6 and SW7.
-
Page 31: Bf Apartment Station Switch Settings
BG bellagio Digital Entry System BF Apartment Station Switch Settings Mute Time Setting SW (1-4) Mute Time On On On On Disabled¹ Off On On On 2 minutes On Off On On 5 minutes Off Off On On 10 minutes... -
Page 32: Bs Videophone Switch Settings
BG bellagio Digital Entry System BS Videophone Switch Settings Mute Time Settings (1-4) Settings Mute Time On On On On Disabled¹ On On On Off 2 minutes On On Off On 5 minutes On On Off Off 10 minutes On Off On On 15 minutes On Off On Off 20 minutes OFF ↔... -
Page 33: Troubleshooting
BG bellagio Digital Entry System Troubleshooting Common Faults A very high percentage of calls to our technical support number, regarding new installations, are resolved to faulty wiring. The reasons for these are various: – Broken cores, especially short links, sometimes broken inside the insulation! Connectors clamped onto the insulation instead of copper. - Page 34 BG bellagio Digital Entry System Videophone, Video or Audio Phone Call Problems Videophone off hook or muted. Videophone does not ring or No power to videophone; check that the mute lamp flash when called. illuminates when the mute symbol is touched.
- Page 35 BG bellagio Digital Entry System Lock Release Problems Lock release does not operate Connections to Lock Release are open or shorted. or clicks but does not open. Voltage drop due to cable too thin. Lock current is too high; Power supply is resetting.
-
Page 36: Specifications
BG bellagio Digital Entry System Specifications BFD-DIG Door Controller Size 185mm x 230mm x 42mm Supply Voltage 10.8V min, 13.8V typical, 15V max Current Consumption 80mA idle @13.8V, 500mA active Includes display, speech not cameras. BSC4 Video Controller Size 185mm x 230mm x 42mm Supply Voltage 10.8V min, 13.8V typical, 15V max... - Page 37 BG bellagio Digital Entry System PS4 Power Supply Size 236mm x 105mm x 81mm Output Voltage (regulated) 13.5V d.c. min, 13.8V d.c. nom, 14.1V d.c. max Output Current 3A continuous, 4A peak (5 minutes max) Mains Supply Internal Fuse Not user replaceable...
- Page 38 BG bellagio Digital Entry System PD–280 Issue 1 Installation and Operating Manual Page 38 of 40...
-
Page 39: Safety Information And Declarations
BG bellagio Digital Entry System Safety Information and Declarations Connections to the 240VAC mains supply must be carried out by a qualified electrician or similar competent person, and made in accordance with current legislative requirements. A two-pole switch (as provided by a Consumer Unit or Switch-Fuse) must be included to isolate both Live and Neutral during Installation or Maintenance. - Page 40 BG bellagio Digital Entry System Bell System (Telephones) Ltd. Presley Way, Crown Hill, Milton Keynes MK8 0ET. Tel: 01908 261106 (Sales and Technical Support) FAX: 01908 261116 E-mail: sales@bellsystem.co.uk technical@bellsystem.co.uk Website: www.bellsystem.co.uk Standards This product complies with European directive 2014/30/EU on Electromagnetic Compatibility and Low Voltage Directive 2014/35/EU.
