Summary of Contents for Bell System Bellissimo BSD1
- Page 1 Bell System (Telephones) Ltd. issimo bell Video Door Entry System 1 Way Installation & Operation Manual This manual applies to the following: – BSD1 1 Way Door Controller – Version 2 Build 5 onward BS Colour Videophone – Version 3 BSA Audio Phone –...
- Page 2 issimo bell 1 Way Video Entry System PD-097 Issue 4 Installation and Operating Manual Page 2 of 40...
-
Page 3: Table Of Contents
issimo bell 1 Way Video Entry System TABLE OF CONTENTS TABLE OF CONTENTS ...................... 3 INTRODUCTION ......................... 4 ........................4 ESCRIPTION ......................... 4 EATURES ..................5 BELLISSIMO OLOUR IDEOPHONE BASIC SYSTEM OPERATION .................... 6 DESIGN CONSIDERATIONS ....................9 ......................... 9 QUIPMENT .......................... -
Page 4: Introduction
issimo bell 1 Way Video Entry System Introduction Description A bellissimo video door entry system consists of a door panel, positioned at the entrance of a building, video telephones (videophone), placed inside of the building for the convenience of the occupants and a power supply and controller which are usually located inside an electrical cupboard. -

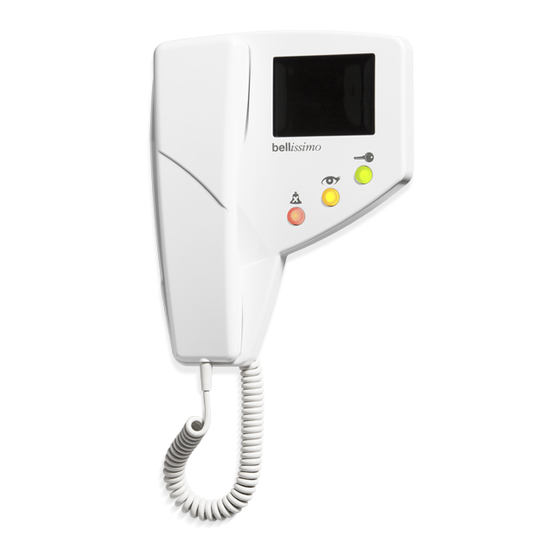

Page 5: Bellissimo Colour Videophone
issimo bell 1 Way Video Entry System issimo bell Colour Videophone Button Lamp Steady Flashing Mute On/Off Videophone is muted Videophone is off-hook View / Camera select Amber Call in progress Ringing Lock Green Door is open Press to release lock PD-097 Issue 4 Installation and Operating Manual Page 5 of 40... -
Page 6: Basic System Operation
issimo bell 1 Way Video Entry System Basic System Operation Call sequence When the call button is pressed at the entrance panel it causes the videophone to ring and the amber view lamp to flash. The videophone will continue to ring for up to 30 seconds or until the resident responds by picking up the handset. - Page 7 issimo bell 1 Way Video Entry System User Activation (CCTV Mode) While the system is idle, pressing the view button will activate the system and display the picture at the entrance panel. Once activated, lifting the handset will enable speech at the entrance and the lock button may now be used to release the door or the user can hang- up.
- Page 8 issimo bell 1 Way Video Entry System Multiple Entrances The bellissimo system allows multiple entrances to be catered for by the addition of a door controller and entrance panel for each entrance and additional power supplies. In a multiple entrance system an optional feature allows the resident to view the cameras at all the entrances with successive presses of the view button.
-
Page 9: Design Considerations
issimo bell 1 Way Video Entry System Design Considerations Equipment List A BS1 one-way bellissimo Video Kit comprises the following: - Model No Description 1 x BS Colour Videophone 1 x BSP1 Standard panel with a model 61 speech unit and camera. 1 x BSD1 Door controller. -
Page 10: Power Supply Requirements
Note 2. The PS4 power supply has been specifically designed to operate with the high- surge requirements of the system. Bell System is unable to guarantee functionality or provide support for systems which use third party power supplies. -
Page 11: Cable Specification
(or greater) power cable as tabulated below. Cat5 cable has a known performance for the transmission of video signals, whilst telephone or alarm cables are not suitable. Bell System will be unable to offer any warranty or support for systems installed using incorrect cables. -
Page 12: Cable Distances - Colour Videophones
issimo bell 1 Way Video Entry System Cable Distances – Colour Videophones Door Controller to Videophone System Distance Cable Comments Single videophone < 150m 1 x Cat5 > 300m 1 x Cat5 2 x 1mm Single videophone + 3 < 50m 1 x Cat5 Only Master videophone has ‘Auto display’;... -
Page 13: Installation & Commissioning
issimo bell 1 Way Video Entry System Installation & Commissioning Checklist The following checklist is a summary of what is required. Refer to the relevant pages for further details. ● Review the section headed ‘Safety Information’ on page 39. ● Ensure that ‘Design Considerations’ on page 9 have been understood. ●... - Page 14 issimo bell 1 Way Video Entry System Audio Phones The BSA audio phone can be used as a lower cost alternative to an extension videophone. It is styled like the bellissimo videophone. The phone is manufactured in white and grey high-impact ABS plastic that imparts high durability and compliments most wall furnishings.
-
Page 15: Commissioning
issimo bell 1 Way Video Entry System Fail Secure Exit: Notes Commonly fail secure exit doors incorporate a thumb-turn, door handle or mini push bar rather than use of an exit button. Fire officers usually require a minimum of door handle or push bar to open a door on a fire exit route –... -
Page 16: Bsd1 Door Controller Switch Settings
issimo bell 1 Way Video Entry System BSD1 Door Controller Switch Settings Talking Time/Videophone Active DIP SW1 (1-4) Talk Time On On On On 15s On On On Off 20s On On Off On 30s SW1 SW2 SW3 On On Off Off 45s On Off On On 60s On Off On Off 75s On Off Off On 90s... - Page 17 issimo bell 1 Way Video Entry System Lock Operate Time Dip SW2 (1-3) Lock Time On On On 3s* SW1 SW2 SW3 On On Off 4s On Off On 5s On Off Off 6s Off On On 8s Off On Off 10s Off Off On 15s Off Off Off 20s OFF ↔...
- Page 18 issimo bell 1 Way Video Entry System Camera Numbering DIP SW3 (1-8) Camera 1 at this door Last Camera Number Number SW1 SW2 SW3 On On On On *1 On On On On *1 On On On Off 2 On On On Off 2 On On Off On 3 agama On On Off On 3...
-
Page 19: Bsd1 Door Controller Jumper Settings
The “Video Gain” jumper on door controllers should always be set to “0” unless directed by ‘Bell System Technical Support’. This jumper is only required on some systems with very long camera to videophone cable runs well in excess of 150m. Inappropriate use of this jumper with short runs will cause picture problems. -
Page 20: Bs Videophone Switch Settings
issimo bell 1 Way Video Entry System BS Videophone Switch Settings Mute Time Settings (1-4) Settings Mute Time On On On On Disabled¹ On On On Off 2 minutes On On Off On 5 minutes On On Off Off 10 minutes On Off On On 15 minutes On Off On Off 20 minutes OFF ↔... -
Page 21: Troubleshooting
issimo bell 1 Way Video Entry System Troubleshooting Common Faults A very high percentage of calls to our technical support number, regarding new installations, are resolved to faulty wiring. The reasons for these are various: - Broken cores, especially short links, sometimes broken inside the insulation! Connectors clamped onto the insulation instead of copper. - Page 22 issimo bell 1 Way Video Entry System Lock Release Problems Lock release does not operate Connections to Lock Release are open or shorted. or clicks but does not open. Voltage drop due to cable too thin. Lock current is too high; Power supply is resetting. ...
- Page 23 issimo bell 1 Way Video Entry System Speech Problems Loud tone at the entrance Volume controls set too high. speaker. (Acoustic Broken Audio 1 or 2 wire in the cabling. feedback). Intermittent or broken wire in Data A or B. ...
-
Page 24: Specifications
issimo bell 1 Way Video Entry System Specifications BSD1 Door controller Size 185mm x 230mm x 42mm Supply Voltage 10.8V min, 13.8V typical, 15V max Current Consumption 80mA idle @13.8V, 250mA active includes speech not cameras Model CAMBS-C Colour Camera Size 60mm x 57mm x 31mm Supply Voltage... - Page 25 issimo bell 1 Way Video Entry System PS4 Power Supply Size 236mm x 105mm x 81mm Output Voltage (regulated) 13.5V d.c. min, 13.8V d.c. nom, 14.1V d.c. max Output Current 3A continuous, 4A peak (5 minutes max) Mains Supply Internal Fuse Not user replaceable Supply Voltage 230V 50Hz nominal...
-
Page 26: Diagram A - 1 Way Basic System Cabling Overview
issimo bell 1 Way Video Entry System Diagram A – 1 Way Basic System Cabling Overview PD-097 Issue 4 Installation and Operating Manual Page 26 of 40... -
Page 27: Diagram B - 1 Way Basic System Wiring Detail
issimo bell 1 Way Video Entry System Diagram B – 1 Way Basic System Wiring Detail PD-097 Issue 4 Installation and Operating Manual Page 27 of 40... -
Page 28: Diagram C - 1 Way Multiple Entrance Overview Cabling
issimo bell 1 Way Video Entry System Diagram C – 1 Way Multiple Entrance Overview Cabling PD-097 Issue 4 Installation and Operating Manual Page 28 of 40... -
Page 29: Diagram D - 1 Way Multiple Entrance Wiring Detail
issimo bell 1 Way Video Entry System Diagram D – 1 Way Multiple Entrance Wiring Detail PD-097 Issue 4 Installation and Operating Manual Page 29 of 40... -
Page 30: Diagram E - 1 Way Pcb Detail
issimo bell 1 Way Video Entry System Diagram E – 1 Way PCB Detail Input Output Camera 1 Camera 2 Video Audio Data Video Audio Data Commn Monitor Power Audio Video High High Cam1 Cam2 Video Gain 4 3 2 1 0 Label BSD1 Version No Test... -
Page 31: Diagram F - Extension Videophone Wiring
issimo bell 1 Way Video Entry System Diagram F – Extension Videophone Wiring When alternate power wires are required replace Blu and W/Blu with the alternate wires. Note. For each cable run :- Only one unit must be Master (Recommend the first unit) ... -
Page 32: Diagram G - Videophone Local Power Wiring
issimo bell 1 Way Video Entry System Diagram G – Videophone Local Power Wiring Where more than one extension video unit is required to provide "auto display" then additional power supplies will be required Note. For each cable run :- ... -
Page 33: Diagram H - Videophone Connections
issimo bell 1 Way Video Entry System Diagram H – Videophone Connections Local Bell Connection This is for a standard bell push with volt free contacts, or any other volt free contact. An illuminated bell push is not catered for. Auxiliary Ring Circuit Primarily included for activating third party DDA devices the auxiliary ring output consists of a pair of volt free contacts which close while the phone is ringing. -
Page 34: Diagram I - Option Details
issimo bell 1 Way Video Entry System Diagram I – Option Details Camera Termination Options Cameras may be wired in either twisted pair or coax and shared with other equipment. Twisted Pair Through Connection Twisted Pair Termination From From To other Camera Camera equipment... -
Page 35: Diagram J - 1 Way Complete Dda Panel Wiring
issimo bell 1 Way Video Entry System Diagram J – 1 Way Complete DDA Panel Wiring PD-097 Issue 4 Installation and Operating Manual Page 35 of 40... -
Page 36: Diagram K - Bellissimo Combined System Connections
issimo bell 1 Way Video Entry System Diagram K – bellissimo Combined System Connections Connecting a Bellcode Coded Access Controller Connect the lock release as per this manual. Leave the Bellcode controller set to fail secure, the BSD controller sets the lock type. See "Bellcode Manual inc CK200 CS109 (PD-078)"... -
Page 37: Diagram L - Act Proximity To Bellissimo Connections
issimo bell 1 Way Video Entry System Diagram L – ACT Proximity to bellissimo Connections ACT 1000/2000/3000 Proximity Controller ACT 100e Proximity Extender Notes 1. Connect the lock release or Maglock using the ACT Manuals. 2. Leave the BSD controller set to Fail Secure regardless of the type of release used. 3. - Page 38 issimo bell 1 Way Video Entry System PD-097 Issue 4 Installation and Operating Manual Page 38 of 40...
-
Page 39: Safety Information And Declarations
issimo bell 1 Way Video Entry System Safety Information and Declarations Connections to the 240VAC mains supply must be carried out by a qualified electrician or similar competent person, and made in accordance with current legislative requirements. A two-pole switch (as provided by a Consumer Unit or Switch-Fuse) must be included to isolate both Live and Neutral during Installation or Maintenance. - Page 40 1 Way Video Entry System Bell System (Telephones) Ltd. Presley Way, Crown Hill, Milton Keynes MK8 0ET. Tel: 01908 261106 (Sales and Technical Support) FAX: 01908 261116 Local rate numbers Tel: 0845 121 4008 (Sales and Technical Support) FAX: 0845 121 4009 E-mail: sales@bellsystem.co.uk...
