VS-GW1202-16S Connect with
Elastix
Server
®
QuickStart Guide

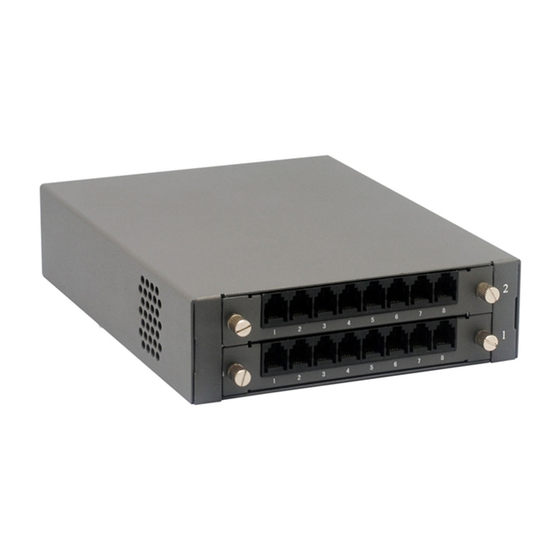

This document applies to OpenVox VS-GW1202-16S analog gateway.
The Default IP is 172.16.99.1, Username is admin and Password
is admin too. There are two LAN ports, you can connect gateway to
Internet through either of them and you can see the connectivity by
LED status.
Analog Cards
VS-GW1202-16S
Analog Phone
Internet
SIP Phone
Elastix Server
172.16.1.194
Soft SIP Phone
www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for OpenVox VS-GW1202-16S
Summary of Contents for OpenVox VS-GW1202-16S
- Page 1 Server ® QuickStart Guide This document applies to OpenVox VS-GW1202-16S analog gateway. The Default IP is 172.16.99.1, Username is admin and Password is admin too. There are two LAN ports, you can connect gateway to Internet through either of them and you can see the connectivity by LED status.
- Page 2 If your system topology like the figure described, please enter the gateway default IP address to login web, and click “NETWORK—>LAN Settings” to set network parameters such as IP. www.openvox.cn www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299...
- Page 3 About other parameters in SIP, please set by your requirements for there is no need to set them in simple calls. Then you should modify your Channel Settings, “ANALOG -> Channel Settings” to set Sip Account. You can press the button www.openvox.cn www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299...
- Page 4 Step4. Create a SIP Trunk in Elastix Server ® ® Please login your Elastix server to create a SIP trunk (666). On Elastix server web, please choose “PBX—>Trunks—>Add SIP Trunk” to set like that: www.openvox.cn www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299...
- Page 5 QuickStart Guide ® Step5. Configure Outbound Routes in Elastix Sever www.openvox.cn www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299...
- Page 6 Server. Then as configurations ahead, you can dial “6666”, the analog phone “666” will rang. If you want to dial out, you should install analog cards on your server. www.openvox.cn www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299...
