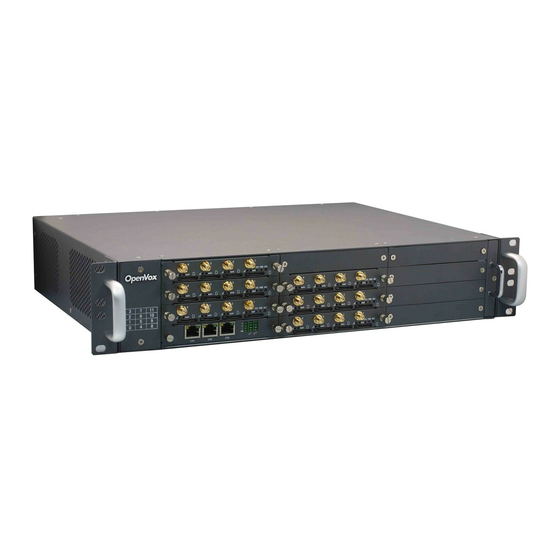

OpenVox VS-GW2120 Series User Manual

High density & capability csm 44 ports gateway
Hide thumbs Also See for VS-GW2120 Series:
Table of Contents

Advertisement

Quick Links

Download this manual

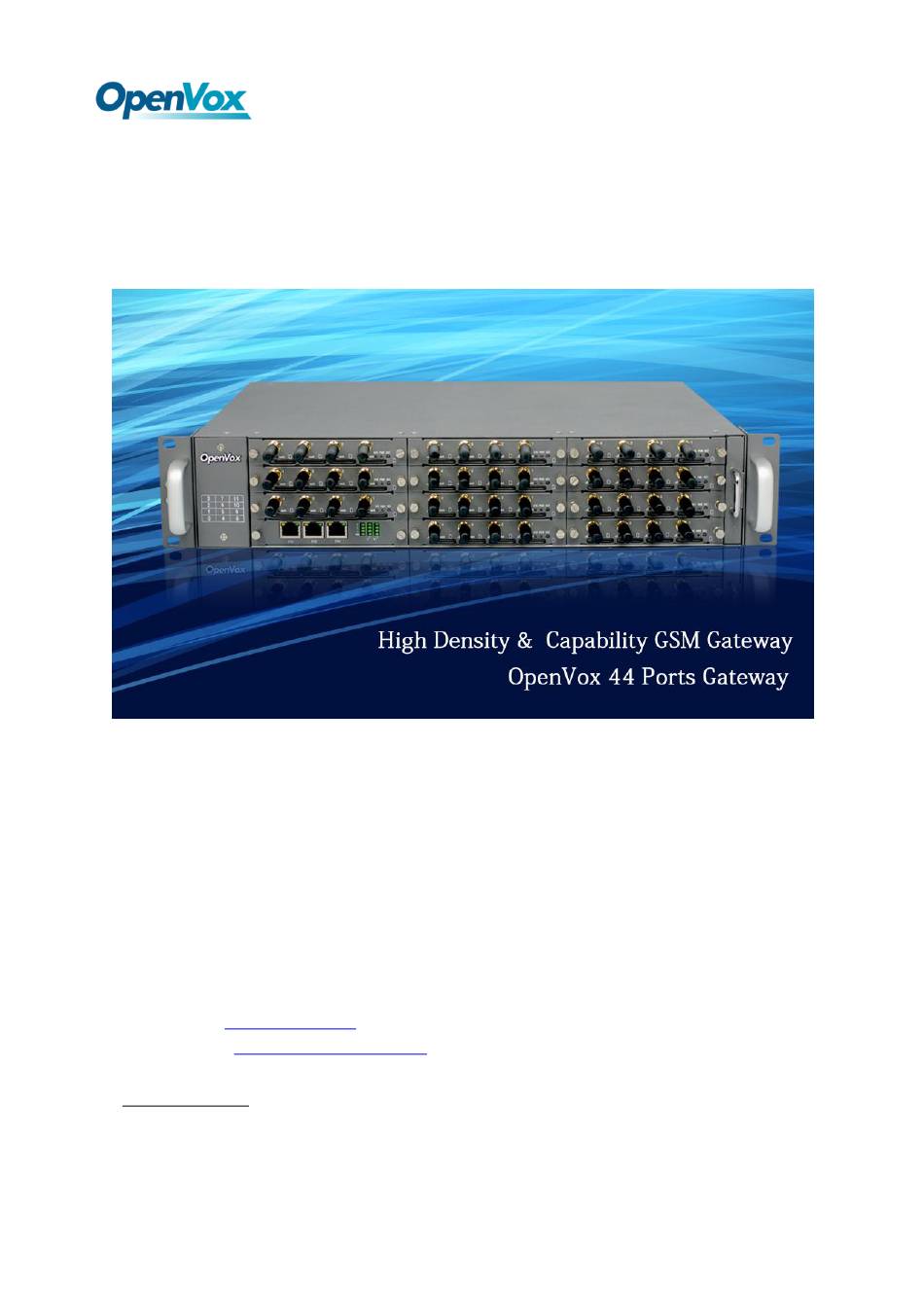

VS-GW2120 Series User Manual
Address: F/3, Building 127, Jindi Industrial Zone, Futian District, Shenzhen, Guangdong, China,
518048
Tel: +86-755-82535461, 82535095, 82535362
Fax: +86-755-83823074
Business Contact:
sales@openvox.cn
Technical Support:
support@openvox.com.cn
Business Hours: 09:00-18:00(GMT+8) from Monday to Friday
URL: www.openvox.cn
http://ArtTel.ru

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VS-GW2120 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for OpenVox VS-GW2120 Series

Summary of Contents for OpenVox VS-GW2120 Series

  • Page 1 VS-GW2120 Series User Manual Address: F/3, Building 127, Jindi Industrial Zone, Futian District, Shenzhen, Guangdong, China, 518048 Tel: +86-755-82535461, 82535095, 82535362 Fax: +86-755-83823074 Business Contact: sales@openvox.cn Technical Support: support@openvox.com.cn Business Hours: 09:00-18:00(GMT+8) from Monday to Friday URL: www.openvox.cn http://ArtTel.ru...
  • Page 2 VS-GW2120 Series User Manual Version1.0 (2014-08-21) Full text The overall layout adjustment OpenVox Communication Co.Ltd http://ArtTel.ru...
  • Page 3 OpenVox has made every effort to ensure that the information contained in this document is accurate and complete; however, the contents of this document are subject to revision without notice. Please contact OpenVox to ensure you have the latest version of this document.

  • Page 4: Table Of Contents

    VS-GW2120 Series User Manual Table of Contents 1. Overview ..........................1 What is VS-GW2120 Series? Sample Application Product Appearance Main Features Physical Information Software 2. System ........................... 6 Status Time Login Settings General and Cluster Language Settings Scheduled Reboot Working Mode...
  • Page 5 VS-GW2120 Series User Manual Advanced: Registration Options Call Settings Advanced: Signaling Settings Advanced: Timer Settings Advanced SIP Settings Networking Advanced: NAT Settings Parsing and Compatibility Security Media Codec Settings 5. Routing ..........................38 Call Routing Rule Groups MNP Settings 6. SMS ............................43...
  • Page 6 VS-GW2120 Series User Manual Application Diagrams ....................... 64 OpenVox Communication Co.Ltd http://ArtTel.ru...

  • Page 7: Overview

    SIM cards and GSM gateway modules. Users can simply add or remove the modules for hardware expansion or exchange. The VS-GW2120 Series gateway designs with 3 LAN switch boards to provide stack ability on the hardware upgrade, and 11 VS-GWM400G modules which are independent with each other, so each one has a GUI configuration web.

  • Page 8: Sample Application

    VS-GW2120 Series User Manual Sample Application Figure 1-2-1 Topological Graph Product Appearance The picture below is appearance of VS-GW2120 SERIES. Figure 1-3-1 Product Appearance OpenVox Communication Co.Ltd http://ArtTel.ru...
  • Page 9 VS-GW2120 Series User Manual Figure 1-3-2 Front Panel SYS PWR RST SYS PWR RST SYS PWR RST work work work work work work work work work work work work SYS PWR RST SYS PWR RST SYS PWR RST work work...

  • Page 10: Main Features

    VS-GW2120 Series User Manual Figure 1-3-3 Front Panel Reset Reset Reset Reset Reset Reset Reset Reset Reset Reset Reset LAN1 LAN2 LAN3 Table 1-3-2 LED Indicator LED Indicator Color Status Green and Flash Module Initiating Red and Flash No SIM Card...

  • Page 11: Physical Information

    VS-GW2120 Series User Manual  Support SMS remotely controlling gateway  Support USSD service  Support IMEI modification  Support PIN identification  Support unlimited routing rules and flexible routing settings  SIM cards and modules are all hot-swap  Stable performance, flexible dialing, friendly GUI...

  • Page 12: System

    VS-GW2120 Series User Manual Figure 1-6-1 LOG IN Interface 2. System Status On the “Status” page, you will find all GSM, SIP, Routing, Network information and status. OpenVox Communication Co.Ltd http://ArtTel.ru...
  • Page 13 VS-GW2120 Series User Manual Figure 2-1-1 System Status Table 2-1-1 Description of System Status Options Definition Port Number of GSM ports. Signal Display the signal strength of in each channels of GSM. OpenVox Communication Co.Ltd http://ArtTel.ru...

  • Page 14: Time

    VS-GW2120 Series User Manual Bit Error Rate. Carrier Display the network carrier of current SIM card. Registration Status Indicates the registration status of current GSM module. Post Dial Delay (PDD) is experienced by the originating customer as the time from the sending of the final dialed digit to the point at which they hear ring tone or other in-band information.

  • Page 15: Login Settings

    VS-GW2120 Series User Manual NTP Server 2 The first reserved NTP server. For example, [time.windows.com]. NTP Server 3 The second reserved NTP server. For example, [time.nist.gov]. Whether enable automatically synchronize from NTP server or not. ON is Auto-Sync from NTP enable, OFF is disable this function.
  • Page 16 VS-GW2120 Series User Manual Table 2-3-1 Description of Login Settings Options Definition Define your username and password to manage your gateway, without space here. Allowed characters User Name "-_+. < >&0-9a-zA-Z". Length: 1-32 characters. Allowed characters "-_+. < >&0-9a-zA-Z". Password Length: 4-32 characters.

  • Page 17: General And Cluster

    If use your system frequently, you can set this enable, it can helps system work more efficient. Working Mode OpenVox GSM Gateway offers you two ways to cluster your gateway: Automatic Cluster or Manual Cluster. When you first time log in your gateway, you will only see 4 ports of one module. Then you can OpenVox Communication Co.Ltd...
  • Page 18 VS-GW2120 Series User Manual press button, the system will search other modules in the LAN and communicate. Figure 2-4-3 Automatic Cluster If you want to choose Manual Cluster, you should switch Detail on first. There are five VS-GWM400G modules which are independent with each other integrated in one GSM Gateway, so we offer 3 kinds of Working Modes.

  • Page 19: Tools And Information

    VS-GW2120 Series User Manual Table 2-4-1 Definition of Master Options Options Definition Stand-alone Mode Mode Master Mode Slave Mode Password Master Mode password. (master mode) Must be 4~16 bits digital 0-9. Master’s target IP. Master IP(Local IP) Must be set in the subnet different from external subnet, (master mode) so that the external subnet couldn’t access internal subnet.

  • Page 20: Information

    VS-GW2120 Series User Manual We offer 2 kinds of update types for you, you can choose System Update or System Online Update. System Online Update is an easier way to update your system, if you choose it, you will see some information below.

  • Page 21: Gsm

    VS-GW2120 Series User Manual Figure 2-5-5 System Information 3. GSM You can see much information about your SIM cards on this page. GSM Settings Figure 3-1-1 GSM Settings OpenVox Communication Co.Ltd http://ArtTel.ru...
  • Page 22 VS-GW2120 Series User Manual On this page, you can see your GSM module status and click action button to configure the port. Figure 3-1-2 Port Configure As you see, we have offered “Band” option, you can select different bands easily and you have many options.

  • Page 23: Imei Modification

    VS-GW2120 Series User Manual Figure 3-1-4 PIN Code Application Then input your password, system will identify numbers of SIM cards. It can help to prevent SIM card from being stolen and improve security. If you want to hide your number when you call out, you can just switch CLIR “ON” (Of course you need your operator’s support).
  • Page 24 VS-GW2120 Series User Manual browser. http://172.16.158.1/cgi-bin/php/gsm-autoimei.php. Then you will see the following picture. Don’t forget to switch “Enable” to “ON”, or you can’t change your IMEI numbers. Figure 3-1-9 IMEI Modification Also you can choose to modify one or more certain ports or all ports. You can set automatic modification interval by filling in the time you want.
  • Page 25 VS-GW2120 Series User Manual You just need to fill in “Set to All ”, then press “Set to All”, you can see the interface as above. Don’t forget to press “Save”. Then “Current IMEI” will change. That means Autogeneration. If you want to set a certain number as your IMEI, you can press “Manual”.

  • Page 26: Call Duration Limit Settings

    VS-GW2120 Series User Manual SMS Center Your SMS center number of your local carrier. Number GSM Module You can click “Modify” button and automatically modify it. IMEI Call Duration Limit Settings Now we can offer you two types of call duration limit, you can choose “Single Call Duration Limit”...
  • Page 27 VS-GW2120 Series User Manual Figure 3-1-13 Call Duration Limitation Settings The same algorithm with single time limitation, the total calling time of this port can’t beyond the product of “Step” and “Call Duration Limitation”. If the duration of a call is less than “Minimum Charging Time”, it will be not included in “Call Duration”.
  • Page 28 VS-GW2120 Series User Manual Figure 3-1-15 Save To Other Ports If you have set like this, you will see many on the Web GUI, you can set whether to check. Notice: When you do some changes, you need to Save and Apply, then “Remain Time” will show as you set.

  • Page 29: Call Forwarding

    VS-GW2120 Series User Manual Step Step length value range is 1-120 s, step length multiplied by time of single call just said a single call duration time allowed. Enable Single Call Definite maximum call duration for single call. Example: if Time of...

  • Page 30: Dtmf

    VS-GW2120 Series User Manual Figure 3-2-1 Call Forwarding Notice: Don’t forget to save your settings. Please first press button, then press button.. DTMF You can do some DTMF Detection Settings if you choose “GSM -> DTMF”. Figure 3-3-1 DTMF Detection Settings Notice: If you don’t have special need, you don’t have to modify these settings.

  • Page 31: Toolkit

    VS-GW2120 Series User Manual  DTMF Relative Peak Row: The value is the smaller and the detection is easier. If you lost some numbers, you can try to put the value down. The adjustment range is 0.02 at a time.

  • Page 32: Sip

    VS-GW2120 Series User Manual Enter a specific USSD number (For example,*142# to check your SIM card's balance. This USSD number is might be different from different carriers) to Get USSD get the USSD information. The gateway will try to get by AT commands.

  • Page 33: Main Endpoint Settings

    VS-GW2120 Series User Manual Figure 4-1-1 SIP Status Main Endpoint Settings You can click button to add a new SIP endpoint, and if you want to modify existed endpoints, you can click button. There are 3 kinds of registration types for choose. You can choose Anonymous, Endpoint registers with this gateway or This gateway registers with the endpoint.
  • Page 34 VS-GW2120 Series User Manual Figure 4-1-2 Anonymous Registration For convenience, we have designed a method that you can register your SIP endpoint to your gateway, thus your gateway just work as a server. Figure 4-1-3 Register to Gateway Also you can choose registration by “This gateway registers with the endpoint”, it’s the same with “None”, except name and password.
  • Page 35 VS-GW2120 Series User Manual Figure 4-1-4 Register to Server Table 4-1-1 Definition of SIP Options Options Definition Display name. Name Username Register name in your SIP server. Password Authenticating with the gateway and characters are allowed. None---Not registering; Endpoint registers with this gateway---When register as this type, it...

  • Page 36: Advanced: Registration Options

    VS-GW2120 Series User Manual No---Use Rport if the remote side says to use it. Force Rport on---Force Rport to always be on. Yes---Force Rport to always be on and perform comedia RTP NAT Traversal handling. Rport if requested and comedia---Use Rport if the remote side says to use it and perform comedia RTP handling.

  • Page 37: Advanced: Signaling Settings

    VS-GW2120 Series User Manual Set default DTMF Mode for sending DTMF. Default: rfc2833. DTMF Mode Other options: 'info', SIP INFO message (application/dtmf-relay); 'Inband', Inband audio (require 64kbit codec -alaw, ulaw). Trust Whether or not the Remote-Party-ID header should be trusted.

  • Page 38: Advanced: Timer Settings

    VS-GW2120 Series User Manual Whether or not to allow 302 or REDIR to non-local SIP address. Allow Promiscuous Note that promiscredir when redirects are made to the local system will Redirects cause loops since this gateway is incapable of performing a "hairpin" call.

  • Page 39: Advanced Sip Settings

    VS-GW2120 Series User Manual Advanced SIP Settings Networking Table 4-2-1 Definition of Networking Options Options Definition UDP Bind Port Choose a port on which to listen for UDP traffic. Enable TCP Enable server for incoming TCP connection (default is no).

  • Page 40: Advanced: Nat Settings

    VS-GW2120 Series User Manual Local Network List Local IP address list that you added. Through the use of the test_stun_monitor module, the gateway has the ability to detect when the perceived external network address has changed. When the stun_monitor is installed and configured, chan_sip will...

  • Page 41: Parsing And Compatibility

    VS-GW2120 Series User Manual Start of RTP Port Start of range of port numbers to be used for RTP. Range End of RTP port End of range of port numbers to be used for RTP. Range Parsing and Compatibility Table 4-2-3 Instruction of Parsing and Compatibility...

  • Page 42: Security

    VS-GW2120 Series User Manual Registration How often, in seconds, to retry registration calls. Default 20 seconds. Timeout Number of Number of registration attempts before we give up. 0 = continue forever, Registration hammering the other server until it accepts the registration. Default is 0 Attempts Enter '0' tries, continue forever.

  • Page 43: Media

    VS-GW2120 Series User Manual Media Table 4-2-5 Instruction of Media Options Definition Some ISDN links send empty media frames before the call is in ringing or progress state. The SIP channel will then send 183 indicating early media which will be empty - thus users get no ring signal. Setting this to "yes" will...

  • Page 44: Routing

    VS-GW2120 Series User Manual 5. Routing Figure 5-1-1 Routing Rules You are allowed to set up new routing rule by , and after setting routing rules, move rules’ order by pulling up and down, click button to edit the routing and to delete it.
  • Page 45 VS-GW2120 Series User Manual Table 5-1-1 Definition of Routing Options Options Definition The name of this route. Should be used to describe what types of calls this Routing Name route matches (for example, 'SIP2GSM' or 'GSM2SIP'). Call Comes in The launching point of incoming calls.
  • Page 46 VS-GW2120 Series User Manual match pattern: The dialed number will be compared against the prefix + this match pattern. Upon a match, the match pattern portion of the dialed number will be sent to the trunks Caller ID: If Caller ID is supplied, the dialed number will only match the prefix + match pattern if the Caller ID has been transmitted matches this.

  • Page 47: Groups

    VS-GW2120 Series User Manual You set your caller ID name and caller number as you like before sending the call to the endpoint. You can also configure forward number when you have a transfer call. Figure 5-1-5 Change Rules You can add one or more “Failover Call Through Numbers”.

  • Page 48: Mnp Settings

    VS-GW2120 Series User Manual Figure 5-2-1 Establish Group MNP Settings Mobile Number Portability allows switching between mobile phone operators without changing the mobile number. Sounds simple, but there are loads of tasks performed behind the scene at the operator end. If you have MNP server username and password, you can input it to the corresponding field.

  • Page 49: Sms

    VS-GW2120 Series User Manual 6. SMS SMS Settings General You can choose enable SMS stored and SMS status report or not. But if you want to see your SMS outbox, you should switch SMS Status Report ON. Figure 6-1-1 SMS Settings Sender Options You can change sender options here, include resend, times of resend.

  • Page 50: Sms To E-Mail

    VS-GW2120 Series User Manual SMS to E-mail This is a tool that makes it available for you to email account to transmit the SMS to other email boxes. The following settings realize that received SMS through openvpnvoip@gmail.com transmit to openvpnvoip@yahoo.com.cn, openvpnvoip@hotmail.com...
  • Page 51 VS-GW2120 Series User Manual Other: 163 free × smtp.163.com e-mail Table 6-1-3 Definition of SMS to E-mail Options Definition When you choose on, the following options are available, otherwise, Enable unavailable. Email Address of To set the email address of an available email account.

  • Page 52: Sms Control

    VS-GW2120 Series User Manual SMS Control Allowing endpoints to send some specific KEY WORDS and corresponding PASSWORD to operate the gateway and message is case-sensitive. In default, this function is disabled. Figure 6-1-4 SMS Control For example, SMS control password is 123456789 which has nothing to do with the login password, you can send “get info 123456789”...

  • Page 53: Sms Sender

    VS-GW2120 Series User Manual SMS inbox Auto switch on: clean When the size of the SMS inbox record file reaches the max size, the system will cut a half of the file. New record will be retained. switch off: SMS record will remain, and the file size will increase gradually.

  • Page 54: Sms Inbox

    VS-GW2120 Series User Manual SMS Inbox On this page, you are allowed to scan, delete, clean up, and export each port’s received SMS. Also you are allowed to check messages by port, phone number, time order and message keywords. Figure 6-3-1 SMS Information SMS Outbox You will see your SMS recorder if you have enabled SMS Status Report on this page.

  • Page 55: Lan Settings

    VS-GW2120 Series User Manual LAN Settings There are three types of LAN port IP, Factory, Static and DHCP. Factory is the default type, and it is 172.16.99.1. When you Choose LAN IPv4 type is “Factory”, this page is not editable.
  • Page 56 VS-GW2120 Series User Manual The method to get IP. Type Factory: Getting IP address by Slot Number (System  information to check slot number). Static: manually set up your gateway IP. DHCP: automatically get IP from your local LAN. Physical address of your network interface.

  • Page 57: Ddns Settings

    VS-GW2120 Series User Manual DDNS Settings You can enable or disable DDNS (dynamic domain name server). Figure 7-2-1 DDNS Interface Table 7-2-1 Definition of DDNS Settings Options Definition DDNS Enable/Disable DDNS(dynamic domain name server) Type Set the type of DDNS server.

  • Page 58: Advanced

    VS-GW2120 Series User Manual Figure 7-3-1 Network Connectivity Checking 8. Advanced Asterisk API When you make “Enable” switch to “ON”, this page is available. Figure 8-1-1 API Interface OpenVox Communication Co.Ltd http://ArtTel.ru...
  • Page 59 VS-GW2120 Series User Manual Table 8-1-1 Definition of Asterisk API Options Definition Port Network port number Manager Name Name of the manager without space Manager secret Password for the manager. Characters: Allowed characters “-_+.<>&0-9a-zA-Z”. Length:4-32 characters. Deny If you want to deny many hosts or networks, use char & as separator.

  • Page 60: Asterisk Cli

    VS-GW2120 Series User Manual 172.16.123.123 is the gateway’s IP, and 5038 is its API port. Figure 8-1-2 Putty Access Asterisk CLI In this page, you are allowed to run Asterisk commands. Figure 8-2-1 Asterisk Command Interface Table 8-2-1 Definition of Asterisk API...

  • Page 61: Asterisk File Editor

    VS-GW2120 Series User Manual If you type “help” or “?” and execute it, the page will show you the executable commands. Asterisk File Editor On this page, you are allowed to edit and create configuration files. Click the file to edit.
  • Page 62 VS-GW2120 Series User Manual Figure 9-1-1 System Logs Control OpenVox Communication Co.Ltd http://ArtTel.ru...
  • Page 63 VS-GW2120 Series User Manual Figure 9-1-2 System Logs Output You can choose one specific board to see it related logs. Figure 9-1-3 Choose One Board You can scan your CDR easily on web GUI, and also you can delete, clean up or export your CDR information.
  • Page 64 VS-GW2120 Series User Manual Figure 9-1-4 CDR Output Recently we have made our LOGS display richer, you can see your GSM Outbound of every port clearly. Figure 9-1-5 Time Patterns that will use this Route OpenVox Communication Co.Ltd http://ArtTel.ru...
  • Page 65 VS-GW2120 Series User Manual Table 9-1-1 Definition of Logs Options Definition System Logs: Whether enable or disable system log. Auto clean: switch on : (System Logs) when the size of log file reaches the max size, the system will cut a half of the file. New logs will be retained.<br>...
  • Page 66 VS-GW2120 Series User Manual Auto clean: switch on : (AT logs) when the size of log file reaches the max size, the system will cut a half of the file. New logs will be retained.<br> switch off : logs will remain, and the file size will increase gradually.

  • Page 67: Appendix Feature List

    VS-GW2120 Series User Manual Appendix Feature List General Info  Wireless port：GSM 850/900/1800/1900MHz  Storage temperature：-20~70℃  Operating temperature：0~40℃  Operating humidity：10％~90％  Power supply specifications：100-240V/2-3A  Maximum power：88W  Support Volume adjustment  Support Gain adjustment  Support CLID display & hide (need operators support) ...
  • Page 68 VS-GW2120 Series User Manual  Support add, modify & delete routing  Support unlimited routing rules  Flexible routing settings Business Control  Permit and prohibit certain calls  Extensible automatic callback  Extensible speed dial  Support customizable IVR, DISA and other applications System Features ...
  • Page 69 VS-GW2120 Series User Manual Operation Maintenance  Support SMS remotely controlling gateway  Support Echo cancellation, Jitter buffer  Support gateway boards and SIM hot plug  Reboot settings（According to the running time, specific time）  Update Firmware：HTTP  Support multiple detailed LOG output ...
  • Page 70 VS-GW2120 Series User Manual Application Diagrams Thank You for Choosing OpenVox Products! OpenVox Communication Co.Ltd http://ArtTel.ru...
