LTE Standard Module Series
EG21-G Mini PCIe Hardware Design

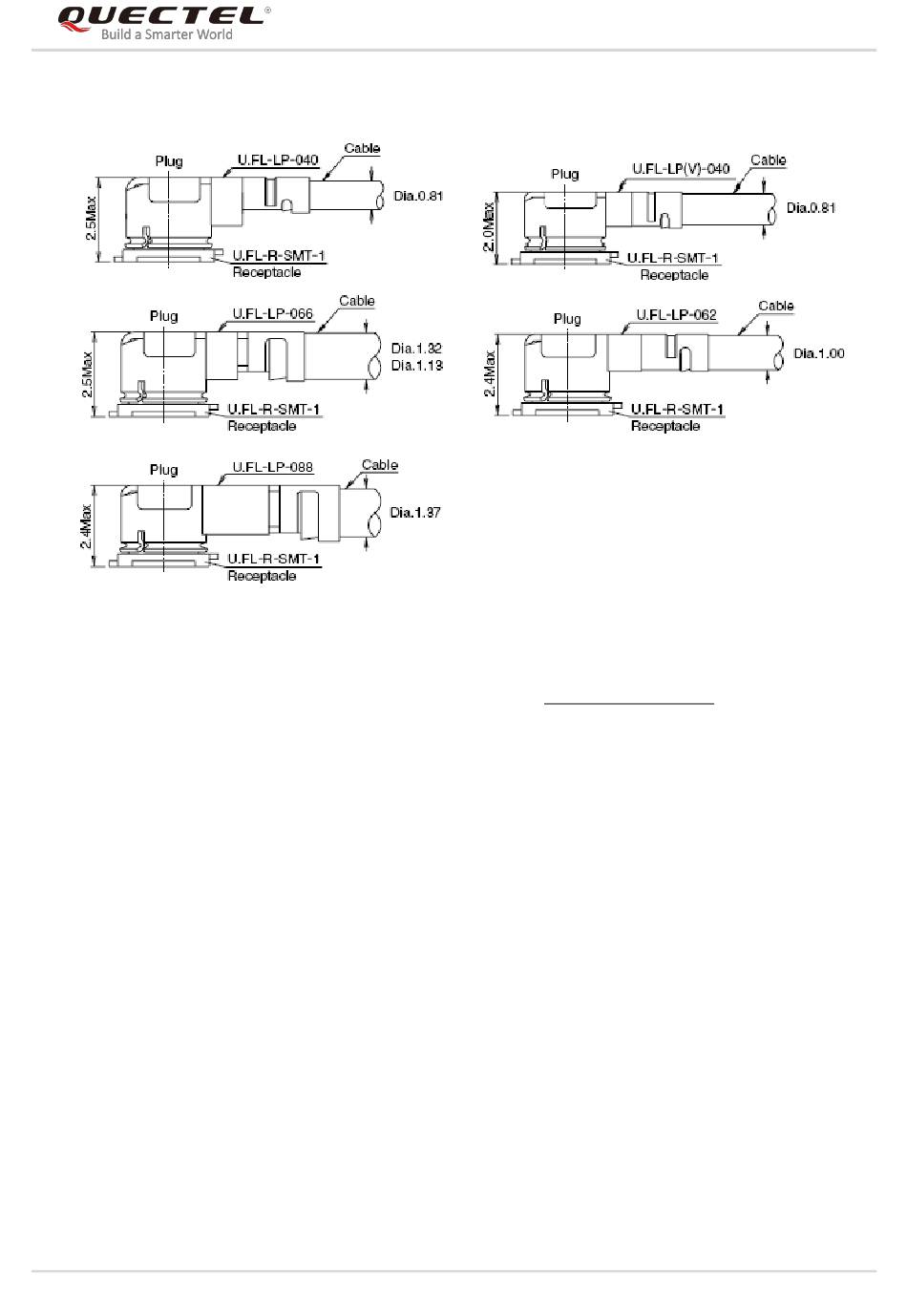

The following figure describes the space factor of mating plugs.
Figure 17: Space Factor of Mating Plugs (Unit: mm)
For more details of the recommended mating plugs, please visit http://www.hirose.com.
EG21-G_Mini_PCIe_Hardware_Design
37 / 54
