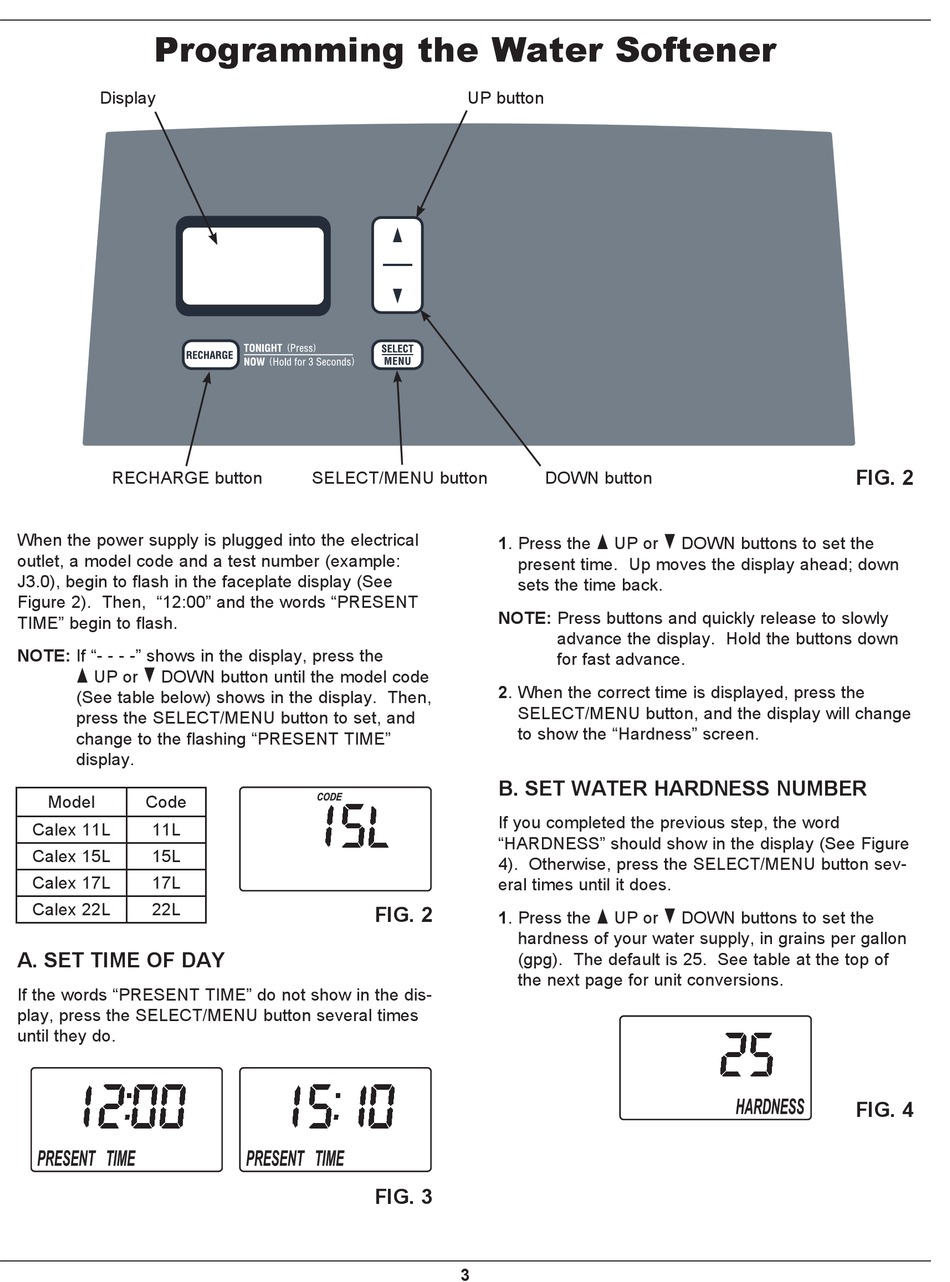

Programming the Water Softener

Display
RECHARGE button
When the power supply is plugged into the electrical
outlet, a model code and a test number (example:
J3.0), begin to flash in the faceplate display (See
Figure 2). Then, "12:00" and the words "PRESENT
TIME" begin to flash.
NOTE: If "- - - -" shows in the display, press the
p q
UP or DOWN button until the model code
(See table below) shows in the display. Then,
press the SELECT/MENU button to set, and
change to the flashing "PRESENT TIME"
display.
Model Code
Calex 11L 11L
Calex 15L 15L
Calex 17L 17L
Calex 22L 22L
A. SET TIME OF DAY
If the words "PRESENT TIME" do not show in the dis-
play, press the SELECT/MENU button several times
until they do.
UP button
SELECT/MENU button
FIG. 2
FIG. 3
3
DOWN button
p q
1. Press the
UP or DOWN buttons to set the
present time. Up moves the display ahead; down
sets the time back.
NOTE: Press buttons and quickly release to slowly
advance the display. Hold the buttons down
for fast advance.
2. When the correct time is displayed, press the
SELECT/MENU button, and the display will change
to show the "Hardness" screen.
B. SET WATER HARDNESS NUMBER
If you completed the previous step, the word
"HARDNESS" should show in the display (See Figure
4). Otherwise, press the SELECT/MENU button sev-
eral times until it does.
p q
1. Press the UP or DOWN buttons to set the
hardness of your water supply, in grains per gallon
(gpg). The default is 25. See table at the top of
the next page for unit conversions.
