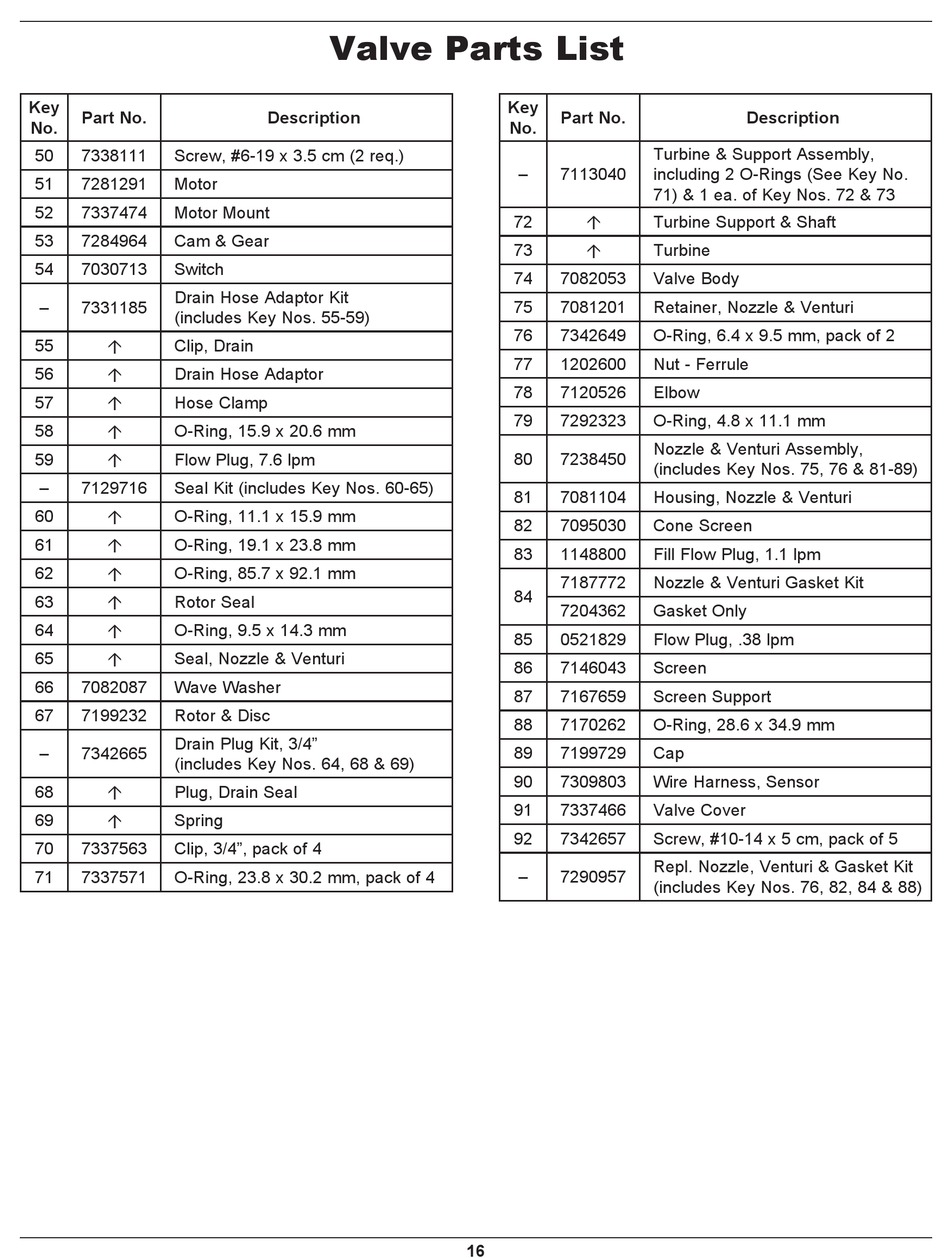

Valve Parts List - EcoWater Calex 11 Installation And Operating Manual

Key
Part No.
No.
50 7338111 Screw, #6-19 x 3.5 cm (2 req.)
51 7281291 Motor
52 7337474 Motor Mount
53 7284964 Cam & Gear
54 7030713 Switch
Drain Hose Adaptor Kit
– 7331185
(includes Key Nos. 55-59)
55 Clip, Drain
á
56 Drain Hose Adaptor
á
57 Hose Clamp
á
58 O-Ring, 15.9 x 20.6 mm
á
59 Flow Plug, 7.6 lpm
á
– 7129716 Seal Kit (includes Key Nos. 60-65)
60 O-Ring, 11.1 x 15.9 mm
á
61 O-Ring, 19.1 x 23.8 mm
á
62 O-Ring, 85.7 x 92.1 mm
á
63 Rotor Seal
á
64 O-Ring, 9.5 x 14.3 mm
á
65 Seal, Nozzle & Venturi
á
66 7082087 Wave Washer
67 7199232 Rotor & Disc
Drain Plug Kit, 3/4"
– 7342665
(includes Key Nos. 64, 68 & 69)
68 Plug, Drain Seal
á
69 Spring
á
70 7337563 Clip, 3/4", pack of 4
71 7337571 O-Ring, 23.8 x 30.2 mm, pack of 4

Valve Parts List

Description
Key
Part No.
No.
– 7113040
72
á
73
á
74 7082053
75 7081201
76 7342649
77 1202600
78 7120526
79 7292323
80 7238450
81 7081104
82 7095030
83 1148800
7187772
84
7204362
85 0521829
86 7146043
87 7167659
88 7170262
89 7199729
90 7309803
91 7337466
92 7342657
– 7290957
16
Description
Turbine & Support Assembly,
including 2 O-Rings (See Key No.
71) & 1 ea. of Key Nos. 72 & 73
Turbine Support & Shaft
Turbine
Valve Body
Retainer, Nozzle & Venturi
O-Ring, 6.4 x 9.5 mm, pack of 2
Nut - Ferrule
Elbow
O-Ring, 4.8 x 11.1 mm
Nozzle & Venturi Assembly,
(includes Key Nos. 75, 76 & 81-89)
Housing, Nozzle & Venturi
Cone Screen
Fill Flow Plug, 1.1 lpm
Nozzle & Venturi Gasket Kit
Gasket Only
Flow Plug, .38 lpm
Screen
Screen Support
O-Ring, 28.6 x 34.9 mm
Cap
Wire Harness, Sensor
Valve Cover
Screw, #10-14 x 5 cm, pack of 5
Repl. Nozzle, Venturi & Gasket Kit
(includes Key Nos. 76, 82, 84 & 88)
