Key
Part No.
No.
Tank Neck Clamp Kit
–
7331177
(includes 2 ea. of Key Nos. 1 & 2)
1
Retainer, Clamp (2 req.)
á
2
Clamp Section (2 req.)
á
Distributor O-Ring Kit
–
7112963
(includes Key Nos. 3-5)
3
O-Ring, 73.0 mm x 82.6 mm
á
4
O-Ring, 20.6 mm x 27.0 mm
á
5
O-Ring, 69.9 mm x 76.2 mm
á
6
7105047
Repl. Bottom Distributor
7
7077870
Top Distributor
Resin Tank, 20.3 cm dia. x 48.3 cm,
7256377
Model 11L
Resin Tank, 20.3 cm dia. x 63.5 cm,
8
7264037
Model 15L & 17L
Resin Tank, 22.9 cm dia. x 88.9 cm,
7328904
Model 22L
RMH-001
Resin, per liter
9
304737
Resin, 25 liter bag
7310139
Brine Valve Assembly, Model 11L
Brine Valve Assembly, Model 15L
10
7310163
&17L
7310202
Brine Valve Assembly, Model 22L
Float, Stem & Guide Assembly,
7269508
Model 11L
Float, Stem & Guide Assembly,
11
7293395
Model 15L & 17L
Float, Stem & Guide Assembly,
7327568
Model 22L

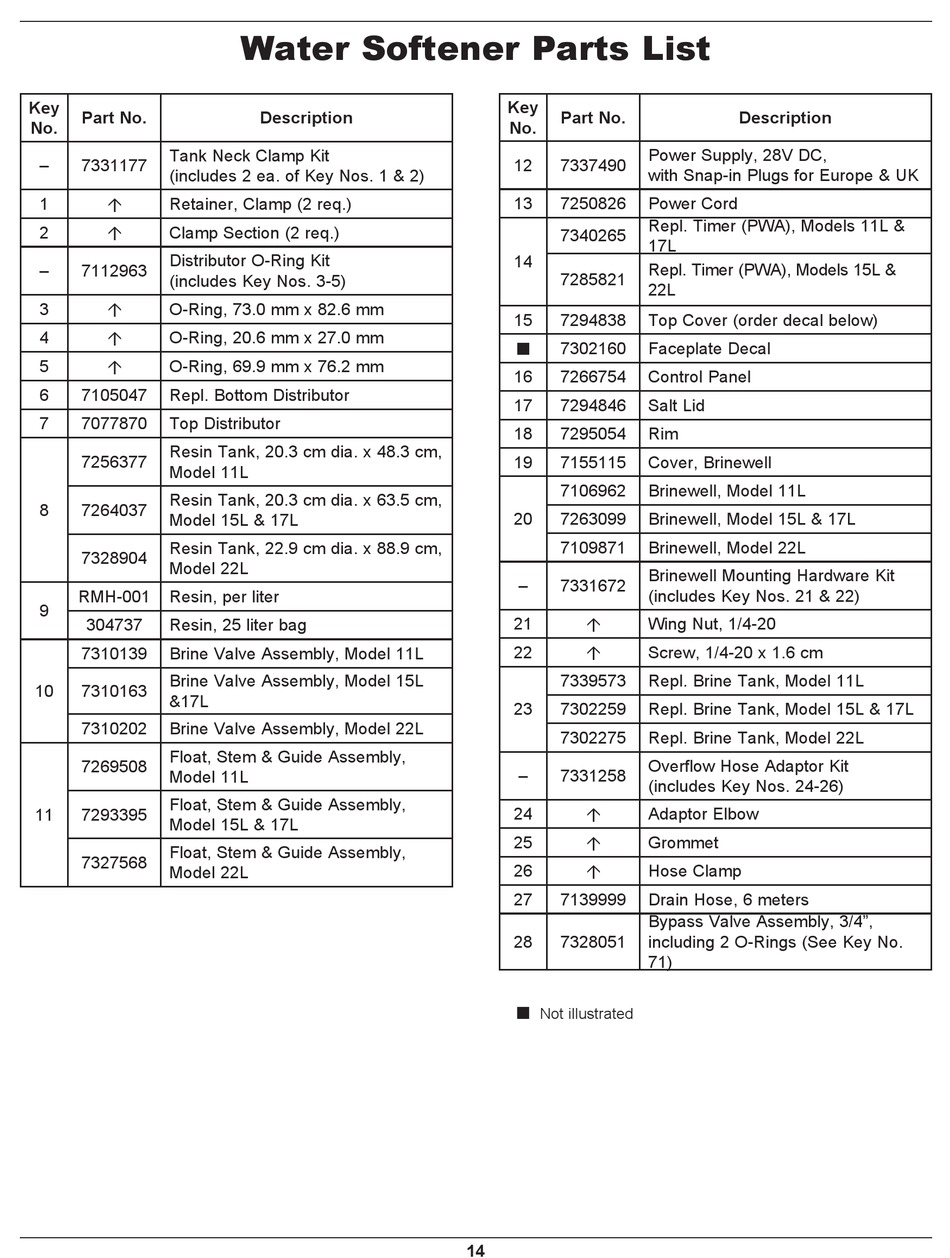

Water Softener Parts List
Description
Key
Part No.
No.
12
7337490
13
7250826
7340265
14
7285821
15
7294838
7302160
¢
16
7266754
17
7294846
18
7295054
19
7155115
7106962
20
7263099
7109871
–
7331672
21
á
22
á
7339573
23
7302259
7302275
–
7331258
24
á
25
á
26
á
27
7139999
28
7328051
Not illustrated
¢
14
Description
Power Supply, 28V DC,
with Snap-in Plugs for Europe & UK
Power Cord
Repl. Timer (PWA), Models 11L &
17L
Repl. Timer (PWA), Models 15L &
22L
Top Cover (order decal below)
Faceplate Decal
Control Panel
Salt Lid
Rim
Cover, Brinewell
Brinewell, Model 11L
Brinewell, Model 15L & 17L
Brinewell, Model 22L
Brinewell Mounting Hardware Kit
(includes Key Nos. 21 & 22)
Wing Nut, 1/4-20
Screw, 1/4-20 x 1.6 cm
Repl. Brine Tank, Model 11L
Repl. Brine Tank, Model 15L & 17L
Repl. Brine Tank, Model 22L
Overflow Hose Adaptor Kit
(includes Key Nos. 24-26)
Adaptor Elbow
Grommet
Hose Clamp
Drain Hose, 6 meters
Bypass Valve Assembly, 3/4",
in cluding 2 O-Rings (See Key No.
71)
