Roverpet 30DD8U Assembly Instructions

Rover Company 20 Kiji Dava Circle Prescott, Arizona 86301 1-800-658-5925 rover@roverpet.com

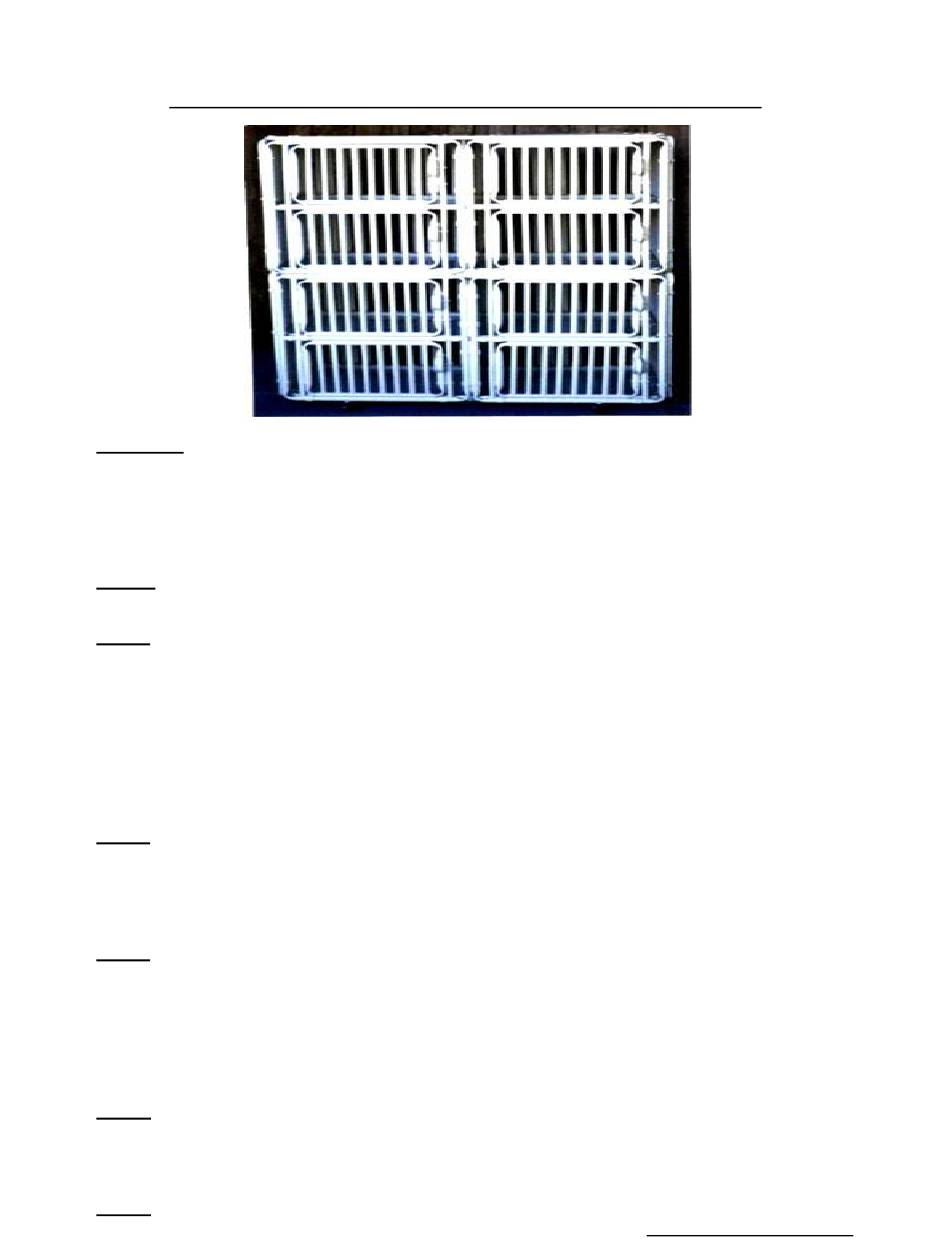

Assembly Instructions for #30DD8U 30" 8-PLEX

Inventory:

Your #30DD8U comes with the following: 4 sections (marked) with fold down clips
and doors; (4) #DD30 double doors (8) #130 panels (1) #F24W pre drilled floor (1) #24SF
-
support frame (3) #LC locking caster wheels (3) #NLC non-locking caster wheels; (3) #F24
middle floors (4) #15D dividers (3 short, 1 tall); (1) #148C lid (top) (36) #200 panel clips (84)
#250 floor divider clips (24) #FDC fold down clips (6) #CWC caster wheel clips
*Note: Please
inspect and make sure you have all items listed above.
drilled floor. Follow the instructions for 'Pre
Step 1: Install the wheels onto the #F24W pre drilled
- -
Floor Installation' included with this enclosure
).
(*Note: you will be installing 6 wheels instead of 4
Step 2: When the floor is assembled unwrap and extend out the bottom panel section (marked
'bottom left') around the floor. This section should have a door and 2 panels to its left. Open the
bottom door by unsnapping the (2) #175 door clips on the door and swing the door open. Lift up
the bottom left corner until it is parallel and even with the floors pipe. Snap a #250 floor divider
clip on each side of the bottom door openings to the floor pipe. Next, move to the left and snap
on (4) #250 floor divider clips to the bottom of the other (2) panels. Space the clips evenly on
the panels - with the 1st clips placed 2 spaces in from the ends. (See figure 1) Follow the same
procedure with the 'bottom right' side section. NOTE: The two sections will be joined together
later.
Step 3: Take one short divider and place it in the middle where the bottom left and bottom right
sections meet, sandwiching the divider between the two sections. The divider is placed with the
notches facing down. Now attach (2) #250 floor divider clips to the front panels, snapping the
clips near the top and bottom (See figure 2). Do the same on the back panels. The divider
should now be snugly secured in the middle.
Each panel has (2) #FDC fold down clips on them. 'Fold down' these clips so they are
Step 4:
flat. Now place a mid-floor section in the enclosure, resting it on the fold down clips. All floors
will go in with the pipe side up (flat side down). ake sure the floor is resting securely on
NOTE: M
Next, attach (2) #250 floor divider clips to the floor's
the clips and not tilted on the enclosure
.
pipe and the panel's center bar. Snap the clips next to the fold down clips. On the door panels
snap a #250 floor divider clip to the outer edge, inside the door area.
Step 5: Position another short divider (notch side down) in the middle, securing it as in step 3
above. Snap (2) #250 floor clips on the rear and front areas of the sections (See figure 2).
(Over)
Step 6; Place the #24SF support frame in the inside perimeter of the enclosure, making sure it
is flush with the side pipe edges. Snap (2) #250 floor divider clips, from the underside of the
