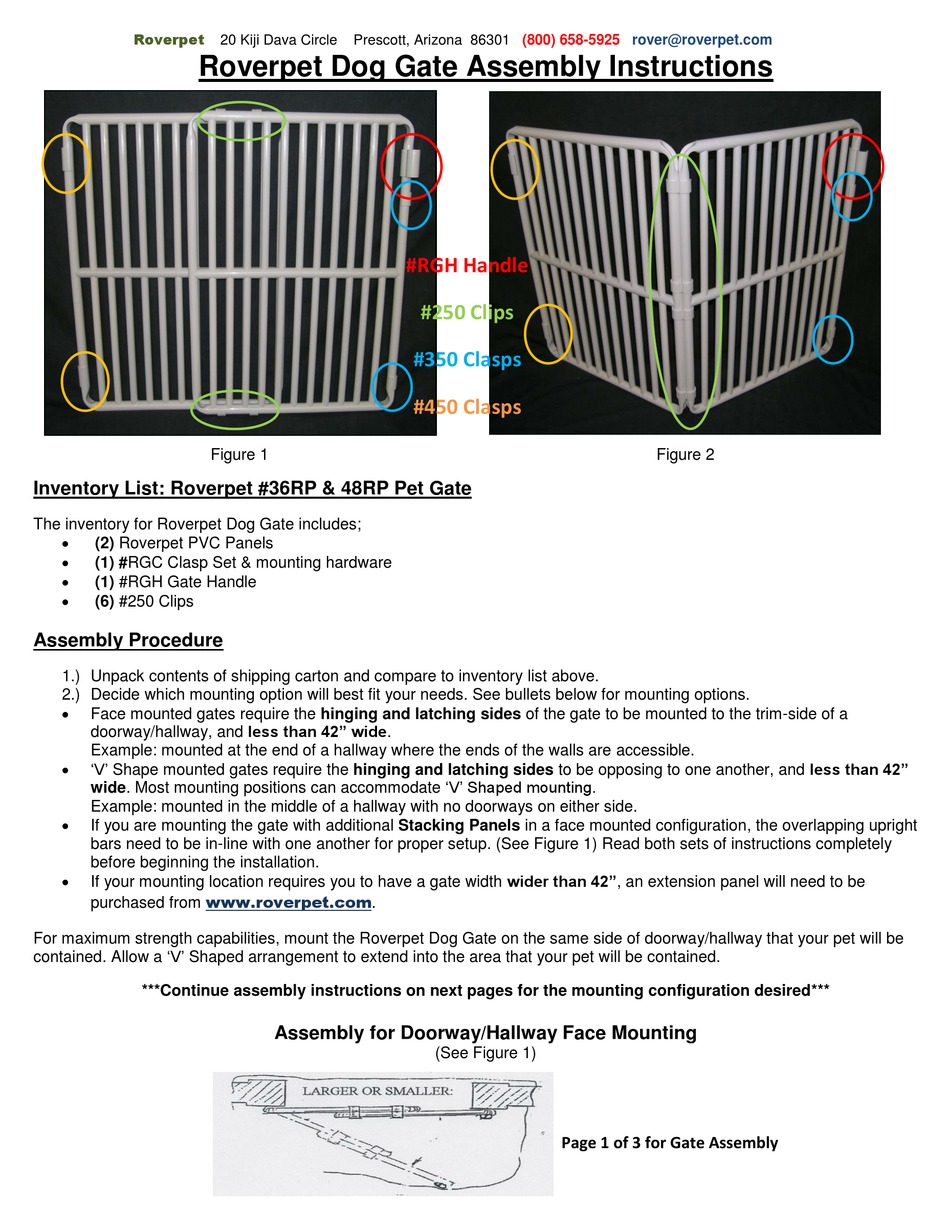

Roverpet Dog Gate Assembly Instructions
Inventory List: Roverpet #36RP & 48RP Pet Gate
The inventory for Roverpet Dog Gate includes;

(2) Roverpet PVC Panels

(1) #RGC Clasp Set & mounting hardware

(1) #RGH Gate Handle

(6) #250 Clips

Assembly Procedure

1.) Unpack contents of shipping carton and compare to inventory list above.
2.) Decide which mounting option will best fit your needs. See bullets below for mounting options.

Face mounted gates require the hinging and latching sides of the gate to be mounted to the trim-side of a
doorway/hallway, and less than 42" wide.
Example: mounted at the end of a hallway where the ends of the walls are accessible.

'V' Shape mounted gates require the hinging and latching sides to be opposing to one another, and less than 42"
wide. Most mounting positions can accommodate 'V' Shaped mounting.
Example: mounted in the middle of a hallway with no doorways on either side.

If you are mounting the gate with additional Stacking Panels in a face mounted configuration, the overlapping upright
bars need to be in-line with one another for proper setup. (See Figure 1) Read both sets of instructions completely
before beginning the installation.

If your mounting location requires you to have a gate width wider than 42", an extension panel will need to be
purchased from www.roverpet.com.
For maximum strength capabilities, mount the Roverpet Dog Gate on the same side of doorway/hallway that your pet will be
contained. Allow a 'V' Shaped arrangement to extend into the area that your pet will be contained.
***Continue assembly instructions on next pages for the mounting configuration desired***
20 Kiji Dava Circle Prescott, Arizona 86301
Figure 1

Assembly for Doorway/Hallway Face Mounting

(800) 658-5925
#RGH Handle
#250 Clips
#350 Clasps
#450 Clasps
(See Figure 1)
Page 1 of 3 for Gate Assembly
rover@roverpet.com
Figure 2
