Roverpet

20 Kiji Dava Circle Prescott, Arizona 86301

Roverpet #WB1844DSF 18" high 4' x 4' Whelping Box Assembly Instructions

Inventory list for Roverpet #WB1844DSF Whelping Box:

The Roverpet #WB1844DSF- 18" high 4x4 Whelping Box includes:

(7) #118 - 18" high Panels

(1) #44PR3 3" high puppy rail assembly (two leg bars, two cross-bars and four legs)

(1) #44DPK Designer Puppy Keeper (6" high)

(12) #250 floor/divider clips

Assembly Procedure:

1.) Unpack contents of shipping carton and compare to parts list above.

2.) Layout the two #118 panels / #D18 door sub-assemblies as show below, with the assembly containing the door

positioned on the right side.

#200 panel clips- pre-attached

to end panels here by Rover

Co.

3.) Connect the ends of the sub-assemblies together with the #200 panel clips that are already attached to the end panels;

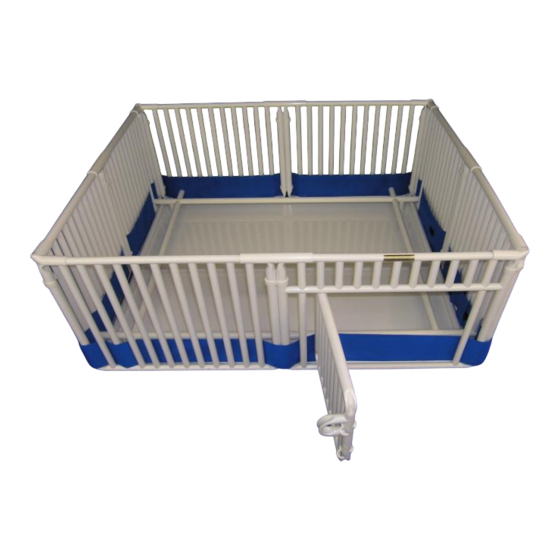

reposition panels into a square shape resembling the main photo at the top of this page.

4.) Install #180 straight stabilizers onto the top of in-line connected panels (left photo below) and install #90 corner

stabilizers onto the top of corner connected panels (right photo below).

(1) #D18 – 18" high Door

(4) #180 straight stabilizers

(16) #200 panel clips (pre-assembled onto frames by Roverpet)

1-800-658-5925

rover@roverpet.com

(2) #F24 2'x4' floors

(4) #90 corner stabilizers

Page 1 of 3

Table of Contents

Do you have a question about the WB1844DSF and is the answer not in the manual?

Page 1 20 Kiji Dava Circle Prescott, Arizona 86301 1-800-658-5925 rover@roverpet.com Roverpet #WB1844DSF 18” high 4’ x 4’ Whelping Box Assembly Instructions Inventory list for Roverpet #WB1844DSF Whelping Box: The Roverpet #WB1844DSF- 18” high 4x4 Whelping Box includes: (7) #118 - 18” high Panels (1) #D18 –...
Page 2 - Three equally spaced across the mid-span of the floor frames. 7.) Assemble the Roverpet puppy rails by inserting the cross-bars into the through-drilled holes in the main bars and then insert the four legs into the blind holes drilled into the bottom of the main bars; be sure to orientate the main bars so that all four blind holes are facing the same direction.
Page 3 12.) Return the end of the fabric back inside the Roverpet whelping box by routing it around the outer frame pipes of the #D18 door and the #118 panel connected to it (left photo at the top of the next page). Run the fabric down the inside of...
