Note Calibration of the Water Temperature Sensor is required. See Calibration for details.
Freeze Temperature Sensor
The Freeze Temperature Sensor measures air temperature at the equipment pad.
•
To wire the Freeze Temperature Sensor
1.
2.
3.
4.
5.
Note Calibration of Freeze Temperature Sensor is required. See Calibration for details.
At the sensor, use crimp connectors (included) to provide waterproof connections. Before
making connections, cut off stripped ends of cable. Insert the 2 wires to be connected into
the connector and squeeze the connector with a pair of pliers. Two extra connectors are
included.
Caution Do not strip wires.

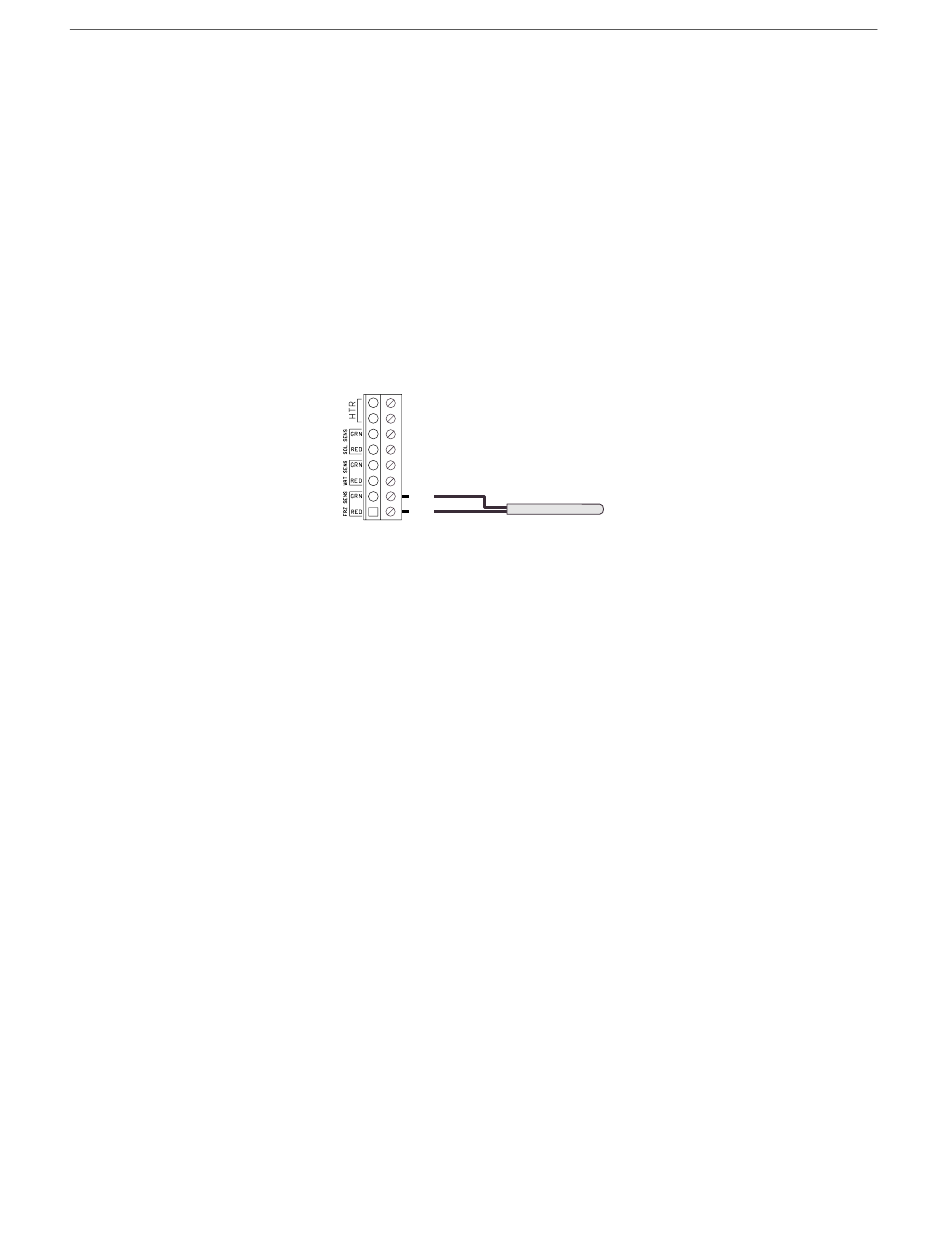

At the Power Center circuit board, connect sensor wires to WAT SENS screw terminals.
Pay attention to color-coding of wires.
GRN
RED
Install the sensor next to the Power Center.
Run a 2-conductor cable from the sensor to the Power Center.
At the sensor, use crimp connectors (included) to provide waterproof connections. Before
making connections, cut off stripped ends of cable. Insert the 2 wires to be connected into
the connector and squeeze the connector with pliers. Two extra connectors are included.
Caution Do not strip wires.
At the Power Center circuit board, connect sensor wires to FRZ SENS screw terminals.
Pay attention to color-coding of wires.
Adjust the Freeze program switch at the bottom of the Power Center circuit board to
determine which pumps should turn on during freeze protection.
FREEZE SENSOR
15
