Compool Cp3600

System Power

IMPORTANT: Switch back to
Auto after servicing equipment.
3 Hour Filter Override
When adding chemicals to the pool,
the filter pump can be set to stay on
for 3 hours -or- stay off for 3 hours.
This overrides the programming of
the Cp3600 indoor controller on a
one-time basis. The same procedure
can be used on the other equipment
keys 1-5.
Instructions:
Auto
Make sure the Auto/Service
key is in the Auto position.
Filter Pump On:
P Press Filter key 2 times quickly.
Filter Pump Off:
Filter
P Press key 3 times quickly.
Override Verification:
The Auto lamp will blink
Auto
during the 3-Hour Override.
To cancel:
The 3-hour override can be
cancelled by switching to
Service Service, and then back to Auto.
Water Sensor
Sensor
Solar Sensor
Status
Freeze Sensor
Lamp ON indicates problem with the
sensor or wires leading to sensor.
Check connections and replace sensor
if necessary.
Lx3600

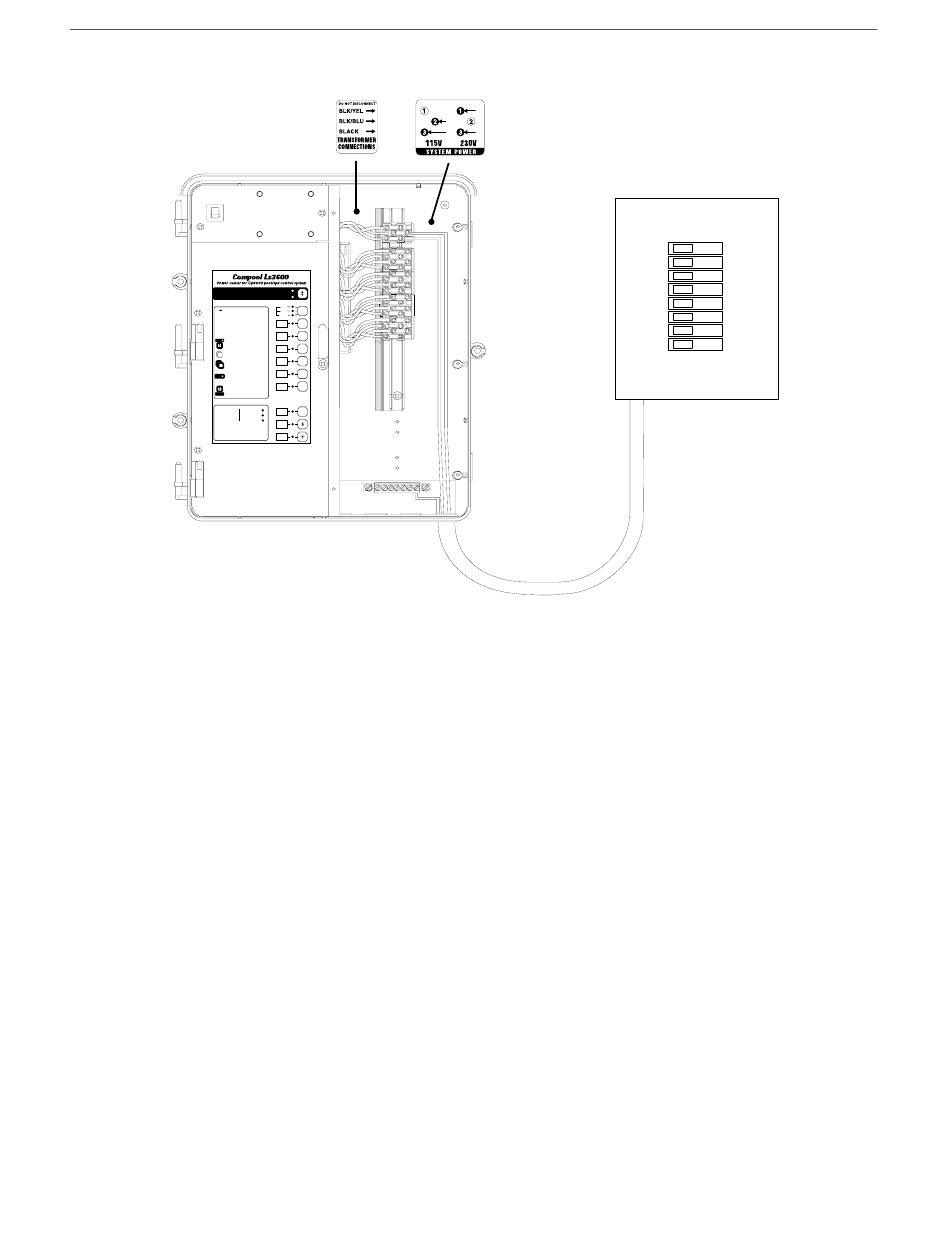

System Power provides power to the transformer.
• To wire System Power
1.
2.
3.
4.
Caution Incorrect wiring will cause permanent damage to the transformer.
Auto
Service
Spa
Fill S
Drain
Filter P
Pump
1
2
3
4
5
B
B.wash
Heater
Solar
At the Sub-panel, install a circuit breaker for System Power. The system draws less than 1
amp. Do not use a GFCI circuit breaker.
Run appropriate wires from the circuit breaker to the System Power terminal block.
For a 115 volt connection, connect to terminals 2 and 3.
For a 230 volt connection, connect to terminals 1 and 3.
SUB-PANEL
9
