Plumbing Requirements

CONTROL PANEL
JET
PUMP
AIR
INTAKE
BLOWER
SPA
LIGHT

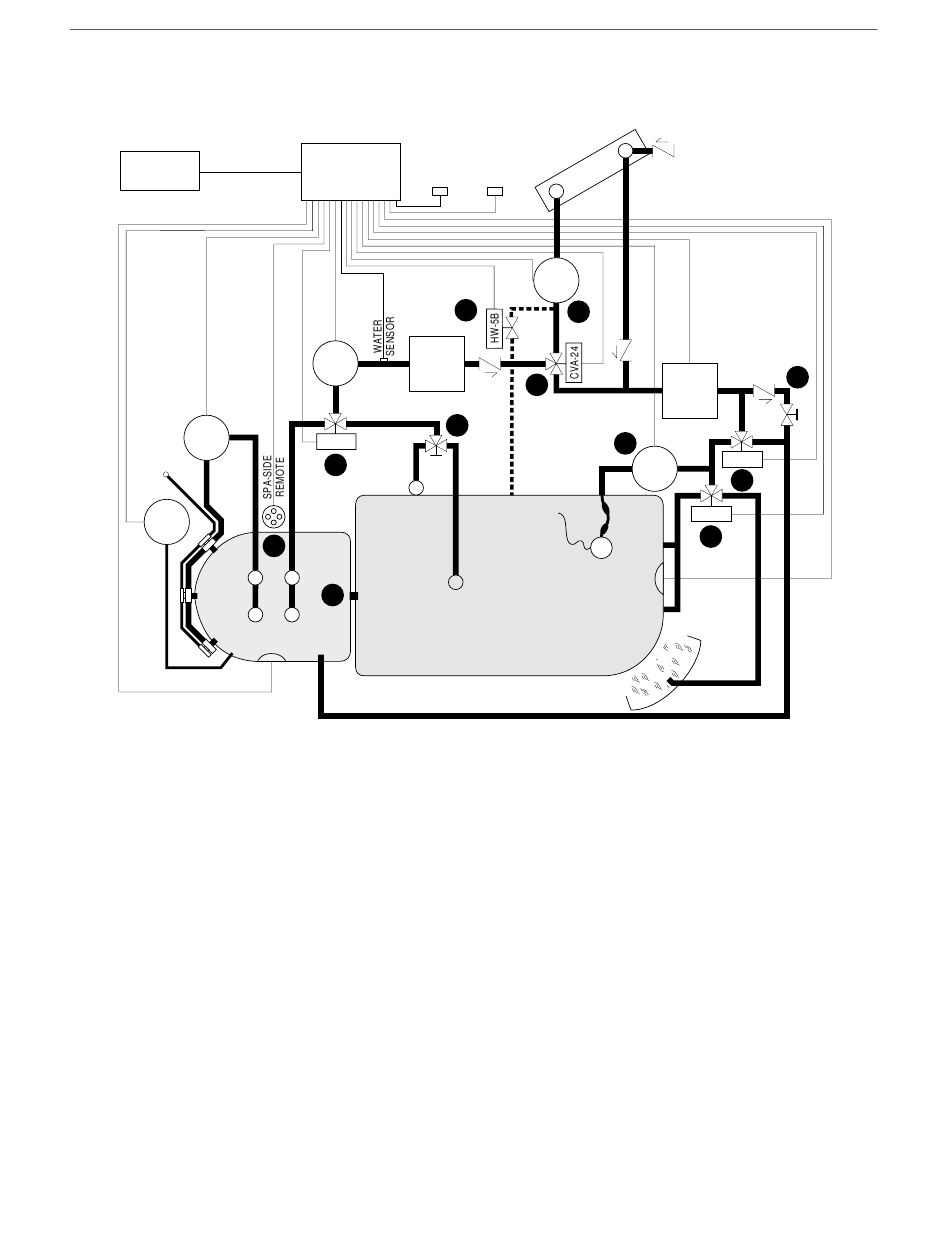

Plumb system in accordance with recommended hydraulic schematic.
1.
2.
3.
4.
5.
FREEZE
POWER CENTER
SENSOR
FILTER
FILTER
PUMP
CVA-24
2
SKIMMER
5
1
SPA
Spa should be at or above the level of the pool. If spa is attached to pool, provide a dam
between the two bodies of water, this allows the spa to overflow into the pool. If spa is not
attached to pool, an overflow, sufficient in size to carry full pump-flow, must be installed
between the spa and pool.
Plumb 3-port valve on the suction-side of the filter pump, so that center port of valve is
connected to the filter pump. Connect spa suction to one port, and pool suction to the
other port.
Plumb 3-port valve on the output-side of the heater, so that center port of valve is
connected to the heater. Connect spa return to one port, and pool return to the other port.
Plumb 3/4" spa makeup line (incorporating a 3/4" ball valve and a 3/4" check valve).
During pool circulation, some of the pool water needs to enter the spa to keep it
chemically balanced and full of water. The ball valve adjusts the amount of bypass.
If a Spa-side Remote is to be used, install a 3" to 6" length of 1.5" Sch. 40 pvc pipe in the
spa wall so that the Spa-side Remote will not be submerged. Positioning the top of the
pipe 1/2" below the coping. The pipe should extend beyond the finished surface and will
be cut back after tile work is completed. Connect a 1/2" conduit and run back to Power
Center. Use sweep elbows for turns.
SOLAR
SENSOR
SOLAR
PUMP
11
10
9
6
MAIN
DRAIN
POOL
Compool Cp3600
VACUUM
RELIEF
4
HEATER
7
CVA-24
CLEANER
PUMP
3
CVA-24
8
POOL
LIGHT
WATERFALL
