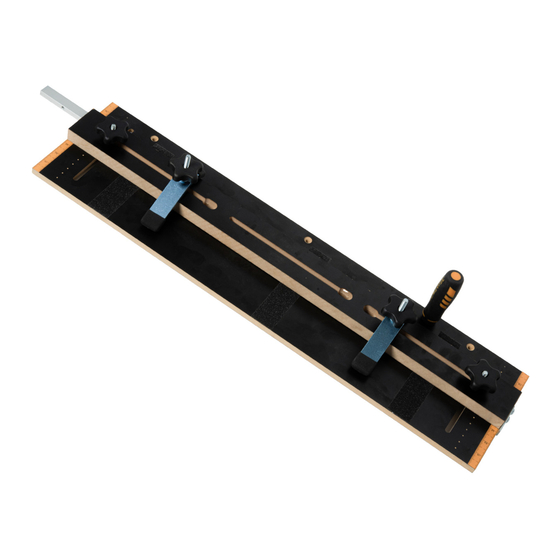

PowerTec 71395 Owner's Manual

Taper/straight jig
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Owner's Manual
Taper/Straight Jig
QUESTION...
1•847•780•6120
Visit us on the web at powertecproducts.com
You will need this manual for safety instructions, operating procedures, and warranty.
Put it and the original sales invoice in a safe, dry place for future reference.
Model No. 71395
20-0903

Advertisement

Table of Contents
loading

Related Manuals for PowerTec 71395

Summary of Contents for PowerTec 71395

  • Page 1 Model No. 71395 Owner’s Manual Taper/Straight Jig QUESTION... 1•847•780•6120 Visit us on the web at powertecproducts.com You will need this manual for safety instructions, operating procedures, and warranty. Put it and the original sales invoice in a safe, dry place for future reference.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS PRODUCT SPECIFICATIONS SECTION PAGE SAFETY RULES Base (MDF) ......32" x 7-7/8" x 1/2" MDF adjustable fence .

  • Page 3: Safety Rules

    SAFETY RULES • TURN OFF AND UNPLUG all power tools BEFORE making WARNING any adjustments or changing excessories. • Be alert and think clearly. Never operate power tools For your own safety, read all of the rules and precautions before when tired, intoxicated or when taking medications that operating tool.
  • Page 4 SPECIFIC SAFETY WARNINGS blade lowered and the power turned off. DANGER • Make sure there is sufficient out-feed support when cutting long pieces. • To avoid serious injury, keep hands out of the path of • Do NOT attempt to cut pieces that are too narrow to be the spinning blade.

  • Page 5: Assembly

    ASSEMBLY UNPACKING ASSEMBLY Refer to Figure 1 Miter Bar and Tapered Knob Check for shipping damage. Check immediately whether all parts and excessories are included. Refer to Figure 2–6 ITEM DESCRIPTION The miter bar is used when making taper cuts only. The miter bar MUST be removed when straight line ripping.
  • Page 6 Miter Bar Adjustment Figure 5 WARNING Tape Miter Bar Screws- DO NOT cover Measure The miter bar MUST be able to slide freely forward and backward without side-to-side play. NEVER attempt to force the crosscut sled if it fails to slide freely. Place the miter bar on the jig into the right miter slot of the table saw and slide it to evaluate the fit.

  • Page 7: Operation

    OPERATION Tighten the five star knobs on each end of the adjustable fence to secure in place. Place the workpiece tight against the adjustable fence with DANGER the eventual narrow end flush against the adjustable stop on the fence. Position the adjustable stop so it will support the •...

  • Page 8: Maintenance

    Straight Line Ripping Refer to Figure 10 The miter bar MUST be removed when straight line ripping. Remove the miter bar from the jig base. The table saw's fence is used to set the cutting width and guide the cut. Loosen the five star knobs on each end of the adjustable fence and position it parallel to the jig's long edges.

  • Page 9: Warranty

    30- DAY SATISFACTION GUARANTEE POLICY During the first 30 days after the date of purchase, if you are dissatisfied with the performance of this POWERTEC tool for any reason, you may return the tool to the retailer from which it was purchased for a full refund or exchange. You must present proof of purchase and return all original equipment packaged with the original product.

  • Page 10: F Five Star Knobs

    NOTE...

  • Page 11: L Washers, 5/16

    NOTE...
  • Page 12 Southern Technologies, LLC Waukegan, IL 60087...
