PowerTec 71135 Instruction Sheet

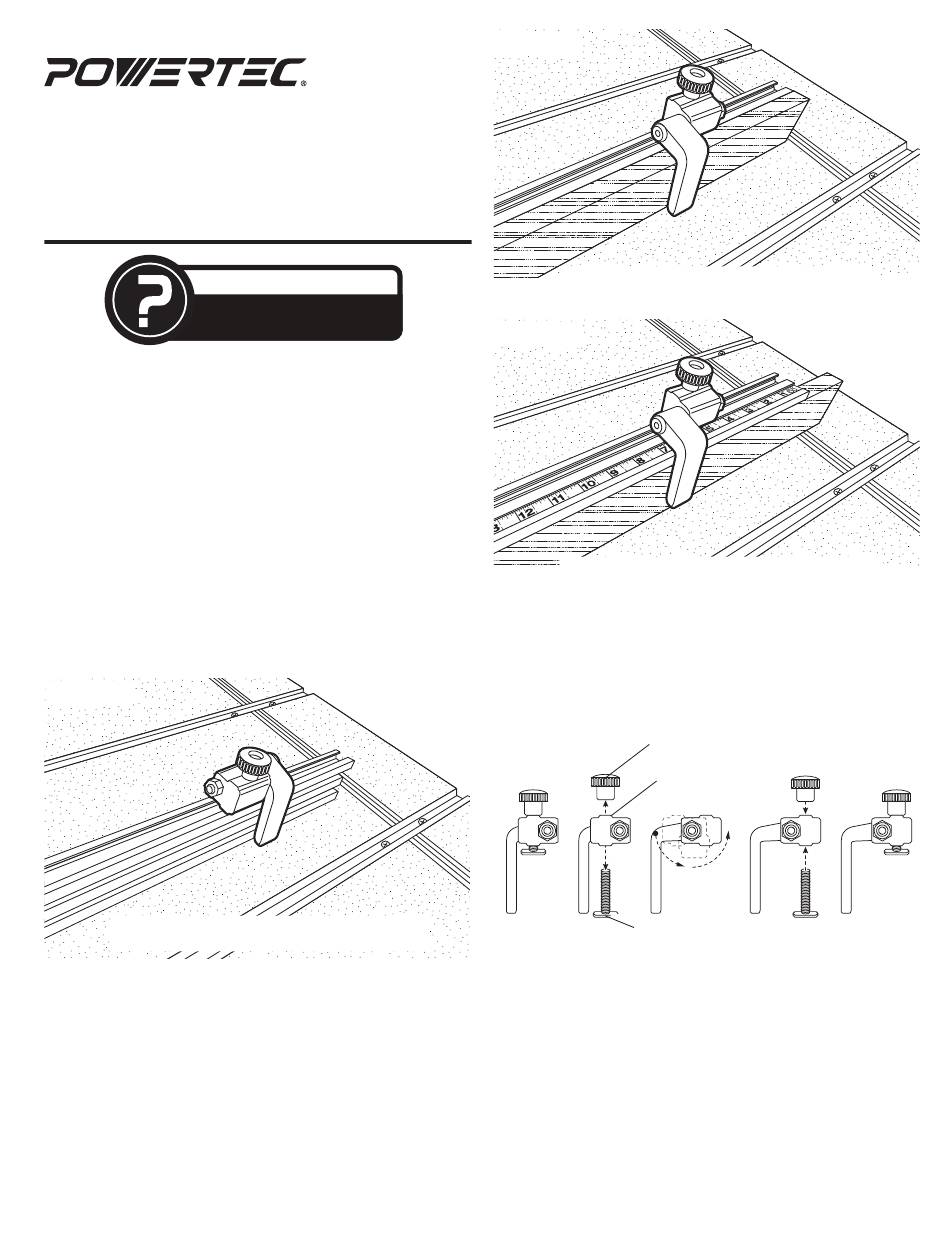

INSTRUCTION SHEET
Model No. 71135
2-1/4" Fence Flip Stop
Model No. 71367
3" Fence Flip Stop
QUESTION...
1•847•780•6120
PACKAGING CONTENTS

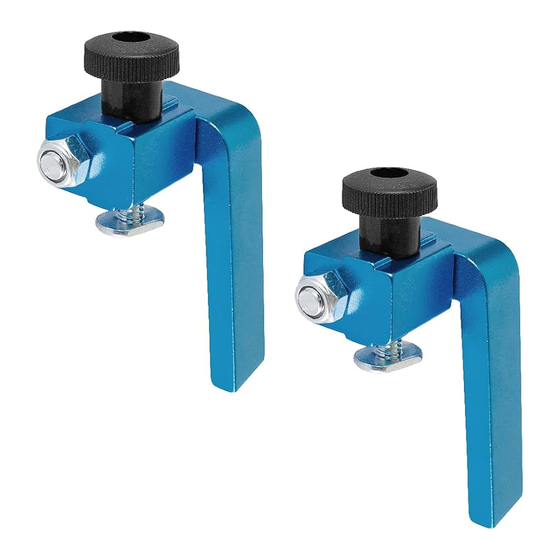

Fence Flip Stop (one set)
TO USE
The fence flip stop works with all Powertec and most other
brands of Universal T-Tracks.
These Powertec Fence Flip Stops are extremely
versatile and quickly convert from inboard to outboard
position for a variety of applications. In addition, the flip
arm can be moved from right to left to match your feed
direction requirements.
• In the inboard position, the stop works with single wide
multi track fences (2-1/4" or 3") and functions as an
easily adjustable stop. See Figure 1.
Figure 1
The Fence Flip Stop is shown in the inboard position
being used with a single wide multi track fence
• In the outboard position, the body rotates and the flip
arm moves out. In this position the stop can work with
multi track fences with sacrificial wood boards. It also
works with the 71131 Powertec Vertical Mount T-Track
with Scale. When combined with this option, the fence
flip stop can turn your homemade fence into an accurate
stop system. See Figure 2 and 3.
Figure 2
The Fence Flip Stop is shown in the outboard position
being used with a wood sub fence
Figure 3
The Fence Flip Stop is shown in the outboard position being
used with the Double Track Fence Cap and scale
To Convert from Inboard to
Outboard Position
Remove the knob and T-Bolt and rotate the stop body
180°. Replace the knob and T-bolt. See Figure 4.
Figure 4
Knob
Stop Body
inboard transition
T-Bolt
outboard
