PowerTec 71369 Instruction Sheet

INSTRUCTION SHEET
6-1/2" Universal Router Plate
QUESTION...
1•847•780•6120
WARNING
To reduce the risk of injury, turn router off and disconnect
it from power source before installing and removing
accessories. An accidental start-up can cause injury.
WARNING
For your own safety, read and follow all safety procedures
listed in the router instruction manual.
PACKAGING CONTENTS
1 - Universal Router Plate
12 - Fastener Package containing machine screws of
different sizes (choose the correct screws to be used
on your router)
1 - Centering Pin
TOOLS NEEDED
PORTER-CABLE Style Guide Bushing (sold separately)
Phillips Head Screwdriver
INTENDED USE
Install a PORTER-CABLE style guide bushing (sold
separately), use the centering pin to line-up the universal
router plate to the collet, install a bit and the bit will follow
the path intended by the template or jig.
ASSEMBLY
• Install a PORTER-CABLE style guide bushing (sold
separately) to the universal router plate.
• Remove the existing router plate and all related hardware
from the router.
• From the fastener package locate the machine screws for
your router.
• On the chart find the model and the corresponding letter
for your router.
• Find the corresponding letters for your router in Figure 1.
These letters are also printed on the router plate. NOTE:
Some routers have more than one option.
• Place the universal router plate onto the router and line
up the first letter with the appropriate hole and then rotate
the plate until all holes for the pattern line up. Install the
machine screws. DO NOT tighten.
• Make sure the router has a 1/4" collet installed.
• Insert the centering pin into the collet until it almost
contacts the guide bushing, tighten the collet.
• Adjust the router depth so the pin makes contact with the
centering pin. Tighten the machine screws.
NOTE: If the machine screws (supplied) bottom out into the
router mounting holes, they will need to be shortened to
match the router.
• Remove the centering pin and store it for future use. The
router is ready for use.
MAINTENANCE
• Carnauba wax may be applied to the universal router
plate to reduce scratching and make it slide easier. If
scratching does occur, carefully polish with plastic polish
until the scratches are removed.
PORTER- A 690 Series
CABLE* A 7529
Bosch* A 1617 (fixed base)
G 1617 (plunge base)
Craftsman* C 315 275 000
D 315 175 040
D 315 175 050
Fein* F FT 1800
Milwaukee* A 5615
A 5619
Makita* A RF1101
Hitachi* B M8V
B TR12
Elu* F 177
D WALT* F DW621
e
F DW625
Ryobi* C R1631K

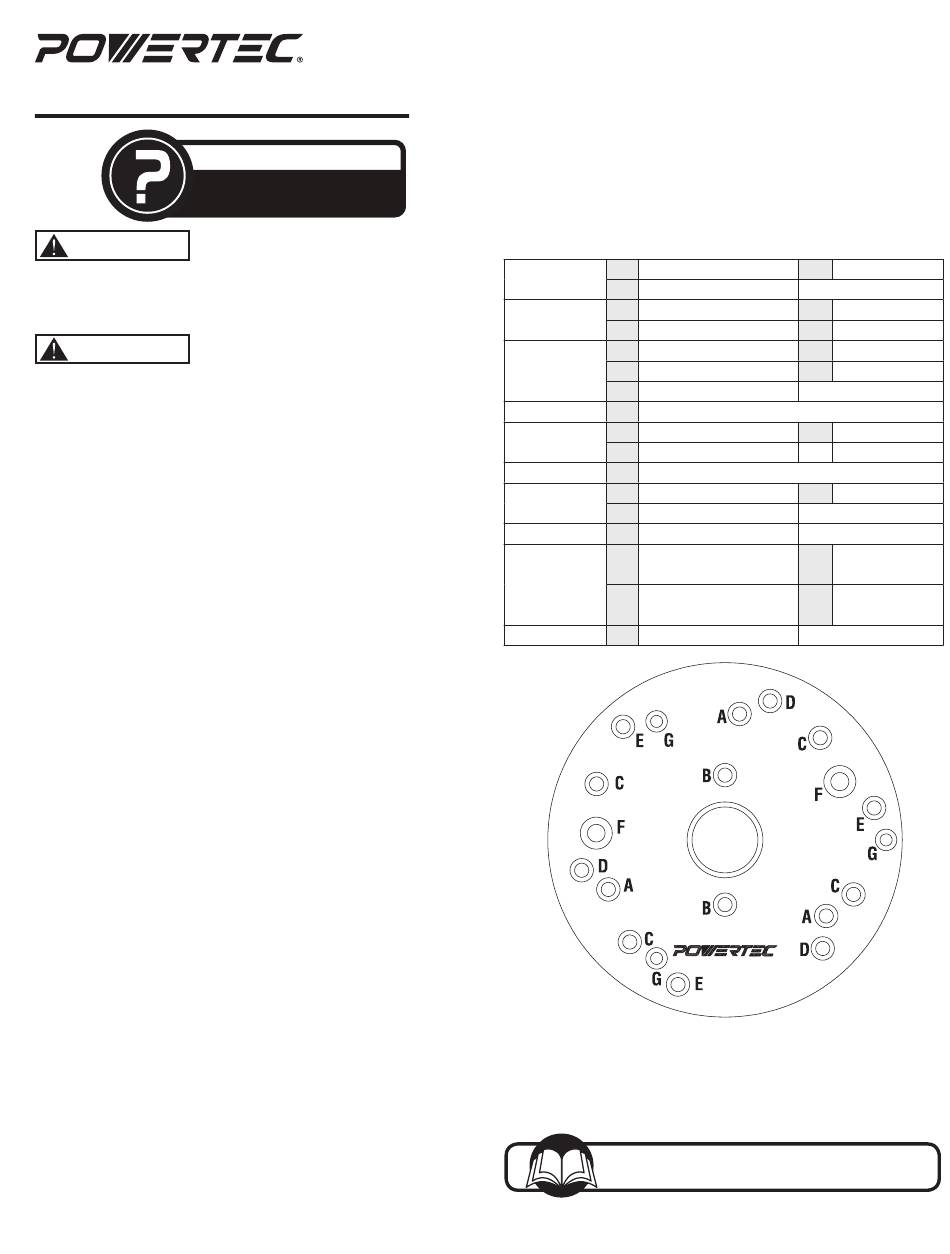

Figure 1
* PORTER-CABLE, D
WALT, Elu and Craftsman are trademarks of The Black &
e
Decker Corporation/ Bosch is a trademark of the Robert Bosch Tool Corporation/
Milwaukee is a trademark of Milwaukee Electric Tool Corporation/ Makita is a
trademark of Makita Corporation/ Fein is a trademark of C. & E. Fein GmbH/ Hitachi
is a trademark of Hitachi, Ltd./ Ryobi is a trademark of RYOBI, LTD.
Visit us on the web at powertecproducts.com
Put these instructions and the original sales invoice in a safe,
dry place for future reference.
Southern Technologies, LLC
Waukegan, IL 60087
Model No. 71369
A 8529
A 1618
A MR23 Series
E 315 175 060
D 315 175 070
A 5616
A M-12VC
A DW616
Series
A DW618
Series
19-1021
