Summary of Contents for Boser HS-7001

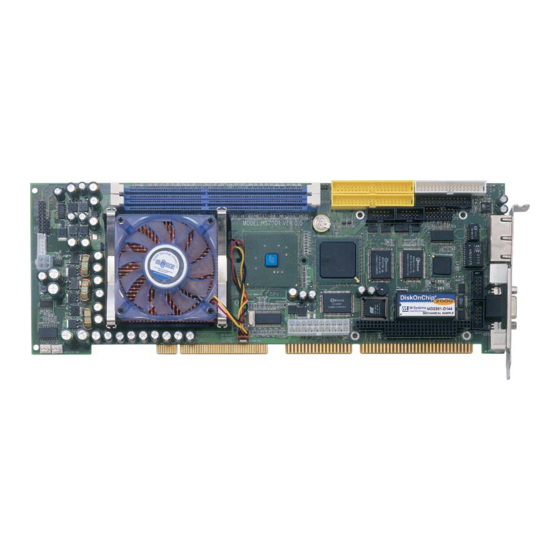

- Page 1 HS-7001 PGA 478 Pentium® 4 Industrial Single Board Computer •Full-size•Giga LAN•CRT•ATA/33/66/100• •Dual LAN•Audio•4COM•PC/104•IrDA• •USB2.0•DOC•WDT•H/W Monitor• •PICMG Bus Industrial Single Board computer•...
- Page 2 Copyright Disclaimers The accuracy of contents in this manual has passed thorough checking and review before publishing. BOSER Technology Co., Ltd., the manufacturer and publisher, is not liable for any infringements of patents or other rights resulting from its use. The...
-
Page 3: Table Of Contents
Table of Contents Chapter 1 General Description........1 Major Features ..............2 Specifications ..............2 Board Dimensions............4 Chapter 2 Unpacking ..........5 Opening the Delivery Package........5 Inspection................. 5 Chapter 3 Hardware Installation ......7 Before Installation ............7 Board Layout ..............8 Jumper List .............. - Page 4 Chapter 4 Award BIOS Setup .........30 Starting Setup ..............30 Using Setup..............31 Main Menu ..............32 Standard CMOS Features ..........33 Advanced BIOS Features ..........34 Advanced Chipset Features ......... 35 Integrated Peripherals ..........36 Power Management Setup ........... 37 PnP/PCI Configurations..........
- Page 5 Fasten the ALLIGATOR clip of the strap to the end of the shielded wire lead from a grounded object. Please wear and connect the strap before handle the HS-7001 to ensure harmlessly discharge any static electricity through the strap.
-
Page 7: Chapter 1 General Description
I/O with CRT, Dual LAN, audio and 4 COM ports interface. Its onboard ATA/33/66/100 to IDE drive interface architecture allows the HS-7001 to support data transfers of 33, 66 or 100MB/sec. to each ® IDE drive connection. Designed with the Intel 82845GV/82801DB core logic chipset, the board supports all PGA 478 Pentium®... -
Page 8: Major Features
Major Features The HS-7001 comes with the following features: ® ® PGA 478 for Intel Pentium 4 up to 2.8GHz CPU ® Intel 82845GV/82801DB system chipset Two DDR sockets with a max. capacity of 2GB Winbond W83627 super I/O chipset x 2... - Page 9 IDE: Four IDE disk drives supporting ATA/33/66/100 and with transfer rates of up to 33/66/100MB/sec. FDD: Supports up to two floppy disk drives Parallel: One enhanced bi-directional parallel port supporting SPP/ECP/EPP ® ® LAN: One Intel 82540EM 100/1000 Based(or one Intel 82551 10/100 ®...
-
Page 10: Board Dimensions
Board Dimensions... -
Page 11: Chapter 2 Unpacking
Chapter 2 Unpacking Opening the Delivery Package The HS-7001 is packed in an anti-static bag. The board has components that are easily damaged by static electricity. Do not remove the anti-static wrapping until proper precautions have been taken. Safety Instructions in front of this manual describe anti-static precautions and procedures. - Page 12 Cables Package Description Floppy flat cable x 1 ATA/100 IDE flat cable x 2 5-pin ATX power cable x 1 Two USB split type cable with bracket x 1 Parallel port flat cable with bracket x 1 MIC/Audio 8-pin cable x 1 Two COM flat cable with bracket x 2 It is recommended that you keep all the parts of the delivery package intact and store them in a safe/dry place for any unforeseen event...
-
Page 13: Chapter 3 Hardware Installation
Chapter 3 Hardware Installation This chapter provides the information on how to install the hardware using the HS-7001. This chapter also contains information related to jumper settings of switch, watchdog timer, and the DiskOnChip address selection etc. Before Installation After confirming your package contents, you are now ready to install your hardware. -
Page 14: Board Layout
Board Layout... -
Page 15: Jumper List
Jumper List Jumper Default Setting Setting Page Clock Speed Select: CPU Select 1-2 Short Clear CMOS: Normal Operation 1-2 Short DiskOnChip Address Select: D000H~D1FFH 3-4, 7-8 Short Connector List Connector Definition Page CD Analog Input Connector Line In Analog Input Connector COM1 COM1 Connector (DB9) Green LED Connector... -
Page 16: Configuring The Cpu
DOC in your system, please set both at different memory address mapping to avoid the mapping area conflicts. Failing to do so will not make the HS-7001 and the additional memory device function properly. JP4: DiskOnChip Address Select... - Page 17 DC00H-DDFFH 5-6, 9-10 Short...
- Page 18 3.7.1 Installing DiskOnChip Modules When installing a DiskOnChip module onto your board, please take note of the following: 1. Orient yourself properly with the location of the DiskOnChip socket. Try to locate the pin 1 location on your socket. Pin numbers are usually printed on either the component side or the solder side of your board.
-
Page 19: Vga Controller
VGA Controller The onboard Intel 82845GV with 1MB or 8MB memory supporting CRT display up to 1280 x 1024 x 32-bit. The HS-7001 provides one connection method of a VGA device. VGA1 offers a single standard CRT connector (DB15). -
Page 20: Pci E-Ide Drive Connector
PCI E-IDE Drive Connector IDE1 and IDE2 are standard 40-pin connector daisy-chain driver connector serves the PCI E-IDE drive provisions onboard the HS-7001. A maximum of four ATA/33/66/100 IDE drives can connect to the HS-7001 via IDE1 and IDE2. IDE1: Primary IDE Connector... - Page 21 IDE2: Secondary IDE Connector Description Description RESET SDATA 7 SDATA 8 SDATA 6 SDATA 9 SDATA 5 SDATA 10 SDATA 4 SDATA 11 SDATA 3 SDATA 12 SDATA 2 SDATA 13 SDATA 1 SDATA 14 SDATA 0 SDATA 15 SDREQ SIOW# SIOR# SIORDY...
-
Page 22: Floppy Disk Drive Connector
3.10 Floppy Disk Drive Connector The HS-7001 uses a standard 34-pin header connector, FDC1, for floppy disk drive connection. A total of two FDD drives may be connected to FDC1 at any given time. FDC1: FDD Connector Description Description DRVDEN0... -
Page 23: Serial Port Connectors
3.11 Serial Port Connectors The HS-7001 offers two NS16C550 compatible UARTs with Read/Receive 16-byte FIFO serial ports and four internal 10-pin headers. CN11: COM1 Connector (5x2 Header) PIN Description PIN Description DCD0 DSR0 DCD0 DSR0 RXDD0 RTS0 TXDD0 CTS0 RXDD0... -
Page 24: Irda Connector
CN9: COM4 Connector (5x2 Header) PIN Description PIN Description DCD3 DSR3 DCD3 DSR3 RXDD3 RTS3 TXDD3 CTS3 RXDD3 RTS3 DTR3 TXDD3 CTS3 DTR3 COM1: COM1 Connector (DB9) Description DCD0 RXDD0 TXDD0 DTR0 DTR0 CTS0 TXDD0 RTS0 DSR0 RXDD0 DSR0 RTS0 DCD0 CTS0 3.12 IrDA Connector... -
Page 25: Parallel Connector
DATA 4 DATA 5 DATA 6 DATA 7 Acknowledge Busy Paper Empty Printer Select 3.14 Ethernet Connector The HS-7001 provides one 10/100 and one 100/1000 OR two 10/100 Base-TX LAN interface connector. Please refer to the following for its pin information. -
Page 26: Usb Connector
RRX-C Giga LAN WOL1: Wake On LAN Connector Description VCC5SBY 3.15 USB Connector The HS-7001 provides one 8-pin USB2.0 connectors, at locations USB1, for two USB connections to the HS-7001. USB1: USB2.0 Connector PIN Description PIN Description USBP0N USBP1N USBP0N... -
Page 27: Power And Fan Connectors
HS-7001 provides one 4-pin and one 20-pin ATX power connectors at PW1 and PW2. HS-7001 must using P4 power supply. One of 4-pin connector is for +12V lead which should connect to PW1. 20-pin ATX Power Connector can connect to Backplane or to PW2. If 20-pin ATX Power Connector connects to Backplane, please make sure CN13 and Backplane’s 5-pin ATX controller is connected... - Page 28 CN13: 5-pin ATX Power Control (Connector to BOSER’s HPCI or HPP serial backplane) PIN Description PIN Description PS_ON VCC5SBY Connector FN1, FN2 and FN3 onboard HS-7001 are 3-pin chassis, CPU, System fan connector. FN1: Chassis Fan Connector Description Chassis Fan Speed...
-
Page 29: Keyboard Connectors
MS Data Mouse Clock 3.20 System Front Panel Connectors The HS-7001 has one LED at location CN3 that indicates the power-on status. This visual feature of the IDE LED may also be connected to an external IDE LED via connector CN3. -
Page 30: External Speaker
CN2: Reset Button Connector Description Reset 3.21 External Speaker Aside from the buzzer at location BZ1 onboard, the HS-7001 also offers a connector (CN7) for an external speaker connection. The table below lists the pin assignments of CN7. CN7: Speaker Connector... -
Page 31: Watchdog Timer
3.22 Watchdog Timer Once the Enable cycle is active, a Refresh cycle is requested before the time-out period. This restarts counting of the WDT period. When the time counting goes over the period preset of WDT, it will assume that the program operation is abnormal. A System Reset signal to re-start when such error happens. -
Page 32: Audio Connectors
3.23 Audio Connectors The HS-7001 has an onboard AC97 3D audio interface. The following tables list the pin assignments of the CD-ROM Analog Input, the Line_ In analog Input and the MIC In/Line Out connectors. CD1: CD-ROM Analog Input Connector... -
Page 33: Pc/104 Connectors
3.24 PC/104 Connectors The PC/104 expansion bus offers provisions to connect all types of PC/104 modules. With the PC/104 bus being known as the new generation of industrial embedded 16-bit PC standard bus, thousands of PC/104 modules from multiple venders can be easily installed onboard. - Page 34 PC1: 64-pin PC/104 Expansion Slot Description PIN Description Connector diagram rotated 90 degrees IOCHECK* clockwise from RESETDRV original position IRQ9 DRQ2 -12V 0WS* +12V IOCHRDY SMEMW* SA19 SMEMR* SA18 IOW* SA17 IOR* SA16 DACK3* SA15 DRQ3 SA14 DACK1* SA13 DRQ1 SA12 REFRESH* SA11...
- Page 35 This page is intentionally left blank.
-
Page 36: Chapter 4 Award Bios Setup
Chapter 4 Award BIOS Setup The HS-7001 uses Award BIOS for the system configuration. The Award BIOS setup program is designed to provide the maximum flexibility in configuring the system by offering various options that could be selected for end-user requirements. This chapter is written to assist you in the proper usage of these features. -
Page 37: Using Setup
Using Setup In general, you use the arrow keys to highlight items, press <Enter> to select, use the <PageUp> and <PageDown> keys to change entries, press <F1> for help and press <Esc> to quit. The following table provides more detail about how to navigate in the Setup program using the keyboard. -
Page 38: Main Menu
Main Menu Once you enter the Award BIOS CMOS Setup Utility, the Main Menu will appear on the screen. The Main Menu allows you to select from several setup functions and two exit choices. Use the arrow keys to select among the items and press <Enter> to enter the sub-menu. CMOS Setup Utility –... -
Page 39: Standard Cmos Features
Standard CMOS Features The Standard Setup is used for the basic hardware system configuration. The main function is for Data/Time and Floppy/Hard Disk Drive settings. Please refer to the following screen for the setup. When the IDE hard disk drive you are using is larger than 528MB, you must set the HDD mode to LBA mode. -
Page 40: Advanced Bios Features
Advanced BIOS Features This section allows you to configure your system for the basic operation. You have the opportunity to select the system’s default speed, boot-up sequence, keyboard operation, shadowing and security. CMOS Setup Utility－Copyright ©1984-2001 Award Software Advanced BIOS Features Virus Warning Disabled Item Help... -
Page 41: Advanced Chipset Features
Advanced Chipset Features This section allows you to configure the system based on the specific features of the installed chipset. This chipset manages bus speeds and the access to the system memory resources, such as DRAM and the external cache. It also coordinates the communications between the conventional ISA and PCI buses. -
Page 42: Integrated Peripherals
Integrated Peripherals The IDE hard drive controllers can support up to two separate hard drives. These drives have a master/slave relationship that is determined by the cabling configuration used to attach them to the controller. Your system supports two IDE controllers--a primary and a secondary--so you can install up to four separate hard disks. -
Page 43: Power Management Setup
Power Management Setup The Power Management Setup allows user to configure the system for saving energy in a most effective way while operating in a manner consistent with his own style of computer use. CMOS Setup Utility－Copyright ©1984-2001 Award Software Power Management Setup ACPI function Enabled... -
Page 44: Pnp/Pci Configurations
PnP/PCI Configurations This section describes configuring the PCI bus system. PCI, or Personal Computer Interconnect, is a system that allows I/O devices to operate at speeds nearing the speed the CPU itself uses when communicating with its own special components. This section covers some very technical items and it is strongly recommended that only experienced users should make any changes to the default settings. -
Page 45: Pc Health Status
4.10 PC Health Status CMOS Setup Utility－Copyright ©1984-2001 Award Software PC Health Status CPU Warning Temperature Disabled Item Help Current System Temp Menu Level Current CPU Temperature Current CPU FAN Speed XXXX RPM Current System FAN Speed XXXX RPM Current Chassis FAN Speed XXXX RPM Change the day, month, year and century... -
Page 46: Load Fail-Safe Defaults
4.12 Load Fail-Safe Defaults When you press <Enter> on this item you will get a confirmation dialog box with a message shown below. This option allows you to load/restore the BIOS default values permanently stored in the BIOS ROM. Pressing ‘Y’ loads the BIOS default values for the most stable, minimal-performance system operations. -
Page 47: Load Optimized Defaults
4.13 Load Optimized Defaults When you press <Enter> on this item you get a confirmation dialog box with a message similar to the figure below. This option allows you to load/restore the default values to your system configuration, optimizing and enabling all high performance features. Pressing ‘Y’ loads the default values that are factory settings for optimal performance system operations. -
Page 48: Set Supervisor/User Password
4.14 Set Supervisor/User Password CMOS Setup Utility－Copyright ©1984-2001 Award Software Standard CMOS Features Frequency/Voltage Control Advanced BIOS Features Load Fail-Safe Defaults Advanced Chipset Features Load Optimized Defaults Integrated Peripherals Set Supervisor Password Power Management Setup Set User Password PnP/PCI Configurati t Setup Enter Password : PC Health Status... -
Page 49: Save & Exit Setup
PASSWORD DISABLED. When a password has been enabled, you will be prompted to enter it every time you try to enter Setup. This prevents an unauthorized person from changing any part of your system configuration. Additionally, when a password is enabled, you can also require the BIOS to request a password every time your system is rebooted. -
Page 50: Exit Without Saving
4.16 Exit Without Saving Pressing <Enter> on this item asks for confirmation: Quit without saving (Y/N)? Y This allows you to exit Setup without storing in CMOS any change. The previous selections remain in effect. This exits the Setup utility and restarts your computer. - Page 51 This Page is intentionally left blank.
-
Page 52: Chapter 5 Software Utilities
IDE Driver Installation 5.1.1 Installing Intel Chipset Software Utility Insert Utility CD Disk to your CD ROM drive. The main menu will pop up as shown below. Select on the HS-7001 button to launch the installation program. - Page 53 Click on the ICH4 Driver button to continue. Immediately after clicking the IDE button in Step 1, the program launches the InstallShield Wizard that will assist you in the installation process. Click on the Next > button to proceed.
- Page 54 The Intel OEM Software License Agreement dialog box then appears on the screen. Choose Yes to proceed. When the Readme Information dialog box pops up, just click on the Next button to proceed.
- Page 55 Once the Install Shield Wizard finishes updating your system, it will prompt you to restart the computer. Tick on the Yes, I want to restart my computer now followed by a click on the Finish button to reboot. Only after your computer boots will the new settings take effect.
- Page 56 5.1.2 Installing Intel Application Accelerator Insert Utility CD Disk to your CD ROM drive. The main menu will pop up as shown below. Select on the HS-7001 button to launch the installation program. Click on the IDE Driver button to continue.
- Page 57 When the dialog box below appears, make sure you close all other Windows applications then click on the Next > button to proceed. The Intel OEM Software License Agreement dialog box then appears on the screen. Choose Yes to proceed.
- Page 58 Setup will then prompt you to specify the path where you would like the Security driver installed. Select the Next > button after you have made your path/installation choice. Once the setup program finishes copying files into your system, it will prompt you to restart the computer.
-
Page 59: Vga Driver Installation
VGA Driver Installation 5.2.1 Win 95/98 Insert Utility CD Disk to your CD ROM drive. The main menu will pop up as shown below. Select on the HS-7001 button to launch the installation program. Click on the VGA Driver button to continue. - Page 60 Click on the Windows 9x button to continue. When the dialog box below appears, make sure you close all other Windows applications then click on the Next > button to proceed. The Intel OEM Software License Agreement dialog box then appears on the screen.
- Page 61 Once the setup program finishes copying files into your system, it will prompt you to restart the computer. Tick on the Yes, I want to restart my computer now followed by a click on the Finish button to reboot. Only after your computer boots will the new settings take effect.
- Page 62 Please make sure you have already install Service Pack 6.0. Insert Utility CD Disk to your CD ROM drive. The main menu will pop up as shown below. Select on the HS-7001 button to launch the installation program. Click on the VGA Driver button to continue.
- Page 63 Click on the Windows NT button to continue. When the dialog box below appears, make sure you close all other Windows applications then click on the Next > button to proceed.
- Page 64 The Intel OEM Software License Agreement dialog box then appears on the screen. Choose Yes to proceed. Once the setup program finishes copying files into your system, it will prompt you to restart the computer. Tick on the Yes, I want to restart my computer now followed by a click on the Finish button to reboot.
- Page 65 5.2.3 Win 2000 Insert Utility CD Disk to your CD ROM drive. The main menu will pop up as shown below. Select on the HS-7001 button to launch the installation program. Click on the VGA Driver button to continue.
- Page 66 Click on the Windows 2K button to continue. When the dialog box below appears, make sure you close all other Windows applications then click on the Next > button to proceed.
- Page 67 The Intel OEM Software License Agreement dialog box then appears on the screen. Choose Yes to proceed. Once the setup program finishes copying files into your system, it will prompt you to restart the computer. Tick on the Yes, I want to restart my computer now followed by a click on the Finish button to reboot.
-
Page 68: Lan Driver Installation
LAN Driver Installation 5.3.1 Win 95/98 Insert Utility CD Disk to your CD ROM drive. The main menu will pop up as shown below. Select on the HS-7001 button to launch the installation program. Click on the LAN Driver button to continue. - Page 69 Click on the Windows 9x button to continue. When the dialog box below appears, make sure you close all other Windows applications then click on the Next > button to proceed.
- Page 70 The Intel OEM Software License Agreement dialog box then appears on the screen. Choose Accept to proceed. The Setup Type dialog box then appears on the screen. Choose Typical to proceed.
- Page 71 When the dialog box below appears, make sure you close all other Windows applications then click on the Install button to proceed. When the dialog box below appears, it means your driver is install completed. Click Finish button to proceed.
- Page 72 Once the setup program finishes copying files into your system, it will prompt you to restart the computer. Tick on the Yes to reboot. Only after your computer boots will the new settings take effect. 5.3.2 Win NT NOTE: Please make sure you have already install Service Pack 6.0. The system automatically detects the absence of Windows NT Networking.
- Page 73 Click on the Start Search button for the program to locate the Network Adapter. Once setup finishes the search, it will list a number of adapters for you to choose from. Press on the Have Disk button to assign the driver path location.
- Page 74 Setup now asks you for the location of the driver. When you have entered the new driver path, press on the OK button to continue. When Setup finds the information it needs about the new driver, it will display the device it found on the following screen. If using 82551 or 82562, please choose “Intel(R) PRO/100 Family Adapter”.
- Page 75 Setup then returns to Network Setup Wizard screen and displays your new Network Adapter. Click on Next to continue. The Network Setup Wizard then allows you to set the Network Protocols on your network. Select the appropriate protocol and then click on Next to continue.
- Page 76 Before Setup starts installing the components found and the settings you made, it will give you the option to proceed or go back for changes from the following screen. Click on the Next button once you are sure of your devices. 10.
- Page 77 12. Setup then starts the Networking installation and copies the files. 13. When the screen below appears, click on Next to continue. 14. Setup then prompts you that it is ready to start the network. You may complete the installation thereafter. Click on Next to continue.
- Page 78 15. Assign the workgroup or domain setting of your computer. Click on Next to continue. 16. Click on the Yes button to restart your computer. The LAN1 driver installation for WIN NT4.0 is now complete.
- Page 79 17. With the Utility CD Disk still in your CD ROM drive, we can install LAN2. Right click on “Network Neighborhood” icon from the desktop. Select on Properties and then proceed to the Network from the main menu. Click on Add to continue. 18.
-
Page 80: Audio Driver Installation
19. Click on the Close button. The LAN2 driver installation for WIN NT4.0 is now complete. Audio Driver Installation Insert Utility CD Disk to your CD ROM drive. The main menu will pop up as shown below. Select on the HS-7001 button to launch the installation program. - Page 81 Click on the AUDIO Driver button to continue. When the dialog box below appears, make sure you close all other Windows applications then click on the Next > button to proceed. Once the InstallShield Wizard completes the operation and update of your AC’97 driver, it will ask you to remove disks from their drives, and prompt you to restart your system.
-
Page 82: Usb2.0 Driver Installation
USB2.0 Driver Installation 5.5.1 Win 95/98 With the Utility CD Disk still in your CD ROM drive, right click on “My Computer” icon from the Windows menu. Select on System Properties and then proceed to the Device Manager from the main menu. - Page 83 Select on Other Devices from the list of devices then double-click on PCI Universal Serial Bus. The PCI Universal Serial Bus Properties screen then appears, allowing you to re-install the driver. Select Driver from the main menu to proceed.
- Page 84 When the dialog box below appears, make sure you close all other Windows applications then click on the Next > button to proceed. Tick on the “Search for a better driver” once the following screen appears. Click on the Next to proceed.
- Page 85 Once the program returns to the Add New Hardware Wizard screen, your specified location will appear. Press on the Next button to continue When Setup finds the information it needs about the new driver, it will display the device it found on the following screen. Press on the Next button to accept and proceed.
- Page 86 Once the InstallShield Wizard completes the operation and update of your USB2.0 driver. Click on the Finish button to complete the installation process. 5.4.2 Win 2000 With the Utility CD Disk still in your CD ROM drive, right click on “My Computer”...
- Page 87 The PCI Universal Serial Bus Properties screen then appears, allowing you to re-install the driver. Select Driver from the main menu to proceed. When the dialog box below appears, make sure you close all other Windows applications then click on the Next > button to proceed.
- Page 88 Tick on the “Search for a suitable driver” once the following screen appears. Click on the Next to proceed. Once the program returns to the Add New Hardware Wizard screen, your specified location will appear. Press on the Next button to continue...
- Page 89 Choose sisusb2.inf and press on the Open button to accept and proceed. Once the InstallShield Wizard completes the operation and update of your USB2.0 driver. Click on the Finish button to complete the installation process.
- Page 90 5.4.3 Win XP Insert Utility CD Disk to your CD ROM drive. The main menu will pop up as shown below. Select on the HS-7001 button to launch the installation program. Click on the USB2.0 Driver button to continue.
- Page 91 Click on the Windows XP button to continue. When the dialog box below appears, make sure you close all other Windows applications then click on the Next > button to proceed.
- Page 92 Once the InstallShield Wizard completes the operation and update of your USB2.0 driver. Click on the Finish button to complete the installation process.
