RCS

With RS485 Serial Communications

This quick start guide provides basic connection information.

The CD included with this product contains the following

• TR16 Installation and Operations Manual

• Serial Communications Protocol Manual

• Thermostat Control Program (TCP)

• TCP Users Manual

Read these documents before attempting to install or use this product

Additional information may be available at the RCS website: www.resconsys.com

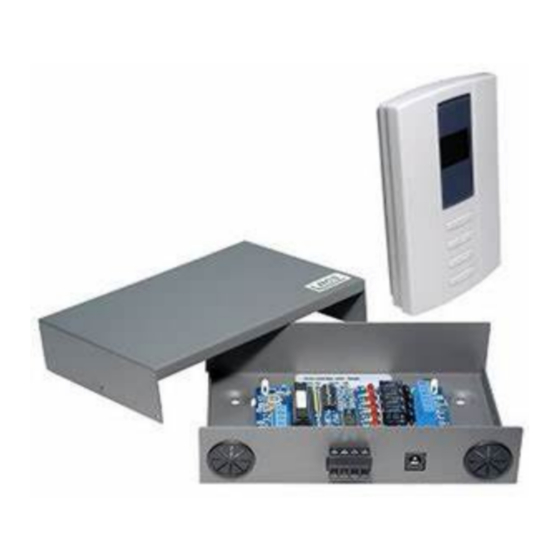

Model TR16

Communicating Thermostat

QUICK START GUIDE

documentation and programs:

and before calling for technical support.

DCN: 140-00930-02

7/13/06

Need help?

Do you have a question about the TR16 and is the answer not in the manual?

Page 1 • Serial Communications Protocol Manual • Thermostat Control Program (TCP) • TCP Users Manual Read these documents before attempting to install or use this product and before calling for technical support. Additional information may be available at the RCS website: www.resconsys.com DCN: 140-00930-02 7/13/06...
Page 2 4. RS485 Communications Test You can test the thermostat RS485 communications using a PC and the RCS Thermostat Control Program (TCP) if you are using the RCS RS232/RS485 converter. See the TCP manual. If you are connecting to another RS485 network, it is recommended that you establish network communications during this Bench Test.
Page 3 RS485 Network Connection (J3) The TR16 RS485 communications network is a 2 wire, half duplex network. Connect the RS485 network connection J3 T+ and R- to the network Data + and Data – wires. Always wire RS485 connections + to +...
Page 4 TR16 Thermostat Wiring Diagram TR16 CONTROL UNIT Rev P S1 1 Fuse Mini ATO 2 Amp TS16 OFF ON WALL DISPLAY UNIT RH=RC Cut Jumper to split HVAC SYSTEM +12VDC +V Blue 24V COM STATUS THERMOSTAT CONNECTOR CLOCK 24V RH...
