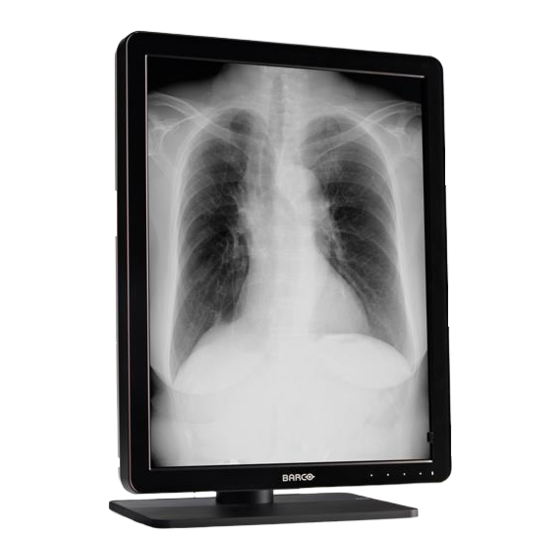

NIO 3MP LED Display
User Guide
MDNG-3220
K5903503/01
15/10/2014

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MDNG-3220 and is the answer not in the manual?

Questions and answers

Related Manuals for Barco MDNG-3220

Summary of Contents for Barco MDNG-3220

  • Page 1 NIO 3MP LED Display User Guide MDNG-3220 K5903503/01 15/10/2014...
  • Page 2 Barco nv President Kennedypark 35, 8500 Kortrijk, Belgium Phone: +32 56.23.32.11 Fax: +32 56.26.22.62 Support: www.barco.com/esupport Visit us at the web: www.barco.com Printed in Belgium...

  • Page 3: Table Of Contents

    Table of contents TABLE OF CONTENTS 1. Welcome! ..................3 About the product .................... . 3 What’s in the box.
  • Page 4 Table of contents K5903503 NIO 3MP LED DISPLAY 15/10/2014...

  • Page 5: Welcome

    AC power cord • an external power supply If you ordered a Barco display controller, it’s also in the box together with its accessories. A dedicated user guide is available on the system CD. K5903503 NIO 3MP LED DISPLAY 15/10/2014...
  • Page 6 1. Welcome! Keep your original packaging. It is designed for this display and is the ideal protection during transport and storage. K5903503 NIO 3MP LED DISPLAY 15/10/2014...

  • Page 7: Parts, Controls And Connectors

    2. Parts, controls and connectors 2. PARTS, CONTROLS AND CONNECTORS Display front view Overview Image 2-1 Front view Left key Standby key Right key Power LEDs Menu key Bottom downstream USB The key icons are displayed above the keys, adapted to the function that it is used for (menu dependent).

  • Page 8: Display Rear View

    2. Parts, controls and connectors Display rear view Connector compartment cover closed Image 2-2 Rear view with closed connector compartment cover Connector compartment cover Foot lock clip Cable duct Tilt & swivel foot K5903503 NIO 3MP LED DISPLAY 15/10/2014...
  • Page 9 2. Parts, controls and connectors Connector compartment cover open Image 2-3 Rear view with open connector compartment cover. DisplayPort video output +24 VDC power input USB downstream connector DVI video input USB upstream connector DisplayPort video input K5903503 NIO 3MP LED DISPLAY 15/10/2014...
  • Page 10 2. Parts, controls and connectors K5903503 NIO 3MP LED DISPLAY 15/10/2014...

  • Page 11: Display Installation

    Prior to installing your NIO 3MP LED Display and connecting all necessary cables, make sure to have a suitable display controller physically installed in your computer. If you are using a Barco display controller, please consult the user guide delivered with it to do this.

  • Page 12: Removing The Connector Compartment Cover

    3. Display installation If, after installing the display of the system, you change the panel orientation while an image is on the screen, the result depends on the graphic board and the resolution of the image. In some cases the image will be rotated automatically, in other cases it will not be rotated (e.g., when pixels would be lost after rotation).
  • Page 13 3. Display installation 1. Connect the DVI or DP of the display controller to the DVI or DP connector of the display. 2. If you want to make use of the display’s USB upstream connector, connect a PC USB downstream connector to the display’s USB upstream connector.

  • Page 14: Routing The Cables & Reattach The Connector Compartment Cover

    3. Display installation 5. Connect the supplied external DC power supply to the +24 Vdc power input of the display. 6. Plug the mains connector of the external DC power supply to a grounded power outlet by means of one of the supplied power cables. Routing the cables &...

  • Page 15: Vesa-Mount Installation

    3. Display installation To Reattach the connector compartment cover 1. Reattach the connector compartment cover by sliding the cover’s bottom in position and then push the cover’s top. You’ll hear a “click” sound of the cover’s clips when the connector compartment cover is in position.

  • Page 16: First Time Starting Up

    3. Display installation 1. Put the display in the lowest position and fasten the height mechanism, see "Unlocking the height mechanism", page 9 . 2. Put the display face down on a clean and soft surface. Be careful not to damage the panel screen. 3.
  • Page 17 Your NIO 3MP LED Display will be running in a basic video mode at a default refresh rate when first time starting up. If you are using a Barco display controller, please consult the user guide delivered with it to install the drivers, software and documentation. When this is done, your display will automatically detect the connected video input signal(s) and apply the correct video mode and refresh rate.
  • Page 18 3. Display installation K5903503 NIO 3MP LED DISPLAY 15/10/2014...

  • Page 19: Daily Operation

    LCD displays use technology based on pixels. As a normal tolerance in the manufacturing of the LCD, a limited number of these pixels may remain either dark or permanently lit, without affecting the diagnostic performance of the product. To ensure optimal product quality, Barco applies strict selection criteria for its LCD panels.

  • Page 20: Key Indicator Lights

    The ’MediCal QAWeb’ system offers online service for high-grade Quality Assurance, providing maximum diagnostic confidence and uptime. Barco recommends to install MediCal QAWeb Agent and apply the default QAWeb policy at least. This policy includes calibration on regular intervals. Connecting to MediCal QAWeb Server offers even more possibilities.

  • Page 21: Navigating Through The Osd Menus

    4. Daily operation 1. If not already done so, switch on the display as previously described. 2. Illuminate the keys as previously described. 3. While the keys are illuminated, touch the menu key. As a result, the OSD main menu comes up in the bottom right corner of the screen. However, if no further actions are taken within the following 30 seconds, the OSD will disappear again.
  • Page 22 4. Daily operation K5903503 NIO 3MP LED DISPLAY 15/10/2014...

  • Page 23: Advanced Operation

    5. Advanced operation 5. ADVANCED OPERATION OSD menu language About the OSD menu language By default, the OSD menu comes up in English. However, there’s a wide range of other languages avail- able for the OSD menu of your NIO 3MP LED Display. To change the language of the OSD menu: 1.

  • Page 24: Power Status Menu

    By default, DPMS mode is enabled on your display, but it also needs to be activated on your workstation. To do this, go to the “Power options properties” window of your workstation. Barco recommends setting DPMS activation after 20 minutes of non-usage. To enable/disable DPMS mode on your display: 1.

  • Page 25: Luminance Target

    In short, the DICOM display function results in more visible grayscales in the images. Barco recommends selecting the DICOM display function for most medical viewing applications. User - Qaweb This display function will be automatically selected when display functions are defined by MediCal...

  • Page 26: Reading Room

    5. Advanced operation Diagnostic This mode provides the full calibrated luminance and is intended for using the display for diagnostic purposes. Text In this mode, the luminance is reduced to approximately half of the luminance. This is intended for using the display with office applications such as word processing.

  • Page 27: Input Signal

    5. Advanced operation To select a reading room: 1. Bring up the OSD main menu. 2. Navigate to the Configuration > Calibration menu. 3. Enter the Reading Room submenu. 4. Select one of the available reading rooms and confirm. 5.10 Input signal About input signals By default, your NIO 3MP LED Display automatically detects and shows the connected video input source.

  • Page 28: Edid Timings

    5. Advanced operation 5.12 EDID timings About EDID timings Following EDID timings are available for your NIO 3MP LED Display: Refresh Rate Allows to manually select between a low, medium or high refresh rate of the image source video input signal depending on the maximum refresh rate of the display controller connected to your display.

  • Page 29: Display Status

    5. Advanced operation 5.15 Display status About display status The Status submenu of the OSD menu provides info on the current status of your display (runtimes, tem- peratures, etc.), the status of the connected image sources (video encoding mode, timings, etc.), the current calibration status of your display (display function, luminance, ALC, etc.) and the status about activated connections.
  • Page 30 5. Advanced operation K5903503 NIO 3MP LED DISPLAY 15/10/2014...

  • Page 31: Maintenance

    The NIO 3MP LED Display does not require any scheduled maintenance or calibration activities. We recommend to use QAWeb with the Barco default tests and frequencies to calibrate and maintain the display or return the display to a Barco approved maintenance organization. In any case of doubts, contact the Barco Healthcare Division...
  • Page 32 6. Maintenance K5903503 NIO 3MP LED DISPLAY 15/10/2014...

  • Page 33: Important Information

    7. Important information 7. IMPORTANT INFORMATION Safety information General recommendations Read the safety and operating instructions before operating the device. Retain safety and operating instructions for future reference. Adhere to all warnings on the device and in the operating instructions manual. Follow all instructions for operation and use.
  • Page 34 7. Important information To fully disengage the power to the device, please disconnect the power cord from the AC inlet. Power cords: • Use a power cord that matches the voltage of the power outlet, which has been approved and complies with the safety standard of your particular country.

  • Page 35: Environmental Information

    (Also called RoHS of Chinese Mainland), the table below lists the names and contents of toxic and/or hazardous substances that Barco’s product may contain. The RoHS of Chinese Mainland is included in the MCV standard of the Ministry of Information Industry of China, in the section “Limit Requirements of toxic substances in Electronic Information Products”.
  • Page 36 “Electronic Information Products Pollution Control Labeling Standard” of Chinese Mainland, marked with the Environmental Friendly Use Period (EFUP) logo. The number inside the EFUP logo that Barco uses (please refer to the photo) is based on the “Standard of Electronic Information Products Environmental Friendly Use Period”...

  • Page 37: Regulatory Compliance Information

    Regulatory compliance information Indications for use The NIO 3MP LED Display (MDNG-3220) is intended to be used as a tool in displaying and viewing digital images (excluding digital mammography) for review and analysis by trained medical practitioners. Caution (USA): Federal law restricts this device to sale by or on the order of a physician. (Details &...

  • Page 38: Emc Notice

    7. Important information EMC notice General information No specific requirement on the use of external cables or other accessories except power supply. With the installation of the device, use only the delivered power supply or a spare part provided by the legal manufacturer.
  • Page 39 7. Important information Immunity test Electromagnetic IEC 60601 Compliance level environment – Test levels guidance Mains power quality Electrical fast ± 2kV for power supply ± 2kV for power supply transient/burst lines lines should be that of a typical commercial or hospital IEC 61000-4-4 ±...
  • Page 40 7. Important information Immunity test Electromagnetic IEC 60601 Compliance level environment – Test levels guidance manufacturer and d is the recommended separation distance in meters (m). Field strengths from fixed RF transmitters, as determined by an electromagnetic site survey, should be less than the compliance level in each frequency range.

  • Page 41: Explanation Of Symbols

    7. Important information Rated maximum output Separation distance according to frequency of transmitter power of transmitter 150kHz to 80MHz 80MHz to 800MHz 800MHz to 2.5GHz d=1.2√P d=1.2√P d=2.3√P At 80 MHz and 800 MHz, the separation distance for the higher frequency range applies. These guidelines may not apply in all situations.
  • Page 42 7. Important information Indicates the device is approved according to the BSMI regulations Indicates the USB connectors on the device Indicates the DisplayPort connectors on the device Indicates the manufacturing date Indicates the temperature limitations for the device to safely operate within specs Indicates the device serial no.

  • Page 43: Legal Disclaimer

    Barco software products are the property of Barco. They are distributed under copyright by Barco N.V. or Barco, Inc., for use only under the specific terms of a software license agreement between Barco N.V. or Barco Inc. and the licensee. No other use, duplication, or disclosure of a Barco software product, in any form, is authorized.

  • Page 44: Technical Specifications

    This product is covered under the following intellectual property rights: US Patent RE43,707 Technical specifications Overview Product acronym MDNG-3220 Screen technology Active screen size (diagonal) 520 mm (20.8”) Active screen size (H x V) 318 mm x 424 mm (12.52” x 16.69”)
  • Page 45 7. Important information Dimensions with stand (W x H Portrait: (w x hmax x d): 378 x 628 x 235mm. (w x hmin x d): 378 x 528 x D) x 235mm Landscape: (w x hmax x d): 491 x 572 x 235mm. (w x hmin x d): 491 x 472 x 235mm Dimensions w/o stand (W x H 378 x 491 x 84 mm...
  • Page 46 7. Important information K5903503 NIO 3MP LED DISPLAY 15/10/2014...

  • Page 47: Troubleshooting

    8. Troubleshooting 8. TROUBLESHOOTING Troubleshooting General If you experience trouble with the LCD display, refer to the following troubleshooting. If the problem per- sists, please contact your local dealer or our service center. Problem: No image appears on the screen •...
