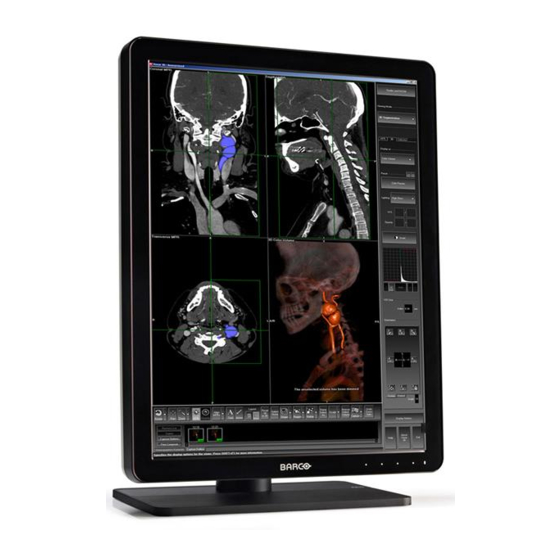

Nio 3MP LED Display
User Guide
MDNC-3321

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MDNC-3321 and is the answer not in the manual?

Questions and answers

Related Manuals for Barco MDNC-3321

Summary of Contents for Barco MDNC-3321

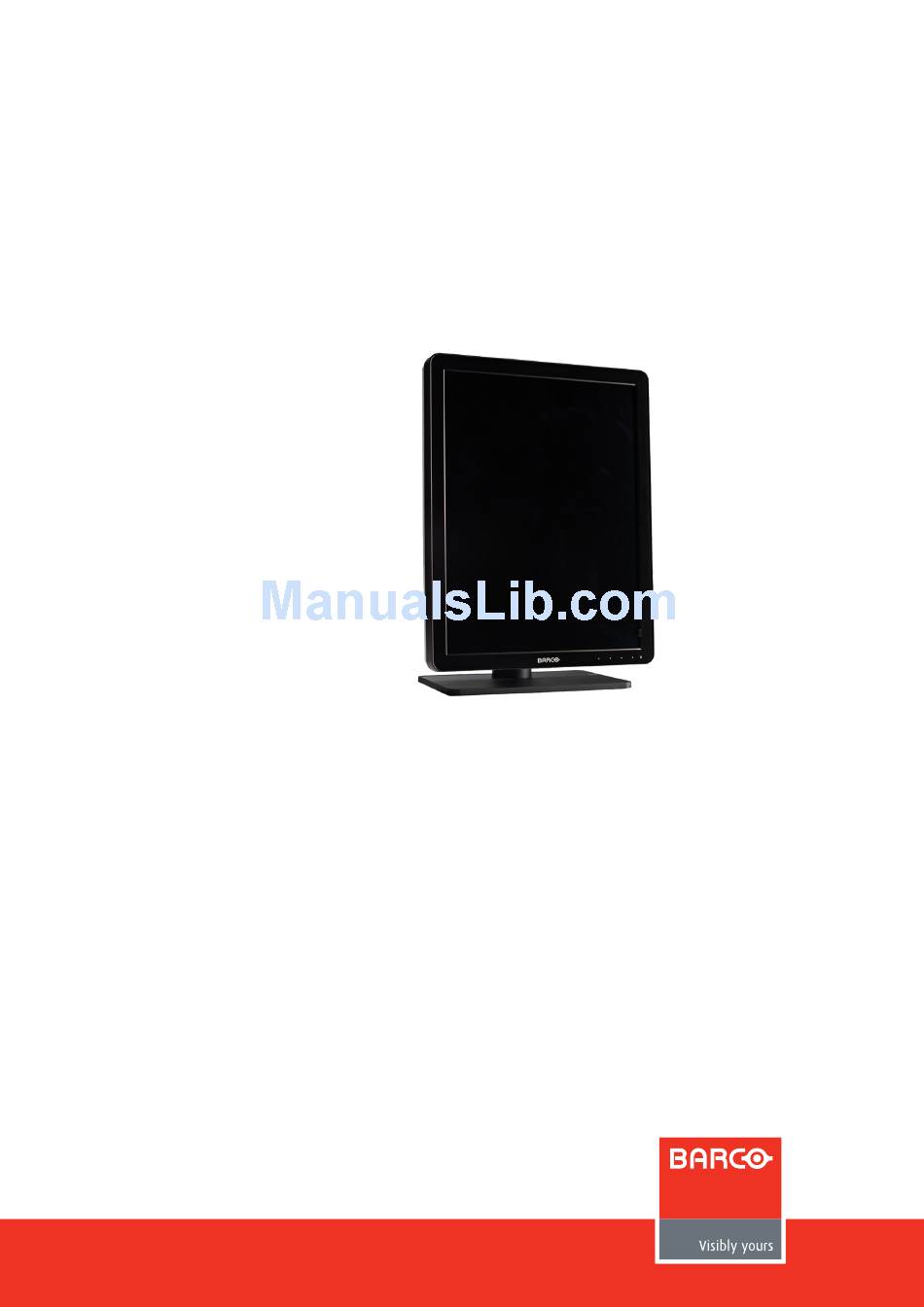

  • Page 1 Nio 3MP LED Display User Guide MDNC-3321...
  • Page 3 NIO 3MP LED Display User Guide MDNC-3321 K5902067/00 10/04/2013...
  • Page 4 Barco nv President Kennedypark 35, 8500 Kortrijk, Belgium Phone: +32 56.23.32.11 Fax: +32 56.26.22.62 Support: www.barco.com/esupport Visit us at the web: www.barco.com Printed in Belgium...

  • Page 5: Table Of Contents

    Table of contents TABLE OF CONTENTS 1. Welcome! ..................3 About the product .................... . 3 Symbols .
  • Page 6 Table of contents 8. Important information ................35 Safety information.................... . 35 Environmental information ..

  • Page 7: Welcome

    On-demand image quality checks As the front sensor works seamlessly together with Barco’s online MediCal QAWeb service for automated Quality Assurance and calibration, NIO 3MP LED Display makes sure you are viewing perfect DICOM images —...

  • Page 8: What's In The Box

    • an external power supply If you ordered a Barco display controller, it’s also in the box together with its accessories. A dedicated user guide is available on the system CD. Keep your original packaging. It is designed for this display and is the ideal protection during transport and storage.

  • Page 9: Parts, Controls And Connectors

    2. Parts, controls and connectors 2. PARTS, CONTROLS AND CONNECTORS Display front view Overview Image 2-1 Front view Left key Standby key Right key Power LEDs Menu key Bottom downstream USB K5902067 NIO 3MP LED DISPLAY 10/04/2013...

  • Page 10: Display Rear View

    2. Parts, controls and connectors Display rear view Connector compartment cover closed Image 2-2 Rear view with closed connector compartment cover Connector compartment cover Foot lock clip Cable duct Tilt & swivel foot K5902067 NIO 3MP LED DISPLAY 10/04/2013...
  • Page 11 2. Parts, controls and connectors Connector compartment cover open Image 2-3 Rear view wit open connector compartment cover. +24 VDC power input Ethernet connector (see note below) +5 VDC, 0.5A power output USB upstream connector DisplayPort video input USB downstream connector DVI video input The Ethernet connection is used for maintenance purposes and is not supported for user application.
  • Page 12 2. Parts, controls and connectors K5902067 NIO 3MP LED DISPLAY 10/04/2013...

  • Page 13: Display Installation

    Prior to installing your NIO 3MP LED Display and connecting all necessary cables, make sure to have a suitable display controller physically installed in your computer. If you are using a Barco display controller, please consult the user guide delivered with it to do this.

  • Page 14: Removing The Connector Compartment Cover

    3. Display installation If, after installing the display of the system, you change the panel orientation while an image is on the screen, the result depends on the graphic board and the resolution of the image. In some cases the image will be rotated automatically, in other cases it will not be rotated (e.g., when pixels would be lost after rotation).
  • Page 15 3. Display installation 1. Connect the DVI or DP of the display controller to the DVI or DP connector of the display. 2. If you want to make use of the display’s USB upstream connector, connect a PC USB downstream connector to the display’s USB upstream connector.

  • Page 16: Routing The Cables & Reattach The Connector Compartment Cover

    3. Display installation Routing the cables & Reattach the connector compartment cover To route the cables 1. Route all connected cables through the cable routing channel in the stand of your display. Tip: The cable straps at the inside of the connector compartment allow you to fix the cables for better shielding of the cables.
  • Page 17 3. Display installation Use an arm that is approved by VESA (according to the VESA 100 mm stan- ARNING dard). Use an arm that can support the weight of the display. Refer to the technical specifica- tions of this display for the applicable weight. Overview The panel, standard attached to the tilt &...

  • Page 18: First Time Starting Up

    Your NIO 3MP LED Display will be running in a basic video mode at a default refresh rate when first time starting up. If you are using a Barco display controller, please consult the user guide delivered with it to install the drivers, software and documentation. When this is done, your display will automatically detect the connected video input signal(s) and apply the correct video mode and refresh rate.

  • Page 19: Daily Operation

    LCD displays use technology based on pixels. As a normal tolerance in the manufacturing of the LCD, a limited number of these pixels may remain either dark or permanently lit, without affecting the diagnostic performance of the product. To ensure optimal product quality, Barco applies strict selection criteria for its LCD panels.

  • Page 20: Key Indicator Lights

    The ’MediCal QAWeb’ system offers online service for high-grade Quality Assurance, providing maximum diagnostic confidence and uptime. Barco recommends to install MediCal QAWeb Agent and apply the default QAWeb policy at least. This policy includes calibration on regular intervals. Connecting to MediCal QAWeb Server offers even more possibilities.

  • Page 21: Bringing Up The Osd Menus

    4. Daily operation Bringing up the OSD menus How to bring up the OSD menus The OSD menu allows you to configure different settings to make your NIO 3MP LED Display fit your needs within your working environment. Also, you can retrieve general information about your display and its current configuration settings through the OSD menu.
  • Page 22 4. Daily operation K5902067 NIO 3MP LED DISPLAY 10/04/2013...

  • Page 23: Advanced Operation

    5. Advanced operation 5. ADVANCED OPERATION OSD menu language About the OSD menu language By default, the OSD menu comes up in English. However, there’s a wide range of other languages avail- able for the OSD menu of your NIO 3MP LED Display. To change the language of the OSD menu: 1.

  • Page 24: Key Indicator Lights

    By enabling the Ethernet over USB, you allow the internal NIO 3MP LED Display processor to communi- cate directly over USB with the connected PC. Enabling the USB endpoint is only recommended when you are using a non-Barco dis- play controller. If you are using a Barco display controller, this communication will au- tomatically be done over the connected video cable(s).

  • Page 25: Usb

    Please note that a connection from a PC USB downstream connector to the display’s USB upstream connector is required to be able to use this functionality. Enabling the USB endpoint is only recommended when you are using a non-Barco dis- play controller. If you are using a Barco display controller, this communication will au- tomatically be done over the connected video cable(s).

  • Page 26: Hibernate

    5. Advanced operation Hibernate About hibernate Enabling hibernation will not only switch off the backlight but will also force the display to disable other functionalities so that power consumption is further reduced to a minimum. This happens after a specific period of time which can be manually adjusted.

  • Page 27: Display Functions

    In short, the DICOM display function results in more visible grayscales in the images. Barco recommends selecting the DICOM display function for most medical viewing applications. User This display function will be automatically selected when display functions are defined by MediCal...

  • Page 28: Ambient Light Compensation (Alc)

    5. Advanced operation 2. Navigate to the Configuration > Calibration menu. 3. Enter the Display Function submenu. 4. Select one of the available display functions and confirm. 5.13 Ambient Light Compensation (ALC) About ALC Ambient Light Compensation (ALC) can only be enabled on your display when the DI- COM display function is selected.

  • Page 29: Image Scaling

    5. Advanced operation Staff Office Corresponds to light conditions in office rooms. Clinical Viewing Room Corresponds to light conditions in diagnostic reading rooms for clinical viewing. Emergency Room Corresponds to light conditions in emergency rooms. Operating Room Corresponds to light conditions in operating rooms. This setting has the highest maximum ambient light.

  • Page 30: Video Input Signals

    HDR1). This mode is usually used on color displays. Dual 10 (only with Barco display controller) Dual 10 is a Barco specific 10-bit video encoding mode which is usually used on grayscale displays and which allows full refresh rate.

  • Page 31: Grayscale Conversion Modes

    5. Advanced operation 3. Enter the Video Encoding submenu. 4. Select one of the available video encoding modes and confirm. 5.19 Grayscale conversion modes About grayscale conversion modes Grayscale conversion modes specify how color generated on the display controller is converted to grayscale in your display.

  • Page 32: Display Info

    5. Advanced operation 4. Select Refresh Rate, Preferred Orientation or Color Depth. 5. Select one of the available settings and confirm. 5.21 Display info About display info Your display serial number, color type, native resolution, firmware versions, etc. are available in a dedi- cated submenu of the OSD menu.

  • Page 33: Repackaging Instructions

    6. Repackaging instructions 6. REPACKAGING INSTRUCTIONS Before repacking the display, follow the instruction to replace the protection ARNING buffer to prevent damage to the display. Overview of the packaging Image 6-1 Packaging Bottom box Box (Power supply, cables) Bottom buffer Top buffer K5902067 NIO 3MP LED DISPLAY 10/04/2013...

  • Page 34: Replacing The Protection Buffer

    6. Repackaging instructions Top box Protection buffer Display Display controller box Replacing the protection buffer How to replace the protection buffer 1. Place the display on a stable surface. 2. Put the display in the lowest position and fasten the height mechanism, see "Unlocking the height mech- anism", page 9 .

  • Page 35: Repacking Your Display

    6. Repackaging instructions Repacking your display How to repack your display 1. Place the empty bottom box on a stable surface. 2. Place the bottom buffer in the box. 3. Put the display together with the protection buffer (see "Replacing the protection buffer", page 30) in the dedicated cavity of the bottom buffer.
  • Page 36 6. Repackaging instructions K5902067 NIO 3MP LED DISPLAY 10/04/2013...

  • Page 37: Cleaning Your Display

    7. Cleaning your display 7. CLEANING YOUR DISPLAY Precautions in case you have a NIO 3MP LED Display. AUTION Take care not to damage or scratch the front filter or LCD panel. Be careful with rings or other jewelry that can touch the front filter. Do not apply pressure on the front filter or LCD panel.

  • Page 38: Cabinet

    7. Cleaning your display Do not use following products: ARNING Alcohol/solvents at higher concentration > 5% Strong alkalis lye, strong solvents Acid Detergents with fluoride Detergents with ammonia Detergents with abrasives Steel wool Sponge with abrasives Steel blades Cloth with steel thread Cabinet Cleaning of the cabinet 1.

  • Page 39: Important Information

    8. Important information 8. IMPORTANT INFORMATION Safety information General recommendations Read the safety and operating instructions before operating the device. Retain safety and operating instructions for future reference. Adhere to all warnings on the device and in the operating instructions manual. Follow all instructions for operation and use.

  • Page 40: Environmental Information

    For more information about recycling of this device, please contact your local city office or your municipal waste disposal service. For details, please visit the Barco website at: http://www.barco.com/en/About- Barco/weee.
  • Page 41 (Also called RoHS of Chinese Mainland), the table below lists the names and contents of toxic and/or hazardous substances that Barco’s product may contain. The RoHS of Chinese Mainland is included in the MCV standard of the Ministry of Information Industry of China, in the section “Limit Requirements of toxic substances in Electronic Information Products”.

  • Page 42: Regulatory Compliance Information

    “Electronic Information Products Pollution Control Labeling Standard” of Chinese Mainland, marked with the Environmental Friendly Use Period (EFUP) logo. The number inside the EFUP logo that Barco uses (please refer to the photo) is based on the “Standard of Electronic Information Products Environmental Friendly Use Period”...

  • Page 43: Emc Notice

    8. Important information determined by turning the device off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the device and receiver. •...
  • Page 44 8. Important information Electromagnetic immunity The NIO 3MP LED Display is intended for use in the electromagnetic environment specified below. The customer or the user of the NIO 3MP LED Display should assure that it is used in such an environment. Immunity test IEC 60601 Compliance level...
  • Page 45 8. Important information Immunity test Electromagnetic IEC 60601 Compliance level environment – Test levels guidance d = 1.2√P 80 MHz to 800 d = 2.3√P 800 MHz to 2.5 Where P is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer and d...

  • Page 46: Explanation Of Symbols

    8. Important information Rated maximum output Separation distance according to frequency of transmitter power of transmitter 150kHz to 80MHz 80MHz to 800MHz 800MHz to 2.5GHz d=1.2√P d=1.2√P d=2.3√P 0.01 0.12 0.12 0.23 0.38 0.38 0.73 At 80 MHz and 800 MHz, the separation distance for the higher frequency range applies. These guidelines may not apply in all situations.
  • Page 47 8. Important information Indicates the device is approved according to the CCC regulations Indicates the device is approved according to the VCCI regulations Indicates the device is approved according to the KC regulations Indicates the device is approved according to the BSMI regulations Indicates the USB connectors on the device Indicates the DisplayPort connectors on the device...

  • Page 48: Legal Disclaimer

    Barco software products are the property of Barco. They are distributed under copyright by Barco N.V. or Barco, Inc., for use only under the specific terms of a software license agreement between Barco N.V. or Barco Inc. and the licensee. No other use, duplication, or disclosure of a Barco software product, in any form, is authorized.

  • Page 49: Technical Specifications

    8. Important information European Patent 1 274 066. Technical specifications Overview Product acronym MDNC-3321 Screen technology UA-SFT (ultra advanced - super fine technology)+H106 Active screen size (diagonal) 540 mm (21.3”) Active screen size (H x V) 324,9 mm x 433,2 mm (12.79” x 17.1”)

  • Page 50: Open Source License Information

    This product contains software components released under an Open Source license. A copy of the source code is available on request by contacting your HC customer support representative at image.care- GLOB@barco.com. The software running in the internal processor uses the following licenses: K5902067 NIO 3MP LED DISPLAY 10/04/2013...
  • Page 51 8. Important information GPL v2.1 and GPL v3.1: This program is free software; you can redistribute it and/or modify it under the terms of the GNU General Public License (http://www.gnu.org/licenses) as published by the Free Software Foundation. This program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.
  • Page 52 K5902067-00 April 2013 Barco n.v. President Kennedypark 35 8500 Kortrijk Belgium 0120 www.barco.com...
