User Manual
EN
Updates and language specific user manuals are available on
www.mascot.no/downloads/usermanuals
Bruksanvisning
Käyttöohjeet
Bedienungsanleitung
Mode d'emploi
Manual de instrucciones
Istruzioni per l'uso
P.O.Box 177, N-1601 Fredrikstad, NORWAY
Phone: +47 69 36 43 00 • Telefax: +47 69 36 43 01
E-mail: sales@mascot.no • Web: www.mascot.no
Doc.no. 5120D - Part No. 205120 - 16.12.2021
User Manual

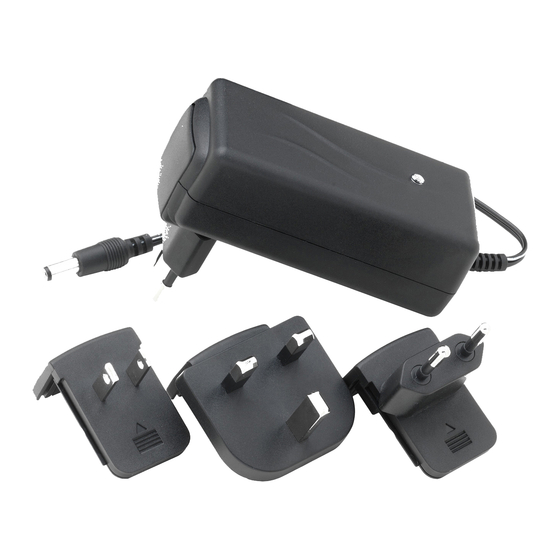

Charger for
NiCd/NiMH batteries
MASCOT ELECTRONICS AS
1
Advertisement
Related Manuals for MASCOT 2115
Summary of Contents for MASCOT 2115
- Page 1 Manual de instrucciones Istruzioni per l’uso MASCOT ELECTRONICS AS P.O.Box 177, N-1601 Fredrikstad, NORWAY Phone: +47 69 36 43 00 • Telefax: +47 69 36 43 01 E-mail: sales@mascot.no • Web: www.mascot.no Doc.no. 5120D - Part No. 205120 - 16.12.2021...
-
Page 2: Important Safety Instructions
Technical specifications for your product: see A version of this product, marked with a sym- tables, the marking on the product or bol with two drops of water and/or ”IP67”, may www.mascot.no be available. This version is filled with a potting... - Page 3 Cautions to observe prior to use • The intended use for this product is to charge be easily accessible to facilitate immediate a battery or a battery powered electrical removal of the products mains supply should accessory (NiCd/NiMH, Lead-Acid, Lithium- an operational error occur during use.
- Page 4 • Even though this product complies with relevant • If the product is specified to comply with the safety standards it should not be in contact with standard for Medical Electrical Equipment human skin for long periods as some people (standards based on IEC60601-1) it complies may get allergies or injuries from long-term with some of the requirements for medical...
- Page 5 ”TERMS OF SALES AND DELIVERY FOR MAS- • For products having a plastic casing, please COT AS” apply (available at www.mascot.com). avoid any contact with lotions, oils, grease and solvents as most types of plastic may be de- •...
- Page 6 Instructions for charging NiCd and NiMH batteries Charger functionality This charger is a fast charger for NiCd/NiMH A few cells may have a voltage drop in the first batteries. The standard version utilizes a method part of the charge cycle. This is especially true called -dV detection for charge termination when for battery cells which have been idle for a longer the batteries are fully charged.
-
Page 7: Safety Features
Most charge parameters may be altered using • Top-off charge following –dV detection ensures an external programming tool. Contact Mascot that all cells in a battery pack reaches full capa- for details. city (are balanced) prior to trickle charge. - Page 8 How to use the type A charger (CPM) Top-o charge Trickle charge Initiation* Fast charge (Green LED (Green LED) (Yellow LED) (Orange LED) w. yellow ash) Battery Voltage Start timer prevents Sudden –dV not caused premature –dV by fully charged battery is disregarded Charge current Start...
-
Page 9: Led Indications
LED indications MODE YELLOW Battery not connected YELLOW Battery initialisation and analysis ORANGE Fast charge GREEN with intermittent Top-Off Charge YELLOW flash GREEN Trickle Charge Alternating ORANGE-GREEN ERROR When the mains is connected the LED will be –dV detection is disabled), the LED will be green orange for the first seconds and then turn to for approx. - Page 10 Green line: Various options for trickle charge. Go to error if Vbat < Contact Mascot for this option Vmin after time out Start the charger by connecting the battery pack to After top-off period is ended the LED indicator will the charger and the charger to the mains.
- Page 11 LED indications CHARGE INDICATIONS Flashing green: Battery not connected Yellow: Fast charge (or soft start) Flashing yellow: Top-off Green: Trickle WAIT MODE INDICATIONS Yellow with 1 red blink: Battery temperature is too low (<0°C) Yellow with 2 red blinks: Battery temperature is too high (>40°C) ERROR INDICATIONS 2 red blinks: Battery is connected to charger with wrong polarity! 3 red blinks: Charger output is shorted.
- Page 12 Mains Cord Set is available on request if you wish your product to be ”DeskTop” Mounting and use for bracket Mascot, part no. 205800 Wall mount: Fix the bracket to the wall using screws suitable for the wall material and: head diameter: 8 - 9.5 mm, head height: max.
- Page 13 Medical devices manufactured by Mascot have been tested and conform with the requirements of IEC/EN 60601-1-2, 3rd & 4th edition, nevertheless, special precautions may...
- Page 14 If the measured field strength in the location exceeds the applicable RF compliance level above, the Mascot product should be observed to verify normal operation. If abnormal per- formance is observed, additional measures may be necessary, such as re-orienting or relocating...
