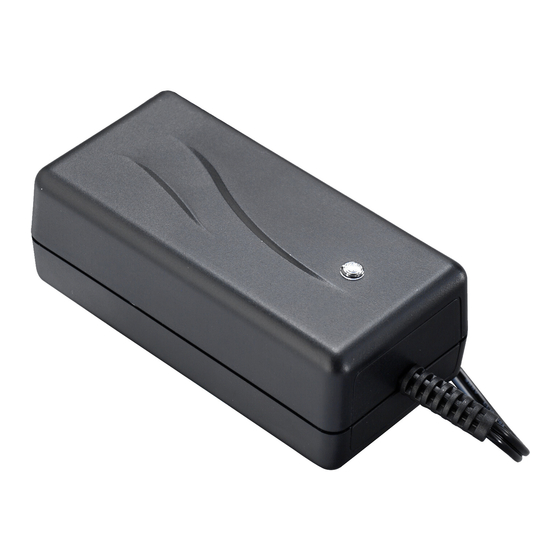

MASCOT 2240P User Manual
Charger for lifepo4 batteries
Hide thumbs
Also See for 2240P:
- User manual (48 pages) ,
- User manual (49 pages) ,
- User manual (23 pages)
Advertisement
Quick Links
User Manual
Charger for
LiFePO
Batteries
4
EN User Manual
Language specific user manuals are available on
www.mascot.no/downloads/usermanuals
Phone: +47 69 36 43 00 • Telefax: +47 69 36 43 01
E-mail: sales@mascot.no • Web: www.mascot.no
Doc.no. 5240D - Part No. 205240 - 19.06.2019
Bruksanvisning
Käyttöohjeet
Bedienungsanleitung
Mode d'emploi
Manual de instrucciones
Istruzioni per l'uso
MASCOT ELECTRONICS AS
P.O.Box 177, N-1601 Fredrikstad, NORWAY
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for MASCOT 2240P
Summary of Contents for MASCOT 2240P
- Page 1 Manual de instrucciones Istruzioni per l’uso MASCOT ELECTRONICS AS P.O.Box 177, N-1601 Fredrikstad, NORWAY Phone: +47 69 36 43 00 • Telefax: +47 69 36 43 01 E-mail: sales@mascot.no • Web: www.mascot.no Doc.no. 5240D - Part No. 205240 - 19.06.2019...
-
Page 2: Important Safety Instructions
A version of this product, marked with a symbol Technical specifications for your product: with two drops of water and/or ”IP67”, may be See tables, the marking on the available. This version is filled with a potting product or www.mascot.no... - Page 3 Cautions to observe prior to use • The intended use for this product is to charge appliance coupler may be used as a disconnect a battery or a battery powered electrical device. accessory (NiCd/NiMH, Lead-Acid, Lithium-Ion • The product is “switched on” by inserting or LiFePO batteries) or to be used as a Power the mains plug into the mains socket and “swit-...
- Page 4 ”TERMS OF SALES AND DELIVERY FOR MAS- environments with flammable or explosive COT AS” apply (available at www.mascot.com). atmosphere.
- Page 5 • Environmental parameters during transport be wiped clean using a dry cloth while the and storage between uses: temperature range product is disconnected from the mains. No -25 to +85 °C, humidity 15 - 93% RH NC and other maintenance should be necessary. atmospheric pressure 70 - 106 kPa (700 - •...
- Page 6 Note! Make sure the charger terminals are not • The recommended minimum and maximum short-circuited and ensure that the polarity is battery capacity for which the specific charger correct. can be used vary from battery to battery. Plea- se follow the datasheet and recommendations •...
- Page 7 Explanation of LiFePO battery charge cycle (See tables for methods for each charger model.) Charging method A STEP 1 – BOOST CHARGE To start a charge cycle; connect the charger to the mains. The charger is in constant current mode, charging with the maximum current indicated on the charger, the LED-indication on the charger is ORANGE.
- Page 8 Charging method B STEP 1 – BOOST CHARGE Orange To start a charge cycle; connect the charger to the mains. Orange The charger is in constant current mode, charging with the maximum current indicated on the charger, the LED-indication on the charger is ORANGE. This step allows rapid Orange Orange charging of your battery until the battery voltage has increased to a certain set level...
- Page 9 Charging method C Orange STEP 1 – BOOST CHARGE To start a charge cycle; connect the charger to the mains. Orange The charger is in constant current mode, charging with the maximum current indicated on Orange the charger, the LED-indication on the charger is ORANGE (or RED 9640). This step allows rapid charging of your battery until the battery reaches typically 80 - 95% of its capacity.
- Page 10 Charging method D STEP 1 - BOOST CHARGE LED-indicator: YELLOW Yellow The charger is in constant current mode (CC), charging with the maximum current until battery voltage reach Top-Up level. STEP 2 – TOP-UP CHARGE The charger is in constant voltage mode. The LED-indication will be FLASHING YELLOW Yellow during Top-up charge.
- Page 11 How to connect exchangeable DC-output plugs 1. To connect for desired polarity, both plug ends are clearly marked. 2. When connected, the female plug is also marked on each side to identify plug polarity. 3. Shows the center polarity of the plug. How to connect exchangeable AC-plugs The following exchangeable AC plugs are available: Type 018110 - ”EURO”...
- Page 12 EMC EN60601-1-2 standard has been implemented. This standard defines the levels of immunity to electromagnetic interference as well as maximum levels of electromagnetic emissions for medical devices. Medical devices manufactured by Mascot have been tested and conform with the requirements of IEC/EN 60601-1-2, 3rd &...
- Page 13 If the measured field strength in the location exceeds the applicable RF compliance level above, the Mascot product should be observed to verify normal operation. If abnormal performance is observed, additional measures may be necessary, such as re-orienting...
