fantastic furniture Java Bedside 1 Drawer Manual page 8

Step 5
You will need
4 x Dowels
Mallet
ø8
mm (H3)

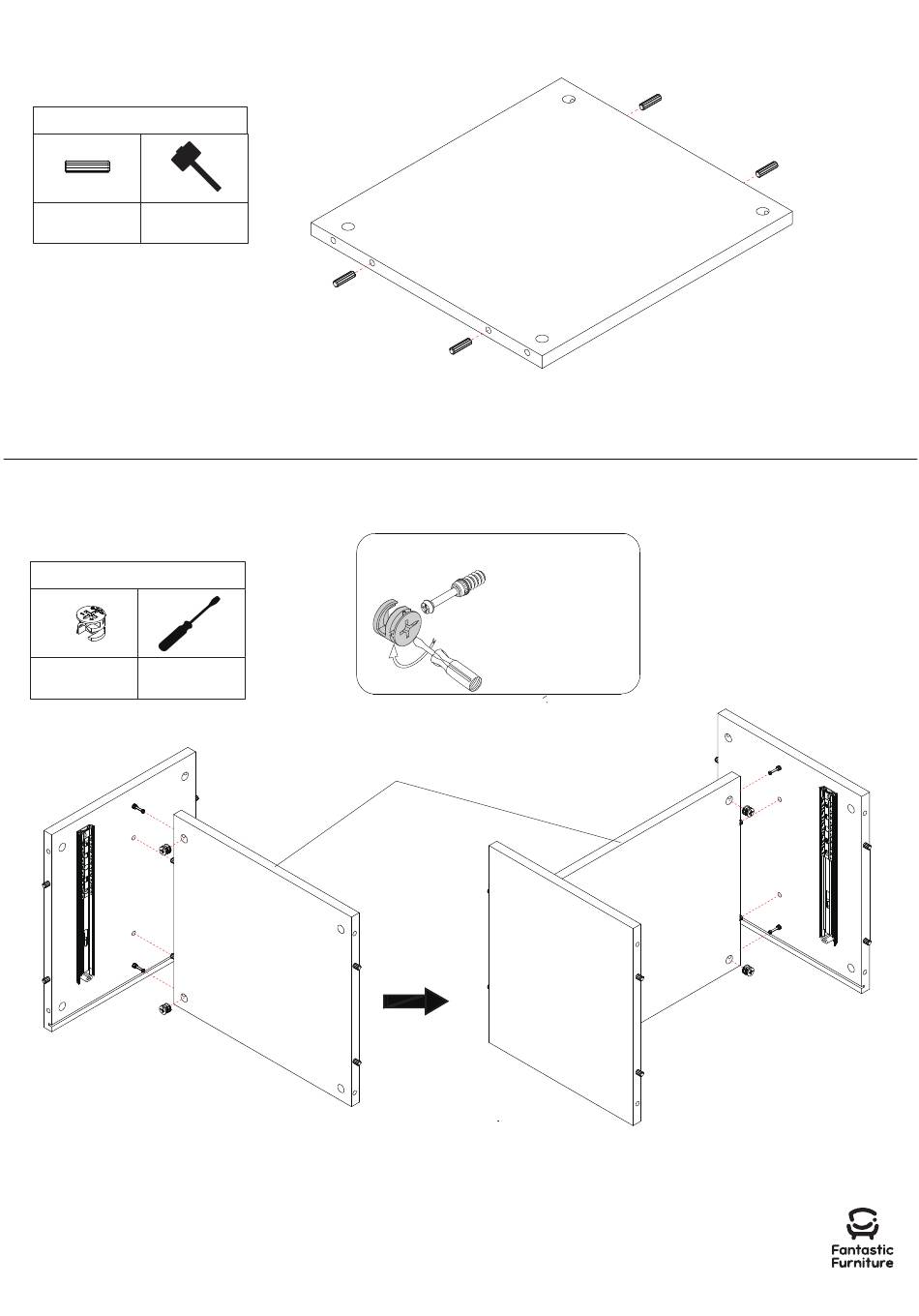

Insert 4 x dowels (H3) into shelf (P5) as shown.
Use a mallet to gently tap the dowels into place if needed.
Step 6
You will need
4 x Large Cam Flat Head
Nuts (H2) Screwdriver
H2
(P3)
H2
Position side panels (P3, P4) onto shelf (P5) as shown.
Insert 4 x large cam nuts (H2) into shelf (P5).
Rotate the cam nuts so the arrow faces incoming cam bolts.
Using a flat head screwdriver turn clockwise to lock.
fantasticfurniture.com.au
H3
This is how a cam nut works........
Laminated edge
(P5)
(P5)
H3
The head of the cam
bolt goes into the open
mouth of the cam nut.
You then turn the cam
nut so it tightens over
the bolt.
(P3)
H3
H3
H2
(P4)
(P5)
H2
Page 8
