fantastic furniture Java Quick Start Manual

Lowline medium
Hide thumbs Also See for Java:

Advertisement

Quick Links

Download this manual
Version 1.0
Java
Two People
Lowline Medium
fantasticfurniture.com.au
Required

Advertisement

loading

Related Manuals for fantastic furniture Java

Summary of Contents for fantastic furniture Java

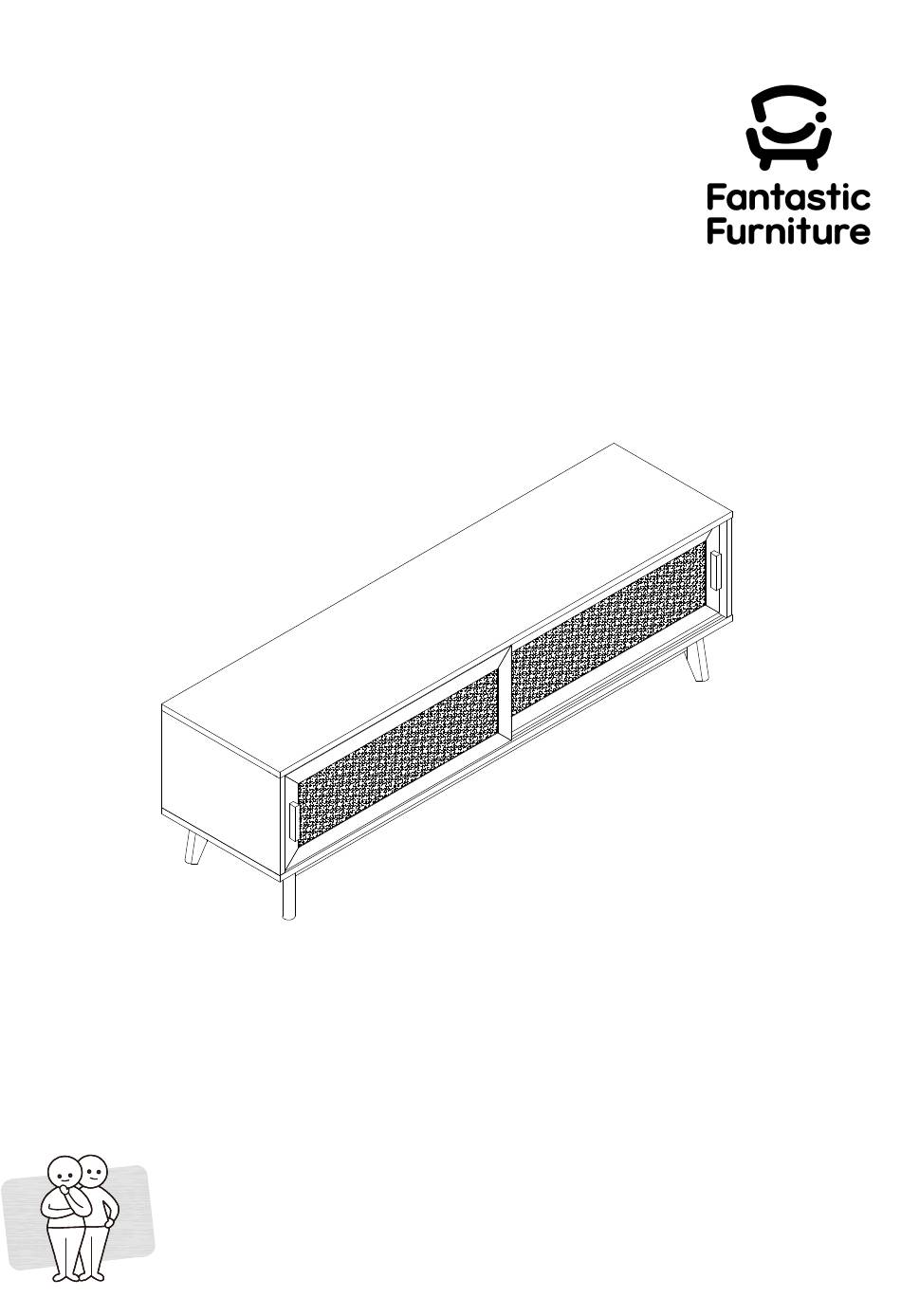

  • Page 1 Version 1.0 Java Two People Lowline Medium fantasticfurniture.com.au Required...
  • Page 2 We’re thrilled you’ve chosen Fantastic Furniture to help create a home you’ll love! Love it? Share it! Fantastic buy! Share how it looks at home on Instagram for your chance to win a $250 Fantastic Furniture Gift Card! @fantasticfurniture fantasticfurniture.com.au Page 2...

  • Page 3: Assembly Checklist

    Assembly Checklist Read through the instructions carefully Make sure you have all the required tools. before you begin. Never use power tools unless instructed. Unless instructed, do not fully tighten Identify and lay out all of the screws until the item is fully assembled. components before you begin assembly.

  • Page 4: What You Need

    What you need to assemble the product Other tools you need Flat Head Screwdriver; Phillips Head Screwdriver; Mallet Top Panel (P1) Side Panel Divider (P3) Panel (P4) Side Back Panel (P5) Panel (P3) Bottom Panel (P2) Leg (P10) Leg (P10) Leg (P10) Leg (P10) Parts list...
  • Page 5 Hardware Pack 14 x Dowels 4 x Felt Feet 2 x Handles 15 x Cam Bolts 15 x Cam (H3) (H5) (H4) (H1) Nuts (H2) 8 x Bolts 8 x Spring 22 x Screws 6 x Back Panel 8 x Flat Washers (H8) Washers (H10) (H9)
  • Page 6 Step 1 (P10) You will need 4 x Felt Feet (H5) Attach 1 x felt foot (H5) onto each leg (P10) as shown. Step 2 (P10) You will need (P2) 8 x Bolts 8 x Flat (H8) Washers (H9) (P10) 8 x Spring 1 x Allen Key Washers (H10)
  • Page 7 Step 3 You will need (P8) 1 x Screw Phillips Head 38mm (H13) Screwdriver (P8) (P9) (P9) 2 x Dowels Mallet 30mm (H3) Screw 1 x adjustable foot (H14) into large middle leg (P8). 1 x Adjustable Insert 2 x dowels (H3) into middle legs (P8, P9). Foot (H14) Use a mallet to gently tap the dowels into place if needed.
  • Page 8 Step 5 You will need 6 x Cam Bolts Phillips Head (P2) (H1) Screwdriver Screw 6 x cam bolts (H1) into bottom panel (P2), using a phillips head screwdriver. Step 6 You will need (P1) 6 x Cam Bolts Phillips Head (H1) Screwdriver Screw 6 x cam bolts (H1) into top panel (P1),...
  • Page 9 Step 8 (P3) You will need 6 x Cam Flat Head (P4) Nuts (H2) Screwdriver (P2) (P3) Laminated edge Position panels (P3 x 2, P4) onto bottom panel (P2) as shown. Ensure the grooves on side panels (P3) align with the single groove on bottom panel (P4). Insert 6 x cam nuts (H2) into panels (P3 x2, P4).
  • Page 10 Step 10 (P1) You will need 6 x Cam Flat Head (P3) (P5) Nuts (H2) Screwdriver (P4) (P3) Two People Required With assistance, position top panel (P1) onto panels (P3, P4, P5) as shown. Make sure the groove in top panel (P1) is on the same side as the side panels (P3). Insert 6 x cam nuts (H2) into panels (P3 x 2, P4).
  • Page 11 Step 12 You will need (P6) 4 x Guides 4 x Rollers (H16) (H15) 16 x Screws Phillips Head Screwdriver 16mm (H6) (P6) (P7) (P7) Attach 2 x guides (H16) to each door (P6, P7) with 4 x screws (H6), using a phillips head screwdriver as shown.
  • Page 12 Step 13 (P7) (P1) (P7) (P2) (P7) (P7) (P2) (P1) (P7) (P7) (P2) (P6) If necessary, push the button shown to retract the tabs on guides (H16) on door (P7). Position door (P7) so that its rollers fit into the inner track on panel (P2). Tilt door (P7) into position.

  • Page 13: Job Complete

    Step 14 You will need 4 x Screws 2 x Handles 28mm (H11) (H4) Phillips Head (P7) Screwdriver (P7) (P6) Attach 1 x handle (H4) onto each door (P6, P7) with 2 x screws (H11), using a phillips head screwdriver as shown. Step 15 Job complete! In the interest of our environment please dispose...
