Summary of Contents for fantastic furniture Java Dresser 3 Drawer

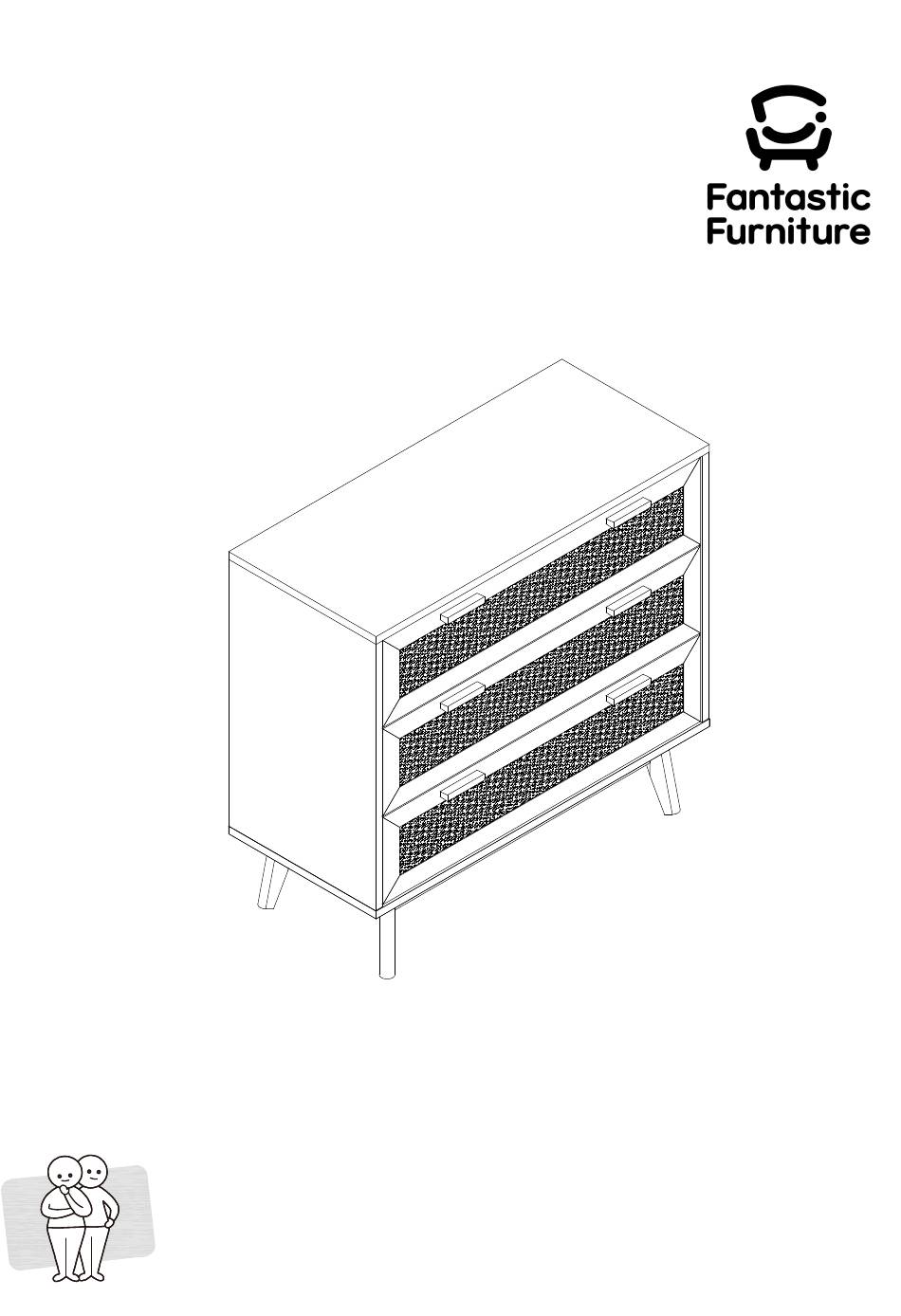

- Page 1 Version 1.0 Java Two People Dresser 3 Drawer fantasticfurniture.com.au Required...
- Page 2 We’re thrilled you’ve chosen Fantastic Furniture to help create a home you’ll love! Love it? Share it! Fantastic buy! Share how it looks at home on Instagram for your chance to win a $250 Fantastic Furniture Gift Card! @fantasticfurniture fantasticfurniture.com.au Page 2...
-
Page 3: Assembly Checklist
Assembly Checklist Read through the instructions carefully Make sure you have all the required tools. before you begin. Never use power tools unless instructed. Unless instructed, do not fully tighten Identify and lay out all of the screws until the item is fully assembled. components before you begin assembly. -
Page 4: What You Need
What you need to assemble the product Other tools you need Flat Head Screwdriver; Top Panel (P1) Metal Rail Phillips Head Screwdriver; (P12) Mallet Right Side Panel (P4) Back Panel (P13) Front Rail (P14) Left Side Panel (P3) Bottom Panel (P2) Leg (P11) Leg (P11) Drawer Front (P5) - Page 5 Hardware Pack 12 x Dowels ø8mm 4 x Felt Feet 6 x Handles 32 x Cam Bolts 8 x Large Cam (H3) (H5) (H4) (H1) Nuts (H2) 8 x Bolts 55mm 8 x Spring 6 x Screws 16mm 6 x Back Panel 12 x Flat Washers (H8) Washers (H10)
- Page 6 Step 1 (P11) You will need 4 x Felt Feet (H5) Attach 1 x felt foot (H5) onto each leg (P11) as shown. Two People Step 2 (P11) You will need (P2) Required 8 x Bolts 8 x Flat (H8) Washers (H9) 8 x Spring 1 x Allen Key...
- Page 7 Step 3 Separate the 6 x slide runners (H19-2) and slide tracks (H19-1) from the slides (H19) by following the steps below: Extend the slide runner (H19-2) all the way out. You will need Press down the plastic release lever on the slide track (H19-1) and pull out the slide runner (H19-2) completely.
- Page 8 Step 4 You will need 4 x Dowels Mallet ø8mm (H3) (P14) Insert 2 x dowels (H3) into each front rail (P14) as shown. Use a mallet to gently tap the dowels into place if needed. Two People Step 5 You will need Laminated edge Required...
- Page 9 Step 6 Two People You will need 4 x Screws Phillips Head Required 38mm (H17) Screwdriver (P4) (P3) (P2) With assistance, position bottom panel (P2) to side panels (P3, P4), ensuring the grooves on all the panels (P2, P3, P4) align. Screw 4 x screws (H17) into side panels (P3, P4), using a phillips head screwdriver.
- Page 10 Step 8 You will need (P12) 4 x Cam Bolts Phillips Head (H1) Screwdriver (P1) 4 x Bolts 35mm (H20) Screw 4 x cam bolts (H1) into top panel (P1), using a phillips head screwdriver. Attach metal rail (P12) onto top panel (P1) with 4 x bolts (H20), using a phillips head screwdriver.
- Page 11 Step 10 Two People You will need Required 6 x Back Panel 6 x Screws Connectors (H7) 16mm (H6) Phillips Head Screwdriver If necessary, gently adjust the top panel (P1) sideways in either direction until XX and YY are equal. Holding it in place, fix 6 x back panel connectors (H7) to assembled unit with 6 x screws (H6) as shown, using a phillips head screwdriver.
- Page 12 Step 12 You will need 6 x Dowels Mallet ø6mm (H16) Insert 1 x dowel (H16) into each side panel (P7, P6) as shown. if needed use a mallet to gently tap the dowels into place. Step 13 (P6) You will need (P10) (P10) Flat Head...
- Page 13 Step 14 (P6) (P9) (P5) (P7) Slide drawer base (P9) into the grooves on panels (P5, P6, P7). Repeat this step for the other 2 x drawer assembly. Ensure the pre-drilled holes on drawer side panels (P7, P6) Step 15 align with holes on back panel (P8), and the holes on back panel (P8) align with the holes on...
- Page 14 Step 16 Please fasten the screws through these holes for this step. H19-2 You will need H19-2 18 x Screws 6 x Slide Runners (H19-2) 12mm (H18) (P7) Phillips Head Screwdriver (P6) Attach 1 x slide runner (H19-2) to each drawer left side (P6) and drawer right side (P7) with 3 x screws (H18), using a phillips head screwdriver as shown.
- Page 15 Step 18 Move inner ball bearing track to front of slide track (H19-1). Gently insert drawer slide runner (H19-2) in between the ball bearing track. H19-2 H19-1 Position drawer so that slide runners (H19-2) align with slide tracks (H19-1) as shown. Gently push drawer into the closed position.
- Page 16 Step 19 We strongly recommend that this product is permanently fixed to the wall You will need or other suitable surface. 2 x Flat 2 x Screws Washers (H9) 25mm (H14) 2 x Wall Straps Phillips Head (H13) Screwdriver (P1) (P13) Fix 2 x wall straps (H13) to top panel (P1) with 2 x screws (H14) and 2 x flat washers (H9) as shown, using a phillips head screwdriver.
-
Page 17: Job Complete
Step 21 Job complete! In the interest of our environment please dispose of all packaging thoughtfully. fantasticfurniture.com.au Page 17...
