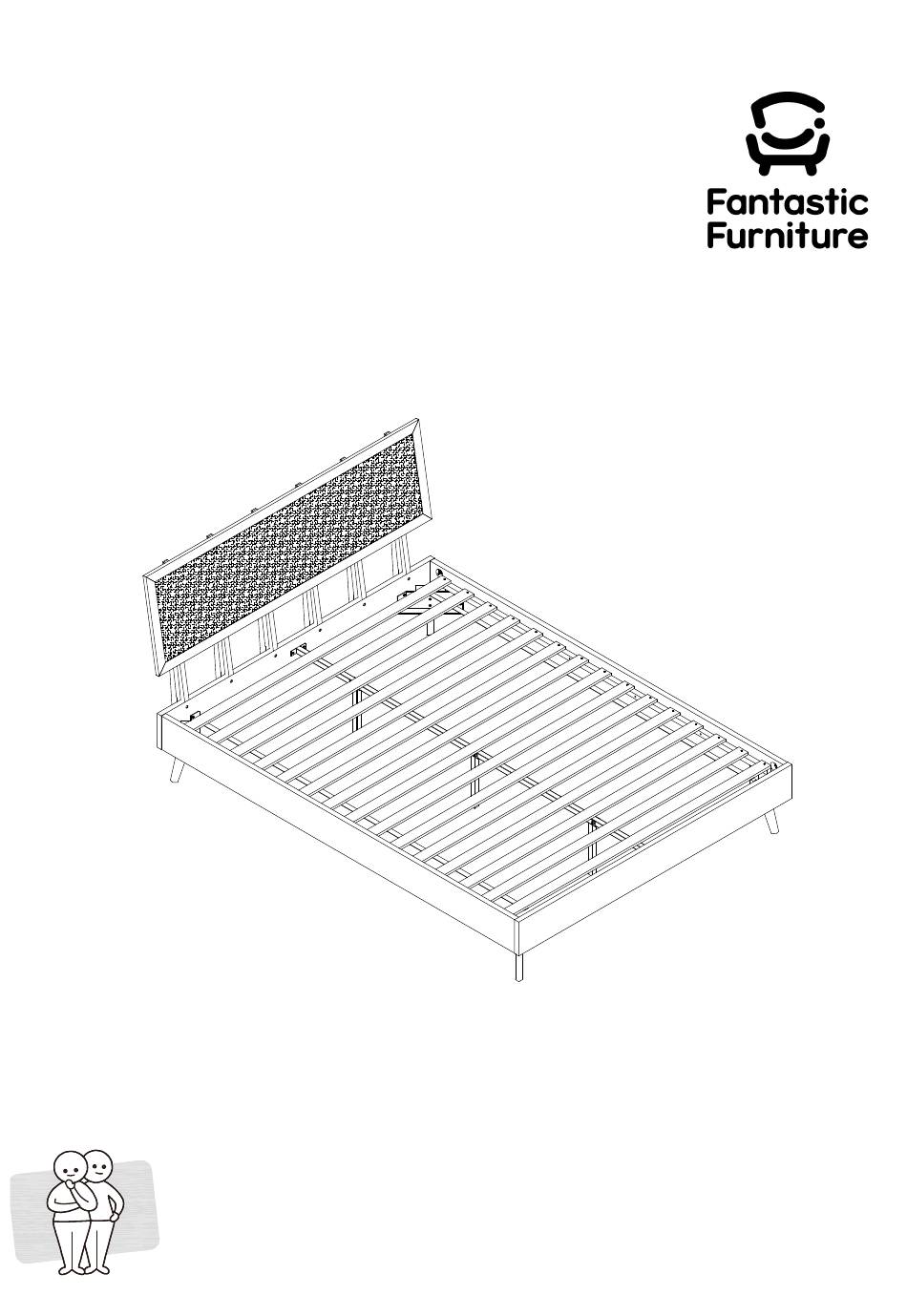

- Page 1 Version 1.0 Java Two People Bed Queen fantasticfurniture.com.au Required...
- Page 2 We’re thrilled you’ve chosen Fantastic Furniture to help create a home you’ll love! Love it? Share it! Fantastic buy! Share how it looks at home on Instagram for your chance to win a $250 Fantastic Furniture Gift Card! @fantasticfurniture fantasticfurniture.com.au Page 2...
-
Page 3: Assembly Checklist
Assembly Checklist Read through the instructions carefully Make sure you have all the required tools. before you begin. Never use power tools unless instructed. Unless instructed, do not fully tighten Identify and lay out all of the screws until the item is fully assembled. components before you begin assembly. -
Page 4: What You Need
What you need to assemble the product Other tools you need Phillips Head Screwdriver; Mallet Slats (P9) Headboard (P10) Support Rail (P11) (P11) (P11) (P5) (P11) (P11) (P4) (P11) Centre Centre Rail (P5) Rail (P8) (P6) Side Rail Support (P2) (P7) Front Rail Support... - Page 5 Hardware Pack 42 x Bolts 6 x Bolts 4 x Felt Feet 4 x Bolts 8 x Dowels 16mm (H1) 40mm (H2) (H3) 75mm (H4) 40mm (H5) 30 x Screws 12 x Small Flat 10 x Large Flat 12 x Small Spring 14 x Large Spring 25mm (H6) Washers (H7)
- Page 6 Step 1 You will need 12 x Dowels Mallet 20mm (H19) (P10) Insert 12 x dowels (H19) into headboard (P10) as shown. If needed use a mallet to gently tap the dowels into place. fantasticfurniture.com.au Page 6...
- Page 7 Step 2 You will need 18 x Screws Phillips Head 38mm (H15) Screwdriver (P11) (P11) (P11) (P11) (P11) (P10) (P11) Attach 6 x support rails (P11) onto headboard (P10) with 18 x screws (H15) as shown, tightening with a phillips head screwdriver. fantasticfurniture.com.au Page 7...
- Page 8 Step 3 Two People You will need 12 x Bolts 12 x Small Flat 65mm (H11) Washers (H7) Required 1 x Small 12 x Small Spring Washers (H9) Allen Key (H13) (P11) (P1) (P11) (P11) (P11) (P11) (P1) (P11) (P11) With assistance, attach 6 x support rails (P11) to front rail (P1) using 12 x bolts (H11), 12 x small spring washers (H9) and 12 x small flat washers (H7).
- Page 9 Step 4 You will need 8 x Dowels Mallet 40mm (H5) (P2) (P2) Insert 4 x dowels (H5) into each side rail (P2) as shown. If needed use a mallet to gently tap the dowels into place. Step 5 You will need (P3) 4 x Bolts 70mm (H18)
- Page 10 Step 6 Two People You will need 4 x Half Moon 4 x Large Spring Washers (H10) Washers (H17) Required (P2) 4 x Large 1 x Wrench (H16) Nuts (H12) 4 x Large Flat 4 x Bolts 75mm (H4) Washers (H8) (P1) 1 x Large Allen Key (H14)
- Page 11 Step 7 Two People You will need 4 x Half Moon 4 x Large Spring Washers (H17) Washers (H10) Required 1 x Wrench 4 x Large Nuts (P3) (P2) (H16) (H12) (P3) (P2) these holes at the bottom (P2) With assistance, attach footboard (P3) to 2 x side rails (P2) using 4 x half moon washers (H17), 4 x large spring washers (H10) and 4 x large nuts (H12) as shown.
- Page 12 Step 8 You will need 1 x Small 12 x Bolts Allen Key (H13) 16mm (H1) (P4) 4 x Felt Feet (H3) (P5) (P5) (P4) (P4) Attach 1 x felt foot (H3) onto each leg (P4) as shown. Attach bracket (P5) onto 4 x legs (P4) with 12 x bolts (H1) as shown. Tighten using the small allen key (H13).
- Page 13 Step 9 Two People You will need 1 x Small 24 x Bolts Required Allen Key (H13) 16mm (H1) (P1) (P5) (P4) (P2) With assistance, carefully turn over the bed frame onto its side. Attach 4 x brackets (P5) onto bed frame with 24 x bolts (H1) as shown. Tighten using the small allen key (H13).
- Page 14 Step 10 You will need 1 x Large 6 x Bolts Allen Key (H14) 40mm (H2) 6 x Large Flat 1 x Wrench (H16) Washers (H8) 6 x Large Spring 6 x Large Washers (H10) Nuts (H12) (P8) (P6) 2 x Bolts 16mm (H1) (P7) (P6)
- Page 15 Step 11 Two People You will need 1 x Small 5 x Bolts Required Allen Key (H13) 16mm (H1) (P1) (P7) (P6) (P3) (P6) (P1) (P7) (P3) (P6) (P7) (P1) (P6) (P3) With assistance, carfully turn the bed over onto its feet. Attach centre rail (P6) and centre rail support (P7) to front rail (P1) using 3 x bolts (H1), tightening with the small allen key (H13).
- Page 16 Two People Step 12 You will need Required 30 x Screws Phillips Head 25mm (H6) Screwdriver (P2) (P9) (P2) (P9) (P2) (P9) (P2) Attach set of slats (P9) onto bed frame with 30 x screws (H6) using a phillips head screwdriver as shown. If required, you may need to slightly push in the 2 x side rails (P2) when attaching screws to ensure the gap between the slats (P9) and side rails (P2)
-
Page 17: Job Complete
Step 13 Job complete! In the interest of our environment please dispose of all packaging thoughtfully. fantasticfurniture.com.au Page 17...
