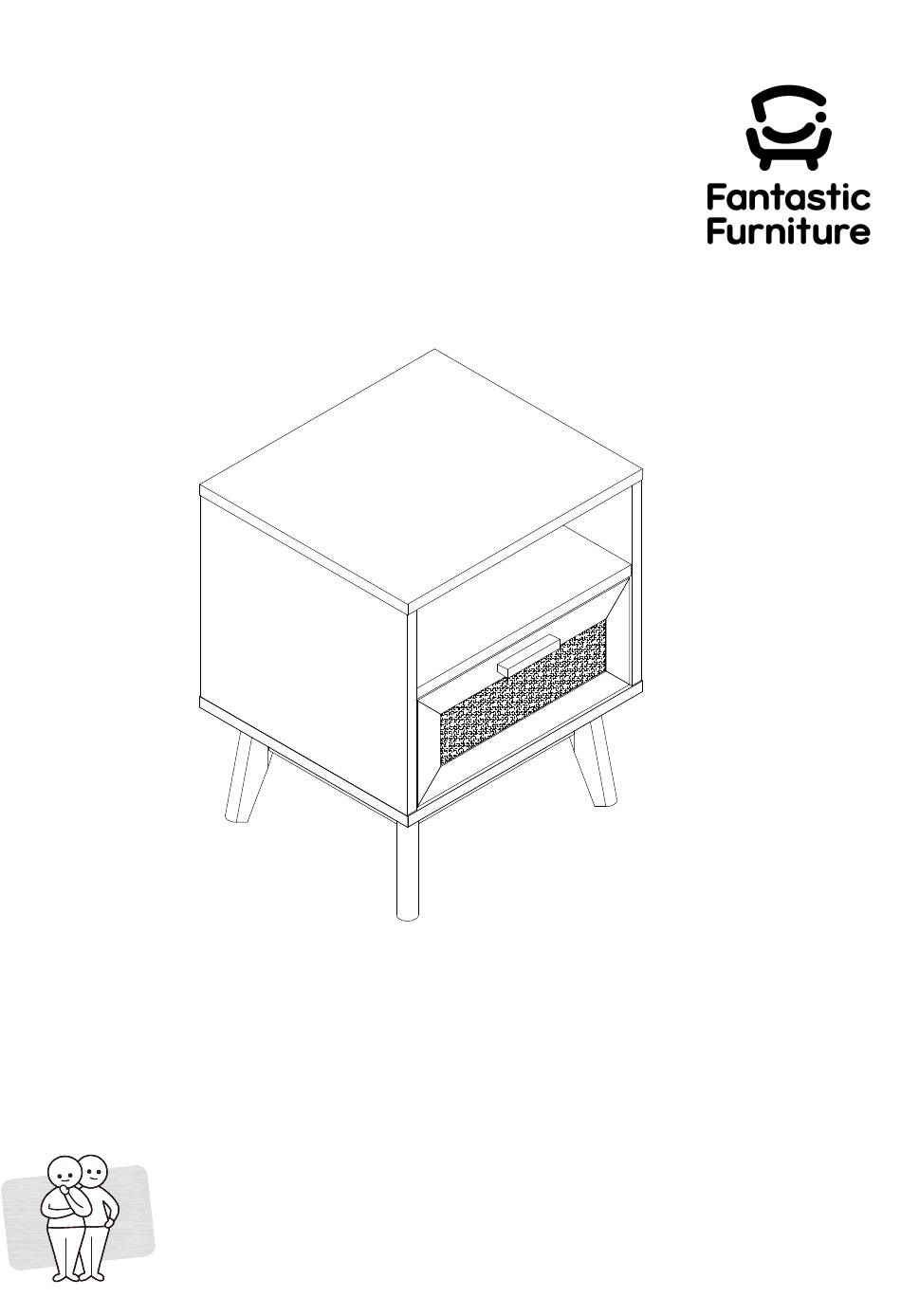

  • Page 1 Version 1.0 Java Two People Bedside 1 Drawer fantasticfurniture.com.au Required...
  • Page 2 We’re thrilled you’ve chosen Fantastic Furniture to help create a home you’ll love! Love it? Share it! Fantastic buy! Share how it looks at home on Instagram for your chance to win a $250 Fantastic Furniture Gift Card! @fantasticfurniture fantasticfurniture.com.au Page 2...

  • Page 3: Assembly Checklist

    Assembly Checklist Read through the instructions carefully Make sure you have all the required tools. before you begin. Never use power tools unless instructed. Unless instructed, do not fully tighten Identify and lay out all of the screws until the item is fully assembled. components before you begin assembly.

  • Page 4: What You Need

    What you need to assemble the product Other tools you need Flat Head Screwdriver; Phillips Head Screwdriver; Top Panel (P1) Mallet Right Side Panel Left Side Panel (P4) (P3) Back Panel (P6) Shelf (P5) Bottom Panel (P2) Leg (P12) Drawer Back (P10) Drawer Base (P11)
  • Page 5 Hardware Pack 12 x Dowels ø8mm 4 x Felt Feet 1 x Handle 16 x Cam Bolts 12 x Large Cam (H3) (H5) (H4) (H1) Nuts (H2) 8 x Bolts 8 x Spring 4 x Screws 16mm 4 x Back Panel 10 x Flat Washers (H8) Washers (H10)
  • Page 6 Step 1 (P12) You will need 4 x Felt Feet (H5) Attach 1 x felt foot (H5) onto each leg (P12) as shown. (P12) Step 2 (P2) You will need (P12) (P12) 8 x Bolts 8 x Flat (H8) Washers (H9) 8 x Spring 1 x Allen Key Washers (H10)
  • Page 7 Step 4 Separate the 2 x slide runners (H19-2) and slide tracks (H19-1) from the slides (H19) by following the steps below: You will need Extend the slide runner (H19-2) all the way out. Press down the plastic release lever on the slide and pull out the slide runner (H19-2) completely.
  • Page 8 Step 5 You will need 4 x Dowels (P5) Mallet ø8 mm (H3) Insert 4 x dowels (H3) into shelf (P5) as shown. Use a mallet to gently tap the dowels into place if needed. Step 6 This is how a cam nut works..You will need The head of the cam bolt goes into the open...
  • Page 9 Step 7 You will need (P4) 4 x Large Cam Flat Head Nuts (H2) Screwdriver (P3) (P2) Position side panels (P3, P4) onto bottom panel (P2) as shown. Insert 4 x large cam nuts (H2) into side panels (P3, P4). Rotate the cam nuts so the arrow faces incoming cam bolts.
  • Page 10 Step 9 You will need 4 x Cam Bolts Phillips Head (H1) Screwdriver (P1) Screw 4 x cam bolts (H1) into top panel (P1), using a phillips head screwdriver. Step 10 (P1) You will need Flat Head 4 x Large Cam Nuts (H2) Screwdriver (P3)
  • Page 11 Step 11 Two People (P1) (P1) You will need (P6) (P6) Required 4 x Screws 4 x Back Panel 16mm (H6) Connectors (H7) (P1) Phillips Head Screwdriver (P1) (P6) XX=YY If necessary, gently adjust the top panel (P1) sideways in either direction until XX and YY are equal.
  • Page 12 Step 13 You will need (P9) 2 x Dowels Mallet (P8) ø6 mm (H16) Insert 2 x dowels (H16) into drawer side panels (P8, P9) as shown. If needed use a mallet to gently tap the dowels into place. Step 14 You will need (P9) Flat Head...
  • Page 13 Step 16 Ensure the pre-drilled holes on drawer panels (P8, P9) align with the holes on (P10). (P10) You will need (P9) Phillips Head 4 x Screws Screwdriver 38mm (H17) (P8) Attach drawer back (P10) to assembled drawer with 4 x screws (H17), using a phillips head screwdriver as shown. Please fasten the screws through these holes for this step.
  • Page 14 Step 19 Move inner ball bearing track to front of slide track (H19-1). Gently insert drawer slide runner (H19-2) in between the ball bearing tracks. H19-1 H19-2 Position drawer so that slide runners (H19-2) align with slide tracks (H19-1) as shown. Gently push drawer into the closed position.
  • Page 15 We strongly recommend Step 20 that this product is permanently fixed to the wall or other suitable surface. You will need (P1) 1 x Flat 1 x Screw Washer (H9) 25mm (H14) 1 x Wall Strap Phillips Head (H13) Screwdriver Fix 1 x wall strap (H13) to top panel (P1) with 1 x screw (H14) and 1 x flat washer (H9) as shown, using a phillips head screwdriver.

  • Page 16: Job Complete

    Step 22 Job complete! In the interest of our environment please dispose of all packaging thoughtfully. fantasticfurniture.com.au Page 16...
