fantastic furniture JARVA Quick Start Manual

Modular 6 seater
Hide thumbs
1
2
3
4
5
6
7

Advertisement

Quick Links

Download this manual
Version 1.0
JARVA
MODULAR 6 SEATER
fantasticfurniture.com.au

Advertisement

loading

Related Manuals for fantastic furniture JARVA

Summary of Contents for fantastic furniture JARVA

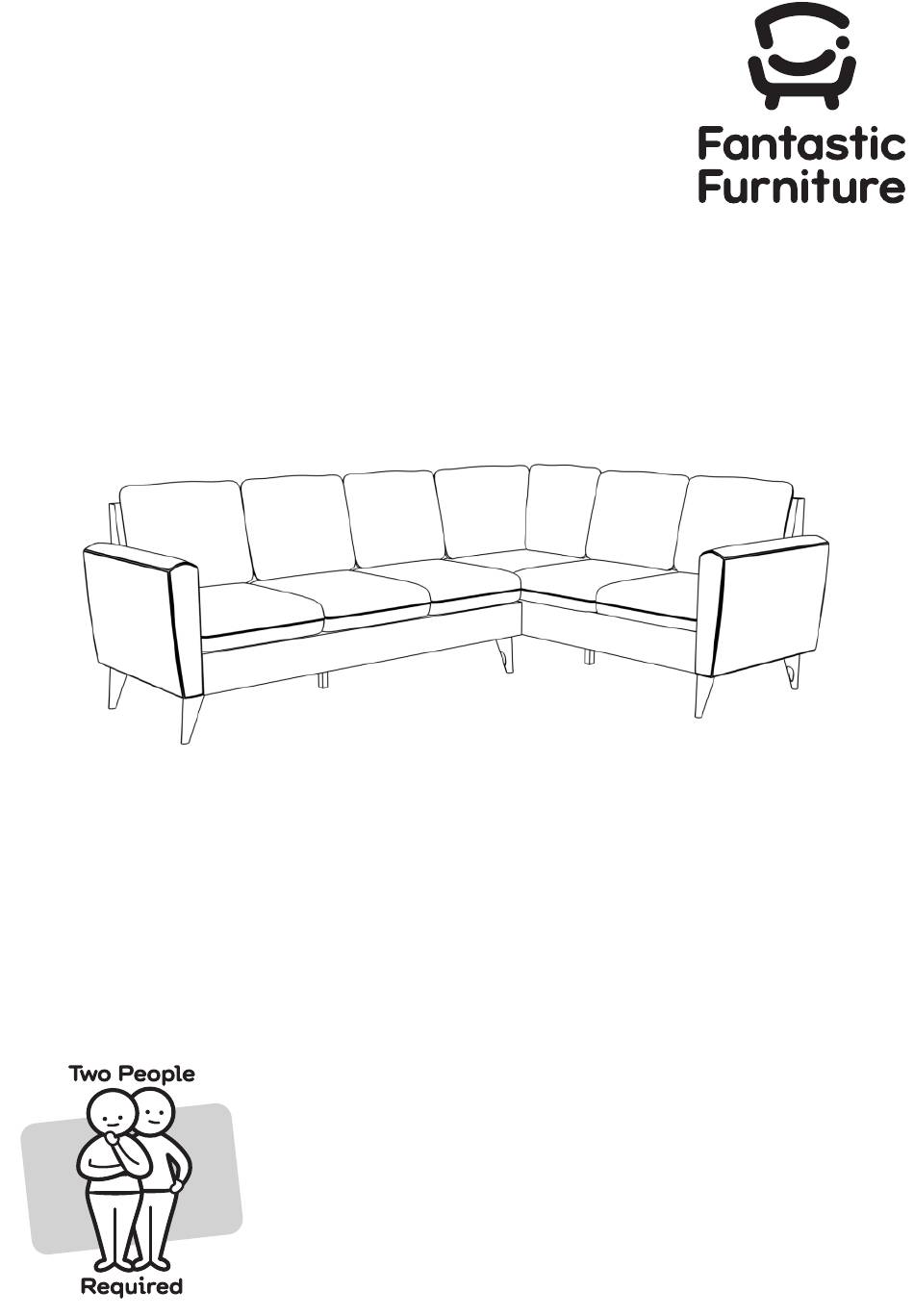

  • Page 1 Version 1.0 JARVA MODULAR 6 SEATER fantasticfurniture.com.au...
  • Page 2 Fantastic Furniture to help create a home you’ ll love! Love it? Share it! Fantastic buy! Share how it looks at home on Instagram for your chance to win a $250 Fantastic Furniture Gift Card! @fantasticfurniture Page 2 fantasticfurniture.com.au...

  • Page 3: Assembly Checklist

    Assembly checklist Read through the instructions carefully Make sure you have all the required tools. before you begin. Never use power tools unless instructed. Identify and lay out all of the components Unless instructed, do not fully tighten screws before you begin assembly. until the item is fully assembled.

  • Page 4: What You Need

    What you need to assemble the product 5x Back Cushions(P6) Sofa Back Sofa Back Sofa Back(P3) (P5) 1x Back Cushions(P7) (P4) 1x Back Cushions(P8) Sofa bady Sofa Body (P1) (P1) Sofa Body 8x Legs(P10) (P2) Parts list Box1:Sofa Body(P1); Sofa Back (P3);Sofa Back Cushions (P6); Box2:Sofa Body(P2);Sofa Back (P4&P5) ;Sofa Back Cushions (P6, P7 &...
  • Page 5 Step 1 You will need Sofa Back(P3) 4x Bolts (H1) 1x Wrench (H4) (H7) (P3) (P1) Insert the 4 x bolts(H1) to the underside of the sofa back(P3) and rotate clockwise to tighten. Open the dust cover of the sofa body(P1). Position the sofa back(P3) on top of the sofa body(P1) and slide the bolts( H1).
  • Page 6 Step 3 (P5) You will need 6x Washers 6x Bolts (H1) 1x Wrench 6x Nuts (H4) (H7) (P4) (P5) (P2) Insert the 6 x bolts(H1) to the underside of the sofa back(P4 and P5) and rotate clockwise to tighten Open the dust cover of the sofa body(P2). Position the sofa back(P4 and P5) on top of the sofa body(P2) and slide the bolts( H1) through to the underside of the sofa body(P2).

  • Page 7: Job Complete

    Attach the sofa body (P1) and sofa body (P2) together. Make sure the clips are well aligned before attaching the two pieces. Ensure the brackets are fully slotted in before use Step 6 (P8) (P7) (P6) (P6) (P6) (P6) (P6) (P2) (P1) Place the back cushions (P6,P7 &...
