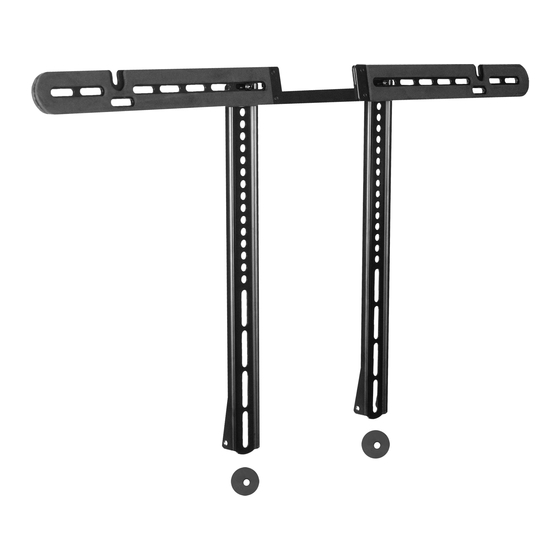

TV Mount Designed for Sonos Arc Soundbar
VESA mount type: Plate
Instruction Manual
SKU: MOUNT-SONOS3T
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/mount-sonos3t
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Related Manuals for Vivo MOUNT-SONOS3T
Summary of Contents for Vivo MOUNT-SONOS3T
- Page 1 TV Mount Designed for Sonos Arc Soundbar VESA mount type: Plate Instruction Manual SKU: MOUNT-SONOS3T Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/mount-sonos3t GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
-
Page 2: Package Contents
WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual. -
Page 3: Assembly Steps
ASSEMBLY STEPS STEP 1 Assemble Mounting Brackets (B) to Center Bracket (C) using M6x8 Screws (S-A), and tighten with 4mm Allen Wrench (T-A). The open slots and square cutout must all be facing up. STEP 2 (Option A) Below TV Installation Measure the horizontal mounting hole spacing on the back of the TV to determine correct spacing for VESA Brackets (A). - Page 4 STEP 2 (Option B) Above TV Installation Measure the horizontal mounting hole spacing on the back of the TV to determine correct spacing for VESA Brackets (A). Install VESA Brackets (A) to the back of the assembled mount using M6x20 Screws (S-B) and M6 Nuts (S-C), tightening with 4mm Allen Wrench (T-A) and Wrench (T-B).
- Page 5 STEP 3 (Option B) Above TV Installation For above TV mounting, measure the distance from the base of the soundbar to the center of the rear mounting holes. The distance from the top edge of the TV to the open slots in the soundbar mount should be equal to or greater than the measured distance.
- Page 6 STEP 4 (Option B) Above TV Mounting Install the assembled mount on the back of the TV with VESA plate from the TV mount, and secure using Screws (M-A through M-G) of the correct size for your TV. Use D5 Washers (M-H) and Spacers (M-I, M-J) if needed.
- Page 7 STEP 5 Screw Knobs (S-G) into the back of the Sonos Arc soundbar. STEP 6 Hang the Sonos Arc soundbar over the top of the mount, making sure Knobs (S-G) are inserted into the slots.
