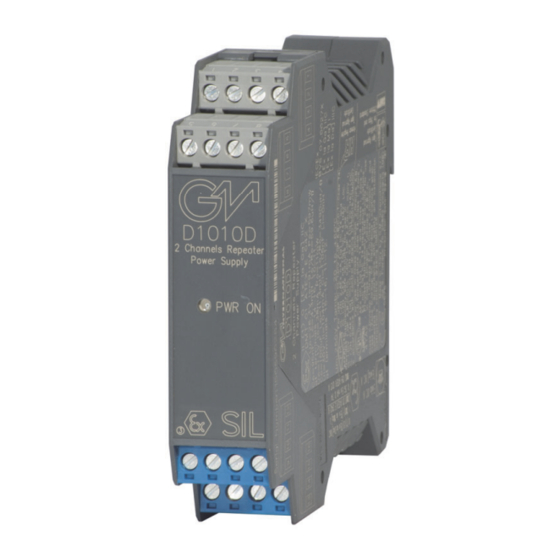

- Page 1 D1010S - D1010D INSTRUCTION & SAFETY MANUAL SIL 2 Repeater Power Supply Smart-Hart compatible DIN-Rail Models D1010S, D1010D D1010 - SIL 2 Repeater Power Supply Smart-Hart compatible ISM0007-16...
-
Page 2: Technical Data
Characteristics General Description: The single and dual channel DIN Rail Repeater Power Supply, D1010S and D1010D, provides a fully floating dc supply for energizing conventional 2 wires 4-20 mA transmitters, or separately powered 3, 4 wires 4-20, 0-20 mA transmitters located in Hazardous Area, and repeats the current in floating circuit to drive a Safe Area load. -
Page 3: Hazardous Area
Ordering information Model: D1010 Power Bus and DIN-Rail accessories: DIN rail anchor MCHP065 DIN rail stopper MOR016 1 channel Terminal block male MOR017 Terminal block female MOR022 2 channels Power Bus enclosure Front Panel and Features SIL 2 according to IEC 61508:2010 Ed. 2 for Tproof = 7 / 10 years (≤10% / >10 % of total SIF) with active input. ... - Page 4 Parameters Table In the system safety analysis, always check the Hazardous Area/Hazardous Locations devices to conform with the related system documentation, if the device is Intrinsically Safe check its suitability for the Hazardous Area/Hazardous Locations and gas group encountered and that its maximum allowable voltage, current, power (Ui/Vmax, Ii/Imax, Pi/Pi) are not exceeded by the safety parameters (Uo/Voc, Io/Isc, Po/Po) of the D1010 series Associated Apparatus connected to it.
- Page 5 When used with separate powered intrinsically safe devices, check that maximum allowable voltage, current (Ui/Vmax, Ii/Imax) of the D1010 Associated Apparatus are not exceeded by the safety parameters (Uo/Voc, Io/Isc) of the Intrinsically Safe device, indicated in the table below: Hazardous Area/ D1010 Associated Must...
-
Page 6: Function Diagram
Powered Tx Sink I In 2 Out 2 2 Wire Tx Source I Source V External Powered Tx Sink I MODEL D1010S Supply 24 Vdc In 1 Out 1 2 Wire Tx Source I Source V External Powered Tx Sink I D1010 - SIL 2 Repeater Power Supply Smart-Hart compatible G.M. -
Page 7: Safety Description
Function Diagram HAZARDOUS AREA ZONE 0 (ZONE 20) GROUP IIC, SAFE AREA, ZONE 2 GROUP IIC T4, HAZARDOUS LOCATIONS CLASS I, DIVISION 1, GROUPS A, B, C, D, NON HAZARDOUS LOCATIONS, CLASS I, DIVISION 2, CLASS II, DIVISION 1, GROUPS E, F, G, CLASS III, DIVISION 1, GROUPS A, B, C, D T-Code T4, CLASS I, ZONE 2, GROUP IIC T4 CLASS I, ZONE 0, GROUP IIC Safety Description... - Page 8 Function Diagram HAZARDOUS AREA ZONE 0 (ZONE 20) GROUP IIC, SAFE AREA, ZONE 2 GROUP IIC T4, HAZARDOUS LOCATIONS CLASS I, DIVISION 1, GROUPS A, B, C, D, NON HAZARDOUS LOCATIONS, CLASS I, DIVISION 2, CLASS II, DIVISION 1, GROUPS E, F, G, CLASS III, DIVISION 1, GROUPS A, B, C, D T-Code T4, CLASS I, ZONE 2, GROUP IIC T4 CLASS I, ZONE 0, GROUP IIC Safety Description...
- Page 9 Safety Function and Failure behavior: D1010S is considered to be operating in Low Demand mode, as a Type A module, having Hardware Fault Tolerance (HFT) = 0. The failure behaviour of the D1010S (when the output current range is 4 to 20 mA) is described by the following definitions: □...
- Page 10 Safety Function and Failure behavior: D1010S is considered to be operating in Low Demand mode, as a Type A module, having Hardware Fault Tolerance (HFT) = 0. The failure behaviour of the D1010S (when the output current range is 4 to 20 mA) is described by the following definitions: □...
- Page 11 Functional Safety Manual and Application Application for D1010D, with active input (external powered Tx) Supply 24 Vdc Source I External Powered Tx Sink I In 1 Channel 1 Out 1 D1010D Source I External Powered Tx Sink I In 2 Channel 2 Out 2 Description:...
- Page 12 Functional Safety Manual and Application Application for D1010D, with passive input (2 wires Tx) Supply 24 Vdc 2 wire Source I In 1 Sink I Channel 1 Out 1 2 wire D1010D Source I In 2 Sink I Channel 2 Out 2 Description: For this application, enable 4 - 20 mA output current (source or sink) mode for each channel of D1010D, setting the internal dip-switches in the following mode...
- Page 13 Testing procedure at T-proof The proof test must be performed to reveal dangerous faults which cannot be otherwise detected. This means that it is necessary to specify how dangerous undetected faults, which have been noted during the FMEDA analysis, can be revealed during the proof test. The Proof Test 1 consists of the following steps: Steps Action...
-
Page 14: Operation
On the section “Function Diagram” and enclosure side a block diagram identifies all connections and configuration DIP switches. Identify the number of channels of the specific card (e.g. D1010S is a single channel model and D1010D is a dual channel model), the function and location of each connection terminal using the wiring diagram on the corresponding section, as an example: Connect 24 Vdc power supply positive at terminal “3”... - Page 15 Configuration An output configuration DIP Switch is located on component side of pcb, by closing switch “ON” (1-2 for channel 1, 3-4 for channel 2) output signal is configured for 0/1-5 Volts (250 W internal shunt), opening the switch produces the conventional 0/4-20 mA. Dip switch configuration Side A Panel View Switch positions...
- Page 16 DC supply 30 V range at terminals 14 (+) and 15 (-), the multimeter (DMM) for the reading in DC supply 20 mA range at terminals 1 (+) and 2 (-). Execute the next test to verify D1010S unit channel or execute it twice to verified both D1010D unit channels. ...
