  • Page 1 ISCOM2608G-2GE Product Description...
  • Page 2 Website: http://www.raisecom.com Tel: 8610-82883305 Fax: 8610-82883056 Email: export@raisecom.com Address: Raisecom Building, No. 11, East Area, No. 10 Block, East Xibeiwang Road, Haidian District, Beijing, P.R.China Postal code: 100094 ----------------------------------------------------------------------------------------------------------------------------------------- Notice Copyright ©2016 Raisecom All rights reserved.
  • Page 3 Raisecom ISCOM2608G-2GE Product Description Preface Preface Objectives This document describes product overview, networking applications, system structure, device installation, and technical specifications of the ISCOM2600G series switch. The appendix describes cables and service interface module parameters, and lists terms, acronyms, and abbreviations involved in this document.
  • Page 4 Raisecom ISCOM2608G-2GE Product Description Preface Convention Description Book Antiqua Heading 1, Heading 2, Heading 3, and Block are in Book Antiqua.

  • Page 5: Table Of Contents

    Raisecom ISCOM2608G-2GE Product Description Contents Contents 1 Overview ............................5 2 Networking applications ......................10 3 System structure .......................... 13 4 Device installation ........................19 5 Technical specifications ......................26 6 Appendix ............................32...

  • Page 6: Overview

    1.1 Introduction The all-1000 Mbit/s Ethernet switch ISCOM2600G series (hereinafter referred to as the ISCOM2600G series switch), developed by Raisecom, is designed for the access layer and used as an aggregation device for enterprises, able to meet requirements on all-1000 Mbit/s access.
  • Page 7 Support multiple access control and user authentication technologies, such as Access  Control List (ACL), dynamic Address Resolution Protocol (ARP) detection, Remote Authentication Dial In User Service (RADIUS), Terminal Access Controller Access Raisecom Proprietary and Confidential Copyright © Raisecom Technology Co., Ltd.
  • Page 8  Support NView Network Node Management (NNM) through the service interface and  Simple Network Management Protocol (SNMP) interface. 1.3 Features Table 1-1 lists features of the ISCOM2600G series switch. Raisecom Proprietary and Confidential Copyright © Raisecom Technology Co., Ltd.
  • Page 9 Priority mapping and queue scheduling  Interface-based and VLAN-based rate limiting  SRED  Traffic statistics  Static Layer 2 multicast Multicast  IGMP Snooping  IGMP MVR  IGMP filtering Raisecom Proprietary and Confidential Copyright © Raisecom Technology Co., Ltd.
  • Page 10  Hardware monitoring  CPU monitoring  Caching CPU packets  Dual-system  Auto-Provisioning  Loopback  Ping and Traceroute  Performance statistics  Temperature monitoring  Power supply monitoring Raisecom Proprietary and Confidential Copyright © Raisecom Technology Co., Ltd.

  • Page 11: Networking Applications

    Layer 3 aggregation device, accessing and transmitting broadband, voice, wireless, and video services. This networking can meet the customer's high-bandwidth and multi-service access requirements. Raisecom Proprietary and Confidential Copyright © Raisecom Technology Co., Ltd.
  • Page 12 As an access switch, the ISCOM2600G series switch can work as a core switch for a small network. As shown in Figure 2-2, the ISCOM2600G series switch is connected to the gateway by the 10GE interface and to the 1000 Mbit/s switch by the GE interface. Raisecom Proprietary and Confidential Copyright © Raisecom Technology Co., Ltd.
  • Page 13 Raisecom ISCOM2600G (A) Series 2 Networking applications Figure 2-2 Residential area broadband access networking Raisecom Proprietary and Confidential Copyright © Raisecom Technology Co., Ltd.

  • Page 14: System Structure

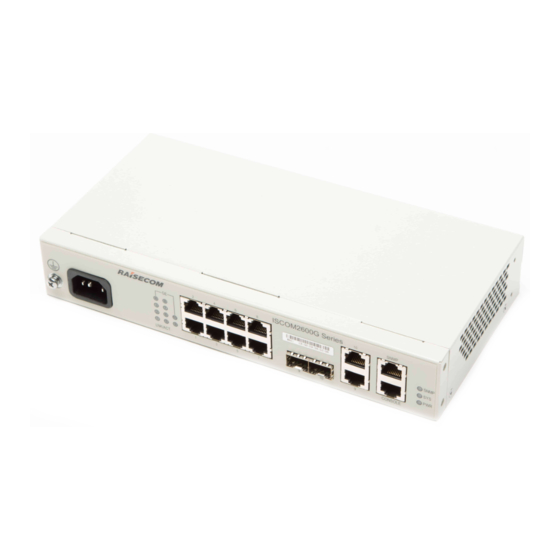

     LEDs  3.1 Panels 3.1.1 Front panels ISCOM2608G-2GE Figure 3-1 shows the front panel of the ISCOM2608G-2GE. Figure 3-1 Front panel of ISCOM2608G-2GE Ground terminal Power interface Service interfaces (1–8) LEDs Service downlink interfaces (1–8) Service uplink GE interfaces (9–10) Service uplink SFP interfaces (5–6...
  • Page 15 Coding type 8B/10B Working mode Full duplex Compliant standard IEEE 802.3 Supported network protocol 100 Mbit/s SFP optical interface Table 3-3 lists parameters of the 100 Mbit/s SFP optical interface. Raisecom Proprietary and Confidential Copyright © Raisecom Technology Co., Ltd.
  • Page 16 ISCOM2600G series (RJ45) switch via Hyper Terminal from this interface. SNMP 10/100BASE-T adaptive electrical interface. You can (RJ45) conduct out-of-band management of the ISCOM2600G series switch. Raisecom Proprietary and Confidential Copyright © Raisecom Technology Co., Ltd.
  • Page 17 The DC power supply provides -48 VDC power. Interface There is a DC power input interface for inputting DC power on the panel of the ISCO2600 series switch, as shown in Figure 3-2. Raisecom Proprietary and Confidential Copyright © Raisecom Technology Co., Ltd.
  • Page 18 Support a lightning protection level of 6 kV in both common mode and differential  modes. Interfaces There is an AC power input interface for inputting DC power on the panel of the ISCO2600 series switch, as shown in Figure 3-3. Raisecom Proprietary and Confidential Copyright © Raisecom Technology Co., Ltd.
  • Page 19 Description Rated input voltage 220 VAC Voltage range 100–240 VAC Frequency 50/60 Hz 3.4 LEDs 3.4.1 ISCOM2608G-2GE Table 3-11 lists LEDs on the ISCOM2608G-2GE. Table 3-11 LEDs on ISCOM2608G-2GE Status Description LNK/ACT Green Ethernet interface working status LED Port1–Port08 ...

  • Page 20: Device Installation

    Cabinet  Workbench  4.1.1 Preparing for installation Environment conditions Table 4-1 lists requirements on the environment for installing the ISCOM2600G series switch. Raisecom Proprietary and Confidential Copyright © Raisecom Technology Co., Ltd.
  • Page 21 Step 1 Ensure that the rack is stable. Step 2 Install two customized brackets on the two sides of the ISCOM2600G series switch respectively, and fix them with screws, as shown in Figure 4-1. Raisecom Proprietary and Confidential Copyright © Raisecom Technology Co., Ltd.
  • Page 22 Step 3 Install floating nuts on the rack, as shown in Figure 4-2. Figure 4-2 Installing floating nuts Step 4 Install guide rails on the rack, as shown in Figure 4-3. Raisecom Proprietary and Confidential Copyright © Raisecom Technology Co., Ltd.
  • Page 23 4.1.3 Connecting cables Connecting fiber There is invisible laser inside the ISCOM2600G series switch and it harms eyes. Do not directly stare into the optical interface, fiber connector, or breakage of fiber. Raisecom Proprietary and Confidential Copyright © Raisecom Technology Co., Ltd.
  • Page 24 Step 2 Insert the RJ45 connector of the Ethernet cable into the Ethernet interface of the ISCOM2600G series switch, and insert the other RJ45 connector of the Ethernet cable into the Ethernet interface of the peer device, as shown in Figure 4-7. Raisecom Proprietary and Confidential Copyright © Raisecom Technology Co., Ltd.
  • Page 25 Step 2 Insert the receptacle connector of the AC power cable into the AC power interface on the rear panel tightly. Insert the power plug of the AC power cable into the AC power socket of the power sourcing equipment, as shown in Figure 4-9. Raisecom Proprietary and Confidential Copyright © Raisecom Technology Co., Ltd.
  • Page 26 You can upgrade software of the ISCOM2600G series switch. For details, see ISCOM2600G (A) Series Configuration Guide. For details about installation and operations about the NView NNM network management software, see NView NNM related manual. Raisecom Proprietary and Confidential Copyright © Raisecom Technology Co., Ltd.

  • Page 27: Technical Specifications

    5.1 Overall parameters Table 5-1 lists overall parameters of the ISCOM2600G series switch. Table 5-1 Overall parameters Parameter Description  ISCOM2608G-2GE: 260 mm (Width) × 130 mm Dimensions (Depth) × 44 mm (Height)  ISCOM2608G-2GE: 15W Overall power consumption ...
  • Page 28 The ISCOM2600G series switch complies with the following safety standards: EN 60950  UL 60950  CSA C22.2 No. 60950-1-03  CSA C22.2 No. 60950-1-07  47 CFR FCC Part 15 Subpart B (Class A), ANSI C63.4  Raisecom Proprietary and Confidential Copyright © Raisecom Technology Co., Ltd.
  • Page 29 Rainproof measures are taken that rain will not leak into the package box.  No hydrops is around the package box.  The package box is not directly exposed to the sun.  Biotic environment Keep the ISCOM2600G series switch away from: Raisecom Proprietary and Confidential Copyright © Raisecom Technology Co., Ltd.
  • Page 30 The temperate and humidity referred to are measured 1.5 m above or 0.4 m in front of the ISCOM2600G series switch. Table 5-5 Atmosphere requirements during operation Parameter Description Air pressure (kPa) 86–106 Temperature (°C) 0–50 Raisecom Proprietary and Confidential Copyright © Raisecom Technology Co., Ltd.
  • Page 31 IEEE 1588-2008 Standard for a Precision Clock Synchronization Protocol for Network  Measurement and Control Systems ITU-T Y.1541 Network Performance Objectives For IP-Based Services  ITU-T Y.1731 OAM Functions and Mechanisms for Ethernet based networks  Raisecom Proprietary and Confidential Copyright © Raisecom Technology Co., Ltd.
  • Page 32  RFC3289 Management Information Base for the Differentiated Services Architecture  RFC3290 An Informal Management Model for DiffServ Routers  RFC3317 Differentiated Services Quality of Service Policy Information Base  Raisecom Proprietary and Confidential Copyright © Raisecom Technology Co., Ltd.

  • Page 33: Appendix

    Choose the fiber connector properly as required on site. Otherwise, more loss will be caused to the fiber, service transmission will be deteriorated, and even the fiber connector and interface may be damaged. Raisecom Proprietary and Confidential Copyright © Raisecom Technology Co., Ltd.
  • Page 34 The Ethernet cable connects the Ethernet electrical interface and SFP electrical interface on the ISCOM2600G series switch. The Ethernet interface on the ISCOM2600G series switch is adaptive to straight-through cable mode and crossover cable mode. Raisecom Proprietary and Confidential Copyright © Raisecom Technology Co., Ltd.
  • Page 35 Orange Green PIN 7 White/Brown White/Brown PIN 8 Brown Brown Both two RJ45 connectors of the straight-through cable follow EIA/TIA568B standard wiring. Figure 6-3 shows wiring of the straight-through cable. Raisecom Proprietary and Confidential Copyright © Raisecom Technology Co., Ltd.
  • Page 36 Figure 6-3 Wiring of straight-through cable Figure 6-4 shows wiring of the 100 Mbit/s crossover cable. Figure 6-4 Wiring of 100 Mbit/s crossover cable Figure 6-5 shows wiring of 1000 Mbit/s crossover cable. Raisecom Proprietary and Confidential Copyright © Raisecom Technology Co., Ltd.
  • Page 37 Appearance The ground cable is composed of ground terminals and the coaxial cable. The ground terminal is usually an OT non-insulated terminal. The coaxial cable is a yellow/green copper soft Raisecom Proprietary and Confidential Copyright © Raisecom Technology Co., Ltd.
  • Page 38 Description Model (recommended) PIL-ground cable-Φ4-1m. Yellow/Green multi-strand copper-core conducting wire Conducting wire (1.25 mm Model Protective ground round pressed terminal (M4) Cross-sectional area of 16–15AWG (1.2–1.5 mm the conducting wire Raisecom Proprietary and Confidential Copyright © Raisecom Technology Co., Ltd.
  • Page 39 Black (-VIN) Stripped Stripped end 10mm tinning U-shape terminal 22-16KT soldering lug Wire gauge of the inner 18 AWG conductor Cross-sectional area of the 2×0.75 mm inner conductor Length 1.5 m Raisecom Proprietary and Confidential Copyright © Raisecom Technology Co., Ltd.
  • Page 40 POL-AC-European-3-pin/receptacle-0.75mm -1.5m/RoHS America POL-AC-American-3-pin/receptacle-18AWG-1.5m/RoHS Raisecom can provide cables used in some other countries, such as Brazil. You can contact Raisecom technical support engineers if needed. Appearance The AC power cable which meets European standard is composed of the European French mode 3-pin plug and receptacle connector, as shown in Figure 6-9.
  • Page 41 RJ45 connector: connected to the Console interface on the ISCOM2600G series switch  DB9 female connector: connected to the Console interface on the PC  Appearance Figure 6-11 shows the RJ45 Console cable. Raisecom Proprietary and Confidential Copyright © Raisecom Technology Co., Ltd.
  • Page 42 PIN 5 PIN 6 PIN 7 PIN 8 – PIN 9 Figure 6-12 shows wiring between the DB9 female connector and the RJ45 Console interface on the ISCOM2600G series switch. Raisecom Proprietary and Confidential Copyright © Raisecom Technology Co., Ltd.
  • Page 43  1000 Mbit/s SFP electrical module  10 Gbit/s SFP+ optical module  6.2.1 100 Mbit/s SFP optical module Table 6-12 lists parameters of the 100 Mbit/s SFP optical module. Raisecom Proprietary and Confidential Copyright © Raisecom Technology Co., Ltd.
  • Page 44 03/SS34- 550 (DFB) D-R/SM USFP- TX1550/RX1 -3 to 2 03/SS35- 490 (DFB) D-R/SM 6.2.2 100 Mbit/s SFP electrical module Table 6-13 lists parameters of the 100 Mbit/s SFP electrical module. Raisecom Proprietary and Confidential Copyright © Raisecom Technology Co., Ltd.
  • Page 45 1550 (DFB) -3 to 2 Gb/S3-D- R/SM USFP- 1550 (DFB) 0–5 Gb/EX-D- R/SM USFP- TX1310/RX1 -10 to - Gb/SS13- 550 (FP/DFB) D-R/SM USFP- TX1550/RX1 -10 to - Gb/SS15- 310 (FP/DFB) D-R/SM Raisecom Proprietary and Confidential Copyright © Raisecom Technology Co., Ltd.
  • Page 46 (m) USFP-GE-R/SM 1000BASE-T Not supported SerDes Supported USFP-GE/AN- 10/100/1000BASE-T Supported SGMll Supported R/SM 6.2.5 10 Gbit/s SFP+ optical module Table 6-16 lists parameters of the 10 Gbit/s SFP+ optical module. Raisecom Proprietary and Confidential Copyright © Raisecom Technology Co., Ltd.
  • Page 47 In addition to effectively improving the reliability on links between devices, link aggregation can help gain greater bandwidth without upgrading hardware. Raisecom Proprietary and Confidential Copyright © Raisecom Technology Co., Ltd.
  • Page 48 Deficit Round Robin DSCP Differentiated Services Code Point Ethernet in the First Mile E-LMI Ethernet Local Management Interface ELPS Ethernet Linear Protection Switching ERPS Ethernet Ring Protection Switching Ethernet Virtual Connection Raisecom Proprietary and Confidential Copyright © Raisecom Technology Co., Ltd.
  • Page 49 Link Layer Discovery Protocol Data Unit LinkTrace Message LinkTrace Reply Maintenance Association Medium Access Control Maintenance Domain Maintenance Entity Group Maintenance associations End Point Management Information Base Maintenance association Intermediate Point Raisecom Proprietary and Confidential Copyright © Raisecom Technology Co., Ltd.
  • Page 50 Radio Network Controller RSTP Rapid Spanning Tree Protocol Small Form-factor Pluggables Service Level Agreement SNMP Simple Network Management Protocol SNTP Simple Network Time Protocol Strict-Priority SSHv2 Secure Shell v2 Spanning Tree Protocol Raisecom Proprietary and Confidential Copyright © Raisecom Technology Co., Ltd.
  • Page 51 Terminal Access Controller Access Control System Transmission Control Protocol TFTP Trivial File Transfer Protocol Type, Length, Value Type of Service UART Universal Asynchronous Receiver/Transmitter VLAN Virtual Local Area Network Weight Round Robin Raisecom Proprietary and Confidential Copyright © Raisecom Technology Co., Ltd.
  • Page 52 Address Raisecom Building, No. 11, East Area, No. 10 Block, East Xibeiwang Road, Haidian District, Beijing, P.R.China Postal code: 100094 Tel: +86-10-82883305 Fax: 8610-82883056 http://www.raisecom.com Email: export@raisecom.com...
