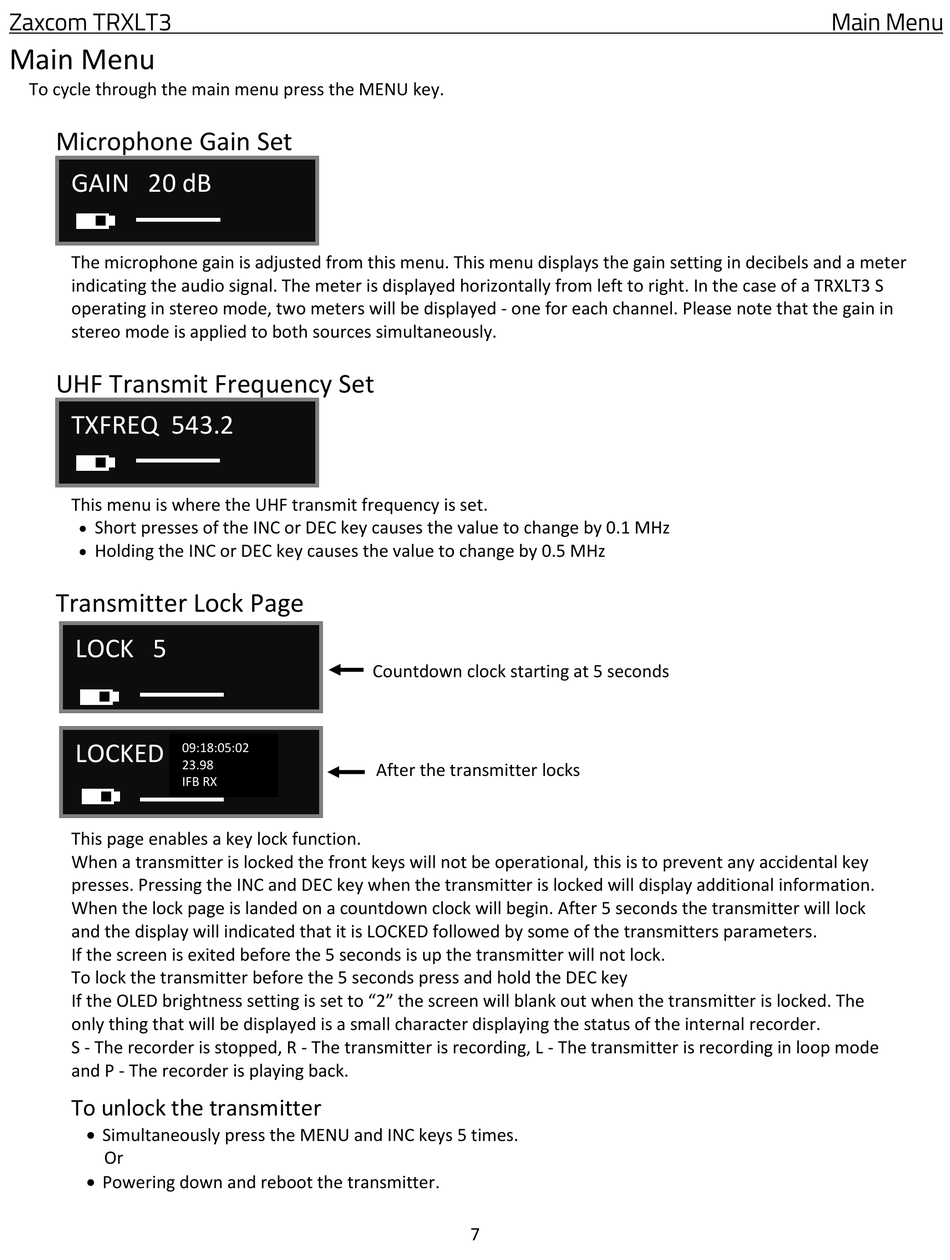

Zaxcom TRXLT3

Main Menu

To cycle through the main menu press the MENU key.

Microphone Gain Set

GAIN 20 dB
The microphone gain is adjusted from this menu. This menu displays the gain setting in decibels and a meter
indicating the audio signal. The meter is displayed horizontally from left to right. In the case of a TRXLT3 S
operating in stereo mode, two meters will be displayed - one for each channel. Please note that the gain in
stereo mode is applied to both sources simultaneously.

UHF Transmit Frequency Set

TXFREQ 543.2
This menu is where the UHF transmit frequency is set.

Short presses of the INC or DEC key causes the value to change by 0.1 MHz

Holding the INC or DEC key causes the value to change by 0.5 MHz

Transmitter Lock Page

LOCK 5
LOCKED 09:18:05:02
23.98
IFB RX
This page enables a key lock function.
When a transmitter is locked the front keys will not be operational, this is to prevent any accidental key
presses. Pressing the INC and DEC key when the transmitter is locked will display additional information.
When the lock page is landed on a countdown clock will begin. After 5 seconds the transmitter will lock
and the display will indicated that it is LOCKED followed by some of the transmitters parameters.
If the screen is exited before the 5 seconds is up the transmitter will not lock.
To lock the transmitter before the 5 seconds press and hold the DEC key
If the OLED brightness setting is set to "2" the screen will blank out when the transmitter is locked. The
only thing that will be displayed is a small character displaying the status of the internal recorder.
S - The recorder is stopped, R - The transmitter is recording, L - The transmitter is recording in loop mode
and P - The recorder is playing back.
To unlock the transmitter
 Simultaneously press the MENU and INC keys 5 times.
Or
 Powering down and reboot the transmitter.
Countdown clock starting at 5 seconds
20 dB
After the transmitter locks
7
