DO

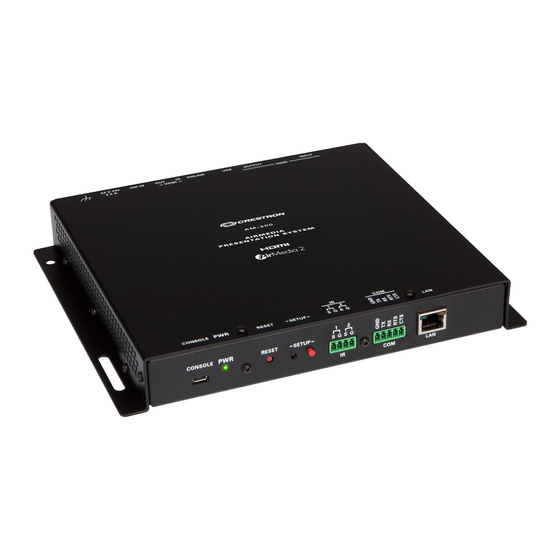

AM-300
AirMedia
Presentation System 300
®
DO
Install the Device
The AM-300 can be mounted onto a rack rail or onto a flat surface.
Mount Onto a Rack Rail
Use two mounting screws (not included) to mount the left or right mounting flange of the device onto
the front or rear rail of a rack.
GUIDE
DO
Check the Box
QTY
4
Anchor, Wall, Plastic, Self Drill, #8 x 1-1/4" Screw
1
Cable, USB 2.0, A - Micro B, 6' (1.83 m)
1
Connector, 4-Pin
1
Connector, 5-Pin
1
Power Cord, 5' 10" (1.78 m)
1
Power Pack, 24 Vdc, 2.5 A, 100-240 Vac
Mount Onto a Flat Surface
Use the four included anchors to mount the device onto a flat surface.
NOTE:
The anchors are best suited for surfaces with 3/8" to 3/4" thickness.
ITEM
PART NUM.
2050199
2038114
2003576
2003577
2042043
2045873
