AM-200

AirMedia® Presentation System 200

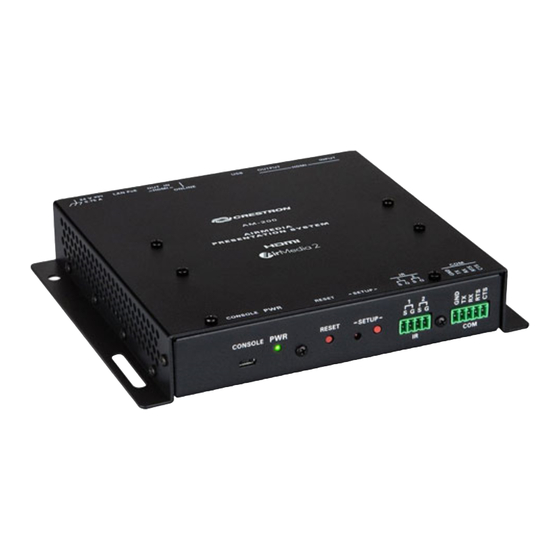

The Crestron AirMedia® Presentation System 200 (AM-200) enables

secure wired and wireless presentation in conference rooms, lounges,

lobbies, and open spaces, and integrates with popular calendaring

platforms to maximize use. It is ideal for organizations with a dispersed

workforce, open floor plans, and reliance on mobile devices to present.

In the Box

AM-200, AirMedia Presentation System 200

Additional Items

Anchor, Wall, Plastic, Self Drill, #8 x 1-1/4 in. Screw

(P/N 2050199)

Connector, 4-Pin (P/N 2003576)

Connector, 5-Pin (P/N 2003577)

The AM-200 can be mounted onto a rack rail or onto a flat surface.

Use two mounting screws (not included) to mount the left or right

mounting flange of the device onto the front or rear rail of a rack.

Quick Start

Table of Contents

Do you have a question about the AirMedia Presentation System 200 and is the answer not in the manual?

Page 1 Quick Start AM-200 AirMedia® Presentation System 200 The Crestron AirMedia® Presentation System 200 (AM-200) enables secure wired and wireless presentation in conference rooms, lounges, Install the Device lobbies, and open spaces, and integrates with popular calendaring platforms to maximize use. It is ideal for organizations with a dispersed The AM-200 can be mounted onto a rack rail or onto a flat surface.
Page 2 Quick Start AM-200 AirMedia® Presentation System 200 Mount Onto a Flat Surface Use the four included anchors to mount the device onto a flat surface. NOTE: The anchors are best suited for surfaces with 3/8 in. to 3/4 in. thickness.
Page 3 Quick Start AM-200 AirMedia® Presentation System 200 Make Connections Make connections to the device as shown in the following diagrams. The AM-200 receives power from a Power over Ethernet (PoE, IEEE 802.3af) connection. It can also receive power from the PW-2407WU power pack (sold separately).
Page 4 Quick Start AM-200 AirMedia® Presentation System 200 Bottom panel connections...
Page 5 Configure the Device Visit the Product Page Use the device’s web interface to configure the device. For details on Scan the QR code to visit the product page. configuring the device, refer to the AM-200/AM-300 Product Manual AM-200 (Doc. 8254). www.crestron.com/model/6509936...
Page 6 Crestron disclaims any proprietary interest in the marks and names of others. Crestron is not responsible for errors in typography or photography.
