AM-300

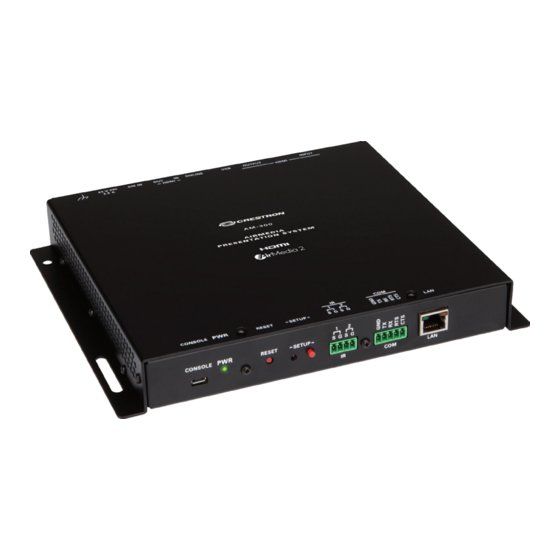

AirMedia® Presentation System 300
The Crestron AirMedia® Presentation System 300 (AM-300) enables
secure wired and wireless presentation in conference rooms, lounges,
lobbies, and open spaces, and integrates with popular calendaring
platforms to maximize use. It is ideal for organizations with a dispersed
workforce, open floor plans, and reliance on mobile devices to present.
In the Box
1
AM-300, AirMedia Presentation System 300
Additional Items
4
Anchor, Wall, Plastic, Self Drill, #8 x 1-1/4 in. Screw
(P/N 2050199)
1
Connector, 4-Pin (P/N 2003576)
1
Connector, 5-Pin (P/N 2003577)
1
Power Cord, 5 ft 10 in. (1.78 m) (P/N 2042043)
1
Power Pack, 24 VDC, 2.5 A, 100-240 VAC (P/N 2045873)
Install the Device
The AM-300 can be mounted onto a rack rail or onto a flat surface.
Mount Onto a Rack Rail
Use two mounting screws (not included) to mount the left or right
mounting flange of the device onto the front or rear rail of a rack.
Quick Start
1
Advertisement
Table of Contents
Related Manuals for Crestron AirMedia AM-300
Summary of Contents for Crestron AirMedia AM-300
- Page 1 Quick Start AM-300 AirMedia® Presentation System 300 The Crestron AirMedia® Presentation System 300 (AM-300) enables secure wired and wireless presentation in conference rooms, lounges, Install the Device lobbies, and open spaces, and integrates with popular calendaring platforms to maximize use. It is ideal for organizations with a dispersed The AM-300 can be mounted onto a rack rail or onto a flat surface.
- Page 2 Quick Start AM-300 AirMedia® Presentation System 300 Mount Onto a Flat Surface Use the four included anchors to mount the device onto a flat surface. NOTE: The anchors are best suited for surfaces with 3/8 in. to 3/4 in. thickness.
- Page 3 Quick Start AM-300 AirMedia® Presentation System 300 Make Connections Make connections to the device as shown in the following diagrams. Use the included Crestron® power pack to supply power. Top panel connections...
- Page 4 Quick Start AM-300 AirMedia® Presentation System 300 Bottom panel connections...
- Page 5 Configure the Device Visit the Product Page Use the device’s web interface to configure the device. For details on Scan the QR code to visit the product page. configuring the device, refer to the AM-200/AM-300 Product Manual AM-300 (Doc. 8254). www.crestron.com/model/6508637...
- Page 6 Development Tools License Agreement. Crestron product operating system software is licensed to Crestron dealers, CSPs, and end-users under a separate End-User License Agreement. Both of these Agreements can be found on the Crestron website at www.crestron.com/legal/software_license_agreement. The product warranty can be found at www.crestron.com/warranty.
