  • Page 1 Crestron MPS-300 Multimedia Presentation System 300 Operations Guide...

  • Page 2: Important Safety Instructions

    Important Safety Instructions • Read these instructions. • Keep these instructions. • Heed all warnings. • Follow all instructions. • Do not use this apparatus near water. • Clean only with dry cloth. • Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

  • Page 3: Table Of Contents

    Crestron MPS-300 Contents Multimedia Presentation System 300: MPS-300 Introduction ... 1 Features and Functions ... 1 Applications... 4 Internal Block Diagram ... 5 Specifications ... 6 Physical Description... 10 Industry Compliance ... 21 Setup ... 22 Network Wiring... 22 CAT5 Wiring... 22 QuickMedia Wiring...

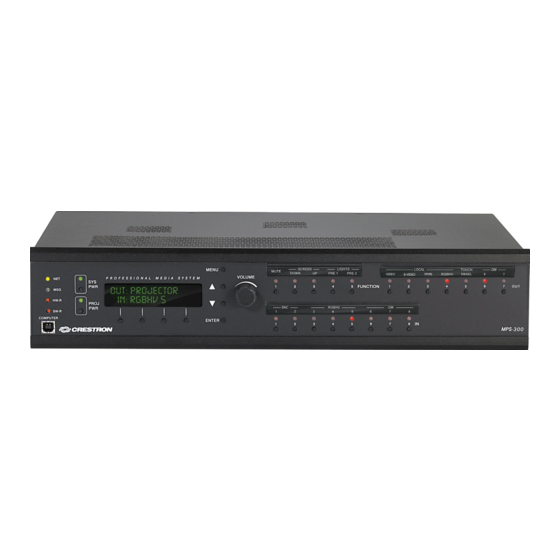

  • Page 5: Multimedia Presentation System 300: Mps-300

    Crestron MPS-300 Multimedia Presentation Multimedia Presentation System 300: MPS-300 System 300: MPS-300 Introduction Introduction Features and Functions The MPS-300 is a complete presentation control and signal routing solution for boardrooms and classrooms. Integrating the control system, multimedia matrix switcher, mic mixer, audio processor, amplifier, and QuickMedia distribution center all into a single 2-space rackmount package, the MPS-300 affords considerable signal routing versatility and high-performance signal processing without the need for separate components.
  • Page 6 Multimedia Presentation System 300 Composite, S-video, component and RGBHV signals can be routed to the appropriate inputs on the display device, with control of the display provided via Ethernet, RS-232 or IR. Input signal sensing is provided on every video and RGB input to enable auto-switching functionality and provide device power status information to the control system.

  • Page 7: Front Panel Control

    Crestron MPS-300 Professional Audio Features Five stereo audio inputs on the rear panel accept balanced or unbalanced line-level signals from computers and other program audio sources. Additional audio sources can be brought in through the three QM inputs. To accommodate a wide range of signals, adjustable input compensation is employed to help maintain consistent volume levels when switching between sources.

  • Page 8: Applications

    Multimedia Presentation System 300 presentation room with a single projector, screen, and keypad controller, to a fully custom touchpanel based system with multiple controlled sources and display devices, can be programmed easily using Crestron SystemBuilder™ software. And, the MPS-300 works with Crestron's RoomView most comprehensive facility-wide asset management solution.

  • Page 9: Internal Block Diagram

    Crestron MPS-300 For more information on this and other QM applications, refer to the latest revision of the Crestron MediaManager Applications Guide (Doc. 6244), which is available from the Crestron website (http://www.crestron.com/manuals). Internal Block Diagram The following diagrams represent the video and audio switching abilities of the MPS-300.

  • Page 10: Specifications

    Multimedia Presentation System 300 Audio Block Diagram of the MPS-300 AUDIO INPUTS Stereo Audio Stereo Audio Stereo Audio Stereo Audio Stereo Audio Stereo Program Audio QM IN Program /Mic Mic1&2 Splitter QM IN Program /Mic Mic1&2 Splitter QM IN Program /Mic Mic1&2 Splitter Local Mic...
  • Page 11 Crestron MPS-300 MPS-300 Specifications (Continued) (Continued on following page) Operations Guide – DOC. 6529B Multimedia Presentation System 300 SPECIFICATION Video/RGB Switcher Signal Types Video/HDTV Formats RGB Formats Maximum Resolution Blanking Time Sync Rise/Fall Time Sync Latency Gain QM Cable Compensation Audio Switcher/Preamp A-D/D-A Conversion...
  • Page 12 Multimedia Presentation System 300 MPS-300 Specifications (Continued) (Continued on following page) 8 • Multimedia Presentation System 300: MPS-300 SPECIFICATION Audio (continued) Limiter Curve Limiter Threshold Level Limiter Attack Time Limiter Release Time Microphone EQ Filter Gain Mic EQ Filter Center Frequencies Bass Gain Range Treble Gain Range...
  • Page 13 Crestron MPS-300 MPS-300 Specifications (Continued) (Continued on following page) Operations Guide – DOC. 6529B Multimedia Presentation System 300 SPECIFICATION LCD Display Power Requirements Main Power ® Available Cresnet Power Environmental Temperature Humidity Enclosure Chassis Faceplate Mounting Dimensions Height Width Depth Weight: MPS-300 MPS-300-70V...

  • Page 14: Physical Description

    Multimedia Presentation System 300 MPS-300 Specifications (Continued) Physical Description This section provides information on the connections, controls and indicators available on your MPS-300. MPS-300 Physical View (Front) MPS-300 Physical View (Rear) 10 • Multimedia Presentation System 300: MPS-300 SPECIFICATION Available Accessories: APAD C2N-DB12 C2N-FTB...
  • Page 15 Crestron MPS-300 Multimedia Presentation System 300 MPS-300 Overall Dimensions 12.58 in (31.95 cm) 11.85 in (30.08 cm) 17.03 in (43.24 cm) 3.47 in (8.81 cm) Multimedia Presentation System 300: MPS-300 • 11 Operations Guide – DOC. 6529B...
  • Page 16 Multimedia Presentation System 300 MPS-300 Buttons and Ports 12 • Multimedia Presentation System 300: MPS-300 18 21 Crestron MPS-300 Operations Guide – DOC. 6529B...
  • Page 17 Crestron MPS-300 Connectors, Controls & Indicators (Continued on following page) Operations Guide – DOC. 6529B Multimedia Presentation System 300 CONNECTORS CONTROLS & INDICATORS NET LED (1) yellow LED, indicates Cresnet bus activity. MSG LED (1) yellow LED, illuminates when a message is present in the message log.
  • Page 18 Multimedia Presentation System 300 Connectors, Controls & Indicators (Continued) (Continued on following page) 14 • Multimedia Presentation System 300: MPS-300 CONNECTORS CONTROLS & INDICATORS MC/LN 1 – 2 (2) 5-pin 3.5 mm detachable terminal blocks; Comprises (2) Balanced microphone/line inputs; Balanced Mic Input Level: -52 to -12 dBV, 240 mV Balanced Line Input Level: -28 to +11 dBV;...
  • Page 19 Crestron MPS-300 Connectors, Controls & Indicators (Continued) (Continued on following page) Operations Guide – DOC. 6529B Multimedia Presentation System 300 CONNECTORS CONTROLS & INDICATORS REC OUT (1) 5-pin 3.5 mm detachable terminal block; Balanced/unbalanced, stereo line-level output; Output Impedance: 200 ohms balanced, 100 ohms unbalanced;...
  • Page 20 Multimedia Presentation System 300 Connectors, Controls & Indicators (Continued) (Continued on following page) 16 • Multimedia Presentation System 300: MPS-300 CONNECTORS CONTROLS & INDICATORS IR IN (1) 3-pin 3.5 mm detachable terminal block; For connection of the CNXRMIRD IR Receiver (sold separately);...
  • Page 21 Crestron MPS-300 Connectors, Controls & Indicators (Continued) (Continued on following page) Operations Guide – DOC. 6529B Multimedia Presentation System 300 CONNECTORS CONTROLS & INDICATORS TOUCH PANEL OUT Contains one CH port and one QM port. CH Port: 8-wire RJ-45 female; CAT5 balanced video output port;...
  • Page 22 Multimedia Presentation System 300 Connectors, Controls & Indicators (Continued) (Continued on following page) 18 • Multimedia Presentation System 300: MPS-300 CONNECTORS CONTROLS & INDICATORS COM A & B (2) DB9 male, bidirectional RS-232 ports; Up to 115.2k baud, hardware and software handshaking support for communication with serial devices.
  • Page 23 Crestron MPS-300 Connectors, Controls & Indicators (Continued) (Continued on following page) Operations Guide – DOC. 6529B Multimedia Presentation System 300 CONNECTORS CONTROLS & INDICATORS OUTPUT 1-4 Contains composite, S-video (Y/C), component (Y, P six BNC connectors and one DB15HD connector. Composite/P (1) BNC female, composite video output, or output;...
  • Page 24 Multimedia Presentation System 300 Connectors, Controls & Indicators (Continued) 20 • Multimedia Presentation System 300: MPS-300 CONNECTORS CONTROLS & INDICATORS (4) 4-pin 3.5 mm detachable terminal blocks; Cresnet Master ports, paralleled; Available Cresnet Power: 30 Watts GROUND (1) 6-32 screw, chassis ground lug 100 –...

  • Page 25: Industry Compliance

    Crestron MPS-300 Industry Compliance This product is Listed to applicable UL Standards and requirements by Underwriters Laboratories Inc. As of the date of manufacture the MPS-300 has been tested and found to comply with specifications for CE marking and standards per EMC and Radiocommunications Compliance Labelling.

  • Page 26: Setup

    Multimedia Presentation System 300 Setup Network Wiring When wiring the network, consider the following: For networks with 20 or more devices, use a Cresnet Hub/Repeater (CNXHUB) to Cresnet maintain signal quality. For more details, refer to “Check Network Wiring” on page 86. The MPS-300 can also use high-speed Ethernet for communications between the Ethernet device and a control system, computer, digital media server and other IP-based...

  • Page 27: Quickmedia Wiring

    Crestron MPS-300 QuickMedia Wiring The Crestron QuickMedia cable (sold under the name “CresCAT-QM”) contains one CAT5E cable and one Cresnet cable in Siamese jackets. Installation of any QM device is as simple as installing CresCAT-QM wires from the output of one device to the input of another.

  • Page 28: Installation

    Multimedia Presentation System 300 QM Network Topology Origination Points MPS-300 MPS-300 MPS-300 Installation The MPS-300 should be used in a well-ventilated area. The venting holes should not Ventilation be obstructed under any circumstances. If the MPS-300 is hot to the touch, consider using forced air ventilation and/or incrementing the spacing between units.

  • Page 29: Hardware Hookup

    Crestron MPS-300 NOTE: The sync input impedance and DDC feature should be set prior to placing the MPS RGB Input Ports” on page 28. Four “feet” are located on the bottom of the MPS-300 so that if the unit is not rack Stacking surface or stacked.
  • Page 30 Multimedia Presentation System 300 Hardware Connections for the MPS-300, Rear RECORD OUTPUT: TO SPEAKERS: TO CODEC, RECORDING 8-OHM STEREO (MPS-300) DEVICE, OR ASSISTIVE 70 VOLT MONO (MPS-300-70V) LISTENING SYSTEM 100 VOLT MONO (MPS-300-100V) SPEECH OUTPUT: TO AMPLIFIER OR AMPLIFIED SPEAKERS PROGRAM AUDIO OUTPUT: TO AMPLIFIER OR AMPLIFIED SPEAKERS...
  • Page 31 Crestron MPS-300 NOTE: When running the out-of-the-box program and connecting a projector screen, the “up” control lines should be connected to relay 1 and the “down” control lines should be connected to relay 2. NOTE: This product does not support Cresnet Analyzer software. If Cresnet analysis is required, contact Crestron’s True Blue Support.

  • Page 32: Hardware Hookup

    Multimedia Presentation System 300 Configure the RGB Input Ports Each of the RGB input ports feature a set of six DIP switches located inside the MPS-300. These switches are used to set the sync input impedance of each port and simulate the presence of a monitor (DDC) for each RGB input.

  • Page 33: Set The Dip Switches

    Crestron MPS-300 DIP Switch Location Set the DIP Switches DIP Switch Function Chart If using the out-of-the-box functionality, the MPS-300 can be configured with the Further Configuration front panel. For information, refer to “Configuration” on page 36. Operations Guide – DOC. 6529B Multimedia Presentation System 300 DIP SWITCHES LOCATED UNDER ACCESS PANEL 1.
  • Page 34 Multimedia Presentation System 300 Use Crestron Engraver software to print custom labels for the MPS-300’s front panel Label the Buttons buttons and LEDS. Crestron recommends printing on 100-pound paper. Paper weighing less than 100 pounds will tend to crumple while sliding in, while paper weighing more than 100 pounds may not fit.

  • Page 35: Programming Software

    Crestron MPS-300 Programming Software Have a question or comment about Crestron software? Answers to frequently asked questions (FAQs) can be viewed in the Online Help section of the Crestron website. To post a question or view questions you have submitted to Crestron’s True Blue Support, log in at http://support.crestron.com. First-time users will need to establish a user account.

  • Page 36: Switching Programs

    Multimedia Presentation System 300 Configuration Manager is the view where programmers “build” a Crestron control Configuration Manager system by selecting hardware from the Device Library. Locating the MPS-300 in the Device Library Program Manager is the view where programmers “program” a Crestron control Program Manager system by assigning signals to symbols.
  • Page 37 Crestron MPS-300 To save settings for later use, use Crestron Toolbox’ File Manager utility to retrieve the *.xml (where * can be “ootbf” for settings made when running the out-of-the-box functionality program or “custom” for settings made when running a custom program) and System Configuration.txt files from the NVRAM Disk directory.

  • Page 38: Uploading And Upgrading

    Multimedia Presentation System 300 Uploading and Upgrading Crestron recommends using the latest programming software and that each device contains the latest firmware to take advantage of the most recently released features. However, before attempting to upload or upgrade it is necessary to establish communication.

  • Page 39: Programs And Firmware

    Crestron MPS-300 TCP/IP Ethernet Communication Programs and Firmware Program and firmware files may be distributed from programmers to installers or from Crestron to dealers. Firmware upgrades are available from the Crestron website as new features are developed after product releases. One has the option to upload programs via the programming software or to upload and upgrade via the Crestron Toolbox.

  • Page 40: Configuration & Operation

    Multimedia Presentation System 300 Configuration & Operation The MPS-300 can be used for audio and video switching without any programming required. This is ideal for those that need a basic audio-video switching system. Prior to operation, the MPS-300 must be configured for use. Configuration The MPS-300 is configured using the built-in menu.

  • Page 41: Exit Setup Menu

    Crestron MPS-300 To exit the menu: Exit the Menu NOTE: The following sections describe configuration instructions when the MPS-300 is running the out-of-the-box program or if an administrator password was entered (while a custom program is running). If a user password was entered while a custom program is running, the user can view the settings but cannot make changes.

  • Page 42: Audio Setup

    Multimedia Presentation System 300 The menu is separated into four sections. Audio Setup The audio characteristics of the MPS-300 can be configured from the front panel using the Audio Setup menu. To access the Audio Setup menu: Access the Audio Setup Menu Program Output The Program Output section of the Audio Setup menu is used to set the...
  • Page 43 Crestron MPS-300 To set the PROGRAM output’s source mix: Set the Program Source Mix To set the Program Bass level: Set the Program Bass Level Operations Guide – DOC. 6529B Multimedia Presentation System 300 • Access the Program Output menu as described in “Access the Program Output Menu”...
  • Page 44 Multimedia Presentation System 300 To set the Program Treble level: Set the Program Treble Level 40 • Multimedia Presentation System 300: MPS-300 Program Bass Controls Program Bass • Adjust the Program Bass level with the j and k buttons. Press the k button to increase the bass level.
  • Page 45 Crestron MPS-300 The Program Minimum Volume control is used to set the lowest volume setting of Set the Program Minimum the PROGRAM output. The RECORD and SPEECH outputs are not affected by Volume changes made to the Program Minimum Volume level. To set the Program Minimum Volume level: The Program Maximum Volume control is used to set the highest volume setting of Set the Program Maximum...
  • Page 46 Multimedia Presentation System 300 The Stereo / Mono controls are used to set the PROGRAM output mode. The audio Set the Stereo / Mono Mode sent to the speaker outputs can be set for either stereo or mono. When set to stereo, the audio signal is separated into left and right channels for distribution to left and right speakers or amplifier channels.

  • Page 47: Speech Output

    Crestron MPS-300 To adjust the Program Startup Volume level: Speech Output The Speech Output section of the Audio Setup menu is used to set the SPEECH output’s volume level, source mix, bass, treble, speech delay, minimum volume, maximum volume, and startup volume. The PROGRAM and RECORD outputs are not affected by changes made from the Speech Output menu.
  • Page 48 Multimedia Presentation System 300 To set the SPEECH output’s source mix: Set the Speech Source Mix To set the Speech Bass level: Set the Speech Bass Level 44 • Multimedia Presentation System 300: MPS-300 • Access the Speech Output menu as described in “Access the Speech Output Menu”...
  • Page 49 Crestron MPS-300 To set the Speech Treble level: Set the Speech Treble Level Operations Guide – DOC. 6529B Multimedia Presentation System 300 Speech Bass Controls Speech Bass • Adjust the Speech Bass level with the j and k buttons. Press the k button to increase the Speech Bass level.
  • Page 50 Multimedia Presentation System 300 To set the Speech Delay: Set the Speech Delay The operating mode of the volume control knob can be set to adjust the program Change the Volume Control volume, the speech volume, user-selectable program/speech volume, or the master Mode volume.
  • Page 51 Crestron MPS-300 The MPS-300 ships with the Volume Control Mode set to the Master Vol. setting. When switching the Volume Control Mode from the Master Vol. setting to either the Program Only setting, the Speech Only setting, or the user selectable Pgm/Spch Sel.
  • Page 52 Multimedia Presentation System 300 The Speech Minimum Volume control is used to set the lowest volume setting of the Set the Speech Minimum SPEECH output. The RECORD and PROGRAM outputs are not affected by Volume changes made to the Speech Minimum Volume level. To set the Speech Minimum Volume level: The Speech Maximum Volume control is used to set the highest volume setting of Set the Speech Maximum...
  • Page 53 Crestron MPS-300 The Speech Startup Volume control is used to establish the SPEECH output’s Adjust the Speech Startup volume level setting when an input is selected. The RECORD and PROGRAM Volume outputs are not affected by changes made to the Speech Startup Volume level. To adjust the Speech Startup Volume level: Operations Guide –...

  • Page 54: Record Output

    Multimedia Presentation System 300 Record Output The Record Output section of the Audio Setup menu is used to set the RECORD output’s volume level, source mix, output mode, and startup volume. The PROGRAM and SPEECH outputs are not affected by changes made to the Record Output controls.
  • Page 55 Crestron MPS-300 The RECORD output can be set to operate at a fixed level or a variable level. The Set Fixed/Variable Mode SPEECH and PROGRAM outputs are not affected by changes made to the Fixed/Variable mode. To adjust the Fixed/Variable Mode: Operations Guide –...
  • Page 56 Multimedia Presentation System 300 The Record Startup Volume control is used to establish the RECORD output’s Adjust the Record Startup volume level setting when an input is selected. The SPEECH and PROGRAM Volume outputs are not affected by changes made to the Record Startup Volume level. NOTE: The Record Volume can only be used if the Fixed/Variable Mode is set to “Variable”.
  • Page 57 Crestron MPS-300 Master Startup Volume Control The Master Startup Volume control is used to establish the volume level setting when an input is selected. The RECORD output is not affected by changes made to the Master Startup Volume level. To adjust the Master Startup Volume control: Adjust the Master Startup Volume Operations Guide –...
  • Page 58 Multimedia Presentation System 300 Microphones The MPS-300 can be connected to two microphones that are channeled to the SPEECH outputs and can be incorporated into the RECORD and PROGRAM outputs. The microphone inputs feature switchable gating, compression, and limiters. They can also provide phantom power to microphones requiring phantom power. To access the Microphone menu: Access the Microphone Menu Microphone gating can be individually set on each microphone input.
  • Page 59 Crestron MPS-300 Microphone compression can be individually set on each microphone input. To Switch Microphone switch microphone compression on or off: Compression Operations Guide – DOC. 6529B Multimedia Presentation System 300 Microphone Gating Control (MIC 1 shown) Mic 1 Gating •...

  • Page 60: Phantom Power

    Multimedia Presentation System 300 A microphone limiter can be individually set on each microphone input. To switch Switch Microphone Limiter the microphone limiter on or off: Phantom power for both of the microphone inputs can be switched on or off. To Switch Phantom Power switch phantom power on or off: 56 •...

  • Page 61: Video Setup

    Crestron MPS-300 The gain for each microphone input can be individually set. To adjust the gain of a Adjust Microphone Gain microphone input: Video Setup The video characteristics of the MPS-300 can be configured from the front panel using the Video Setup menu. To access the Video Setup menu: Access the Video Setup Menu...
  • Page 62 Multimedia Presentation System 300 The BNC video inputs of the MPS-300 can accept composite, S-video, or component Select Input Type signals. The RGB inputs of the MPS-300 can accept component or RGBHV signals. The QM inputs of the MPS-300 can accept composite, S-video, component, or RGBHV signals.
  • Page 63 Crestron MPS-300 The MPS-300 ships with default names assigned to each of the outputs. Output 1 is Name Video Outputs called “Output 1”. Output 2 is called “Output 2”. Output 3 is called “Output 3”. Output 4 is called “Output 4”. Output 5 is called “QM Output 5”. Output 6 is called “QM Output 6”.

  • Page 64: Network Setup

    Multimedia Presentation System 300 Network Setup The network settings of the MPS-300 can be configured and reviewed from the front panel using the Network Setup menu. NOTE: Some changes to network settings may require a reboot to take effect. The system will automatically reboot when necessary.

  • Page 65: Subnet Mask

    Crestron MPS-300 The MPS-300 can be configured to use an IP Subnet Mask for TCP/IP Set the Subnet Mask communications. To set the address of the IP Subnet Mask: Operations Guide – DOC. 6529B Multimedia Presentation System 300 Display the IP Address IP Address [000] 000.
  • Page 66 Multimedia Presentation System 300 The MPS-300 can be configured to use a Default Router for TCP/IP Set the Default Router communications. To set the IP address of the Default Router: The IP address can be obtained from a DHCP server or manually set. For Set the DHCP Mode information on manually setting the IP address, refer to “Set the IP Address”...
  • Page 67 Crestron MPS-300 The MPS-300 can use a WINS server to obtain an IP address. To set the WINS Set the WINS Mode mode: The MPS-300 can be recognized by its hostname in a networked environment. To View and Set the Hostname view and set the hostname: Operations Guide –...

  • Page 68: Domain Name

    Multimedia Presentation System 300 Some networks may require a Domain name to resolve the hostname. To view and View and Set the Domain set the Domain name: Name 64 • Multimedia Presentation System 300: MPS-300 Change the Hostname MPS-300-00107EA0122_ • Turn the volume control clockwise or counterclockwise (or press the k or j buttons) to select a new letter (uppercase or lowercase) or number.
  • Page 69 Crestron MPS-300 The MPS-300 can be configured to report to RoomView Express (formerly known as Set the RoomView Mode RoomView 6.0) or RoomView Server Edition (formerly known as RoomView 7.0). To set the version of RoomView: For more information on using RoomView, refer to the RoomView help file. Operations Guide –...

  • Page 70: Control Setup

    Multimedia Presentation System 300 The MPS-300 can display its MAC address. To view the MAC address: Display the MAC Address Control Setup Basic control system operations can be performed from the MPS-300 front panel using the Control Setup menu. To access the Control Setup menu: Access the Control Setup Menu The brightness of the LCD’s backlight can be adjusted for ease of viewing.
  • Page 71 Crestron MPS-300 Use the front panel to identify the presence of Cresnet devices such as APAD, Identify Network Devices C2N-DB12, CNX-B12, and C2N-FTB keypads, C2N-MNETGW gateways, CLS-C6 lighting systems, and QM-AMP amplifiers: Operations Guide – DOC. 6529B Multimedia Presentation System 300 Select Function to Name Select Fct.
  • Page 72 Multimedia Presentation System 300 NOTE: For information on using the front panel and input devices with the MPS-300, refer to “Operation” on page 76. NOTE: If a C2N-MNETGW has been identified, infiNET switches and dimmers must still be identified with Crestron Toolbox. Refer to the respective infiNET switch and dimmer manuals for more information.
  • Page 73 Crestron MPS-300 The front panel password can be changed from the front panel: Change the Front Panel Password Use the front panel to view information about the MPS-300. Information that can be View System Information viewed includes program information, hardware information, network information, and operating system information.
  • Page 74 Multimedia Presentation System 300 NOTE: This information can be viewed using Crestron Toolbox. For more information, refer to the Crestron Toolbox help file. 70 • Multimedia Presentation System 300: MPS-300 • Access the Control Setup menu as described on page 66. •...
  • Page 75 Crestron MPS-300 The MPS-300 stores system messages in a message log. The presence of new Review System Messages messages in the log is indicated when the MSG LED is lit. To review system messages using the front panel: Operations Guide – DOC. 6529B Multimedia Presentation System 300 ⇒...

  • Page 76: System Log

    Multimedia Presentation System 300 NOTE: The contents of the message log can be read and saved using Crestron Toolbox. For more information, refer to the Crestron Toolbox help file. Use the front panel to set the MPS-300’s date and time. Set the Date and Time 72 •...
  • Page 77 Crestron MPS-300 NOTE: The date and time can be set using Crestron Toolbox. For more information, refer to the Crestron Toolbox help file. Operations Guide – DOC. 6529B Multimedia Presentation System 300 Display the Date Controls DATE: 10/16/2006 ⇒ To set the month, press the soft button labeled MO. To set the day, press the soft button labeled DAY.

  • Page 78: Restore Defaults

    Multimedia Presentation System 300 The MPS-300 can be restored to its default factory settings from the front panel. Restore Default Settings Users can select to restore the audio settings or to restore the audio settings, source names, output names, and function names. 74 •...

  • Page 79: Reset All Settings

    Crestron MPS-300 The MPS-300’s front panel controls can be locked to prevent operational changes Front Panel Lock Control from the buttons on the front of the MPS-300. While locked, the menu can be accessed by pressing the MENU button. To open the Front Panel Lock control: Operations Guide –...

  • Page 80: Front Panel Lock

    Multimedia Presentation System 300 Operation Using the out-of-the-box functionality, the MPS-300 can be operated from the front panel, an APAD, a 12-button keypad such as the CNX-B12 or the C2N-DB12, or the C2N-FTB FlipTop Control Center. Control from the Front Panel The following describes operation of a system when using the out-of-the-box functionality and the front panel.

  • Page 81: Adjust The Volume Level

    Crestron MPS-300 Press the function button labeled SCREEN DOWN to lower the projector screen. Lower the Projection Screen NOTE: This function will only work if a projection screen’s control lines have been connected to RELAY 1 (up control) and RELAY 2 (down control). Press the button labeled SCREEN UP to raise the projector screen.
  • Page 82 Multimedia Presentation System 300 The audio output of the MPS-300 can be muted with the MUTE button. Mute Audio To set lighting to one of two preset lighting values, press either LIGHTS PRE 1 or Adjust Lighting LIGHTS PRE 2. NOTE: This function will only work if a CLS-C6, infiNET switch, or infiNET dimmer was previously identified and connected to the MPS-300.
  • Page 83 Crestron MPS-300 To turn on the system: Turn On the System To turn off the system: Turn Off the System To raise or lower the projection screen: Raise or Lower the Projection Screen NOTE: This function will only work if a projection screen’s control lines have been connected to RELAY 1 (up control) and RELAY 2 (down control).
  • Page 84 Multimedia Presentation System 300 The audio output of the MPS-300 can be muted with the APAD. Mute Audio To set lighting to one of two preset lighting values: Adjust Lighting NOTE: This function will only work if a CLS-C6, infiNET switch, or infiNET dimmer was previously identified and connected to the MPS-300.
  • Page 85 Crestron MPS-300 Control from a Keypad The following describes operation of the system when using the out-of-the-box functionality and either a C2N-DB12 or CNX-B12 keypad. If a custom program has been created, the MPS-300 may function differently. NOTE: Buttons for the keypad are custom engraved using Crestron SystemBuilder software.
  • Page 86 Multimedia Presentation System 300 Control from a C2N-FTB The following describes operation of the system when using the out-of-the-box functionality and a C2N-FTB FlipTop Control Center. If a custom program has been created, the MPS-300 may function differently. NOTE: Buttons for the keypad are custom engraved using Crestron SystemBuilder software.
  • Page 87 Crestron MPS-300 To raise the volume level, press the VOL UP button. To lower the volume, press the Adjust the Volume Level VOL DOWN button. The volume control buttons will only control the volume parameter that was selected when the Volume Control Mode was specified as described on page 46.

  • Page 88: Problem Solving

    Multimedia Presentation System 300 Problem Solving Troubleshooting The following table provides corrective action for possible trouble situations. If further assistance is required, please contact a Crestron customer service representative. MPS-300 Troubleshooting 84 • Multimedia Presentation System 300: MPS-300 TROUBLE POSSIBLE CAUSE(S) Unexpected Network devices are not response from...

  • Page 89: System Monitor

    Crestron MPS-300 NOTE: If communication cannot be established or the control system is locked-up, refer to “Troubleshooting Communications” in the Crestron 2-Series Control Systems Reference Guide (Doc. 6256). NOTE: Passthrough Mode enables Viewport access to any serial controlled device on the network. This aids in troubleshooting by allowing direct communication between the PC and a network device (effectively “passing through”...

  • Page 90: Network Analysis

    Multimedia Presentation System 300 Network Analysis If Cresnet analysis is required, contact Crestron’s True Blue Support. Battery Replacement A Lithium battery is used to power the system clock within the MPS-300. Under normal conditions, it will last for approximately 10 years. In the event that the clock fails, only an authorized technician should replace it.

  • Page 91: Reference Documents

    Crestron MPS-300 Calculate Power CAUTION: Use only Crestron power supplies for Crestron equipment. Failure to do so could cause equipment damage or void the Crestron warranty. CAUTION: Provide sufficient power to the system. Insufficient power can lead to unpredictable results or damage to the equipment. Please use the Crestron Power Calculator to help calculate how much power is needed for the system (http://www.crestron.com/calculators).

  • Page 92: Further Inquiries

    Multimedia Presentation System 300 List of Related Reference Documents Further Inquiries If you cannot locate specific information or have questions after reviewing this guide, please take advantage of Crestron's award winning customer service team by calling Crestron at 1-888-CRESTRON [1-888-273-7876]. You can also log onto the online help section of the Crestron website (www.crestron.com/onlinehelp) to ask questions about Crestron products.

  • Page 93: Software License Agreement

    Crestron MPS-300 Software License Agreement This License Agreement (“Agreement”) is a legal contract between you (either an individual or a single business entity) and Crestron Electronics, Inc. (“Crestron”) for software referenced in this guide, which includes computer software and as applicable, associated media, printed materials and “online”...

  • Page 94: Governing Law

    Multimedia Presentation System 300 If You are a business or organization, You agree that upon request from Crestron or its authorized agent, You will within thirty (30) days fully document and certify that use of any and all Software at the time of the request is in conformity with Your valid licenses from Crestron of its authorized agent.

  • Page 95: Return And Warranty Policies

    Crestron MPS-300 Return and Warranty Policies Merchandise Returns / Repair Service 1. No merchandise may be returned for credit, exchange or service without prior authorization from CRESTRON. To obtain warranty service for CRESTRON products, contact an authorized CRESTRON dealer. Only authorized CRESTRON dealers may contact the factory and request an RMA (Return Merchandise Authorization) number.
  • Page 96 Crestron Electronics, Inc. Operations Guide – DOC. 6529B 15 Volvo Drive Rockleigh, NJ 07647 (2016141) Tel: 888.CRESTRON 10.08 Fax: 201.767.7576 Specifications subject to www.crestron.com change without notice.
