Crestron DigitalMedia 3 Series User Manual

DO GUIDE

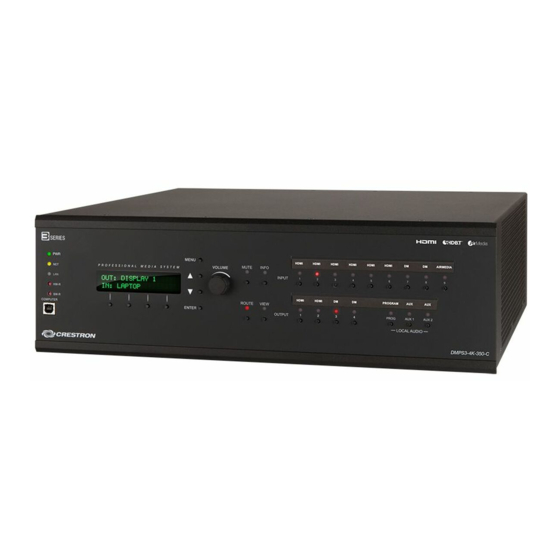

DMPS3-4K-50/DMPS3-4K-100-C
3-Series 4K DigitalMedia Presentation Systems
® ™

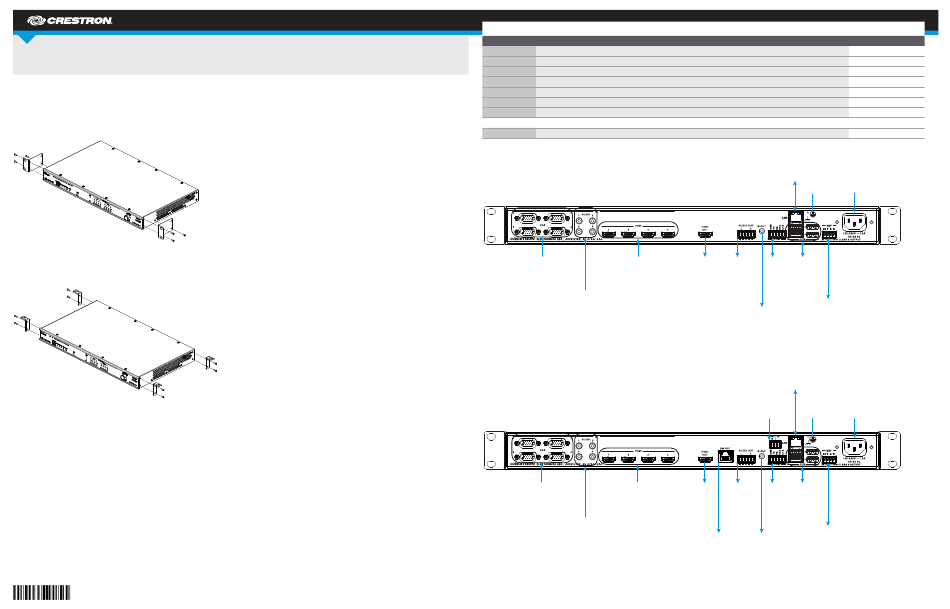

DO Install the Device
The Crestron DMPS3-4K-50 and DMPS3-4K-100-C can be mounted into a rack, mounted under a table, or placed onto a flat surface.
®
Mount into a Rack
The DMPS3-4K-50 and DMPS3-4K-100-C each occupy 1U of rack space. Using a #1 or #2 Phillips screwdriver, attach the two included rack ears to the
device. Then, mount the device into the rack using four mounting screws (not included).
Mount under a Table
Using a #1 or #2 Phillips screwdriver, attach the four included table mount brackets to the device. Then, attach the four table mount brackets to the underside
of the table using four mounting screws (not included).
Place onto a Flat Surface
When placing the device onto a flat surface or stacking it with other equipment, attach the included feet near the corners on the underside of the device.
DO Connect the Device
Make connections to the rear panel of the device. Refer to the following illustrations for information about DMPS3-4K-50 and DMPS3-4K-100-C connections.
DO Check the Box
QUANTITY PRODUCT
2 Bracket, Rack Ear, 1U
4 Bracket, Under Table Mount
1 Connector, 4-Pin
2 Connector, 5-Pin
1 Emitter Probe, IR, Crestron ® STIRP
4 Foot, 0.5" x 0.5" x 0.23", Rubber
1 Power Cord, 6' 7" (2 m)
DMPS3-4K-100-C Only
1 Connector, 3-Pin
DMPS3-4K-50 Rear Panel Connections
VGA 1–4:
HDMI 1–4:
From RGB (VGA), From HDMI
®
component, S-video, or
audio/video
composite video sources sources
AUDIO 1–4:
From unbalanced
stereo line level
analog audio sources
DMPS3-4K-100-C Rear Panel Connections
VGA 1–4: HDMI 1–4:
From RGB (VGA), From HDMI
component, S-video, or audio/video
sources
composite video sources
AUDIO 1–4:
From unbalanced
stereo line level
analog audio sources
Information about VGA, DM OUT, AUDIO OUT, LAN, and NET pin assignments follows.
COLOR PART NUMBER
2032122
2041951
2003576
2003577
2001137
Black 2002389
2001134
2003575
LAN:
100-240V~1.4A
10BASE-T/100BASE-TX
50/60 Hz:
Ethernet to LAN
From ac
power outlet
Ground
HDMI OUT: AUDIO OUT: COM: USB 1–4:
To balanced/ To Crestron
To HDMI To
display unbalanced RS-232 TT-100 series
presentation
stereo line device
level audio interfaces
output device
NET:
To Cresnet
IR OUT: ®
To Crestron device
STIRP IR
emitter probe
(included)
LAN:
10BASE-T/100BASE-TX
Ethernet to LAN
100-240V~1.4A
50/60 Hz:
MIC IN:
From From ac
power outlet
microphone Ground
USB 1–4:
HDMI OUT: AUDIO OUT: COM:
To HDMI To balanced/ To Crestron
To
display unbalanced RS-232 TT-100 series
stereo line presentation
device
level audio interfaces
output device
NET:
DM OUT: IR OUT: To Cresnet
To DM 8G+ To Crestron
® device
receiver or other STIRP IR
DM ® device or to emitter probe
HDBaseT ® device* (included)
