During work on and with the device, the required personal protective equipment must always be worn. Appropriate use The OPTISWITCH 3200 C is a sensor for point level detection. You can find detailed information about the area of application in chapter " Product description". Operational reliability is ensured only if the instrument is properly used according to the specifications in the operating instructions manual as well as possible supplementary instructions.
The EU conformity declaration can be found on our homepage. SIL conformity OPTISWITCH 3200 C meets the requirements to the functional safety according to IEC 61508. Further information is available in the Safety Manual " OPTISWITCH 3XXX".

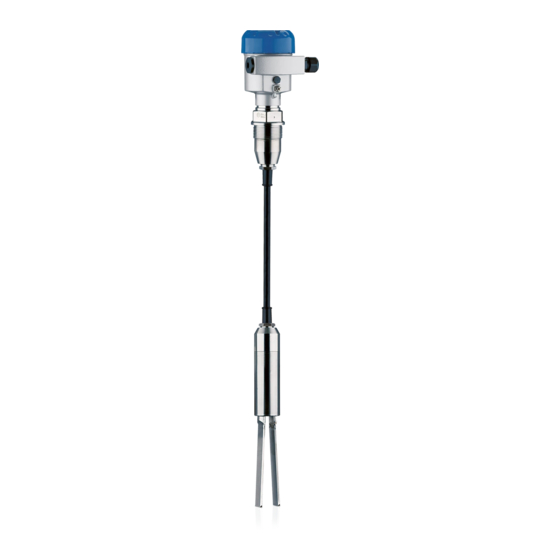

The scope of delivery encompasses: • OPTISWITCH 3200 C point level switch • Documentation – This operating instructions manual – Ex specific safety instructions (with Ex versions), if necessary further certificates The OPTISWITCH 3200 C consists of the components: Constituent parts • Housing lid • Housing with electronics • Process fitting with tuning fork Fig.
3 Product description Principle of operation Application area OPTISWITCH 3200 C is a point level sensor with tuning fork for point level detection. It is designed for industrial use in all areas of process technology and is preferably used for bulk solids.
Technical data - Ambient conditions" • Relative humidity 20 … 85 % Lifting and carrying With instrument weights of more than 18 kg (39.68 lbs) suitable and approved equipment must be used for lifting and carrying. OPTISWITCH 3200 C • Contactless electronic switch...
DIN/EN/IEC/ANSI/ISA/UL/CSA 61010-1. It can be used indoors as well as outdoors. Switching point In general, OPTISWITCH 3200 C must be mounted vertically. The instrument must be mounted in such a way that the vibrating element is at the height of the requested switching point.
4 Mounting Fig. 2: Measures against moisture ingress Transport Do not hold OPTISWITCH 3200 C on the vibrating element. Espe- cially with flange and tube versions, the sensor can be damaged by the weight of the instrument. Remove the protective cover just before mounting. Pressure/Vacuum The process fitting must be sealed if there is gauge or low pressure in the vessel. Before use, check if the sealing material is resistant against the measured product and the process temperature.
Page 12
To compensate measurement errors caused by the material cone in cylindrical vessels, the sensor must be mounted at a distance of d/6 from the vessel wall. Fig. 3: Filling and emptying centred OPTISWITCH 3200 C • Contactless electronic switch...
Page 13
The vibrating element should protrude into the vessel to avoid buildup. For that reason, avoid using mounting bosses for flanges and screwed fittings. This applies particularly to use with adhesive products. Inflowing medium If OPTISWITCH 3200 C is mounted in the filling stream, unwanted false measurement signals can be generated. For this reason, mount OPTISWITCH 3200 C at a position in the vessel where no disturbanc- es, e.g. from filling openings, agitators, etc., can occur. OPTISWITCH 3200 C • Contactless electronic switch...
Page 14
4 Mounting Fig. 5: Inflowing medium Product flow To make sure the tuning fork of OPTISWITCH 3200 C generates as little resistance as possible to product flow, mount the sensor so that the surfaces are parallel to the product movement. Fig. 6: Flow orientation of the tuning fork Marking with screwed version 2 Direction of flow Baffle protection against...
Page 15
4 Mounting > 125 mm (> 5") Fig. 7: Baffle for protection against mechanical damage OPTISWITCH 3200 C • Contactless electronic switch...
In hazardous areas, use only approved cable connections for OPTIS- WITCH 3200 C. Take note of the corresponding installation regulations for Ex applica- Connection cable tions. for Ex applications Cover all housing openings conforming to standard according to EN 60079-1. OPTISWITCH 3200 C • Contactless electronic switch...
10. If necessary, carry out a fresh adjustment 11. Screw the housing lid back on The electrical connection is finished. Wiring plan, single chamber housing The following illustrations apply to the non-Ex as well as to the Ex-d version. OPTISWITCH 3200 C • Contactless electronic switch...
Page 18
Stainless steel (not with Ex d) Filter element for pressure compensation (not with Ex d) Wiring plan We recommend connecting OPTISWITCH 3200 C in such a way that the switching circuit is open when there is a level signal, line break or failure (safe state).
(1) It is already preset and must only be modified in special cases. By default, the potentiometer of OPTISWITCH 3200 C is set to the right stop (> 0.02 g/cm³ or 0.0008 lbs/in³). In case of very light-weight solids, turn the potentiometer to the left stop (> 0.008 g/cm³ or...
6 Setup 0.0003 lbs/in³). OPTISWITCH 3200 C will thus be more sensitive and can detect light-weight solids more reliably. For instruments detecting solids in water, these settings are not ap- plicable. The density range is preset and must not be changed.
Page 21
6 Setup Level Switching status Control lamp Fault Switch open flashes red OPTISWITCH 3200 C • Contactless electronic switch...
Check the vibrating element and the sensor for buildup ement and remove the buildup if there is any. Wrong mode selected Set the correct mode with the mode switch (overflow protection, dry run protection). Wiring should be carried out according to the closed-circuit principle. OPTISWITCH 3200 C • Contactless electronic switch...
7. Compare the new electronics module with the old one. The type label of the electronics module must correspond to that of the old electronics module. This applies particularly to instruments used in hazardous areas. OPTISWITCH 3200 C • Contactless electronic switch...
15. Screw the housing lid back on The electronics exchange is now finished. How to proceed if a repair is necessary If it is necessary to repair the instrument, please contact the responsi- ble Krohne agency. OPTISWITCH 3200 C • Contactless electronic switch...
With Ex instruments, the housing cover may only be opened if there is no explosive atmosphere present. Disposal The device is made of recyclable materials. For this reason, it should be disposed of by a specialist recycling company. Observe the ap- plicable national regulations. OPTISWITCH 3200 C • Contactless electronic switch...
9 Supplement Trademark All the brands as well as trade and company names used are property of their lawful proprietor/ originator. OPTISWITCH 3200 C • Contactless electronic switch...
