Creative Playthings 9 FT. SWING BEAM Instructions Manual

INSTRUCTIONS
Important: To comply with US federal law, mount the nameplate
Standard 9 Ft. 4 Position Swing Beam
63058-202 4 Pos. Swing Beam Assembly
63060-222 9 Ft. Legs & Brace
50546-777 3 Swings & 1 Trapeze
9 Ft. 4 Position Swing Beam (No Brace)**
63058-101 4 Pos. Swing Beam Assembly
63076-303 9 Ft. Legs
50546-777 3 Swings & 1 Trapeze
Standard 9 Ft. 3 Position Swing Beam
63061-101 3 Pos. Swing Beam Assembly
63060-222 9 Ft. Legs & Brace
AA934-204 2 Swings & 1 Trapeze
9 Ft. 3 Position Swing Beam (No Brace)**
63061-101 3 Pos. Swing Beam Assembly
63076-303 9 Ft. Legs
AA934-204 2 Swings & 1 Trapeze
Parts for the optional Glider:
50545-555 Glider Bracket Pack
AA911-342 Chained Glider
The 9ft. Swing Beam will mount to a Yorktown, Ridgefield, Manchester or Norfolk
gym. It will also mount to a Lexington or Williamsburg with a wood roof. To mount the
9ft. Swing Beam to a Lexington or Williamsburg with a tent roof, the 9ft Swing Tent
Adapter (63035-102) is required.
** The 9 Ft. Brace Assembly is not required on a Manchester, Ridgefield, Yorktown,
or Norfolk gym. Use leg package 63076-303 for these gyms.
A 1 40587-102 4 Position Swing Beam Assembly (3 Position: 40586-102)
B 1 32620-102 Angle Brace 4 x 4 x 16-7/8"
Gym Base Extension 2 x 6 x 45-3/16" †
C 1 32621-102
Gym Brace 4 x 4 x 99-3/8" †
D 1 32622-102
Base Rail Anchor 2 x 6 x 7-13/16" †
E 1 32623-102
Alt Base Rail Anchor 2 x 6 x 7-13/16" †
1 32702-102
F 1 32625-102 Leg Brace 4 x 4 x 58"
G 2 40444-102 Leg Assembly 9 Ft. Swing Beam
H 1 14175-400 T-Bracket, Green
I 1 14176-400 Beam Retainer, Green
J 1 14162-400 8" L-Brace, Green
* 3 36515-102 Ground Stake 2 x 2 x 18"
1 50395-720 Hardware Bag, Swing Beam
1 50395-712 Hardware Bag, 5/16" Fasteners
1 50395-723 Hardware Bag, 9 Ft. Swing Beam
1 50395-714 Chain Bag, 9 Ft. Swing Beam
K 1 40311-400 Trapeze Assembly
L 3 40321-400 Sling Swing Assembly
M 10 14057-024 Chain 3/16 x 24", No Coating (in Hardware Bag)
†
Not included in leg package 63076-303
and any provided warning plates to the play structure.
I
J
D
C

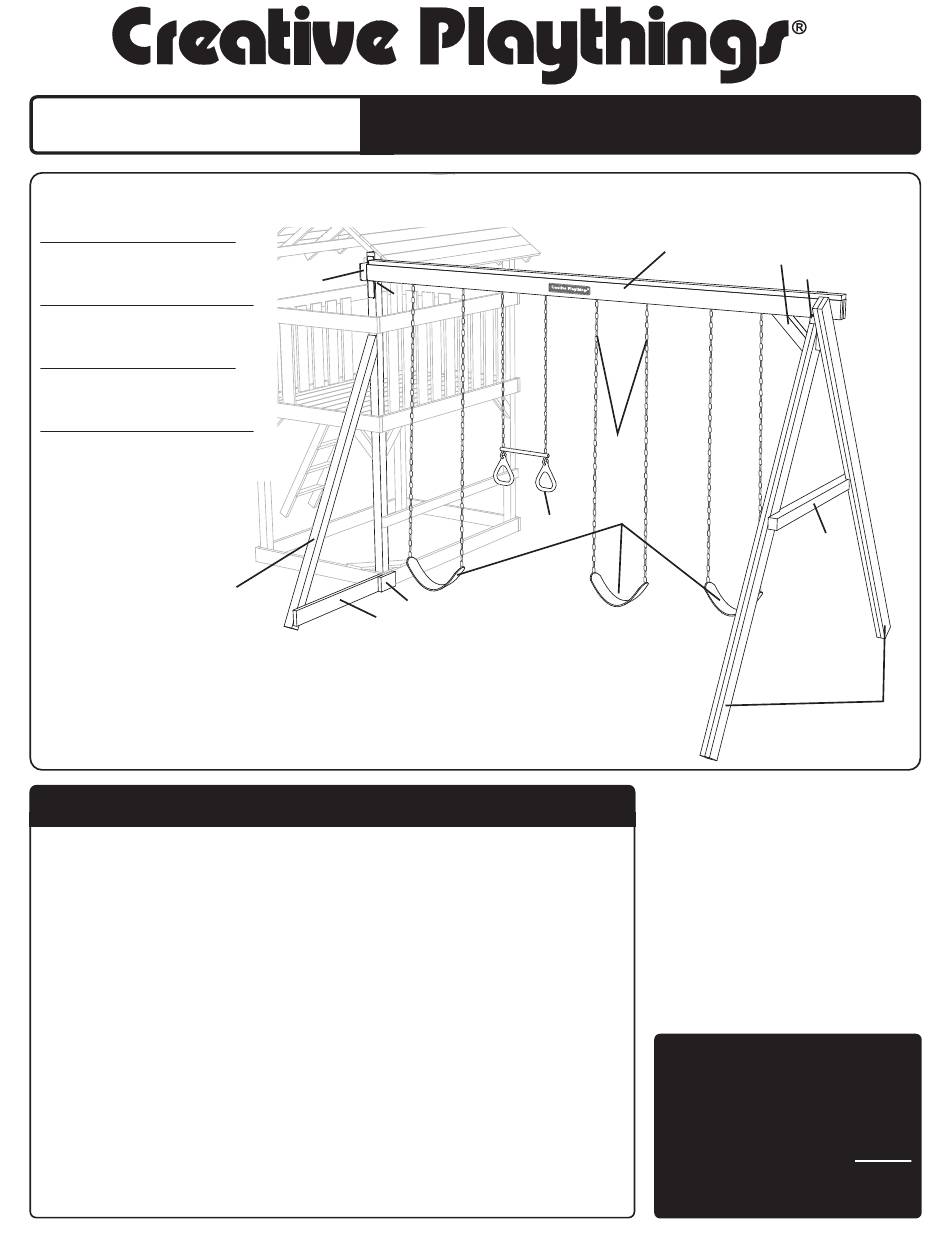

PARTS
9 FT. SWING BEAM
This product is intended
for use by children
from ages of 2 to12 800-598-4997
Framingham, MA 01702
K
E
* Not pictured above
A
B
M
L
See the Gym Tower instructions for
information on proper ground cover.
The safe play zone for a 9 ft. Swing
Beam extends 18 feet to the front and
18 feet to the back of the swing beam.
Further safe play zone information can
be found in the Gym Tower instructions.
Note: Instructions for mounting this
swing beam to a Norfolk gym with a
wood roof is on page 8. Instructions
for installation on a Manchester gym
is included in the Manchester manual.
All hardware on this set
is specially coated for
corrosion resistance.
If non-Creative Playthings
hardware is used, it MUST
be galvanized or stainless
steel.
H
F
G
