Creative Playthings Manchester Premium Pack 9 Assembly Instructions

CHILDHOOD STARTS HERE
The components of this gym can be combined with others to create different play sets. This is the best
Read this sheet and all instructions included with the different parts before assembly.
See the Instructions and Owner's Manual included in carton 63069-601 for important safety information.
Cartons for this Play Set:
1 63069-601 Manchester Box 1 (Instr & Hdwre)
1 63069-602 Manchester Box 2
1 63069-603 Manchester Box 3
1 63069-604 Manchester Box 4
1 63069-605 Manchester Box 5
1 63069-606 Manchester Box 6 (Hardware)
1 63069-707 Manchester Box 7
1 SH304-101Q Pinnacle Rock Climbing Wall
1 8400-202 Spiral Slide (Hardware)
1 63056-101 Fun Deck Spiral Mount (Instr & Hdwre)
1 15140-400 14 Ft Swoosh Slide
1 50398-700 Swoosh Mount Pack (Instr & Hdwre)
1 63058-202 4 Position Swing Beam
1 63076-303 9ft Beam Legs (Instr & Hdwre)
1 50546-777 3 Swings, 1 Trapeze
1 63070-301 Manch. Fun Deck 1 (Instr & Hdwre)
1 63070-302 Manchester Fun Deck 2
1 63053-404 Manchester Fun Deck 3
1 63070-404 Manch Fun Deck Roof (Instr & Hdwre)
1 AP970-104 Bubble Panel (Instr & Hdwre)
1 AS974-500 Chalkboard Panel (Instr & Hdwre)
1 50514-100 Tic Tac Toe (Instr & Hdwre)
2 SM963-402 Dormer (Instr & Hdwre)
2 SM964-402 Gable Fans (Instr & Hdwre)
1 AG943-400 Slide Handle (Instr & Hdwre)
1 AG942-400 Access Handles (Instr & Hdwre)
© Copyright 2018, Creative Playthings
order of assembly to create this specific set.
• Assemble the Manchester tower as shown in the instructions in Man-
chester Box 1 (63069-601).
• Manchester step 39. Wait to install the wall slats.
• Assemble both Dormers (SM963-402). Install one dormer on the
main tower roof before the swing beam, slide, or fun deck for better
ladder access.
• Tighten all connections on the Manchester then install the Fun Deck
using the instructions in 63070-301.
• Fun deck step 14. Instead of installing the corner posts use the cor-
ner roof posts from the fun deck roof (63070-404).
• Fun deck step 16. Do not install the end wall support included with
the fun deck. Use the end replacement included with the fun deck
spiral mount (63056-101). Installation is described in step 3 of the
spiral mount instructions.
• Fun deck step 22. Wait to install the narrow deck board on the side
where the spiral slide will mount. Set it in place but do not secure it.
• Fun deck step 23. Wait to install the wall slats on the longs sides of
the fun deck until after the slides and roof are in place.
• Fun deck step 24. Do not install wall slats at the end of the fun deck.
• Install the spiral slide mount using the instructions included in 63056-
101.
MANC9WPP9
Manchester Premium Pack 9

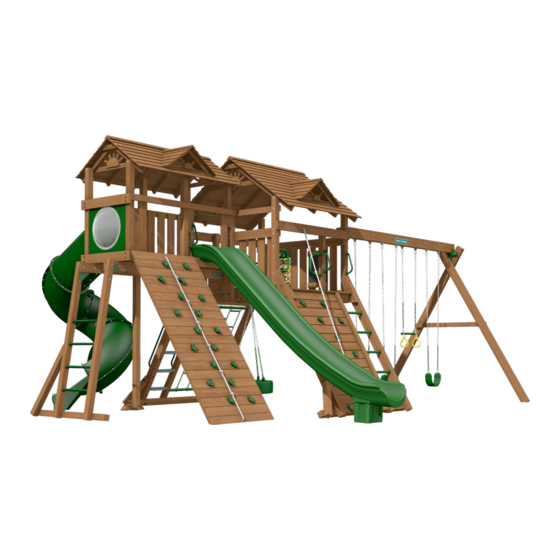

Dimensions of assembled package:
19' 0" wide x 26' 1" deep x 12' 10" tall
MANCHESTER PREMIUM PACK 9
MANC9WPP9-100 Rev B (05-20)
