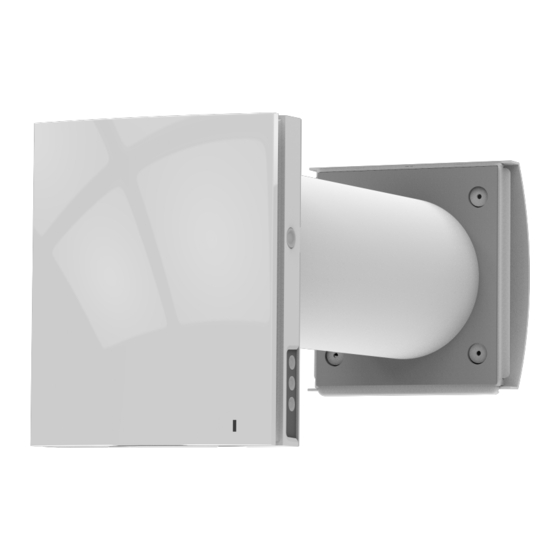

- Page 1 Single-room reverSible energy regeneration ventilator vento expert a50-1 W v.2 vento expert a85-1 W v.2 vento expert a100-1 W v.2 vento expert Duo a30-1 W v.2 USER’S MANUAL...
-
Page 2: Table Of Contents
vento expert (Duo) a W v.2 www.blaubergventilatoren.de CONTENTS Safety requirements ..................................2 Purpose ........................................ 4 Delivery set ......................................4 Designation key ....................................4 Technical data ....................................5 Design and operating principle ............................6 Installation and set-up................................8 Connection to power mains and control ........................11 Technical maintenance ................................ - Page 3 vento expert (Duo) a W v.2 www.blaubergventilatoren.de • Do not change the power cable length at your own discretion. Do not bend the • Do not lay the power cable of the unit in power cable. Avoid damaging the power close proximity to heating equipment.
-
Page 4: Purpose
vento expert (Duo) a W v.2 www.blaubergventilatoren.de PURPOSE The ventilator is designed to ensure continuous mechanical air exchange in flats, cottages, hotels, cafés and other domestic and public premises. The ventilator is equipped with a regenerator that enables supply of fresh filtered air heated by means of extract air heat energy recovery. -
Page 5: Technical Data
vento expert (Duo) a W v.2 www.blaubergventilatoren.de TECHNICAL DATA The unit is designed for indoor application at the following conditions: • for Vento Expert: outside air temperature from -15 ˚C (5 °F) up to +40 ˚C (104 °F) and relative indoor humidity up to 50 % •... -
Page 6: Design And Operating Principle
vento expert (Duo) a W v.2 www.blaubergventilatoren.de DESIGN AND OPERATING PRINCIPLE The ventilator consists of an indoor unit with a decorative front panel, a cartridge, an air duct with a sound absorbing mat and an outer ventilation hood. Cartridge is the basic functioning part of the ventilator. The cartridge consists of fans, a regenerator and two filters that ensure rough air filtration and prevent ingress of dust and foreign objects into the regenerator and the fan. - Page 7 vento expert (Duo) a W v.2 www.blaubergventilatoren.de OPERATION MODES Vento Expert Vento Expert Duo Ventilation: Ventilation: the ventilator runs either in extract or supply mode one fan runs in the air extract mode and the other fan at a set speed. runs in the air supply mode at set speed.
-
Page 8: Installation And Set-Up
vento expert (Duo) a W v.2 www.blaubergventilatoren.de INSTALLATION AND SET-UP READ THE USER'S MANUAL BEFORE INSTALLING THE UNIT. DO NOT BLOCK THE AIR DUCT OF THE INSTALLED VENTILATOR WITH DUST ACCUMULATING MATERIALS, SUCH AS CURTAINS, CLOTH SHUTTERS, ETC. AS IT PREVENTS AIR CIRCULATION IN THE ROOM. 1. - Page 9 vento expert (Duo) a W v.2 www.blaubergventilatoren.de 3. Fasten the supplied mounting template to the indoor wall using the adhesive tape. The large opening in the template must be coaxial with the air duct. For aligning the template with respect to the horizon line it is recommended to use a builder’s level. Then mark the fastening holes for installation of the supplied dowels and drill the holes to a required depth.
- Page 10 vento expert (Duo) a W v.2 www.blaubergventilatoren.de 7. Insert the cartridge in the air duct as shown below. During mounting make sure the pointer is directed upwards. Then fix the cable with a clamp and connect the socket connector to the control board. The pointer must be directed upwards Lay the cables under the clamp...
-
Page 11: Connection To Power Mains And Control
vento expert (Duo) a W v.2 www.blaubergventilatoren.de CONNECTION TO POWER MAINS AND CONTROL POWER OFF THE POWER SUPPLY PRIOR TO ANY OPERATIONS WITH THE UNIT. THE UNIT MUST BE CONNECTED TO POWER SUPPLY BY A QUALIFIED ELECTRICIAN. THE RATED ELECTRICAL PARAMETERS OF THE UNIT ARE GIVEN ON THE MANUFACTURER’S LABEL. - Page 12 vento expert (Duo) a W v.2 www.blaubergventilatoren.de POSITIONING OF THE DIP SWITCH Setup of ventilator operation mode OFF: Master unit. ON: Slave unit. Standby mode setup OFF: the ventilator is off in the Standby mode. ON: the ventilator is running at the first speed in the Standby mode. Setup of air flow direction in Ventilation mode with running ventilators for Vento Expert OFF: the ventilator runs in the extract mode.
- Page 13 vento expert (Duo) a W v.2 www.blaubergventilatoren.de VENTILATOR CONTROL WITH THE BUTTONS ON THE INDOOR UNIT The speed selection sequence is as follows: I-II-III-Standby. All the units integrated in a network run with the speed set with the Master unit. I: permanent glowing of the indicator indicates operation of the unit with the first speed.
- Page 14 vento expert (Duo) a W v.2 www.blaubergventilatoren.de REMOTE CONTROL OF THE VENTILATOR Standby Turning on/Standby. The mode depends on positioning of the DIP switch No. 2 (refer to page 12). The (Alarm) same button is used to reset alarms and turn off the timers. Speed selection: III-II-I speeds respectively.
- Page 15 vento expert (Duo) a W v.2 www.blaubergventilatoren.de VENTILATOR CONTROL WITH MOBILE APPLICATION To enable ventilator control with a mobile device install the Blauberg Vento V.2. Blauberg Vento V.2 - App Store Blauberg Vento V.2 Play Market Your mobile device must have the operation system matching the following parameters: •...
- Page 16 vento expert (Duo) a W v.2 www.blaubergventilatoren.de DESCRIPTION OF MOBILE APPLICATION CONTROL BUTTONS Standby ON/Standby. The mode is determined by the DIP switch No. 2 position (see page 12). Selection of the pre-set speed: first, seconds, third speed respectively. Manual speed setting. Check the scroll bar to activate it. Ventilation Vento Expert The ventilator operates either in the extract or supply mode at the set...
- Page 17 vento expert (Duo) a W v.2 www.blaubergventilatoren.de VENTILATOR PASSWORD CHANGE Menu - To change the ventilator password in the mobile application go to Connection - Home. 1. Select the connection type and press the Settings button. 2. Enter and confirm the password. Change Password 3.
- Page 18 vento expert (Duo) a W v.2 www.blaubergventilatoren.de DATE AND TIME SETUP Setting - Date and time. To set up the ventilator date and time, go to Current time: set the current time. Current date: set the current date. WEEKLY SCHEDULE SETUP Menu - Settings - Scheduler.
- Page 19 vento expert (Duo) a W v.2 www.blaubergventilatoren.de WIRELESS CONNECTION OF SEVERAL VENTILATORS The ventilator has two operation modes. Master unit mode. The ventilator acts as a Master unit. The Slave units and the mobile devices are connected to the Master unit via the Wi-Fi connection.
- Page 20 vento expert (Duo) a W v.2 www.blaubergventilatoren.de VENTILATOR WIRELESS CONNECTION DIAGRAMS Wiring diagram 1 Connection of up to 8 Slave units or mobile devices to the Master Master unit with its own wireless access point. with a Wi-Fi access point In case of connection of eight Slave units to the Master unit with its own wireless access point a mobile device may not be connected.
- Page 21 vento expert (Duo) a W v.2 www.blaubergventilatoren.de CONNECTING MASTER AND SLAVE VENTILATORS WHILE COMPLETING THE CONNECTION MAKE SURE THAT THE SLAVE UNITS ARE WITHIN COVERAGE OF THE BUILT-IN WI-FI IN THE MASTER UNIT To connect a Master and a Slave unit, set the DIP switches on each ventilator to Master or the Slave position (see page 13). Then set up the Wi-Fi parameters of the master unit (see page 20).
- Page 22 vento expert (Duo) a W v.2 www.blaubergventilatoren.de CLOUD SERVER CONNECTION The ventilators can be controlled using the mobile app via a cloud server connection. This functions enables control of a single or multiple ventilators connected according to Diagram 2 over any distance using the mobile app connected to the Internet. By default the Control via cloud server function is disabled.
- Page 23 vento expert (Duo) a W v.2 www.blaubergventilatoren.de AIR FLOW BLOCKING FOR Vento Expert Press the front panel to close the air duct completely. The fan of the ventilator is stopped. Meanwhile the unit functionality is not changed. To open the air duct pull the front panel through the specially designed recessions. The fan automatically starts operating according to the actual speed setting.
-
Page 24: Technical Maintenance
vento expert (Duo) a W v.2 www.blaubergventilatoren.de TECHNICAL MAINTENANCE DISCONNECT THE UNIT FROM POWER SUPPLY BEFORE ANY MAINTENANCE OPERATIONS! Maintenance of the ventilator means regular cleaning of the ventilator surfaces of dust and cleaning and replacement of the filters. To enable access to the main serviced units turn off the ventilator using the remote control or the buttons on the indoor unit, then turn off power supply completely. - Page 25 vento expert (Duo) a W v.2 www.blaubergventilatoren.de 3. Pull the band to remove the cartridge. Vento Expert Vento Expert Duo Clean the filters as required, but not less than once in three months. • In 90 days of non-stop operation the filter replacement indicator (Filter) starts glowing. Reset the filter timer using the mobile application.
-
Page 26: Storage And Transportation Regulations
vento expert (Duo) a W v.2 www.blaubergventilatoren.de FAILURES AND TROUBLESHOOTING Failure Possible reasons Troubleshooting Make sure the power supply is connected No power supply. correctly, otherwise eliminate the connection error. The fan does not get started Turn the ventilator off. Troubleshoot the motor jam during turning on. -
Page 27: Manufacturer's Warranty
vento expert (Duo) a W v.2 www.blaubergventilatoren.de MANUFACTURER’S WARRANTY The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby declare that the product complies with the provisions of Electromagnetic Council Directive 2014/30/EU, Low Voltage Directive 2014/35/ EU and CE-marking Directive 93/68/EEC. - Page 28 vento expert (Duo) a W v.2 www.blaubergventilatoren.de...
- Page 29 vento expert (Duo) a W v.2 www.blaubergventilatoren.de...
- Page 30 vento expert (Duo) a W v.2 www.blaubergventilatoren.de...
-
Page 31: Certificate Of Acceptance
vento expert (Duo) a W v.2 www.blaubergventilatoren.de CERTIFICATE OF ACCEPTANCE Unit Type Single-room reversible energy regeneration ventilator Model Vento Expert _________________ Serial Number Manufacture Date Quality Inspector’s Stamp SELLER INFORMATION Seller Address Phone Number E-mail Purchase Date This is to certify acceptance of the complete unit delivery with the user’s manual. The warranty terms are acknowledged and accepted. - Page 32 www.blaubergventilatoren.de B133-4EN-04...
