· Switch OFF manual levelling (= start automatic levelling)
· Hold the Receiver Button [B] for 5 seconds, until the Levelling Indicator [D]
starts flashing slower. The automatic levelling is now switched on.
NOTICE
· when the manual levelling is switched on, "h" and "v" buttons
operated used to select the desired laser
SLOPE FUNCTION

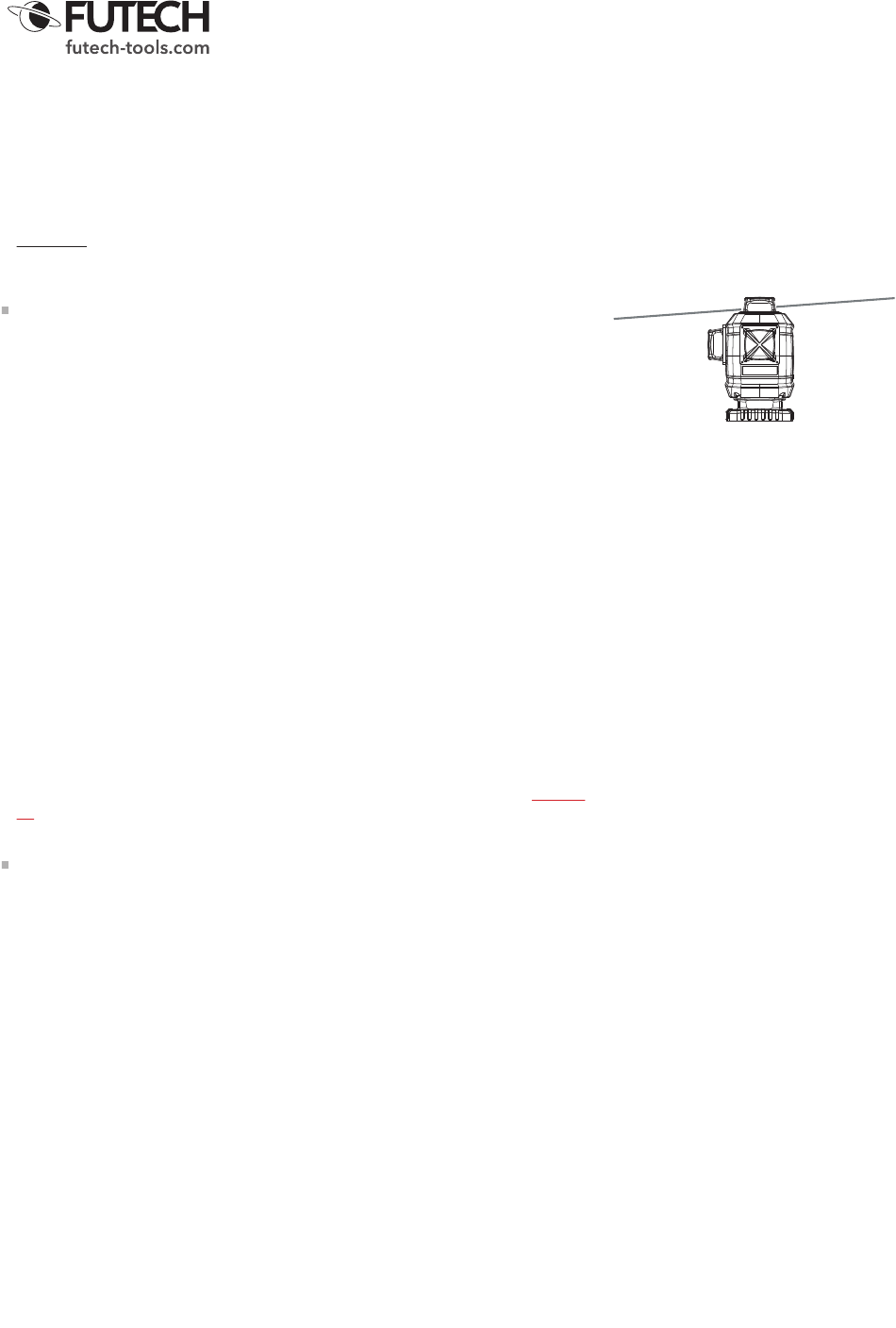

In case you don't want the automatic levelling (e.g. in case you need to show a
laser under an angle below 5°), you can switch off the automatic levelling and use
the built-in slope function.
· Turn on instrument with power button ON/OFF [A].
· Switch on the desired laser lines with "H" and "V" buttons
· X-Axis Slope
· Hold the Receiver Button [B] for 5 seconds, until the Levelling Indicator [D]
starts flashing faster. The automatic levelling is now switched off.
· The slope function is enabled on the X-axis.
· Hold the "H" button [F] or "V" button [G]
· Y-Axis Slope
· Press the Receiver Button [B]. The levelling indicator [D] starts flashing slowly.
The slope mode is enabled on the Y-Axis.
· Hold the "H" button [F] or "V" button [G]
· Hold the Receiver button [B] for 5 seconds, until the Levelling Indicator [D] starts
flashing at normal speed. You have quit the slope mode. The instrument will
start automatic levelling.
NOTICE
· when the slope function is active, "h" and "v" buttons [f][g] cannot be operat-
ed used to select the desired laser lines.
BATTERY
Use only the battery (7.4V, 2600mAh - Art.nr.: H60028) and the charger (16.8V,
2.6A - Art.nr.: H60032) supplied with the Multicross 4D Electronic.
The remote control needs 4x AAA Alkaline batteries (LR03).
· Place or remove the battery
· Open the battery cover [6].
· Slide the battery inside the battery tray. The 2 metal contacts should go first
inside the housing of the laser.
· Close the battery cover [6].
· Charge the battery inside the instrument
· In case the power indicators [H] indicate the battery-power is low, you need
to recharge the batteries.
· Connect the included charger to the USB-C power connector [8]. Plug the
charger in a power plug.
The power indicators[H] start flashing upward.
· When the power indicators light constantly with all four lights on, the battery
is 100% loaded.
· Charge the battery directly
· You Can also charge the battery with USB-C connector on the battery. Re-
move the battery from the housing and connect the included charger to the
USB-C power connector on the battery. Plug the charger in a power plug
[f][g]
lines.
[F] [G].
to adjust the slope over the X-axis.
to adjust the slope over the Y-axis.
cannot be
<5°
