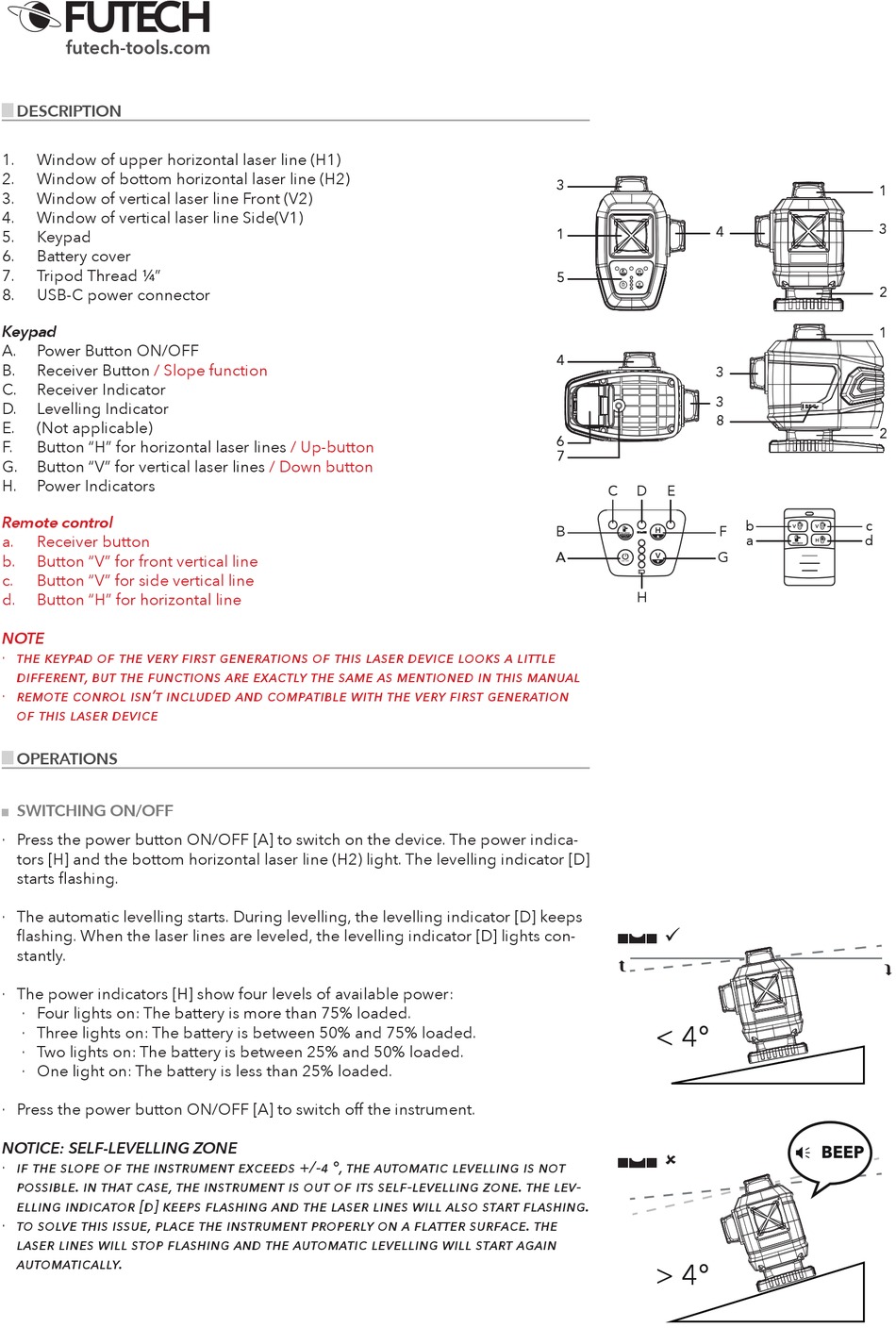

DESCRIPTION
1. Window of upper horizontal laser line (H1)
2. Window of bottom horizontal laser line (H2)
3. Window of vertical laser line Front (V2)
4. Window of vertical laser line Side(V1)
5. Keypad
6. Battery cover
7. Tripod Thread ¼"
8. USB-C power connector
Keypad
A. Power Button ON/OFF
B. Receiver Button / Slope function
C. Receiver Indicator
D. Levelling Indicator
E. (Not applicable)
F. Button "H" for horizontal laser lines
G. Button "V" for vertical laser lines
H. Power Indicators
Remote control
a. Receiver button
b. Button "V" for front vertical line
c. Button "V" for side vertical line
d. Button "H" for horizontal line
NOTE
· the keypad of the very first generations of this laser device looks a little
different, but the functions are exactly the same as mentioned in this manual
· remote conrol isn't included and compatible with the very first generation
of this laser device
OPERATIONS

SWITCHING ON/OFF

· Press the power button ON/OFF [A] to switch on the device. The power indica-
tors [H] and the bottom horizontal laser line (H2) light. The levelling indicator [D]
starts flashing.
· The automatic levelling starts. During levelling, the levelling indicator [D] keeps
flashing. When the laser lines are leveled, the levelling indicator [D] lights con-
stantly.
· The power indicators [H] show four levels of available power:
· Four lights on: The battery is more than 75% loaded.
· Three lights on: The battery is between 50% and 75% loaded.
· Two lights on: The battery is between 25% and 50% loaded.
· One light on: The battery is less than 25% loaded.
· Press the power button ON/OFF [A] to switch off the instrument.
NOTICE: SELF-LEVELLING ZONE
· if the slope of the instrument exceeds +/-4 °, the automatic levelling is not
possible. in that case, the instrument is out of its self-levelling zone. the lev-
elling indicator [d] keeps flashing and the laser lines will also start flashing.
· to solve this issue, place the instrument properly on a flatter surface. the
laser lines will stop flashing and the automatic levelling will start again
automatically.
/ Up-button
/ Down button
3
4
1
5
ON / OFF
4
3
3
8
6
7
C D E
B F
A G
ON / OFF
H


< 4°

> 4°
1
3
2
1
2
b c
a d
