U s e r M a n u a l
CAM-42
PRODUCT FEATURES:
Image Sensor: 1/4"
TV Lines: 480
Resolution: 720 x 480
Minimum Illumination: 0.1 Lux
TV System: NTSC
Waterproof Rating: IP67
Viewing Angle: 210 Degrees (Horizontal) 140 Degrees (Vertical)
Parking Lines: Yes (Removable)
Image Adjustment: Yes (up to 5 different viewing modes)
Enhanced Performance In Low Light: Yes
Operating Voltage: 12-24V DC (Negative Ground)
Operating Temperature: -20 Degrees C to +75 Degrees C
DISCLAIMER:
Prior to Installation
Read the manual prior to installation. Technical knowledge is necessary for installation.
The place of installation must be free of moisture and away from heat sources. Please
ensure you use the correct tools to avoid damage to the vehicle or product.
Connects2 can not be held responsible for the installation of this product.
Technical Support
Connects2 want to provide a fast and suitable resolution should you encounter any
technical issues. With this in mind, when contacting Connects2, try to provide as
much Information as possible. This will speed up the process and help us to help you.
Please use our dedicated online technical support centre: support.connects2.com
www.c2vision-eu.com

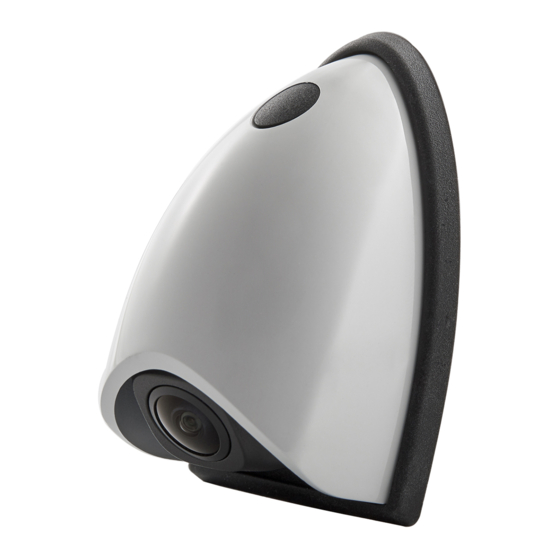

Wide Angle Universal Brake Light Camera
2-in-1 Reversing Camera/Brake Light Solution
with Wireless Controller
V2-05-21
Connects2Vision
Advertisement
Table of Contents
Related Manuals for Connects2 CAM-42
Summary of Contents for Connects2 CAM-42
- Page 1 Connects2 can not be held responsible for the installation of this product. Technical Support Connects2 want to provide a fast and suitable resolution should you encounter any technical issues. With this in mind, when contacting Connects2, try to provide as much Information as possible.
- Page 2 Connects2Vision INSTALLATION Wiring Diagram Camera replaces OEM brake light Power Adapter Cable CAM-42 Make Connections to Vehicle/Unit Wireless Controller (Mount on dashboard) Extension Cable Control Unit Acc 12V Connect to vehicle 12V Accessory feed Black Ground Connect to source of ground...
- Page 3 Connects2Vision Connecting CAN-Bus Wiring Locate the vehicle’s OBD port and unscrew/ remove the female connector. On the reverse of the connector (the side where wiring enters it), connect the CAN + (blue) and CAN - (white) wires from the harness to the locations specified in the diagram (Pins 1 and 9).
- Page 4 Connects2Vision Right Blind Spot Wide Angle (Triggered by Indicator - See Below) (Select from HUD Menu) Left Blind Spot Birds-Eye (Triggered by Indicator - See Below) (Select from HUD Menu) Adjusting Settings To adjust settings for all viewing modes, press A from the HUD menu to enter the settings menu. Once in the settings menu, short press A to cycle through the various settings screens available.
