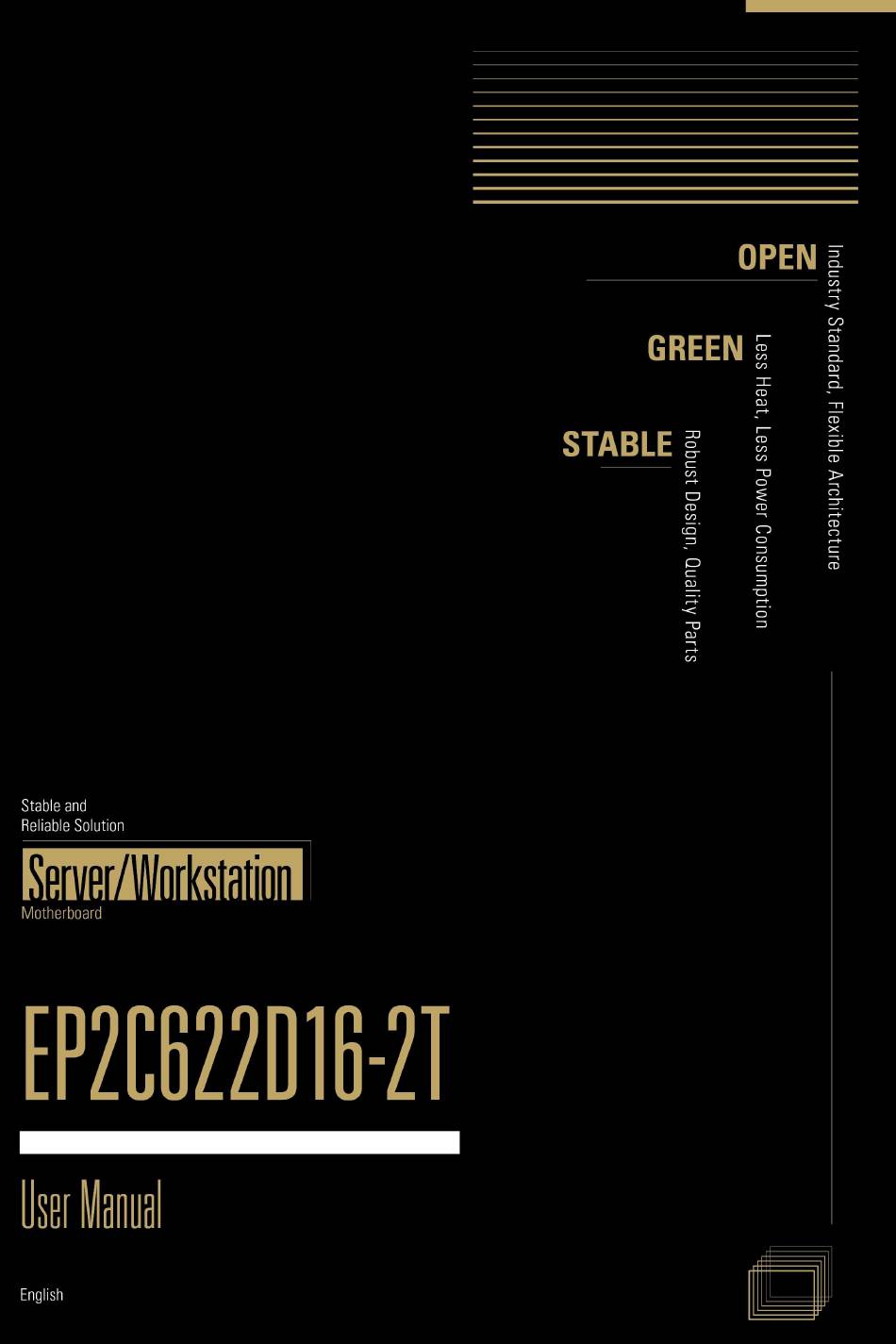

EP2C622D16-2T
User Manual
Version 1.0
Published May 2019
Copyright©2019 ASRock Rack INC. All rights reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EP2C622D16-2T and is the answer not in the manual?

Questions and answers

Related Manuals for ASROCK Rack EP2C622D16-2T

Summary of Contents for ASROCK Rack EP2C622D16-2T

  • Page 1 EP2C622D16-2T User Manual Version 1.0 Published May 2019 Copyright©2019 ASRock Rack INC. All rights reserved.
  • Page 2 In no event shall ASRock Rack, its directors, officers, employees, or agents be liable for any indirect, special, incidental, or consequential damages (including damages for loss of profits, loss of business, loss of data, interruption of business and the like), even if ASRock Rack has been advised of the possibility of such damages arising from any defect or error in the documentation or product.
  • Page 3 Contact Information If you need to contact ASRock Rack or want to know more about ASRock Rack, you’re welcome to visit ASRock Rack’s website at www.ASRockRack.com; or you may contact your dealer for further information. ASRock Rack Incorporation 6F., No.37, Sec. 2, Jhongyang S. Rd., Beitou District,...

  • Page 4: Table Of Contents

    Contents Chapter 1 Introduction Package Contents Specifications Unique Features Motherboard Layout Onboard LED Indicators I/O Panel Block Diagram Chapter 2 Installation Screw Holes Pre-installation Precautions Installing the CPU and Heatsink Installation of Memory Modules (DIMM) Expansion Slots (PCI Express Slots) Jumper Setup Onboard Headers and Connectors Dr.
  • Page 5 3.1.1 UEFI Menu Bar 3.1.2 Navigation Keys Main Screen Advanced Screen 3.3.1 CPU Configuration 3.3.2 DRAM Configuration 3.3.3 Chipset Configuration 3.3.4 Storage Configuration 3.3.5 ACPI Configuration 3.3.6 USB Configuration 3.3.7 Super IO Configuration 3.3.8 Serial Port Console Redirection 3.3.9 H/W Monitor 3.3.10 Runtime Error Logging 3.3.11 Intel SPS Configuration 3.3.12 Intel®...
  • Page 6 3.7.2 BMC Network Configuration Exit Screen Chapter 4 Software Support Install Operating System Support CD Information 4.2.1 Running The Support CD 4.2.2 Drivers Menu 4.2.3 Utilities Menu 4.2.4 Contact Information Chapter 5 Troubleshooting Troubleshooting Procedures Technical Support Procedures Returning Merchandise for Service...

  • Page 7: Chapter 1 Introduction

    In case any modifications of this manual occur, the updated version will be available on ASRock Rack website without further notice. You may find the latest memory and CPU support lists on ASRock Rack website as well. ASRock Rack’s Website: www.ASRockRack.com If you require technical support related to this motherboard, please visit our website for specific information about the model you are using.

  • Page 8: Specifications

    1.2 Specifications EP2C622D16-2T MB Physical Status Form Factor SSI EEB Dimension 12'' x 13'' (30.5 cm x 33.0 cm) Processor System Supports 2 Gen. Intel® Xeon® Scalable Processors / Intel® Xeon® Scalable Processors Socket Dual Socket LGA-3647 Chipset Intel® C622...
  • Page 9 EP2C622D16-2T - 2 x RJ45 10G base-T by Intel® X557 - 1 x RJ45 Dedicated IPMI LAN port by RTL8211E - Supports Wake-On-LAN - Supports Energy Efficient Ethernet 802.3az - Supports Dual LAN with Teaming function - Supports PXE - LAN1 Supports NCSI...
  • Page 10 256Mb AMI UEFI Legal BIOS BIOS Features - Plug and Play (PnP) - ACPI 2.0 Compliance Wake Up Events - SMBIOS 2.8 Support - ASRock Rack Instant Flash Hardware Monitor Temperature - CPU Temperature Sensing - System Temperature Sensing - CPU/Rear/Front Fan Tachometer...
  • Page 11 EP2C622D16-2T Virtual - VMWare® ESXi 6.5 u1 / vSphere 6.5 u1 - Citrix XenServer 7.5 *Please refer to our website for the latest OS support list. *On Ubuntu 16.04 (64 bit) / 18.04 (64 bit) system, Intel Raid mode only supports UEFI BOOT.

  • Page 12: Unique Features

    POST or the <F2> key to enter into the BIOS setup menu to access ASRock Rack Instant Flash. Just launch this tool and save the new BIOS file to your USB flash drive, floppy disk or hard drive, then you can update your BIOS only in a few clicks without preparing an additional floppy diskette or other complicated flash utility.

  • Page 13: Motherboard Layout

    EP2C622D16-2T 1.4 Motherboard Layout 33.0cm (13.0 in) DDR4_F1 (64 bit, 288-pin module, Blue) ATXPWR1 FRNT_FAN3 DDR4_E1 (64 bit, 2 -pin module, Blue ATX12V1 ATX12V2 FRNT_VGA1 PSU_SMB1 DDR4_D1 (64 bit, 2 -pin module, Blue) CPU2_FAN1 DDR4_D2 (64 bit, 2 -pin module,...
  • Page 14 Description Front VGA Header (FRNT_VGA1) 3 x 288-pin DDR4 DIMM Slots (DDR4_D1, DDR4_E1, DDR4_F1, Blue)* 1 x 288-pin DDR4 DIMM Slot (DDR4_D2, White)* OCuLink x4 Connector (OCU1) ATX 12V Power Connector (ATX12V1) ATX Power Connector (ATXPWR1) ATX 12V Power Connector (ATX12V2) Front Fan Connector (FRNT_FAN3) PSU SMBus (PSU_SMB1) CPU2 Fan Connector (CPU2_FAN1)
  • Page 15 EP2C622D16-2T Description ME Recovery Jumper (ME_RECOVERY1) Chassis ID2 Jumper (CHASSIS_ID2) Chassis ID1 Jumper (CHASSIS_ID1) Chassis ID0 Jumper (CHASSIS_ID0) BMC SMBus Header (BMC_SMB_1) Intelligent Platform Management Bus header (IPMB_1) System Panel Header (PANEL1) M.2 Socket (M2_2) (Type 2230 / 2242 / 2260 / 2280 / 22110)

  • Page 16: Onboard Led Indicators

    -pin module, Blue) DDR4_C1 (64 bit, 2 -pin module, Blue) DDR4_J2 (64 bit, 288-pin module, White DDR4_J1 (64 bit, 288-pin module, Blue) DDR4_K1 (64 bit, 288-pin module, Blue DDR4_L1 (64 bit, 288-pin module, Blue) EP2C622D16-2T RoHS Intel FRNT_FAN1 C622 FRNT_FAN2...
  • Page 17 EP2C622D16-2T Item Status Description SB_PWR1 Green STB PWR ready FFAN_LED3 FRNT_FAN3 failed CPU_FAN_LED2 CPU2_FAN1 failed FFAN_LED1 FRNT_FAN1 failed FFAN_LED2 FRNT_FAN2 failed BMC_LED1 Green BMC heartbeat LED RFAN_LED1 REAR_FAN1 failed CPU_FAN_LED1 CPU1_FAN1 failed...

  • Page 18: I/O Panel

    1.6 I/O Panel No. Description No. Description Serial Port (COM1) 10G LAN RJ-45 Port (LAN1)** VGA Port (VGA1) 10G LAN RJ-45 Port (LAN2)** LAN RJ-45 Port (IPMI_LAN)* USB 3.0 Ports (USB3_3_4) USB 3.0 Ports (USB3_1_2) UID Switch (UID) LAN Port LED Indications *There are two LED next to the LAN port.
  • Page 19 EP2C622D16-2T LAN Port LED Indications **There are two LED next to the LAN port. Please refer to the table below for the LAN port LED indications. ACT/LINK LED SPEED LED LAN Port LAN (LAN1, LAN2) Port LED Indications Activity / Link LED...

  • Page 20: Block Diagram

    1.7 Block Diagram...

  • Page 21: Chapter 2 Installation

    EP2C622D16-2T Chapter 2 Installation This is a SSI EEB form factor (12'' x 13'', 30.5 cm x 33.0 cm) motherboard. Before you install the motherboard, study the configuration of your chassis to ensure that the motherboard fits into it. Make sure to unplug the power cord before installing or removing the motherboard. Failure to do so may cause physical injuries to you and damages to motherboard components.

  • Page 22: Installing The Cpu And Heatsink

    2.3 Installing the CPU and Heatsink 1. Before you insert the CPU into the socket, please check if the PnP cap is on the socket, if the CPU surface is unclean, or if there are any bent pins in the socket. Do not force to insert the CPU into the socket if above situation is found.
  • Page 23 EP2C622D16-2T 1. Before you installed the heatsink, you need to spray thermal interface material between the CPU and the heatsink to improve heat dissipation. 2. Illustration in this documentation are examples only. Heatsink or fan cooler type may differ.
  • Page 24 Tighten the two Corner Plunger to 12 IN.LB. Two turns at a time. Tighten the two Middle Nuts to 12 IN.LB. Two turns at a time.

  • Page 25: Installation Of Memory Modules (Dimm)

    EP2C622D16-2T 2.4 Installation of Memory Modules (DIMM) This motherboard provides sixteen 288-pin DDR4 (Double Data Rate 4) DIMM slots in two groups, and supports Six and Dual Channel Memory Technology. Capacity CPU1 CPU2 DDR4_A1, B1, C1, D1, E1, F1 (Blue)
  • Page 27 EP2C622D16-2T Recommended Memory Configurations A single memory module should be installed in the BLUE socket which is nearest to the CPU. 1 CPU Configuration CPU1 1 DIMM 2 DIMMS 4 DIMMS 6 DIMMS 8 DIMMS 2 CPU Configuration CPU1 1 DIMM...

  • Page 28: Expansion Slots (Pci Express Slots)

    2.5 Expansion Slots (PCI Express Slots) There are 4 PCI Express slots on this motherboard. PCIE slot: PCIE2, PCIE3 and PCIE4 (PCIE 3.0 x16 slot, from CPU2) are used for PCI Express x16 lane width cards. PCIE6 (PCIE 3.0 x16 slot, from CPU1) is used for PCI Express x16 lane width cards. Slot Generation Mechanical...

  • Page 29: Jumper Setup

    EP2C622D16-2T 2.6 Jumper Setup The illustration shows how jumpers are setup. When the jumper cap is placed on the pins, the jumper is “Short”. If no jumper cap is placed on the pins, the jumper is “Open”. The illustration shows a 3-pin jumper whose pin1 and pin2 are “Short”...
  • Page 30 Chassis ID0 Jumper (3-pin CHASSIS_ID0) (see p.7, No. 37) Chassis ID1 Jumper (3-pin CHASSIS_ID1) (see p.7, No. 36) Chassis ID2 Jumper (3-pin CHASSIS_ID2) Reserved for system level Reserved for system level (see p.7, No. 35) Chassis ID0 Jumper (3-pin CHASSIS_ID0) (see p.7, No.
  • Page 31 EP2C622D16-2T Consult the documentation that comes with your SATA DOM and check whether or not Pin 7 requires 5V power supply. If the connected SATA DOM requires 5V power supply, move the jumper caps placed on the SATA DOM Power Jumper (SATAPWR1 / SATAPWR2) from pins 2-3 (default) to pins 1-2.

  • Page 32: Onboard Headers And Connectors

    2.7 Onboard Headers and Connectors Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause permanent damage to the motherboard. System Panel Header C on nec t t he power sw itch, PLED+ PLED-...
  • Page 33 EP2C622D16-2T Auxiliary Panel Header This header supports multiple (18-pin AUX_PANEL1) functions on the front panel, (see p.7, No. 31) including the front panel SMB, internet status indicator and chassis intrusion pin. A. Front panel SMBus connecting pin (6-1 pin FPSMB) This header allows you to connect SMBus (System Management Bus) equipment.
  • Page 34 Serial ATA3 Connectors These two SATA3 connectors SA TA _0 (SATA_0) support SATA data cables for (see p.7, No. 24) internal storage devices with SA TA_1 (SATA_1) up to 6.0 Gb/s data transfer (see p.7, No. 25) rate. Serial ATA3 DOM The SATA3 DOM Connectors connectors support...
  • Page 35 Pin 1-3. CPU_FAN_SPEED FAN_SPEED_CONTROL (see p.7, No. 10) *For more details, please refer to the Cooler QVL list on the ASRock Rack website. Front and Rear Fan Please connect fan cables to the Connectors fan connectors and match the (4-pin FRNT_FAN1) black wire to the ground pin.
  • Page 36 TPM Header This connector supports (17-pin TPM1) Trusted Platform Module (see p.7, No. 32) (TPM) system, which can securely store keys, digital certificates, passwords, and data. A TPM system also helps enhance network security, protects digital identities, and ensures platform integrity. ALERT PSU SMBus Header P S U S M B u s m o n i t o r s t h e...
  • Page 37 EP2C622D16-2T OCuLink Connector Please connect PCIE SSD to (OCU1) this connector. O CU1 (see p.7, No. 4) SLIMLINE Connector The connector is used for the (SLIM1) NVME PCIE devices. (see p.7, No. 11) S LIM 1 Virtual RAID On CPU This connector supports Intel®...

  • Page 38: Dr. Debug

    2.8 Dr. Debug Dr. Debug is used to provide code information, which makes troubleshooting even easier. Please see the diagrams below for reading the Dr. Debug codes. Code Description 0x10 PEI_CORE_STARTED 0x11 PEI_CAR_CPU_INIT 0x15 PEI_CAR_NB_INIT 0x19 PEI_CAR_SB_INIT 0x31 PEI_MEMORY_INSTALLED 0x32 PEI_CPU_INIT 0x33 PEI_CPU_CACHE_INIT...
  • Page 39 EP2C622D16-2T 0x63 DXE_CPU_INIT 0x68 DXE_NB_HB_INIT 0x69 DXE_NB_INIT 0x6A DXE_NB_SMM_INIT 0x70 DXE_SB_INIT 0x71 DXE_SB_SMM_INIT 0x72 DXE_SB_DEVICES_INIT 0x78 DXE_ACPI_INIT 0x79 DXE_CSM_INIT 0x90 DXE_BDS_STARTED 0x91 DXE_BDS_CONNECT_DRIVERS 0x92 DXE_PCI_BUS_BEGIN 0x93 DXE_PCI_BUS_HPC_INIT 0x94 DXE_PCI_BUS_ENUM 0x95 DXE_PCI_BUS_REQUEST_RESOURCES 0x96 DXE_PCI_BUS_ASSIGN_RESOURCES 0x97 DXE_CON_OUT_CONNECT 0x98 DXE_CON_IN_CONNECT...
  • Page 40 0x99 DXE_SIO_INIT 0x9A DXE_USB_BEGIN 0x9B DXE_USB_RESET 0x9C DXE_USB_DETECT 0x9D DXE_USB_ENABLE 0xA0 DXE_IDE_BEGIN 0xA1 DXE_IDE_RESET 0xA2 DXE_IDE_DETECT 0xA3 DXE_IDE_ENABLE 0xA4 DXE_SCSI_BEGIN 0xA5 DXE_SCSI_RESET 0xA6 DXE_SCSI_DETECT 0xA7 DXE_SCSI_ENABLE 0xA8 DXE_SETUP_VERIFYING_PASSWORD 0xA9 DXE_SETUP_START 0xAB DXE_SETUP_INPUT_WAIT 0xAD DXE_READY_TO_BOOT 0xAE DXE_LEGACY_BOOT...
  • Page 41 EP2C622D16-2T 0xAF DXE_EXIT_BOOT_SERVICES 0xB0 RT_SET_VIRTUAL_ADDRESS_MAP_BEGIN 0xB1 RT_SET_VIRTUAL_ADDRESS_MAP_END 0xB2 DXE_LEGACY_OPROM_INIT 0xB3 DXE_RESET_SYSTEM 0xB4 DXE_USB_HOTPLUG 0xB5 DXE_PCI_BUS_HOTPLUG 0xB6 DXE_NVRAM_CLEANUP 0xB7 DXE_CONFIGURATION_RESET 0xF0 PEI_RECOVERY_AUTO 0xF1 PEI_RECOVERY_USER 0xF2 PEI_RECOVERY_STARTED 0xF3 PEI_RECOVERY_CAPSULE_FOUND 0xF4 PEI_RECOVERY_CAPSULE_LOADED 0xE0 PEI_S3_STARTED 0xE1 PEI_S3_BOOT_SCRIPT 0xE2 PEI_S3_VIDEO_REPOST...
  • Page 42 0xE3 PEI_S3_OS_WAKE 0x50 PEI_MEMORY_INVALID_TYPE 0x53 PEI_MEMORY_NOT_DETECTED 0x55 PEI_MEMORY_NOT_INSTALLED 0x57 PEI_CPU_MISMATCH 0x58 PEI_CPU_SELF_TEST_FAILED 0x59 PEI_CPU_NO_MICROCODE 0x5A PEI_CPU_ERROR 0x5B PEI_RESET_NOT_AVAILABLE 0xD0 DXE_CPU_ERROR 0xD1 DXE_NB_ERROR 0xD2 DXE_SB_ERROR 0xD3 DXE_ARCH_PROTOCOL_NOT_AVAILABLE 0xD4 DXE_PCI_BUS_OUT_OF_RESOURCES 0xD5 DXE_LEGACY_OPROM_NO_SPACE 0xD6 DXE_NO_CON_OUT 0xD7 DXE_NO_CON_IN...
  • Page 43 EP2C622D16-2T 0xD8 DXE_INVALID_PASSWORD 0xD9 DXE_BOOT_OPTION_LOAD_ERROR 0xDA DXE_BOOT_OPTION_FAILED 0xDB DXE_FLASH_UPDATE_FAILED 0xDC DXE_RESET_NOT_AVAILABLE 0xE8 PEI_MEMORY_S3_RESUME_FAILED 0xE9 PEI_S3_RESUME_PPI_NOT_FOUND 0xEA PEI_S3_BOOT_SCRIPT_ERROR 0xEB PEI_S3_OS_WAKE_ERROR...

  • Page 44: Unit Identification Purpose Led/Switch

    2.9 Unit Identification purpose LED/Switch With the UID button, You are able to locate the server you’re working on from behind a rack of servers. Unit Identification When the UID button on the purpose LED/Switch front or rear panel is pressed, (UID1) the front/rear UID blue LED indicator will be turned on.

  • Page 45: Dual Lan And Teaming Operation Guide

    EP2C622D16-2T 2.11 Dual LAN and Teaming Operation Guide Dual LAN with Teaming enabled on this motherboard allows two single connections to act as one single connection for twice the transmission bandwidth, making data transmission more effective and improving the quality of transmission of distant images.

  • Page 46: M.2_Ssd (Ngff) Module Installation Guide

    2.12 M.2_SSD (NGFF) Module Installation Guide The M.2, also known as the Next Generation Form Factor (NGFF), is a small size and versatile card edge connector that aims to replace mPCIe and mSATA. The M.2 Socket supports M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (16 Gb/s). Installing the M.2_SSD (NGFF) Module Step 1 Prepare a M.2_SSD (NGFF) module...
  • Page 47 EP2C622D16-2T Step 3 Move the standoff based on the module type and length. The standoff is placed at the nut location E by default. Skip Step 3 and 4 and go straight to Step 5 if you are going to use the default nut.
  • Page 48 Step 6 Tighten the screw with a screwdriver to secure the module into place. Please do not overtighten the screw as this might damage the module. NUT2 NUT1...

  • Page 49: Chapter 3 Uefi Setup Utility

    EP2C622D16-2T Chapter 3 UEFI Setup Utility 3.1 Introduction Th is section explains how to use the UEFI SETUP UTILITY to confi gure your system. Th e UEFI chip on the motherboard stores the UEFI SETUP UTILITY. You may run the UEFI SETUP UTILITY when you start up the computer.

  • Page 50: Navigation Keys

    3.1.2 Navigation Keys Please check the following table for the function description of each navigation key. Navigation Key(s) Function Description Moves cursor left or right to select Screens Moves cursor up or down to select items + / - To change option for the selected items <Tab>...

  • Page 51: Main Screen

    EP2C622D16-2T 3.2 Main Screen Once you enter the UEFI SETUP UTILITY, the Main screen will appear and display the system overview. The Main screen provides system overview information and allows you to set the system time and date.

  • Page 52: Advanced Screen

    3.3 Advanced Screen In this section, you may set the configurations for the following items: CPU Configuration, DRAM Configuration, Chipset Configuration, Storage Configuration, ACPI Configura- tion, USB Configuration, Super IO Configuration, Serial Port Console Redirection, H/W Monitor, Runtime Error Logging, Intel SPS Configuration, Intel(R) VMD Technology and Instant Flash.

  • Page 53: Cpu Configuration

    EP2C622D16-2T 3.3.1 CPU Configuration Intel SpeedStep Technology Intel SpeedStep technology allows processors to switch between multiple frequencies and voltage points for better power saving and heat dissipation. CPU turbo ratio can be fixed when Intel SpeedStep Technology set Disabled and Intel Turbo Boost Technology set En- abled.
  • Page 54 Short Duration Power Limit Configure Package Power Limit 2 in watts. When the limit is exceeded, the CPU ratio will be lowered immediately. A lower limit can protect the CPU and save power, while a higher limit may improve performance. Long Duration Power Limit Configure Package Power Limit 1 in watts.
  • Page 55 EP2C622D16-2T Package C State Support Enable CPU, PCIe, Memory, Graphics C State Support for power saving. CPU C6 State Support Enable C6 deep sleep state for lower power consumption. Enhanced Halt State(C1E) Enable Enhanced Halt State (C1E) for lower power consumption.

  • Page 56: Dram Configuration

    3.3.2 DRAM Configuration Enforce POR Enable to enforce POR restrictions for DDR4 frequency and voltage programming. DRAM Frequency If [Auto] is selected, the motherboard will detect the memory module(s) inserted and assign the appropriate frequency automatically. Numa Use this item to enable or disable Non Uniform Memory Access (NUMA). IMC Interleaving Select IMC Interleaving settings.
  • Page 57 EP2C622D16-2T Memory Rank Sparing Enable or disable Memory Rank Sparing. ADDDC Sparing Enable or disable ADDDC Sparing. SDDC Plus One Enable or disable Plus One. Not supported when AEP dimm present! Multi Rank Sparing Set Multi Rank Sparing number. Default and the maximum is 2 ranks per channel.

  • Page 58: Chipset Configuration

    3.3.3 Chipset Configuration MMCFG Base Use this item to select MMCFG Base. MMIO High Base Use this item to select MMIO High Base. MMIO High Size Use this item to select MMIO High Size. Above 4G Decoding Enable or disable 64bit capable Devices to be decoded in Above 4G Address Space (only if the system supports 64 bit PCI decoding).
  • Page 59 EP2C622D16-2T OnBoard LAN Enabled/Disabled OnBoard LAN. VT-d Intel Virtualization Technology for Directed I/O helps your virtual machine monitor bet- ter utilize hardware by improving application compatibility and reliability, and providing additional levels of manageability, security, isolation, and I/O performance. PCIe Hot Plug Enable/Disable PCIe Hot Plug globally.
  • Page 60 PCIE6 Link Speed This allows you to select PCIE Link Speed. PCIE6 ASPM Support This option enables or disables the ASPM support for all CPU downstream devices. OCU1 Link Speed This allows you to select PCIE Link Speed. OCU1 ASPM Support This option enables or disables the ASPM support for all CPU downstream devices.

  • Page 61: Storage Configuration

    EP2C622D16-2T 3.3.4 Storage Configuration Hard Disk S.M.A.R.T. Use this item to enable or disable the S.M.A.R.T. (Self-Monitoring, Analysis, and Reporting Technology) feature. Configuration options: [Disabled] and [Enabled]. SATA Controller Use this item to enable or disable SATA Controllers. SATA/M.2_SATA Mode Selection Identify the SATA port is connected to Solid State Drive or Hard Disk Drive.
  • Page 62 sSATA ALPM Use this item to enable or disable SALP.

  • Page 63: Acpi Configuration

    EP2C622D16-2T 3.3.5 ACPI Configuration PCIE Devices Power On Use this item to enable or disable PCIE devices to turn on the system from the power-soft- off mode. Ring-In Power On Use this item to enable or disable Ring-In signals to turn on the system from the powersoftoff mode.

  • Page 64: Usb Configuration

    3.3.6 USB Configuration Legacy USB Support Use this option to enable or disable legacy support for USB devices. The default value is [Enabled].

  • Page 65: Super Io Configuration

    EP2C622D16-2T 3.3.7 Super IO Configuration Serial Port 1 Configuration Use this item to set parameters of Serial Port 1 (COM1). Serial Port Use this item to enable or disable the serial port. Change Settings Use this item to select an optimal setting for Super IO device.

  • Page 66: Serial Port Console Redirection

    3.3.8 Serial Port Console Redirection COM1 / SOL Console Redirection Use this option to enable or disable Console Redirection. If this item is set to Enabled, you can select a COM Port to be used for Console Redirection. Console Redirection Settings Use this option to configure Console Redirection Settings, and specify how your computer and the host computer to which you are connected exchange information.
  • Page 67 EP2C622D16-2T Bits Per Second Use this item to select the serial port transmission speed. The speed used in the host computer and the client computer must be the same. Long or noisy lines may require lower transmission speed. The options include [9600], [19200], [38400], [57600] and [115200].
  • Page 68 Redirection After BIOS POST If the [LoadBooster] is selected, legacy console redirection is disabled before booting to legacy OS. If [Always Enabled] is selected, legacy console redirection is enabled for legacy OS. The default value is [Always Enabled]. Serial Port for Out-of-Band Management/Windows Emergency Management Services (EMS) Console Redirection Use this option to enable or disable Console Redirection.

  • Page 69: H/W Monitor

    EP2C622D16-2T 3.3.9 H/W Monitor In this section, it allows you to monitor the status of the hardware on your system, includ- ing the parameters of the CPU temperature, motherboard temperature, CPU fan speed, chassis fan speed, and the critical voltage.
  • Page 70 FRNT_FAN3 This allows you to set the Front fan3’s speed. The default value is [Smart Fan]. Smart Fan Control This allows you to set the Smart fan’s level speed. Smart Fan Duty Control Smart Fan Duty x (x means 1 to 11 stage) This allows you to set duty cycle for each stage.

  • Page 71: Runtime Error Logging

    EP2C622D16-2T 3.3.10 Runtime Error Logging WHEA Support Use this item to enable or disable Windows Hardware Error Architecture. System Error Use this item to enable or disable System Error feature. When it is set to [Enabled], you can configure Memory Error and PCIE Error log features.
  • Page 72 PCIE Uncorrected Error Enable Use this item to enable or disable PCIe Uncorrectable errors. PCIE Fatal Error Enable Use this item to enable or disable PCIe Ftal errors.

  • Page 73: Intel Sps Configuration

    EP2C622D16-2T 3.3.11 Intel SPS Configuration ME Subsystem screen displays the Intel ME Subsystem Configuration information, such as Operational Firmware Version and Firmware State.

  • Page 74: Intel® Vmd Technology

    3.3.12 Intel® VMD technology ® Press <Enter> to bring up the Intel VMD for Volume Management Device Configuration menu. ® Intel VMD for Volume Management Device for Socket0 / ® Intel VMD for Volume Management Device on Socket1 ® Intel VMD for Volume Management Device Technology Use this item to enable or disable Intel(R) Volume Management Device Technology in this Stack.
  • Page 75 EP2C622D16-2T specific root port. Hot Plug Capable Use this item to enable or disable Hot Plug for PCIe Root Ports 1A-1B,1D. ® Intel VMD for Volume Management Device Technology Use this item to enable or disable Intel(R) Volume Management Device Technology in this Stack.
  • Page 76 Use this item to enable or disable Intel(R) Volume Management Device Technology on specific root port. VMD port 1C Use this item to enable or disable Intel(R) Volume Management Device Technology on specific root port. VMD port 1D Use this item to enable or disable Intel(R) Volume Management Device Technology on specific root port.
  • Page 77 EP2C622D16-2T When [Enabled], users are allowed to configure the options below. VMD port 3A Use this item to enable or disable Intel(R) Volume Management Device Technology on specific root port. VMD port 3B Use this item to enable or disable Intel(R) Volume Management Device Technology on specific root port.

  • Page 78: Instant Flash

    3.3.13 Instant Flash Instant Flash is a UEFI flash utility embedded in Flash ROM. This convenient UEFI update tool allows you to update system UEFI without entering operating systems ® first like MS-DOS or Windows . Just save the new UEFI file to your USB flash drive, floppy disk or hard drive and launch this tool, then you can update your UEFI only in a few clicks without preparing an additional floppy diskette or other compli- cated flash utility.

  • Page 79: Security

    EP2C622D16-2T 3.4 Security In this section, you may set or change the supervisor/user password for the system. For the user password, you may also clear it. Supervisor Password Set or change the password for the administrator account. Only the administrator has authority to change the settings in the UEFI Setup Utility.

  • Page 80: Key Management

    3.4.1 Key Management In this section, expert users can modify Secure Boot Policy variables without full authenti- cation. Factory Key Provision Install factory default Secure Boot keys after the platform reset and while the System is in Setup mode. Install Default Secure Boot Keys Please install default secure boot keys if it’s the first time you use secure boot.
  • Page 81 EP2C622D16-2T Remove 'UEFI CA' from DB Device Guard ready system must not list ‘Microsoft UEFI CA’ Certificate in Autho- rized Signature database (db). Restore DB Defaults Restore DB variable to factory defaults. Platform Key(PK) Enroll Factory Defaults or load certificates from a file: 1.
  • Page 82 1. Public Key Certificate in: a) EFI_SIGNATURE_LIST b) EFI_CERT_X509 (DER encoded) c) EFI_CERT_RSA2048 (bin) d) EFI_CERT_SHA256, 384, 512 2. Authenticated UEFI Variable 3. EFI PE/COFF Image(SHA256) Key Source: Default, External, Mixed, Test Forbidden Signatures Enroll Factory Defaults or load certificates from a file: 1.
  • Page 83 EP2C622D16-2T OsRecovery Signatures Enroll Factory Defaults or load certificates from a file: 1. Public Key Certificate in: a) EFI_SIGNATURE_LIST b) EFI_CERT_X509 (DER encoded) c) EFI_CERT_RSA2048 (bin) d) EFI_CERT_SHA256, 384, 512 2. Authenticated UEFI Variable 3. EFI PE/COFF Image(SHA256) Key Source: Default, External, Mixed, Test...

  • Page 84: Boot Screen

    3.5 Boot Screen In this section, it will display the available devices on your system for you to configure the boot settings and the boot priority. Boot Option #1 Use this item to set the system boot order. Boot Option Filter This option controls Legacy/UEFI ROMs priority.
  • Page 85 EP2C622D16-2T note that a buzzer is needed. Full Screen Logo Use this item to enable or disable OEM Logo. The default value is [Enabled]. AddOn ROM Display Use this option to adjust AddOn ROM Display. If you enable the option “Full Screen Logo”...

  • Page 86: Csm (Compatibility Support Module)

    3.5.1 CSM (Compatibility Support Module) Enable to launch the Compatibility Support Module. Please do not disable unless you’re running a WHCK test. If you are using Windows 10 64-bit and all of your devices support UEFI, you may also disable CSM for faster boot speed. Launch Other Storage OpROM Policy Select UEFI only to run those that support UEFI option ROM only.
  • Page 87 EP2C622D16-2T PCIE3 Slot OpROM Use this item to select slot storage and Network Option ROM policy. In Auto option, the default is Disabled with NVMe device, but it is Legacy with other devices. (This item can't select Video Option ROM policy.) PCIE4 Slot OpROM Use this item to select slot storage and Network Option ROM policy.

  • Page 88: Event Logs

    3.6 Event Logs Change Smbios Event Log Settings This allows you to configure the Smbios Event Log Settings. When entering the item, you will see the followings: Smbios Event Log Use this item to enable or disable all features of the SMBIOS Event Logging during system boot.
  • Page 89 EP2C622D16-2T All values changed here do not take effect until computer is restarted.

  • Page 90: Server Mgmt

    3.7 Server Mgmt Wait For BMC Wait For BMC response for specified time out. BMC starts at the same time when BIOS starts during AC power ON. It takes around 90 seconds to initialize Host to BMC interfaces. Inventory Support This will execute inventory function for system.

  • Page 91: System Event Log

    EP2C622D16-2T 3.7.1 System Event Log SEL Components Change this to enable ro disable all features of System Event Logging during boot. Erase SEL Use this to choose options for earsing SEL. When SEL is Full Use this to choose options for reactions to a full SEL.

  • Page 92: Bmc Network Configuration

    3.7.2 BMC Network Configuration BMC Out of Band Access Enabled/Disabled BMC Out of band Access. Lan Channel (Failover) Manual Setting IPMI LAN If [No] is selected, the IP address is assigned by DHCP. If you prefer using a static IP address, toggle to [Yes], and the changes take effect after the system reboots.
  • Page 93 EP2C622D16-2T The default login information for the IPMI web interface is: Username: admin Password: admin For more instructions on how to set up remote control environment and use the IPMI man- agement platform, please refer to the IPMI Configuration User Guide or go to the Support website at: http://www.asrockrack.com/support/ipmi.asp...

  • Page 94: Exit Screen

    3.8 Exit Screen Save Changes and Exit When you select this option, the following message “Save configuration changes and exit setup?” will pop-out. Press <F10> key or select [Yes] to save the changes and exit the UEFI SETUP UTILITY. Discard Changes and Exit When you select this option, the following message “Discard changes and exit setup?”...

  • Page 95: Chapter 4 Software Support

    4.2.4 Contact Information If you need to contact ASRock Rack or want to know more about ASRock Rack, welcome to visit ASRock Rack’s website at http://www.ASRockRack.com; or you may contact your...

  • Page 96: Chapter 5 Troubleshooting

    Chapter 5 Troubleshooting 5.1 Troubleshooting Procedures Follow the procedures below to troubleshoot your system. Always unplug the power cord before adding, removing or changing any hardware com- ponents. Failure to do so may cause physical injuries to you and damages to motherboard components.
  • Page 97 1. Verify if the battery on the motherboard provides ~3VDC. Install a new battery if it does not. 2. Confirm whether your power supply provides adaquate and stable power. Other problems... 1. Try searching keywords related to your problem on ASRock Rack’s FAQ page: http://www.asrockrack.com/support...

  • Page 98: Technical Support Procedures

    5.2 Technical Support Procedures If you have tried the troubleshooting procedures mentioned above and the problems are still unsolved, please contact ASRock Rack’s technical support with the following information: 1. Your contact information 2. Model name, BIOS version and problem type.
