ASROCK Rack EP2C612D16FM Quick Installation Manual

*15G065016100AK*
P/N: 15G065016100AK V1.0
Quick Installation Guide
EP2C612D16FM / EP2C612D16FM-N
The server board User's Manual is available for download from the ASRock Rack's official website
at http://www.asrockrack.com.
Take note of the following precautions before you install server board components or change any
server board settings.
1. Unplug the power cord from the wall socket before touching any components.
2. To avoid damaging the server board's components due to static electricity, NEVER place your
server board directly on the carpet or the like. Also remember to use a grounded wrist strap or
touch a safety grounded object before you handle the components.
3. Hold components by the edges and do not touch the ICs.
4. Whenever you uninstall any component, place it on a grounded anti-static pad or in the bag
that comes with the component.
5. When placing screws into the screw holes to secure the server board to the chassis, please do
not over-tighten the screws! Doing so may damage the server board.

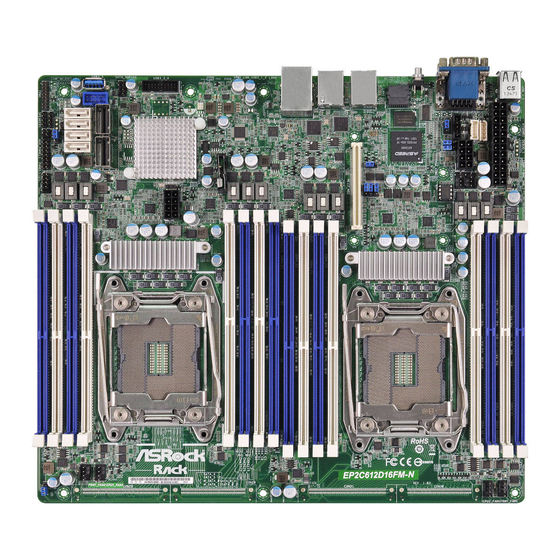

2 Motherboard Layout
1 2
USB 2.0
T: USB2
B: USB1 ATXPWR1
1
51
IPMB_1
50 1
BMC_SMB_1
1
ATX12V3
PSU_SMB1
49
1
48
PMBUS_SEL_CLK1 1 1
47
PMBUS_SEL_DAT1
46
PMBUS_SEL_ALT1
UID
45
44
BMC
ROM
43
42
LAN1
NCSI_SEL1
41
MEZZ_MB2
LAN2
40
USB 3.0
T: USB2 Top:
IPMI_LAN
B: USB1
39
38
37
Super
I/O
36
Intel
1
35
C612
USB3_3_4
34
SATA_SGPIO2
1
33
32
31
SATA0-3 sSATA0-3
30
M_SATA_1
USB3 TYPE A USB_3_4
29
SATA4
28
27 SATA5
M_SATA_0
26
NMI_BTN1
1
1
25
24 FRONT_LED_LAN34
1 1
1 1 1
TPM1 SPEAKER1 AUX_PANEL1
23 22 21
3 I/O Panel
2
3 4
1
No. Description
1 USB 2.0 Ports (USB_1_2)
2 Serial Port (COM1)
3 VGA Port (VGA1)
4 UID Switch (UID)
3 4
26.7cm (10.5 in)
DDR4_G1 (64 bit, 288-pin module, Blue)
DDR4_G2 (64 bit, 288-pin module, White)
DDR4_H1 (64 bit, 288-pin module, Blue)
DDR4_H2 (64 bit, 288-pin module, White)
REAR_FAN1
REAR_FAN2
64Mb
BIOS
Chassis ID2
1
Chassis ID1
1
1
Chassis ID0
1
DDR4_F2 (64 bit, 288-pin module, White)
DDR4_F1 (64 bit, 288-pin module, Blue)
DDR4_E2 (64 bit, 288-pin module, White)
DDR4_E1 (64 bit, 288-pin module, Blue)
DDR4_C1 (64 bit, 288-pin module, Blue)
DDR4_C2 (64 bit, 288-pin module, White)
DDR4_D1 (64 bit, 288-pin module, Blue)
DDR4_D2 (64 bit, 288-pin module, White)
CMOS
Battery
ATX12V2
DDR4_B2 (64 bit, 288-pin module
DDR4_B1 (64 bit, 288-pin module
DDR4_A2 (64 bit, 288-pin module
ME_RECOVERY1
DDR4_A1 (64 bit, 288-pin module, Blue)
1
PANEL1
20 19
7
5 6 8
No. Description
5 LAN RJ-45 Port (LAN1)
6 LAN RJ-45 Port (LAN2)
7 LAN RJ-45 Port (IPMI_LAN)
8 USB 3.0 Ports (USB3_1_2)
1 Install the Server Board
1
Insert the server board into the chassis.
2
A f f i x t he screws clock w ise into t he
mounting holes in all of the corners of
the server board.
Do not over-tighten the screws
5
FRNT_FAN1
CPU2_FAN1
CPU2
CPU1
CPU1_FAN1
, White )
FRNT_FAN2
, Blue )
, White )
PECI1
1
18 17 16
4 Jumper Cap On/Off
When the jumper cap is placed on the pins, the
jumper is "Short". If no jumper cap is placed on the
pins, the jumper is "Open".
The illustration shows a 3-pin jumper whose pin1
and pin2 are "Short" when a jumper cap is placed on
these 2 pins.
www.asrockrack.com
No. Description
Intelligent Platform Management Bus header
1
(IPMB_1)
2 ATX Power Connector (ATXPWR1)
6
3 Rear Fan Connector (REAR_FAN1)
7
2 x 288-pin DDR4 DIMM Slots (DDR4_H1, DDR4_
4
G1, Blue)
2 x 288-pin DDR4 DIMM Slots (DDR4_H2, DDR4_
5
G2, White)
8
6 Front Fan Connector (FRONT_FAN1)
7 CPU 2 Fan Connector (CPU2_FAN1)
9
8 PCIE Switch Board Connector (CON30) (CPU2)*
9 LGA 2011 CPU Socket (CPU2)
10
10 PCIE Switch Board Connector (CON31) (CPU2)*
11 PCIE Switch Board Connector (CON28) (CPU1)*
12 LGA 2011 CPU Socket (CPU1)
13 PCIE Switch Board Connector (CON29)(CPU1)*
14 CPU 1 Fan Connector (CPU1_FAN1)
11
15 Front Fan Connector (FRONT_FAN2)
16 CPU PECI Jumper (PECI1)
2 x 288-pin DDR4 DIMM Slots (DDR4_A2, DDR4_
17
B2, White)
12
2 x 288-pin DDR4 DIMM Slots (DDR4_A1, DDR4_
18
B1, Blue)
13
19 SATA3 Connector (M_SATA_1), White
14
15 20 System Panel Header (PANEL1)
21 Auxiliary Panel Header (AUX_PANEL1)
22 Speaker Header (SPEAKER1)
23 TPM Header (TPM1)
Front Lan LED Connector (FRNT_LAN34)(For Mez-
24
zanine Card)
25 ME Recovery Jumper (ME_RECOVERY1)
26 Non Maskable Interrupt Button (NMI_BTN1)
27 SATA3 Connector (M_SATA_0), White
28 SATA3 Connector (SATA5), White
29 SATA3 Connector (SATA4), White
30 Vertical Type A USB 3.0 (USB3_5)
31 USB 2.0 Header (USB_3_4)
32 mini SAS Connector (SATA0-3)
33 mini SAS Connector (sSATA0-3)
*For EP2C612D16FM only
