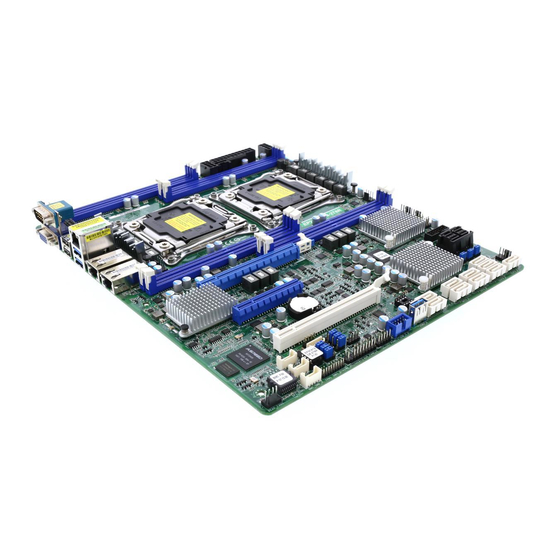

ASROCK Rack EP2C612D8 Quick Installation Manual

*15G065024100AK*
P/N: 15G065024100AK V1.0
Quick Installation Guide
EP2C612D8 / EP2C612D8-8R / EP2C612D8-2T8R
The server board User's Manual is available for download from the ASRock Rack's official website
at http://www.asrockrack.com.
Take note of the following precautions before you install server board components or change any
server board settings.
1. Unplug the power cord from the wall socket before touching any components.
2. To avoid damaging the server board's components due to static electricity, NEVER place your
server board directly on the carpet or the like. Also remember to use a grounded wrist strap or
touch a safety grounded object before you handle the components.
3. Hold components by the edges and do not touch the ICs.
4. Whenever you uninstall any component, place it on a grounded anti-static pad or in the bag
that comes with the component.
5. When placing screws into the screw holes to secure the server board to the chassis, please do
not over-tighten the screws! Doing so may damage the server board.

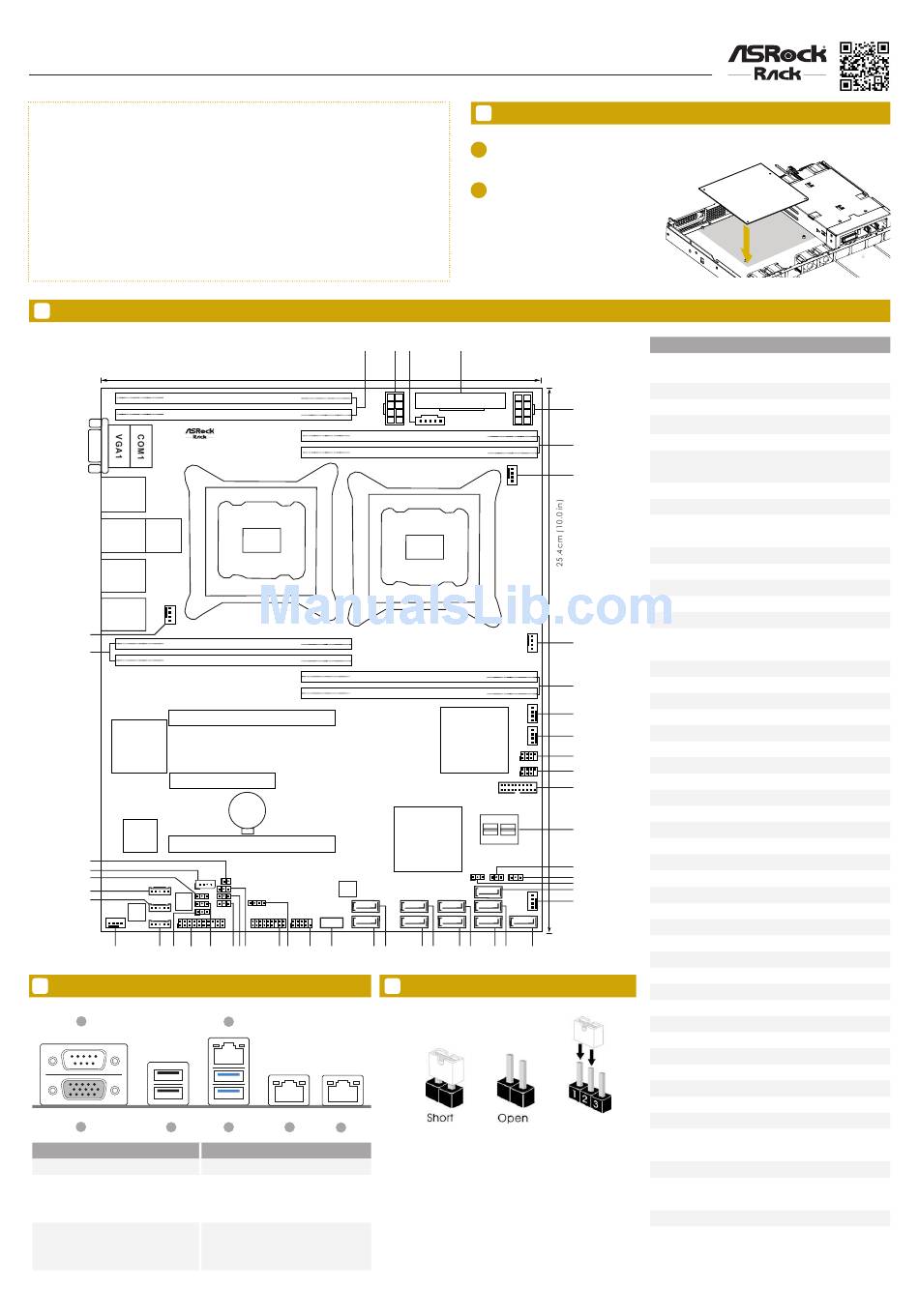

2 Motherboard Layout
DDR4_H (64 bit, 288-pin module)
DDR4_G (64 bit, 288-pin module)
USB 2.0
T: USB_2
B: USB_1
USB 3.0
Top:
T: USB3_2
IMPI_LAN
B: USB3_1
LAN1
(NCSI)
CPU2_FAN
LAN2
48
DDR4_E (64 bit, 288-pin module)
47
DDR4_F (64 bit, 288-pin module)
Note:
Intel
EP2C612D8-2T8R:
X540
EP2C612D8 / EP2C612D8-8R:
(See Note)
PCIE4
BMC
AST2400
46
45
44 IPMB_1
BMC_SMB_1
1
43
PMBUS_CLK_SEL
42 64Mb
1
BMC_SMB_2
BIOS
1
PMBUS_DATA_SEL
BMC
1
REAR_FAN1 ROM
PMBUS_ALT_SEL
BMC_SMB_3
1
TPM1
41 40 39 38
3 I/O Panel
1
2 3
No. Description
1 Serial Port (COM1)
2 VGA Port (VGA1)
3 USB 2.0 Ports (USB_1-2)
4 LAN RJ-45 Port (IPMI_LAN)
1
24.4cm (9.6 in)
CPU2
RoHS
DDR4_C (64 bit, 288-pin module)
DDR4_D (64 bit, 288-pin module)
PCIE6
(Blue, from CPU1)
Intel X540
Intel I350
(Blue, from CPU1)
CMOS
Battery
PCIE2
(White, from CPU2)
NMI_BTN1
1
ME_RECOVERY1
64Mb
BIOS
1
PECI_SEL1
SPEAKER1 SATA_5
1
J100
1
1
USB3_5
1 1
AUX_PANEL1 PANEL1 SATA_4
37 36 35 34 33 32 31 30 29
4
5
6 7
No. Description
5 USB 3.0 Ports (USB3_1-2)
EP2C612D8 / EP2C612D8-8R:
1G LAN RJ-45 Port (LAN1)
6
EP2C612D8-2T8R:
10G LAN RJ-45 Port (LAN1)
EP2C612D8 / EP2C612D8-8R:
1G LAN RJ-45 Port (LAN2)
7
EP2C612D8-2T8R:
10G LAN RJ-45 Port (LAN2)
1 Install the Server Board
1
Insert the server board into the chassis.
2
A f f i x t he screws clock w ise into t he
mounting holes in all of the corners of
the server board.
Do not over-tighten the screws
2 3 4
ATXPWR1
1
ATX12V3 PSU_SMB1 ATX12V2
DDR4_B (64 bit, 288-pin module)
DDR4_A (64 bit, 288-pin module)
FRNT_FAN3
CPU1
EP2C612D8-2T8R
CPU1_FAN
FRNT_FAN4
LSI
3008
FRNT_FAN2
1
SATA_SGPIO1
1
SATA_SGPIO2
USB3_2_3
LSI_SAS_0_7
Intel
C612
CHASSIS_ID0_1 CHASSIS_ID0_2
1 1 1 CHASSIS_ID0_3
SCU_1
SATA_3 SATA_1
SCU_2
FRNT_FAN1
SATA_2 SATA_0 SCU_0
SCU_3
29 28 27 25 24 23 22 21
4 Jumper Cap On/Off
When the jumper cap is placed on the pins, the
jumper is "Short". If no jumper cap is placed on the
pins, the jumper is "Open".
The illustration shows a 3-pin jumper whose pin1
and pin2 are "Short" when a jumper cap is placed on
these 2 pins.
www.asrockrack.com
No. Description
2 x 288-pin DDR4 DIMM Slots
1
(DDR4_G, DDR4_H, Blue)
2 ATX 12V Power Connector (ATX12V3)
3 PSU SMBus (PSU_SMB1)
5
4 ATX Power Connector (ATXPWR1)
5 ATX 12V Power Connector (ATX12V2)
6
2 x 288-pin DDR4 DIMM Slots
6
(DDR4_A, DDR4_B, Blue)
7
7 Front Fan Connector (FRONT_FAN3)
8 CPU1 Fan Connector (CPU1_FAN)
2 x 288-pin DDR4 DIMM Slots
9
(DDR4_C, DDR4_D, Blue)
10 Front Fan Connector (FRONT_FAN4)
11 Front Fan Connector (FRONT_FAN2)
12 SATA SGPIO Connector (SATA_SGPIO1)
13 SATA SGPIO Connector (SATA_SGPIO2)
14 USB 3.0 Header (USB3_2_3)
Mini SAS HD Connector (LSI_SAS_0_7)*
15
8
*For EP2C612D8-8R / EP2C612D8-2T8R only
16 Chassis ID2 Jumper (Chassis_ ID0_2)
17 Chassis ID3 Jumper (Chassis_ ID0_3)
9
18 Chassis ID1 Jumper (Chassis_ ID0_1)
10
19 SCU Connector (SCU_1), White
20 Front Fan Connector (FRONT_FAN1)
11
21 SCU Connector (SCU_0), White
12
22 SCU Connector (SCU_2), White
13
23 SCU Connector (SCU_3), White
14
24 SATA3 Connector (SATA_1), White
25 SATA3 Connector (SATA_0), White
26 SATA3 Connector (SATA_3), White
15
27 SATA3 Connector (SATA_2), White
28 SATA3 Connector (SATA_5), White
16
17 29 SATA3 Connector (SATA_4), White
18
19
30 Vertical Type A USB 3.0 (USB3_5)
20
31 System Panel Header (PANEL1)
32 Speaker Header (SPEAKER1)
33 Auxiliary Panel Header (AUX_PANEL1)
34 ME Recovery Jumper (ME_RECOVERY1)
35 CPU PECI Mode Jumper (PECI_SEL1)
36 Descriptor Security Override Jumper (J100)
37 PMBUS Mode Jumper (PMBUS_SEL_DAT1)
38 TPM Header (TPM1)
39 PMBUS Mode Jumper (PMBUS_SEL_ALT1)
40 BMC SMBus Header (BMC_SMB_3)
41 Rear Fan Connector (REAR_FAN1)
42 BMC SMBus Header (BMC_SMB_2)
43 BMC SMBus Header (BMC_SMB_1)
44 PMBUS Mode Jumper (PMBUS_SEL_CLK1)
Intelligent Platform Management Bus Header
45
(IPMB_1)
46 Non Maskable Interrupt Button (NMI_BTN1)
2 x 288-pin DDR4 DIMM Slots
47
(DDR4_E, DDR4_F, Blue)
48 CPU 2 Fan Connector (CPU2_FAN)
