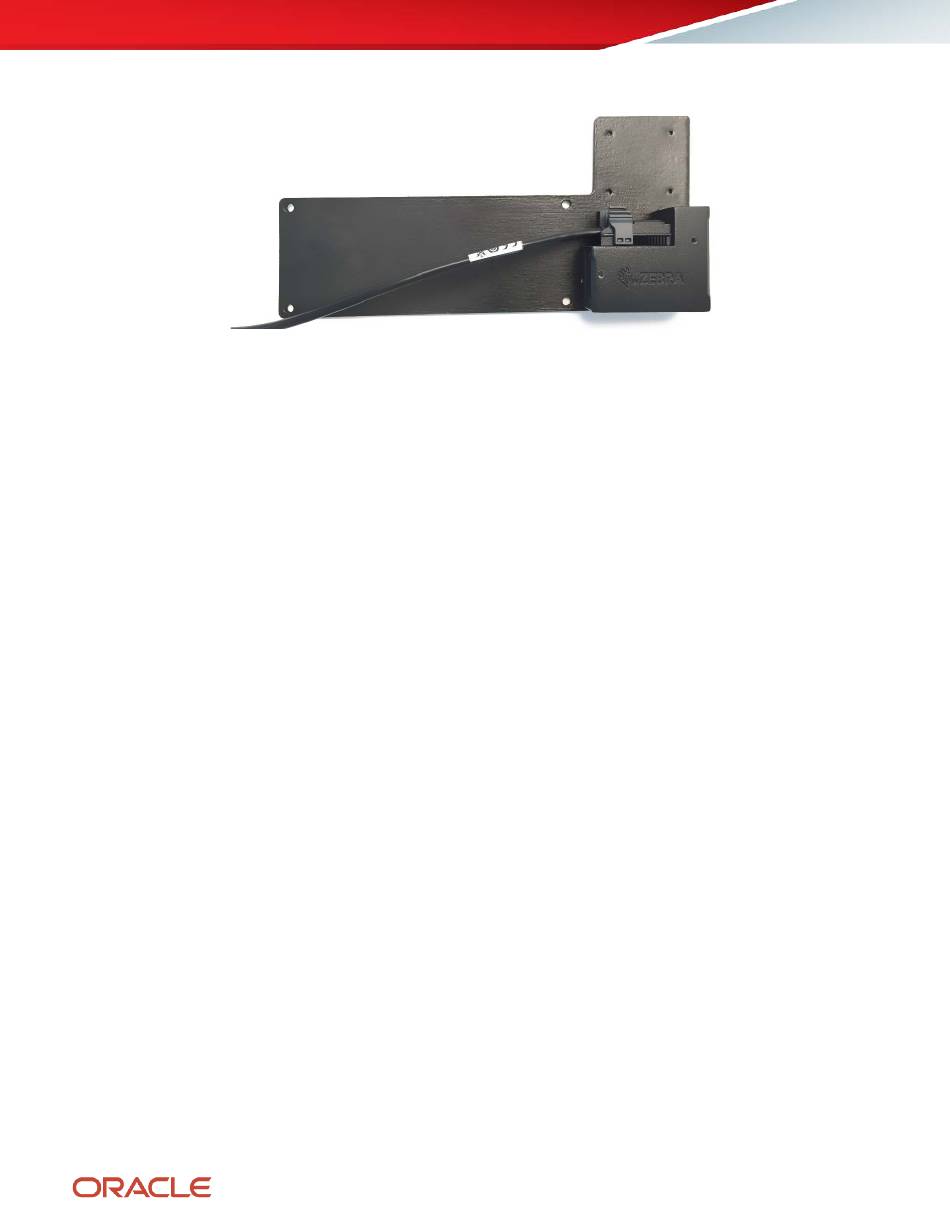

Example of the scanner/L-bracket assembly.
d.
Insert the scanner/L-bracket assembly between the floor head assembly and the display bracket, and then align
the top L-bracket mounting holes with the lower mounting holes on the display bracket. Secure the scanner/L-
bracket assembly with two M4 screws.
7
