Oracle MICROS 110 Assembly page 10

When using the scanner with the Express Station 4 Series in portrait orientation:
f. Install the scanner on the short extension of the L-bracket by placing the scanner logo-side down and
positioning the L-bracket over the mounting holes on the scanner. Secure the scanner with two M3 screws from
Box 5.

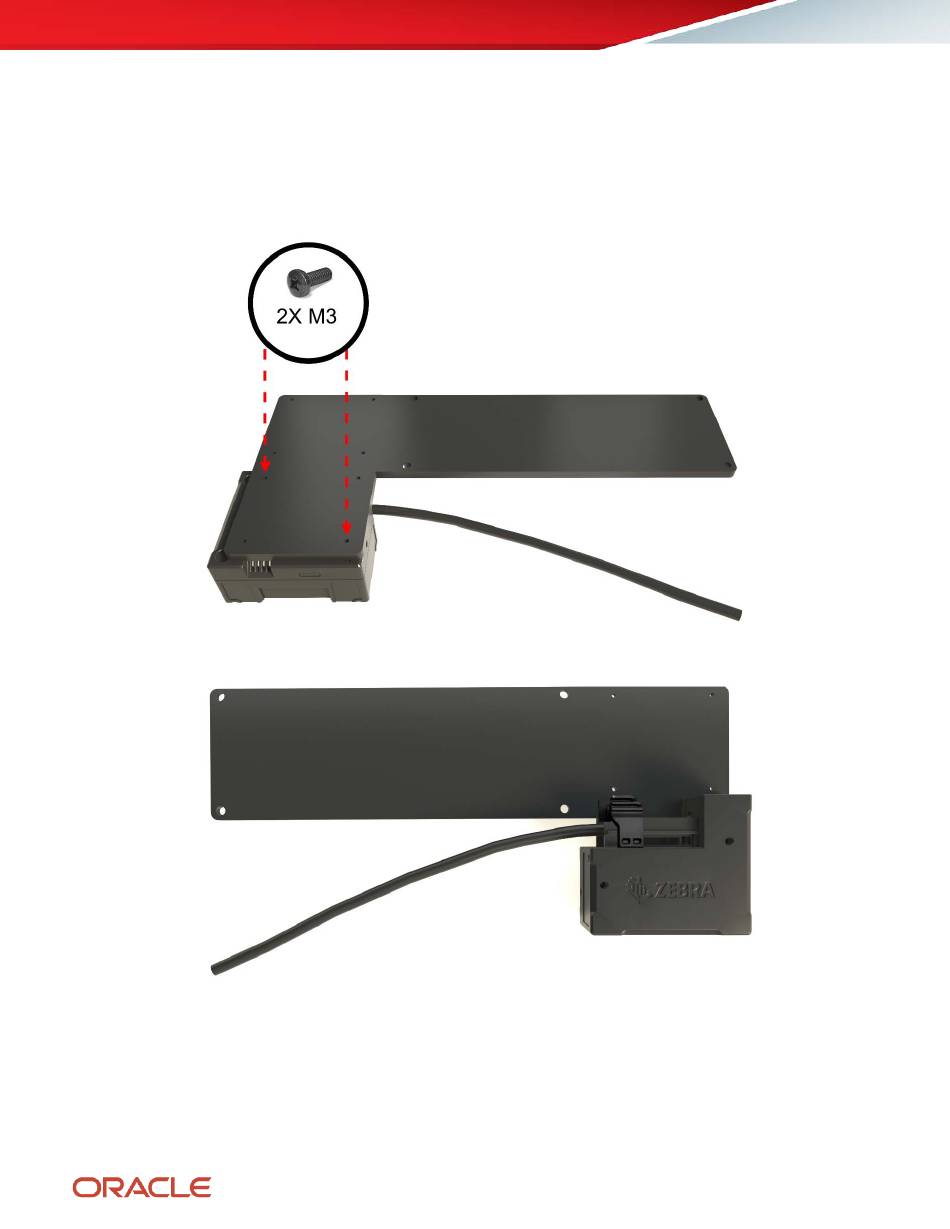

Installing the M3 screws to secure the scanner to the L-bracket (Express Station 4 Series portrait configuration)
Example of the scanner/L-bracket assembly (Express Station 4 Series portrait configuration)
g. Align the top L-bracket mounting holes with the bottom mounting holes on the display bracket. Secure the
scanner/L-bracket assembly with two M4 screws. Refer to the following image for more information.
10
